Technical Overview

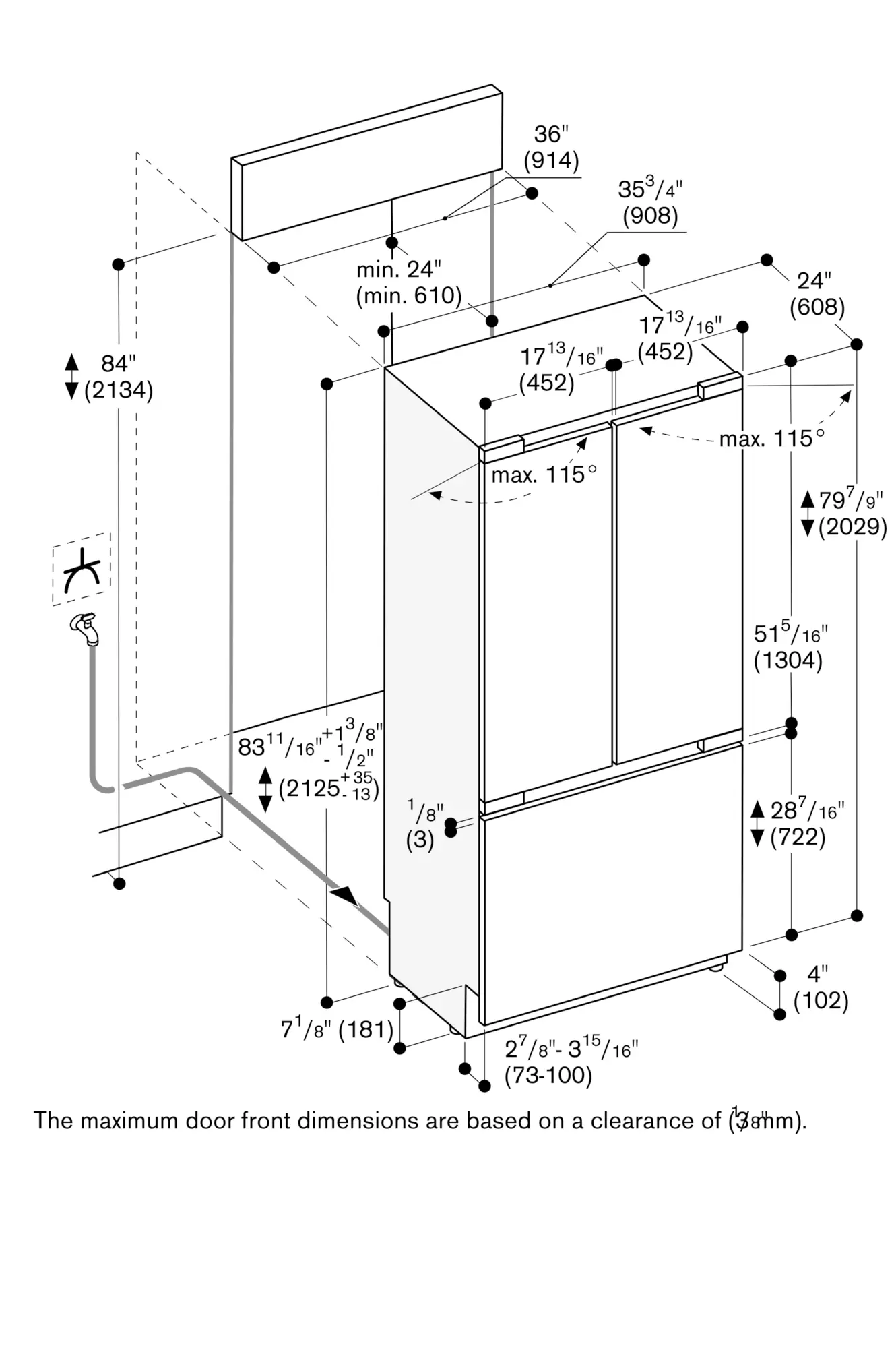

Overall Appliance Dimensions (HxWxD) (in)
83 3/4 " x 35 3/4'' x 24"
Dimensions (HxWxD)
2125x908x608 mm
Required Cutout Size (HxWxD) (in)
84" x 36" x 24 3/4"
Required cutout size (HxWxD)
2134.0 x 914.0 x 610 mm
Specifications
Stainless steel interior with solid anthracite aluminium elements
Warm white and glare-free LED light spots
Opening assist for door with two options:
1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
Flat stainless steel inner doors
Almost invisible rail system for shelves and door racks for flexible positioning
Solid anthracite aluminium door racks
1 fresh cooling drawer 32 °F with temperature control from 32° F to 37 °F and one fresh cooling drawer with manually adjustable humidity
Integrated ice maker with fixed inlet water connection
1 asymmetrically split glass shelf, height adjustable
Fully extendable freezer drawer with practical divider in anthracite
TFT touch display
Net volume 550 litres
TFT touch display operation.
Clear text display in 44 languages.
Dynamic cold air distribution with Multi-Flow Air System.
Automatic defrosting with defrost water evaporation.
Cushioned door closing system.
Activated charcoal air filter.
Sabbath mode certified by Star-K.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction warning system.
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
No-Frost technology with fast cooling.
Temperature adjustable from +2 °C to +8 °C.
1 asymmetrically split safety glass shelf, with manual height adjustment.
Flat door rail system with fully flexible positioning of door racks.
6 height-adjustable door racks, 2 of which are extra deep.
Net volume 393 litres.
1 fully extendable fresh cooling drawer close to 0 °C with transparent front, illuminated.
Cushioned closing system.
Temperature can be adjusted manually.
Ideal for meat, fish and poultry.
Net volume 0 litres.
1 fully extendable fresh cooling drawer with transparent front, illuminated.
Cushioned closing system.
Humidity can be adjusted manually.
Ideal for fruit and vegetables.
No-frost technology with fast freezing at -30 °C.
Temperature adjustable from -24 °C to -14 °C.
4-star freezer compartment.
Freezing capacity 7.7 kg/24 h.
2 fully extendable inside drawers.
Interior lighting with 2 LED light spots, warm white light.
Net volume 157 litres.
Integrated automatic ice maker in the freezer compartment, with fixed water connection.
Particle filter for water inlet, integrated in ventilation grille area.
Saturation indicator shown in TFT touch display.
Ice maker can be switched off independently.
Ice cube production approx. 1.3 kg/24 h.
Removable ice storage container with approx. 3 kg capacity.
Energy consumption 579 kWh/year.
Noise level 42 dB (re 1 pW).
Flat hinge.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight:
Each door 147 lbs (67 kg). Drawer 22 lbs. (10 kg).
Shut-off valve for water connection must be planned next to the appliance and always be accessible.
If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.
Total rating 1.079 kWh/24h.
Total Amps: 10 A.
Connecting cable 118" (3.0 m), detachable.
Cold water connection required.
Electrical location 6'' above ground in lower left corner of unit.
Supply hose 1.2 m with 1/4'' male compression fitting (standard icemaker connector).
Water pressure 2 to 8 bar.
