Technical Overview

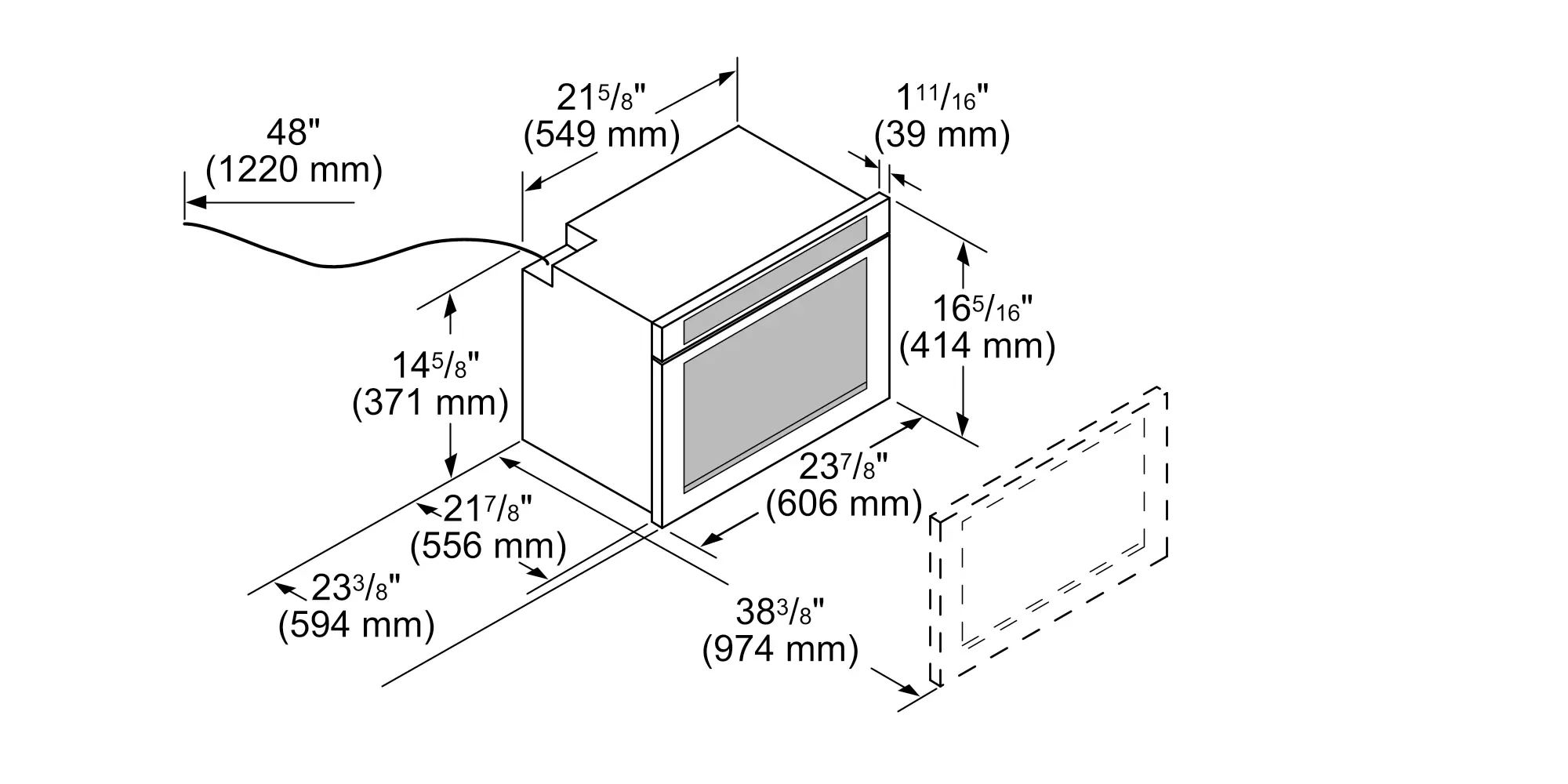

Overall Appliance Dimensions (HxWxD) (in)
16 5/16'' x 23 7/8'' x 23 3/8''
Dimensions (HxWxD)
414x606x594 mm
Required Cutout Size (HxWxD) (in)
14 13/16'' x 22 1/8'' x 23 1/2''
Special Features
Built-in microwave drawer, perfect for kitchen islands, under counter and wall applications
Flush installation
Handleless door / automatic door opening
Sensor cooking mode for easy cooking.
950 W microwave power
Specifications
Built-in microwave drawer, perfect for kitchen islands, under counter and wall applications
Flush installation
Handleless door / automatic door opening
Sensor cooking mode for easy cooking.
950 W microwave power
Net volume 1.2 cu. ft. (34l)
10 programmes including melt, soften and keep warm.
Quick defrost program.
Sensor reheat program. Popcorn sensor cooking. Kitchen timer.
Maximum microwave output power 950 W.
One touch control panel and an interactive visual display.
Glass touch control panel and an interactive visual display.
Digital display with scrolling text.
Interior capacity accommodates 9" x 13" pans and cups up to 7" in height or 20 oz.
Open interior dimensions:
Width 17 5/16'' x Height 7 1/8'' x Depth 16 9/16''
Adjustable cooking time up to 99 minutes and 99 seconds.
Keep warm setting allows food to be kept warm for up to 99 minutes.
Sensor cooking mode controls humidity and automatically adjusts cooking level and cooking time for various foods and quantities.
Control panel lock.

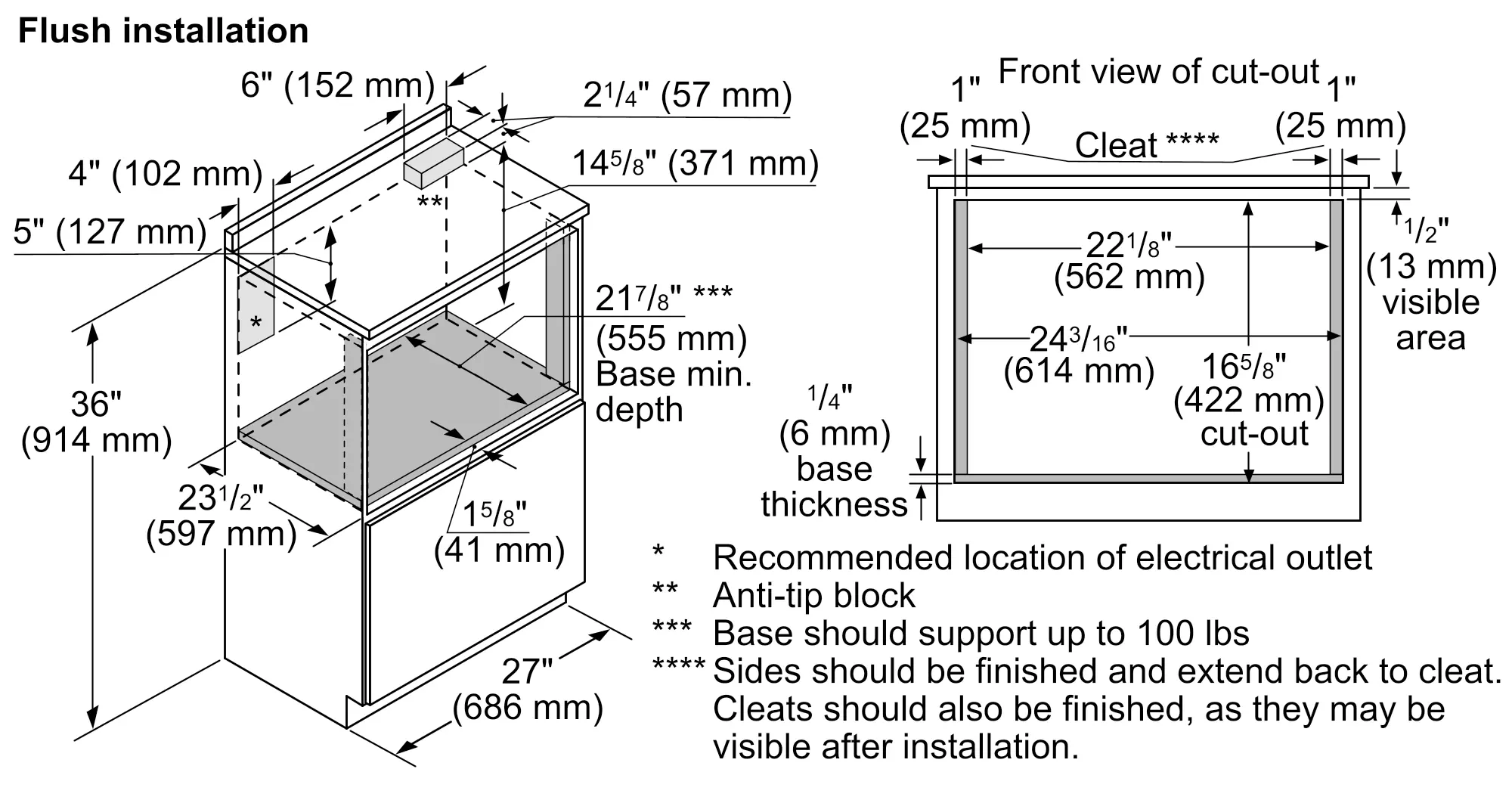

The built-in microwave drawer can be installed using a standard or flush installation.
Cabinet base support requirements: 100 pounds. Microwave drawer can be installed below a cooktop but requires a clearance of at least 2".
Appliance dimensions:
Width23 7/8'' x Heigth 16 5/16'' x Depth 23 3/8''
Total rating 1.5 KW.
Total Amps: 15 A
120 V / 60 Hz
Plan for 47 1/4'' connecting cable without plug (hardwire required)
