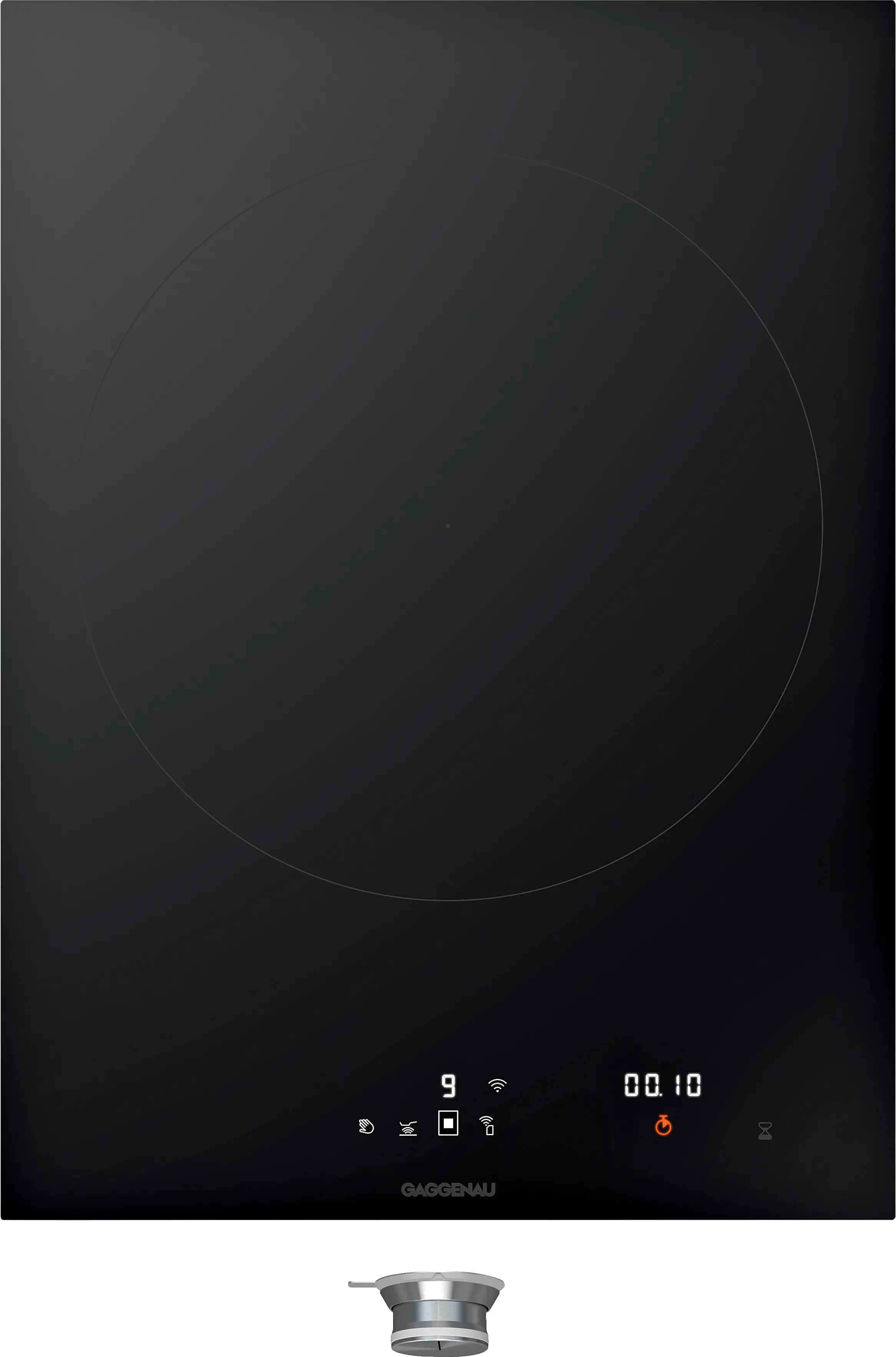

Vario induction cooktop 38 cm
Technical Overview
57 x 384 x 521 mm
Cooker top induction
1
Flush fitting
Highlights
Special Features
Solid stainless steel knob, also in black robust finishing, for precise control and personalisation
Additional information
32 cm cooking zone with booster function
Ideal for the original wok pan with round bottom, with wok ring
Frying sensor function for temperature control in pans
Easy control of all functions with two color displays
Solid stainless steel control knob
Frameless for flush installation
Can be combined perfectly with other Vario appliances of the 400 series
1 induction cooking zone ø 21 cm (2200 W, with booster 3700 W), automatically switches to ø 26 cm (2600 W, with booster 3700 W) and to ø 32 cm (3300 W, with booster 3700 W).
Control knobs with illuminated ring, cooking zone and output level markings.
Electronic power control in 12 stage (1…12).
User friendly control with two color display (white / orange).
Frying sensor function.
Booster function.
Stopwatch.
Short-term timer.
Options menu.
Power management.
Cooktop-based ventilation control (with suitable hood).
Integrated WiFi module for digital services
(Home Connect).
The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country – for further information please check: www.home-connect.com
Operation indicator.
Pot detection.
2 stage Hh residual heat indicator for each zone
Safety shut-off.
The drawing "Installation of the control knob" must be observed if the panel is more than 23 mm thick (there must be a recess at the rear).
The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
Installation is possible in worktops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the cut edges must be observed. Concerning other materials please consult the worktop manufacturer.
The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
The joint width may vary due to size tolerances of the combinations and of the worktop cut-out.
If installing several appliances in individual cut-outs allow for a division bar of minimum 50 mm between the individual cut-outs.
Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.
Appliance can be snapped into the worktop from above.
Appliance weight: approx. 9.
Total connected load 3.7 KW.
Connecting cable 1.5 m without plug.
Power consumption standby/display off 0.5 W.
Power consumption standby/network 1.4 W.
Please check the user manual for how to switch off the WiFi module.
