Remote fan unit
Check appliance compatibility
How to find your E-Number
The model number (E-number) is located on the type plate of your device.
Technical Overview
Hood
In-line blower
Special Features
Powerful remote fan unit to combine with motorless appliances
Efficient BLDC technology
Compact and space-saving installation in a 10 cm high plinth
Air output according to EN 61591 - max. 900 m³/h.
Sound power level depends on the built-in situation.
Additional information
Powerful remote fan unit to combine with motorless appliances
Efficient BLDC technology
Compact and space-saving installation in a 10 cm high plinth
Air output according to EN 61591 - max. 900 m³/h.
Sound power level depends on the built-in situation.
Power levels depend on the motorless appliances
3 electronically controlled power levels and one intensive mode.
Fan technology with highly efficient, brushless DC motor (BLDC).
Metal housing, zinc-plated.
Pipe connection pieces on intake side: 1 x NW 150 round.
Retaining bracket for installation on the ceiling or side of a cupboard enclosed.
2 activated charcoal filters enclosed ex factory.
Highly efficient odour reduction for cooking applications with complex odour molecules (e.g. fish and seafood).
Filter replacement interval: 1 year depending on cooking frequency.
Remote fan unit in combination with motorless appliances.
Connection to the respective appliances via network cable.

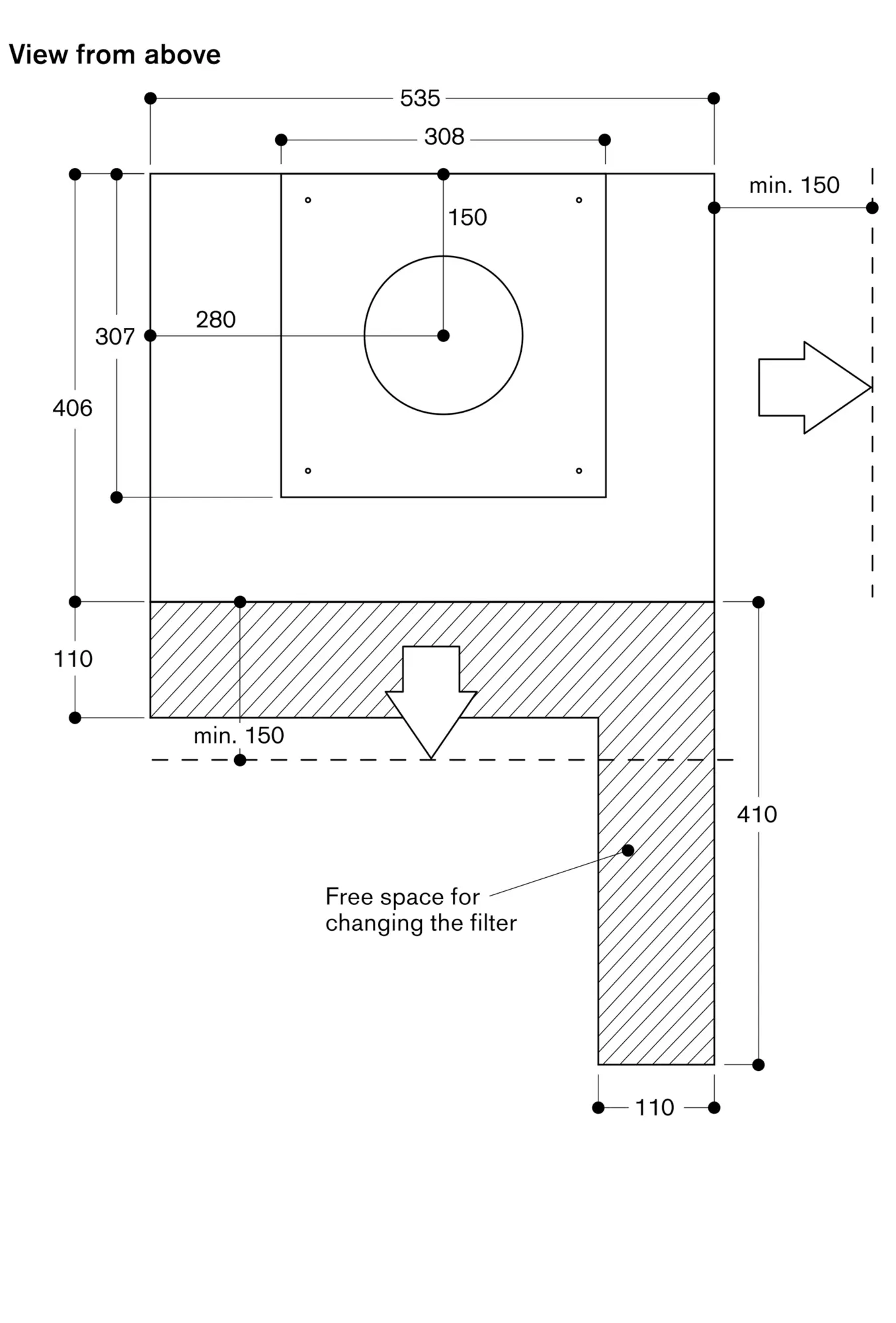

Installation in the plinth with cut-out for the air ducting in the furniture base.
Filter replacement interval: 1-1.5 years depending on cooking frequency.
It must be possible to remove the plinth to replace the filter. Recommended minimum gap between filter openings and cupboard wall if there is no ventilation grille directly in front: 15 cm.
For optimum performance in air recirculation we recommend an outflow surface area of at least 400 cm².
Total connected load 180 W.
Connecting cable 1.8 m, pluggable.
Network cable 2 m.
