Double oven
In a range from: A+++ to D
Technical Overview
1428x752x547 mm
Pyrolytic
30-300 °C
Defrost, Roaster function, Baking stone function, Full width grill, Dough proving setting, Hot Air-Eco, Hot Air, Hot air and 1/1 bottom heating, Hot air and 1/3 bottom heating, Half width grill, Top heat, Top heating, 1/3 bottom heat., Conventional heat, Bottom heat, Bottom heating, 1/3 top heat., Hot air grilling, warming
Defrost, Roaster function, Baking stone function, Full width grill, Dough proving setting, Hot Air-Eco, Hot Air, Hot air and 1/1 bottom heating, Hot air and 1/3 bottom heating, Half width grill, Top heat, Top heating, 1/3 bottom heat., Conventional heat, Bottom heat, Bottom heating, 1/3 top heat., Hot air grilling, warming
without plug (electrical connection by electrician), fixed connection
No
Highlights
Special Features
17 heating methods with core temperature probe, rotisserie spit and baking stone function
Pyrolitc cleaning programme heats up to 485 °C
Additional information
Pyrolytic system
17 heating methods, with core temperature probe, rotisserie spit and baking stone function
Core temperature probe with estimation of cooking time
TFT touch display
Electronic temperature control from 30 °C to 300 °C
Hot air.
Eco hot air. Top + bottom heat. Top + 1/3 bottom heat. Top heat. 1/3 top + bottom heat. Bottom heat. Hot air + bottom heat. Hot air + 1/3 bottom heat. Full surface grill + circulated air. Full surface grill. Compact grill. Baking stone function. Roaster function. Dough proofing. Defrosting. Keeping warm.
Rotary knob and TFT touch display operation.
Clear text display.
Information key with use indications.
Side-opening door opens up to 180° angle.
Three-point core temperature probe with automatic shut-off and estimation of cooking time.
Rotisserie spit (lower oven).
Baking stone socket.
Actual temperature display.
Rapid heating.
Timer functions: cooking time, cooking time end, timer, stopwatch, long-term timer (certified by Star-K).
60 W halogen light on the top.
2x10 W halogen light on the side.
Enamelled side shelf supports with 3 tray levels, pyrolysis-safe.
Thermally insulated door with quadruple glazing.
Child lock.
Safety shut-off.
Cooled housing with temperature protection.
Pyrolytic system.
Gaggenau enamel.
Heated air cleaning catalyser.
Door hinge not reversible.

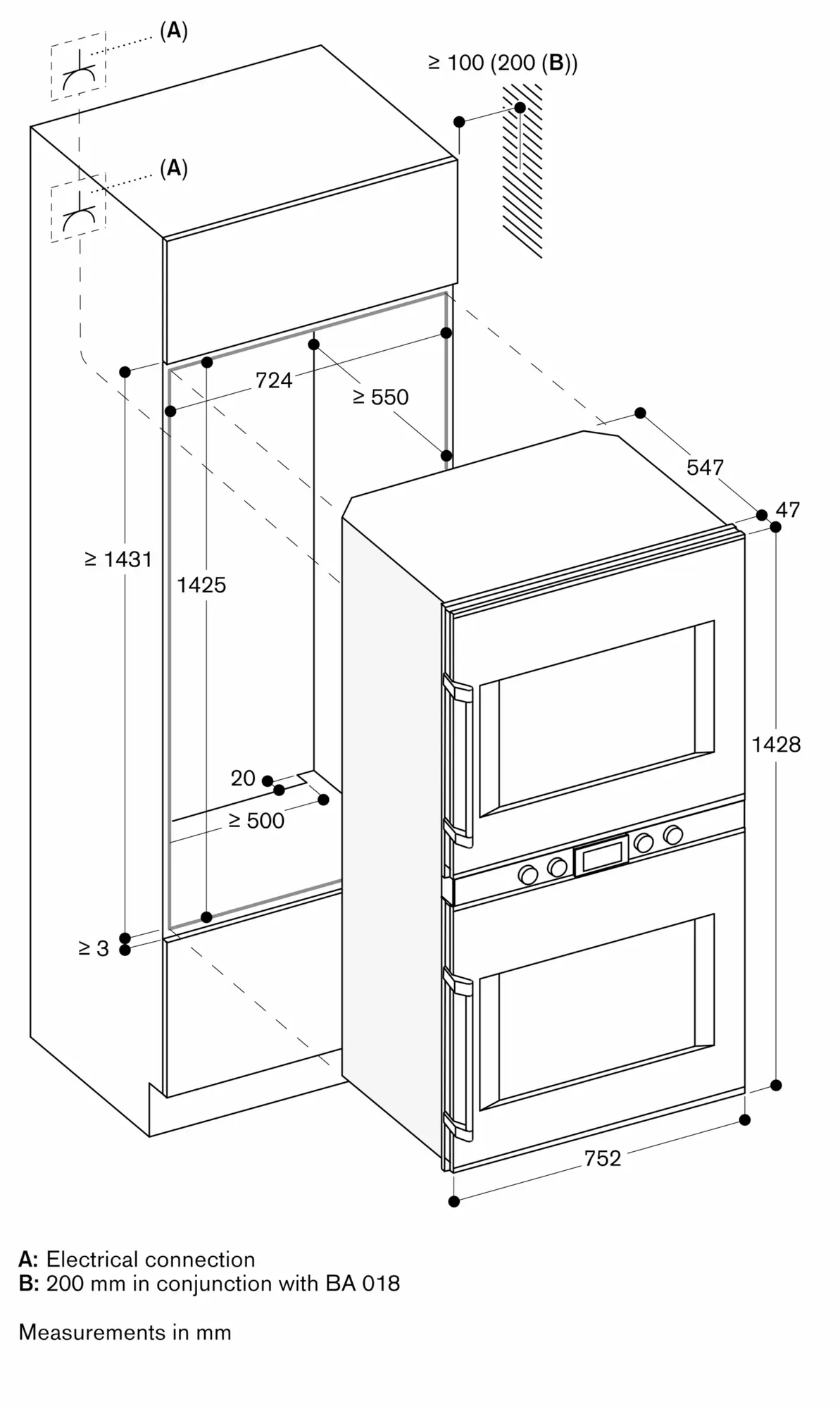

The façade of the appliance extends 47 mm from the furniture cavity.
Consider the overhang when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the side-opening door and the minimum required distance to the wall.
To achieve the 550 mm installation depth, the connection cable needs to follow the slanted edge on the lower right hand corner of the housing.
The main socket needs to be planned outside of the niche.
Energy efficiency class A at a range of energy efficiency classes from A+++ to D.
Total connected load 9.2 KW.
Plan a connection cable.
