400 series Fridge-freezer combination 212.3 x 89.4 cm soft close flat hinge
RVY497190

Replacement for
RY492305
Energy label D from G to AEU-Datasheet
Find a local Dealer

Technical Overview

Energy Efficiency Class Footnote 1: Scale of Energy Efficiency Classes from A to G
D
Automatic defrosting
no
Airborne acoustical noise emissions
39 dB(A) re 1pW
Freshness system
Freshness Plus
bigbox
No
Home Connect Footnote 2: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Airborne acoustical noise emission class
C

Highlights

Special Features

Discover a dark brushed stainless steel interior that turns surfaces into statements.
The light adapts to ambient conditions, display and drawer interactions, always presenting your finest food in the most captivating light.

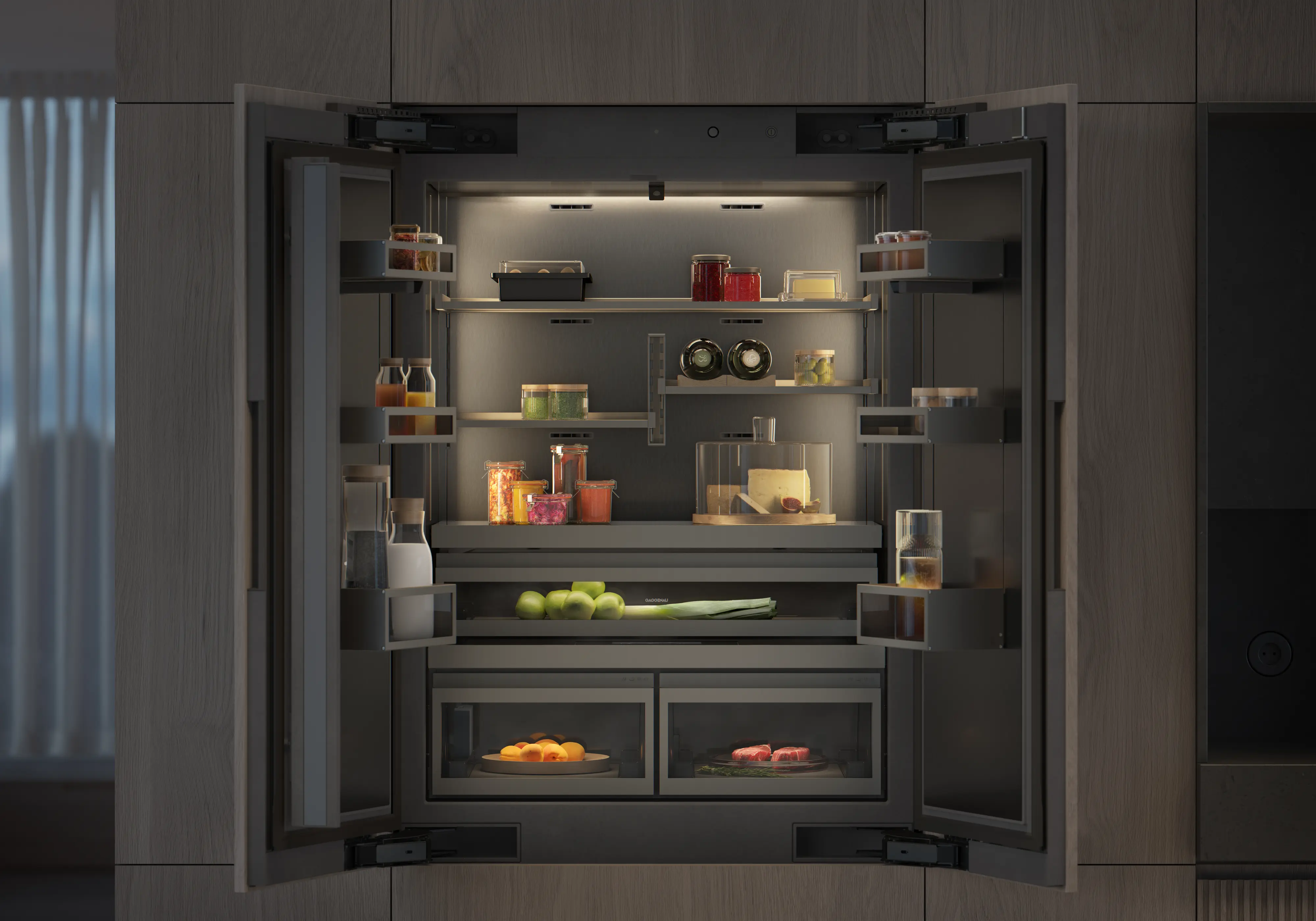

The spacious freezing compartment, including two interior drawers and an integrated ice maker, preserves your finest food, protecting it from freezer burn and oxidation.
Allow every ingredient to stay its freshest with one chilled drawer and up to two fresh climate drawers offering both manual temperature, humidity settings and dedicated cooling programmes for specific food types.
The intuitive display effortlessly guides you through a variety of capabilities, all while highlighting the specific compartment you've selected. Animations also facilitate any appliance maintenance tasks that might be needed.

Additional information

Dark brushed stainless steel interior, refined with solid anthracite aluminium elements
Warm white and glare-free LED light concept for optimal food presentation in all compartments
Opening assist for door enabling seamless integration without handles
Flat dark brushed stainless steel inner door
Flexible positioning of shelves and door racks through hidden rail system
Solid anthracite aluminium door racks
Professional freshness system with 2 fresh climate drawers and 1 chilled drawer
Integrated ice maker with fixed water connection

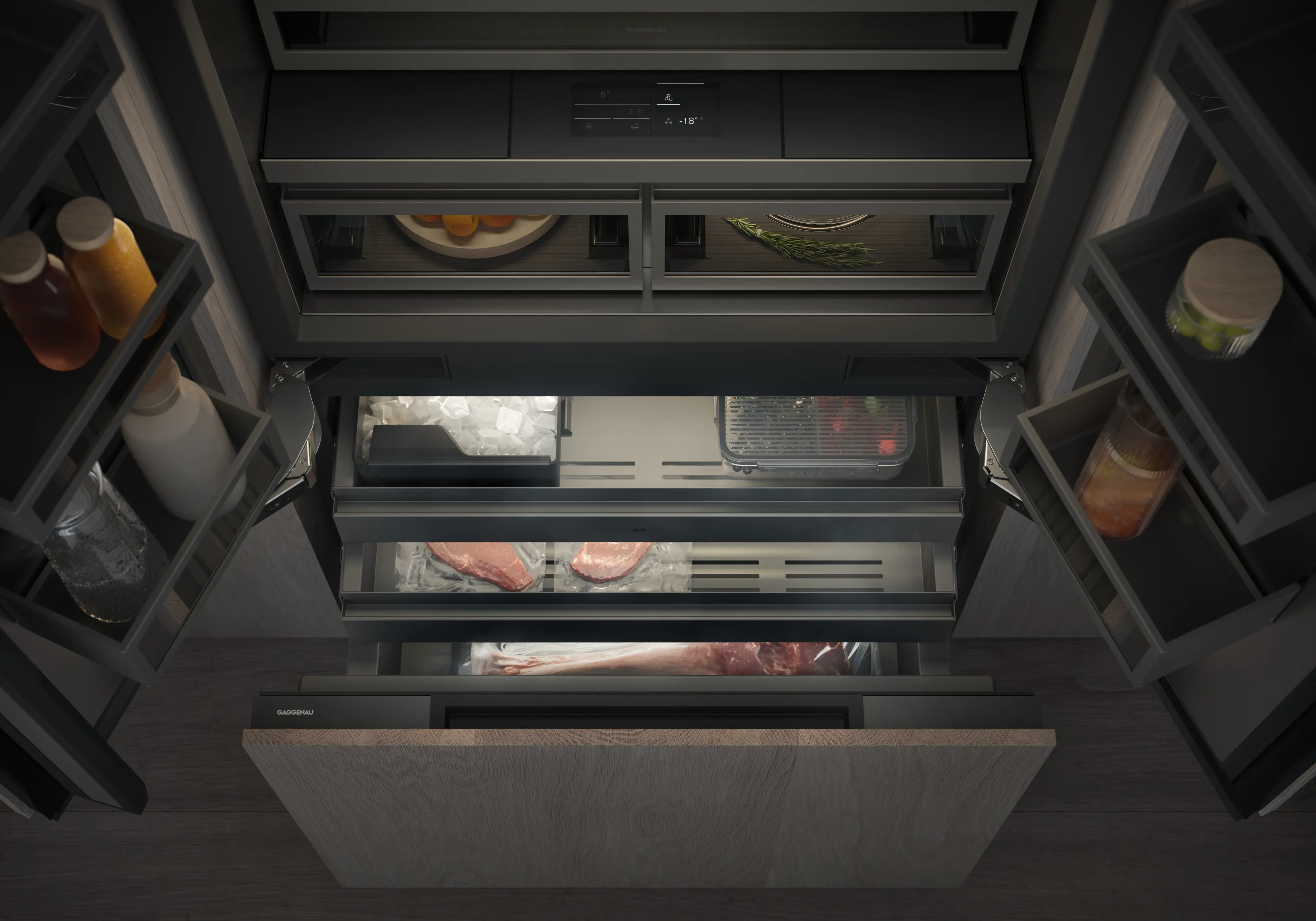

Spacious, fully extendable freezer compartment including 2 additional interior drawers
Full touch TFT display
Total volume 576 litres
Opening assist for door.
Cushioned door closing system.
Light and display response to drawer interaction.
Automatic brightness adjustment based on ambient illumination.
Easy accessible full touch TFT display.
Clear text display.
Animated quick guides to assist appliance operation.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Constant air purification by 2 activated charcoal air filters.
Rest mode certified by Star-K.
Open-door and malfunction alarm.

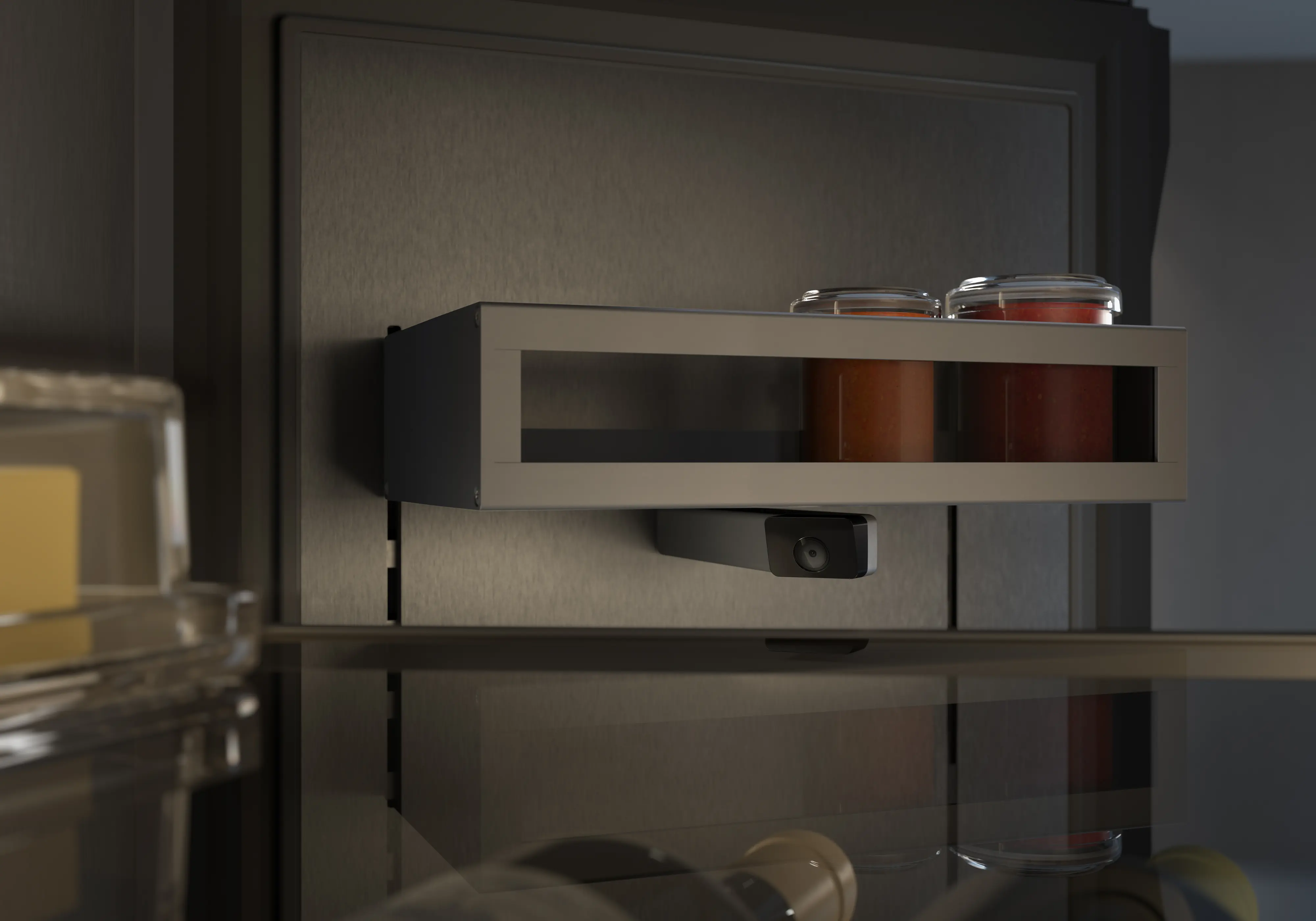

Storage management with cameras.
Automatic programme selection of fresh climate drawers (via object recognition).
Personalisation function for saving custom programmes.
Remote control and monitoring.
Professional freshness system.
No-frost technology with fast cooling.
Temperature adjustable from +2 °C to +8 °C.
3 aluminium-framed safety glass shelves, individually adjustable in height.
1 integrated safety glass shelf.
Optimal food presentation with warm white and glare-free, hidden LED light bars (3000 K).
Flexible positioning of door racks through hidden rail system.
6 door racks, thereof 4 height adjustable.
Total volume of all refrigerator compartments: 379 litres.

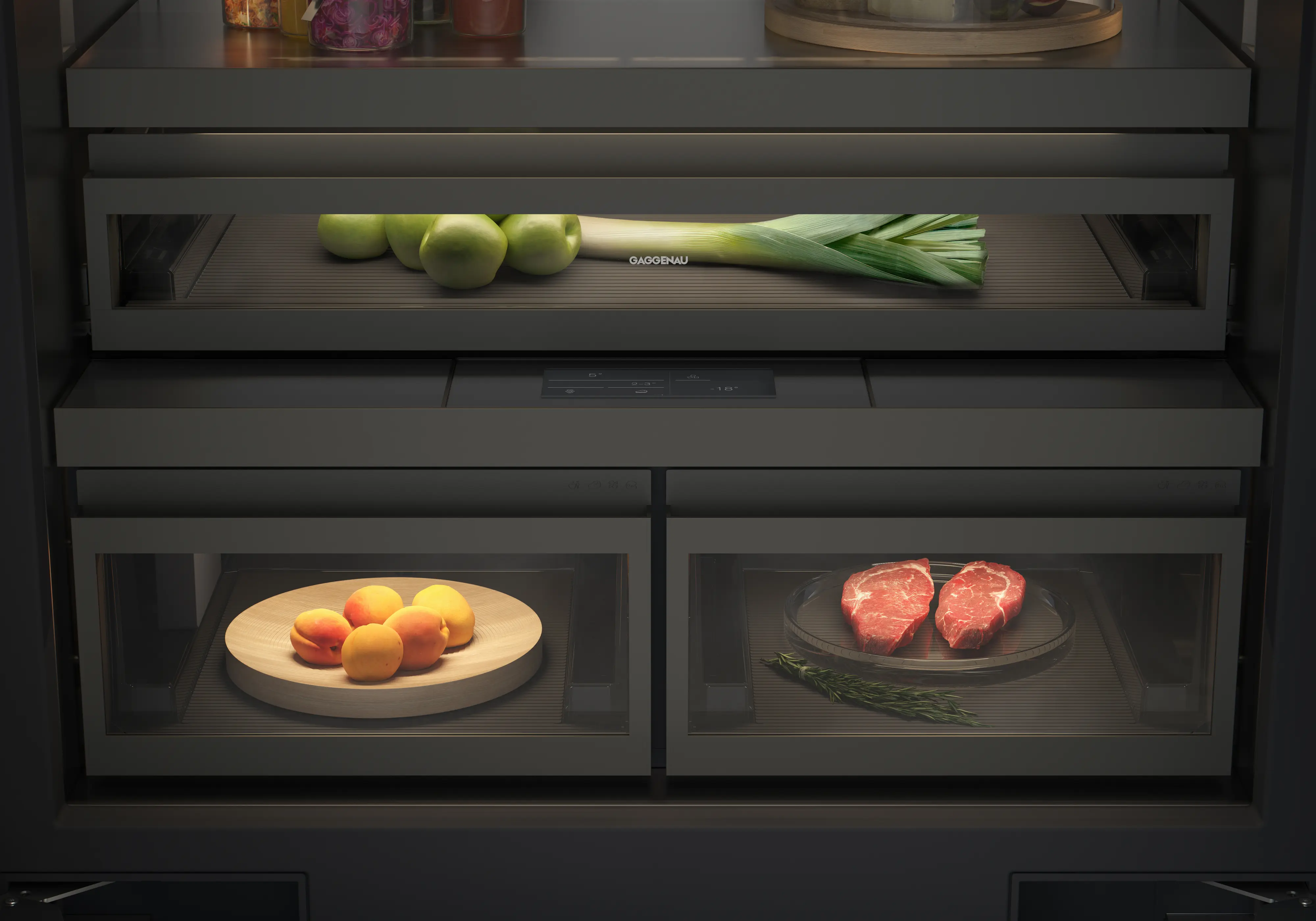

2 fresh climate drawers with humidity control.
Temperature adjustable from -1 °C to +2 °C.
Ideal storage conditions for different foods through dedicated programmes (e.g. Fruit, Vegetables, Meat).
Individual adjustment of temperature and humidity.
Extended food preservation with ethylene absorber.
Indirect illumination, transparent front.
Fully extendable, with cushioned closing system.
Temperature dependent on cooling compartment (always 2K to 3K lower).
Indirect illumination, transparent front.
Fully extendable, with cushioned closing system.
No-frost technology with fast freezing at -30 °C.
4-star freezer compartment.
Temperature adjustable from -16 °C to -24 °C.
Freezer burn protection.
Oxidation protection.
Freezing capacity 14 kg /24 h.
Storage time after a malfunction 19 h.
Spacious, fully extendable freezer compartment with synchronously running pull-out rails.
2 extendable interior drawers.
Warm-white, glare-free LED lighting (3000 K) within freezer compartment.
Volume 197 litres.
Integrated in the freezer compartment, with fixed inlet water connection.
Can be switched off.
Particle filter for water inlet, integrated in ventilation grille area.
Saturation indicator for filter via full touch TFT display
Ice cube production: approx. 3 kg /24 h.
Removable ice storage container with approx. 3 kg capacity.
Integrated, easy accessible ice cube scoop.
Energy efficiency class D at a range of energy efficiency classes from A to G.
Energy consumption 285 kWh/year.
Noise level 39 dB (A) re 1 pW.
Flat hinge.

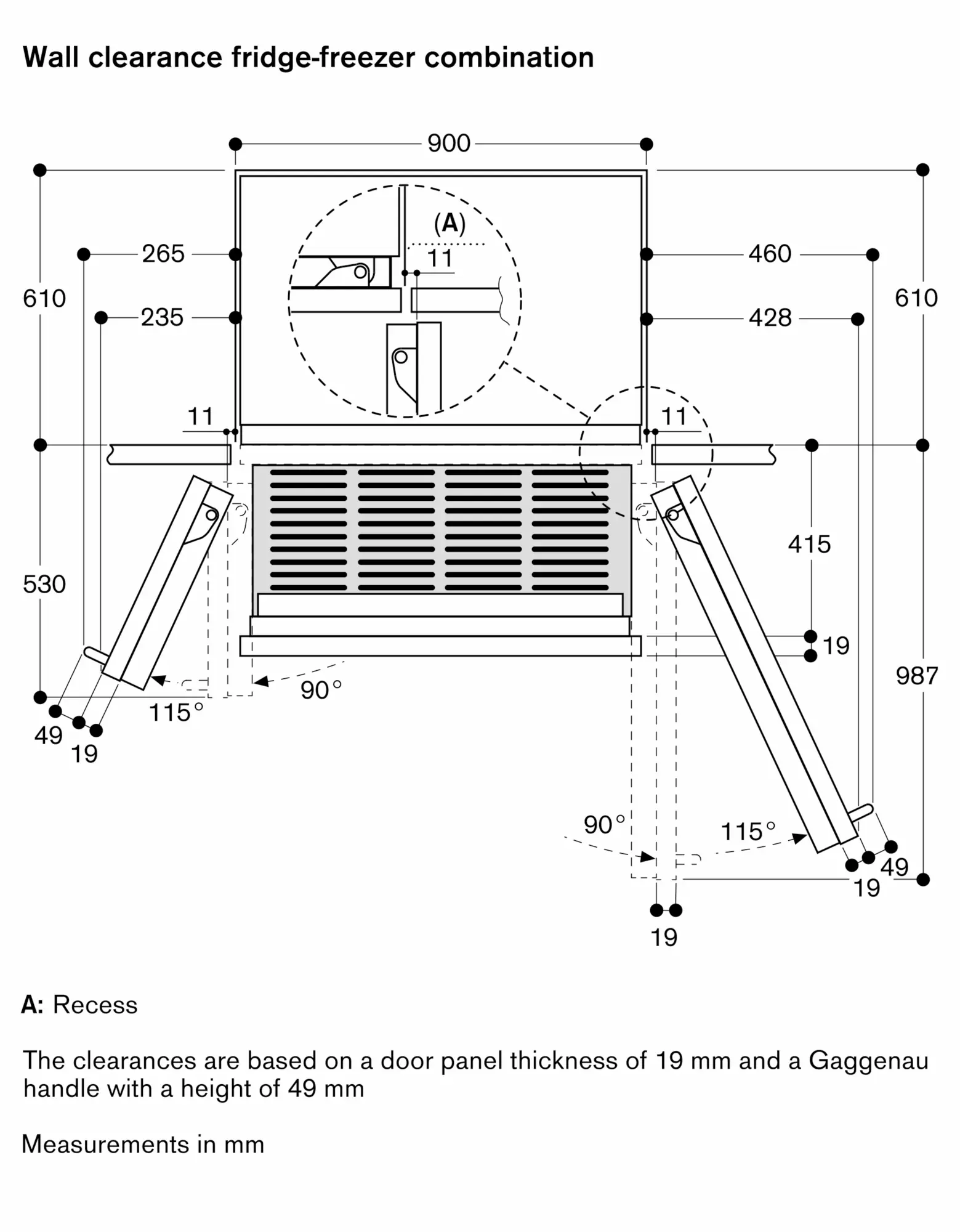

Door opening angle of 115°, fixable at 90°.

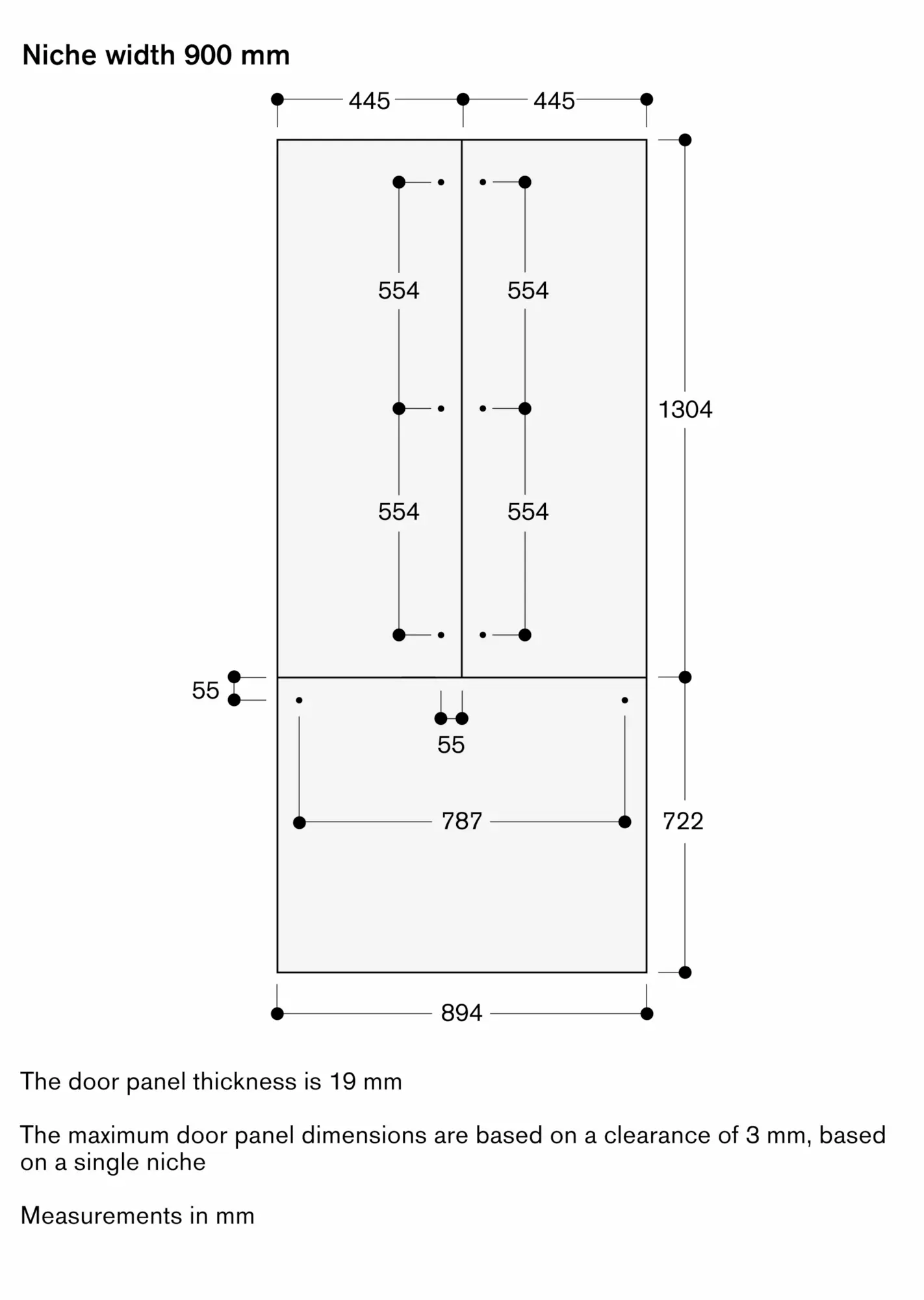

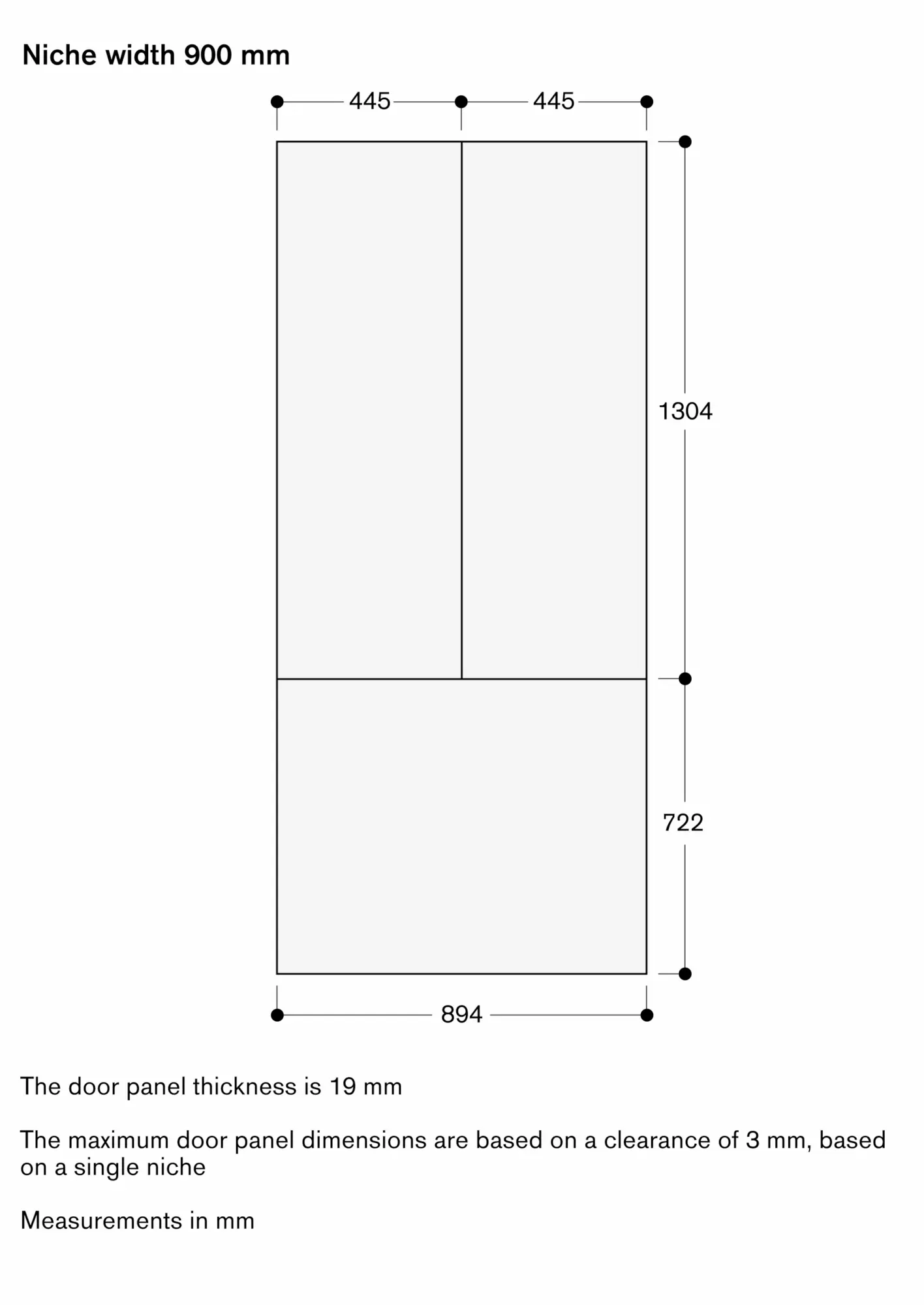

Max. door panel weight:
Each door 64 kg. Drawer 14 kg.
When rest mode is active, the appliance can only be opened using a handle.

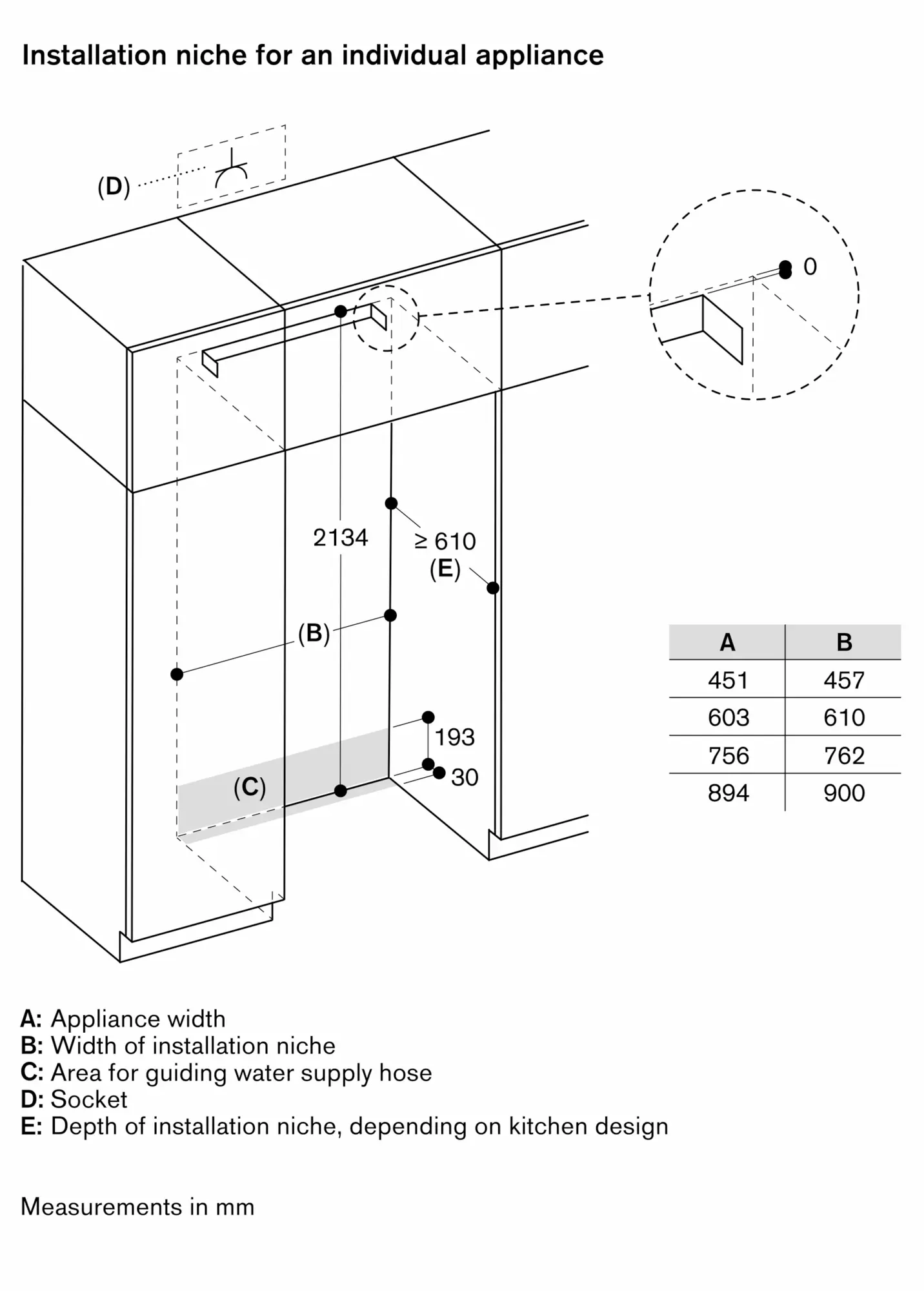

Shut-off valve for water connection must be planned next to the appliance and always be accessible.
If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.
Total connected load 0.200 KW.
Connecting cable 3.0 m, pluggable.
Water inlet.
Supply hose 2.8 m with 3/4" connection.
Water pressure 2 bar to 8 bar.
