200 series Built-in wine cooler 121.8 x 55.7 cm
RW222263

1 / 5
Photo Nr. 1 of the product RW222263
Photo Nr. 2 of the product RW222263
Photo Nr. 3 of the product RW222263
Photo Nr. 4 of the product RW222263
Photo Nr. 5 of the product RW222263
Photo thumb Nr. 1 of the product RW222263
Photo thumb Nr. 2 of the product RW222263
Photo thumb Nr. 3 of the product RW222263
Photo thumb Nr. 4 of the product RW222263
Photo thumb Nr. 5 of the product RW222263
Photo thumb Nr. 1 of the product RW222263
Photo thumb Nr. 2 of the product RW222263
Photo thumb Nr. 3 of the product RW222263
Photo thumb Nr. 4 of the product RW222263
Photo thumb Nr. 5 of the product RW222263

200 series Built-in wine cooler 121.8 x 55.7 cm
RW222263

Energy label G from G to A
Find a local Dealer

Technical Overview

Dimensions (HxWxD)
1218x557x553 mm
Energy Efficiency Class Footnote 1: Scale of Energy Efficiency Classes from A to G
G
Capacity in bottles (0.75l)
48
Airborne acoustical noise emissions
32 dB(A) re 1pW
Range of temperature
5-20 °C
LED light with presentation mode
Yes
Type of Glass Door
3 glass panels, UV-filter

Highlights

Special Features

Humidity level can be increased to avoid drying out of cork
Two independently controllable climate zones from 5° to 20°
Extendable bottle trays in beech and aluminium
Consistant temperatures with exact control from +5 °C to +20 °C

Additional information

Two independantly controllable climate zones
Consistant temperatures with exact control from +5 °C to +20 °C
Humidity control
Extendable bottle trays in beech and aluminium
Presentation light option
Low-vibration operation
Capacity 48 bottles
Electronic temperature control with digital display.
Touch keys.
Presentation light option in each climate zone, dimmable.
Interior LED lighting (3000 K) with automatic dimming with opening and closing of door.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Cushioned door closing system integrated in door hinge.
1 activated charcoal air filter for both climate zones.
UV-protection.
Open-door and malfunction alarm.
Child lock.

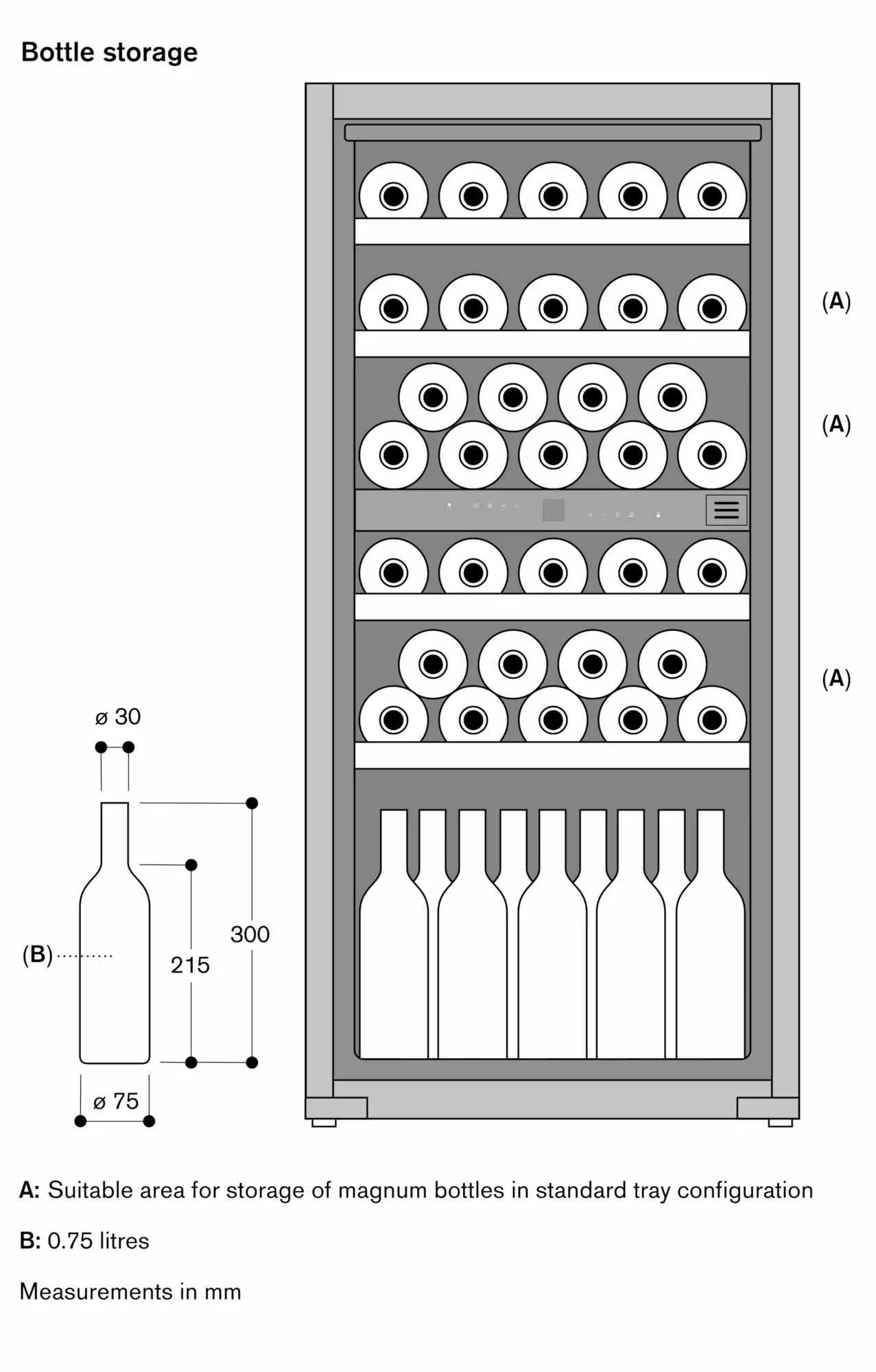

Capacity 48 bottles (based on 0.75 l standard bottles).
6 bottle trays, 4 of which are extendable.
Storage of magnum bottles possible.
LED lighting.
Total volume 159 litres.
Energy efficiency class G at a range of energy efficiency classes from A to G.
Energy consumption 151 kWh/year.
Noise level 32 dB (A) re 1 pW.
Flat hinge.
Door hinge right, reversible.
Height-adjustable feet.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight 20 kg.
Door panel thickness min. 16 mm/ max.22mm.
The main socket needs to be planned outside of the niche.

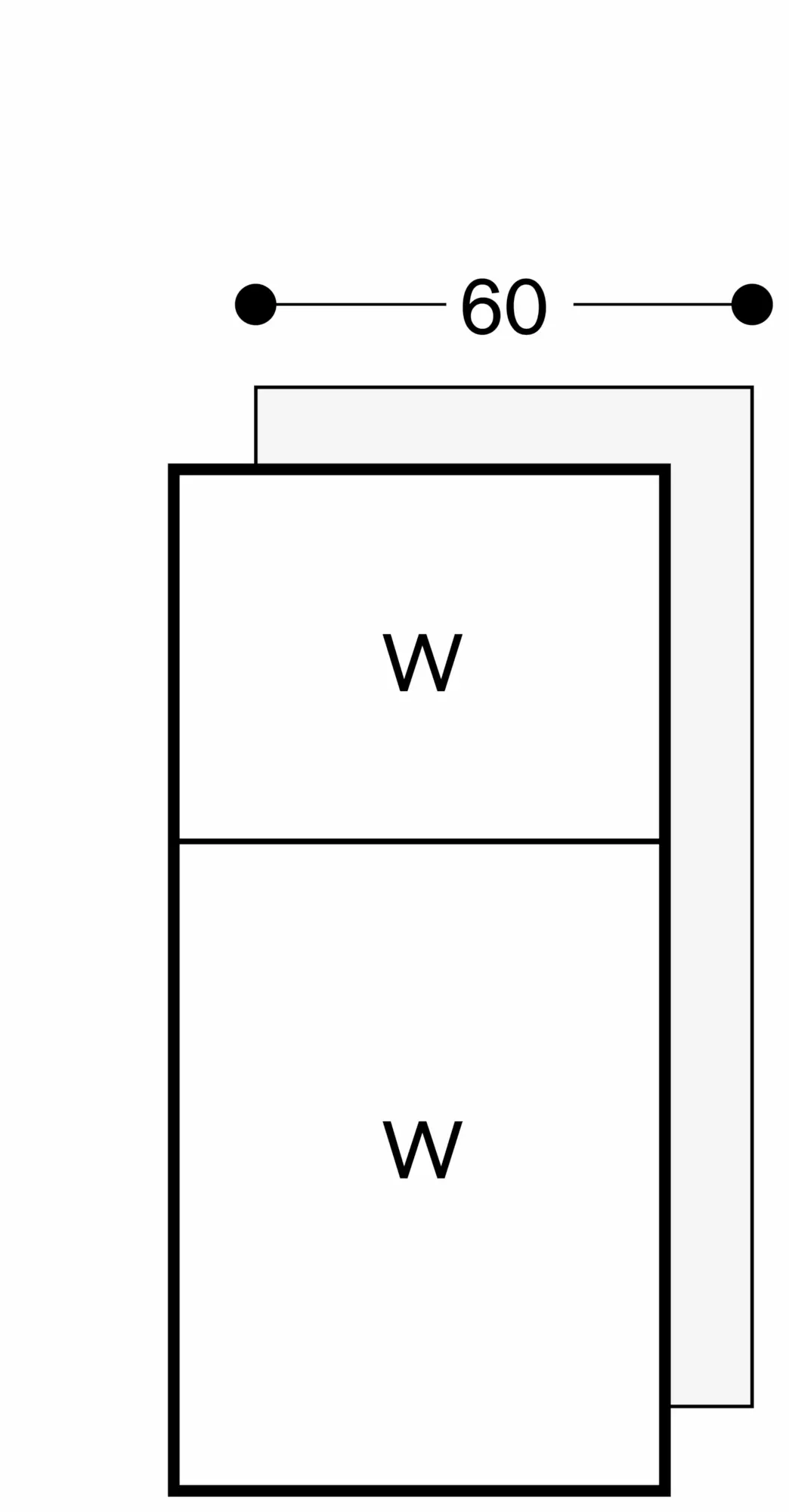

For a side-by-side installation every appliance must be planned in its own niche.
The wine climate cabinet can be combined with a second wine climate cabinet or a freezer (RF 287 or RF 282) only. If combining the wine climate cabinet with other cooling appliances (RC, RT, RB), a clearance of min. 150 mm is to be kept between the appliances to avoid condensation.
No transport/operation above 1.500 m sea level.
Total connected load 0.130 KW.
Connecting cable 2.0 m with plug.
