212.5 x 45.1 cm
Technical Overview
451 mm
G
70
42 dB(A) re 1pW
5-20 °C
D
Yes
Highlights
Special Features
Five preset lighting scenarios
Three independent climate zones from 5° to 20°
High-quality interior for optimum wine presentation
Humidity control
Additional information
Two independantly controllable climate zones
Consistant temperatures with exact control from +5 °C to +20 °C
Humidity control
Stainless steel interior
Fully extendable bottle trays in oak wood and solid aluminium in anthracite
Bottle trays with hidden telescopic rails
Warm white and glare-free LED light spots
5 preset lighting scenarios, selectable via TFT display
Opening assist for door with two options:
1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
Low-vibration operation
TFT touch display
Capacity 70 bottles
TFT touch display operation.
Clear text display.
Lockable door (with door lock RA 420 010).
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Cushioned door closing system.
Activated charcoal air filter.
UV-protection.
Rest mode certified by Star-K.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction alarm.
Remote control and monitoring.
Remote diagnostics.
Light scenarios.
Integrated WiFi module for digital services
(Home Connect).
The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country – for further information please check: www.home-connect.com

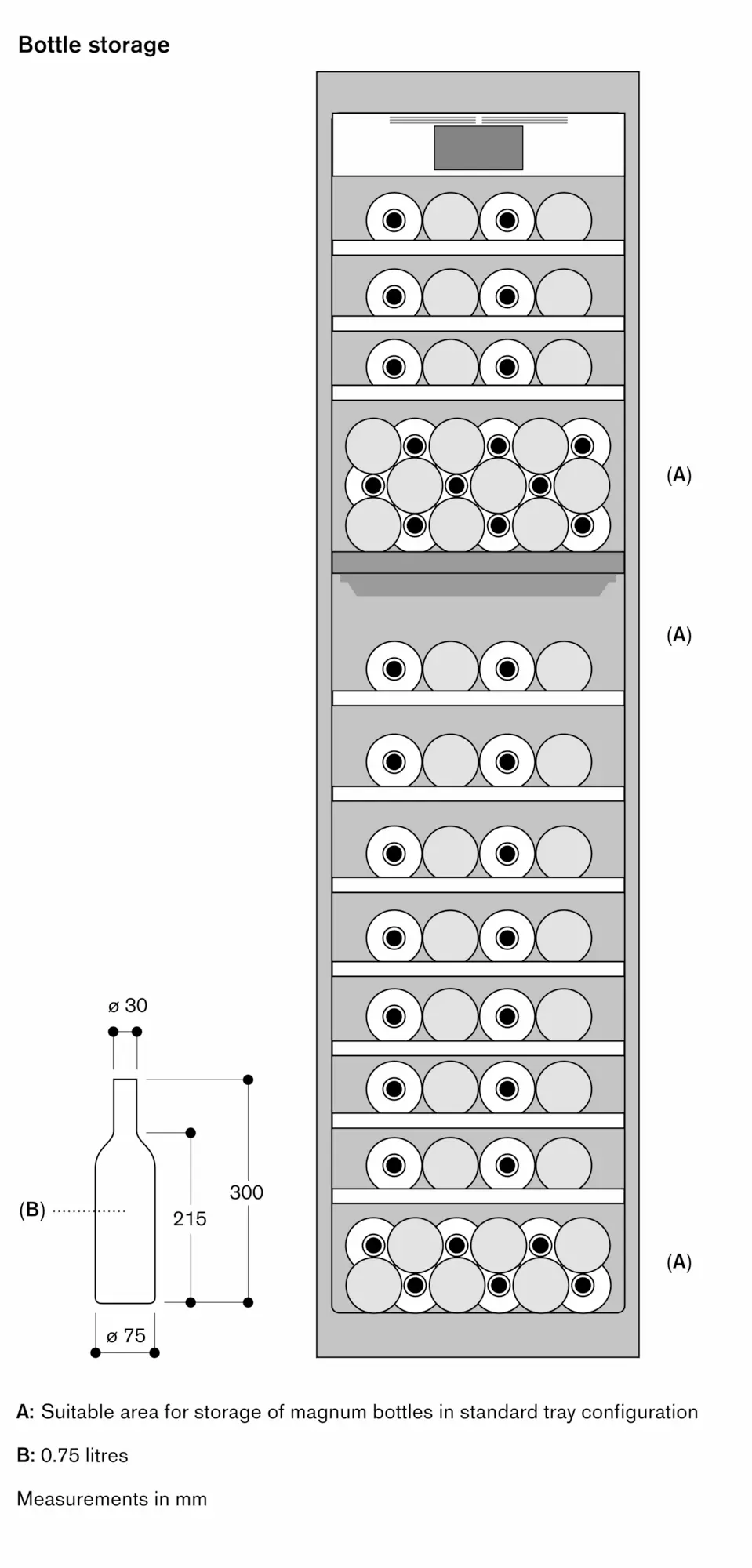

Capacity 70 bottles (based on 0.75 l standard bottles).
12 bottle trays,
- 10 fully extendable trays - 3 suitable for storage of Magnum bottles.
Flexible interior configuration possible by adding or removing fully extendable bottle trays.
Storage of up to 6 Magnum bottles with standard tray configuration (12 bottle trays).
Space for max. 13 bottle trays.
2 brilliant LED light spots with warm white, glare-free light (3500 K) in each climate zone.
5 different lighting scenarios can be selected for individual wine presentation.
Total volume 272 litres.
Energy efficiency class G at a range of energy efficiency classes from A to G.
Energy consumption 145 kWh/year.
Noise level 42 dB (A) re 1 pW.
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight 76 kg.
The main socket needs to be planned outside of the niche.
No Transport/operation above 2000m sea level
Total connected load 0.300 KW.
Connecting cable 3.0 m, pluggable.
