Technical Overview

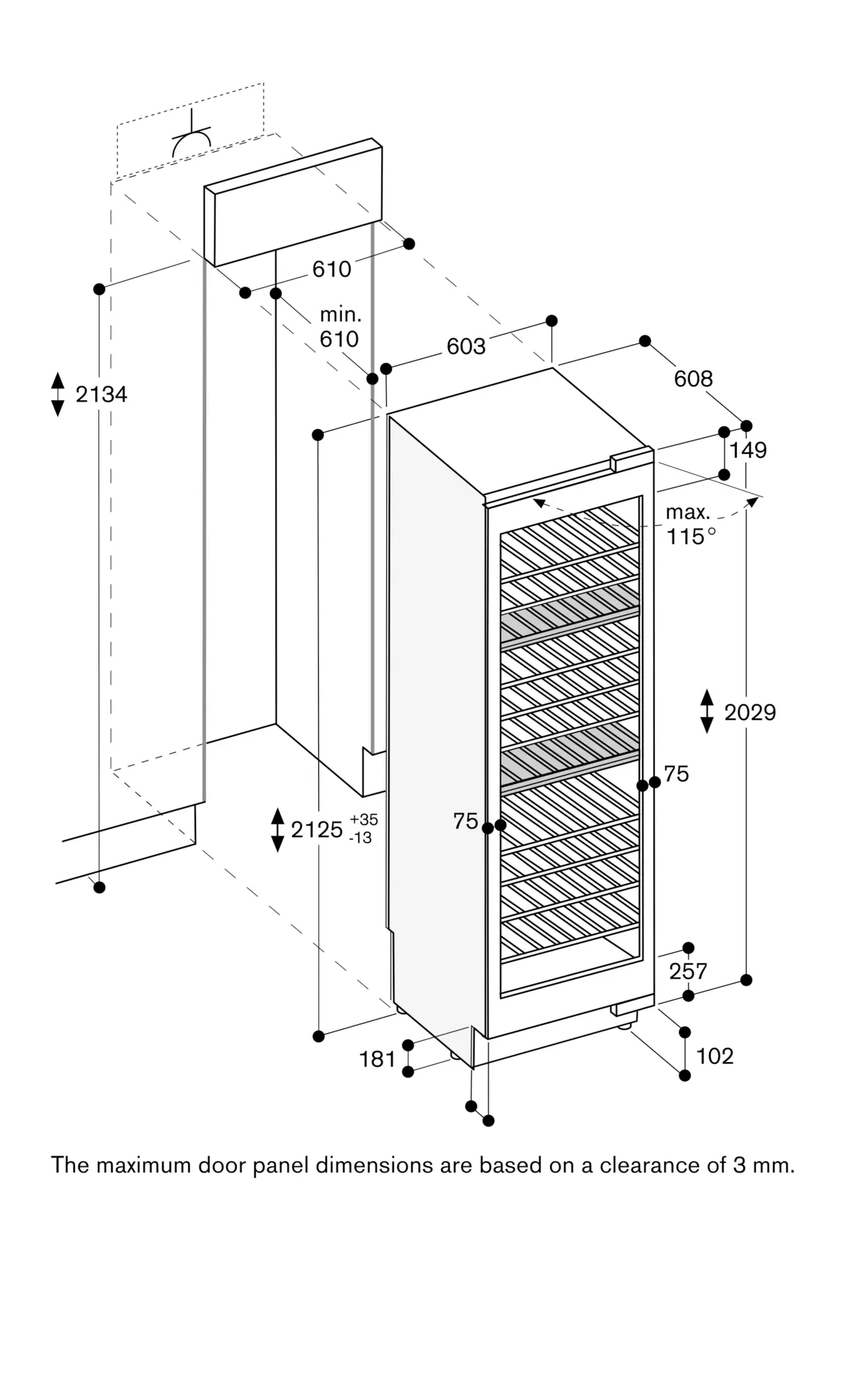

Dimensions (HxWxD)
2125x603x608 mm
Energy Efficiency Class Footnote 1: Scale of Energy Efficiency Classes from A to G
G
Capacity in bottles (0.75l)
99
Airborne acoustical noise emissions
42 dB(A) re 1pW
Range of temperature
5-20 °C
LED light with presentation mode
Yes
Type of Glass Door
2 glass panels
Additional information
Three independently controllable climate zones
Consistant temperatures with exact control from +5 °C to +20 °C
Humidity control
Stainless steel interior
Fully extendable bottle trays in oak wood and solid aluminium in anthracite
Bottle trays with hidden telescopic rails
Warm white and glare-free LED light spots
5 preset lighting scenarios, selectable via TFT display
Opening assist for door with two options:
1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
Low-vibration operation
TFT touch display
Capacity 99 bottles
TFT touch display operation.
Clear text display.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Activated charcoal air filter.
UV-protection.
Rest mode certified by Star-K.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction alarm.
Integrated WiFi module for digital services
(Home Connect).
The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country – for further information please check: www.home-connect.com
Capacity 99 bottles (based on 0.75 l standard bottles).
12 bottle trays,
- 9 fully extendable trays - 3 suitable for storage of Magnum bottles.
Flexible interior configuration possible by adding or removing fully extendable bottle trays.
Storage of up to 12 Magnum bottles with standard tray configuration (12 bottle trays).
Space for max. 12 bottle trays.
5 different lighting scenarios can be selected for individual wine presentation.
Net volume 361 litres.
Energy efficiency class A at a range of energy efficiency classes from A+++ to G.
Energy consumption 171 kWh/year.
Noise level 42 dB (re 1 pW).
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight 73 kg.
The main socket needs to be planned outside of the niche.
Total connected load 0.300 KW.
Connecting cable 3.0 m, pluggable.
