Technical Overview
Built-in / Free-standing
Built-in
Main colour of product
Black
Type of frame
Frame
Booster function
all cooking zones

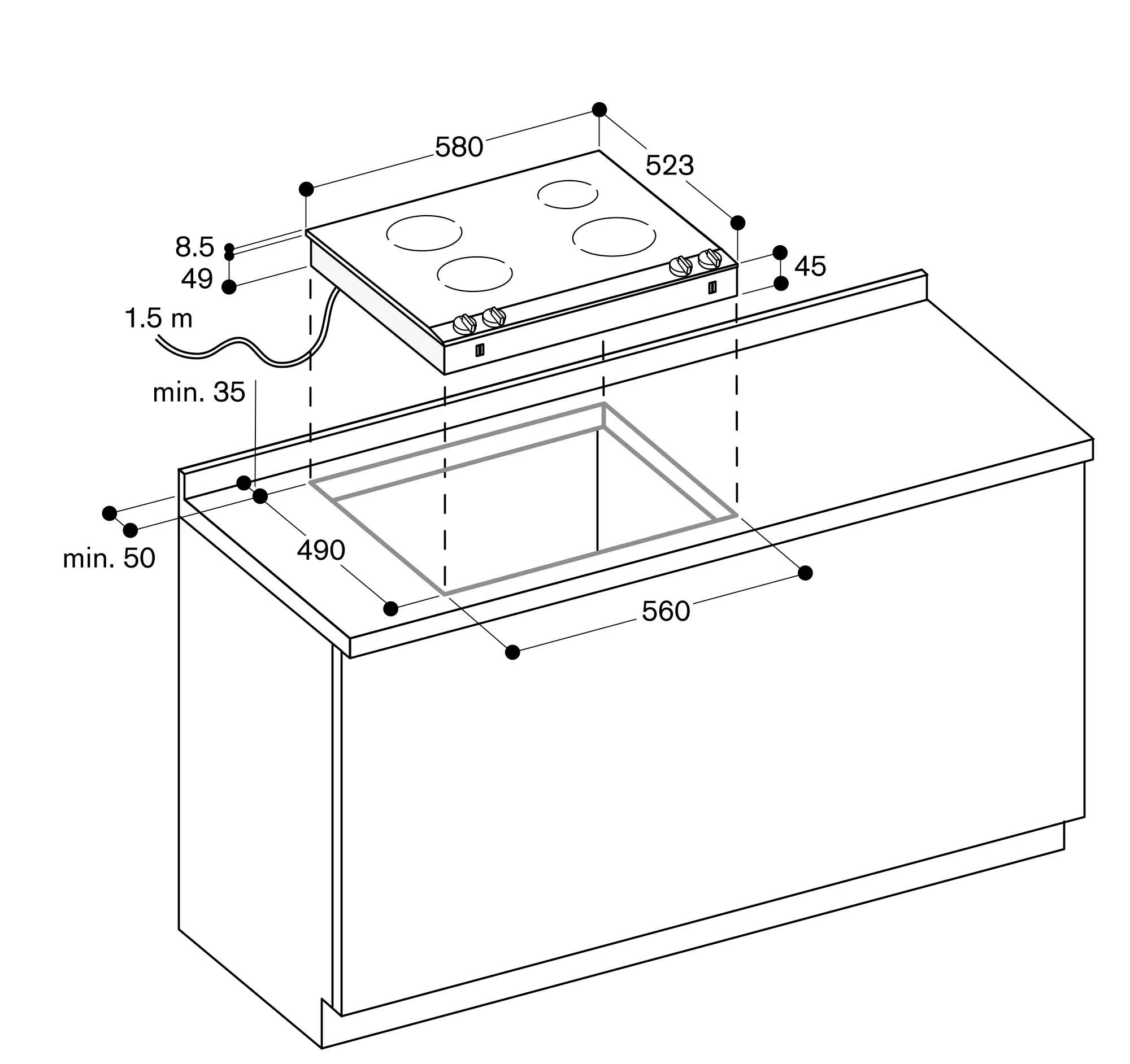

Dimensions (HxWxD)
49x580x523 mm
Handling
Graycode Display
Home Connect
No
Special Features
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Generous control panel for comfortable and secure operation
2 induction cooking zones ø 18 cm (1800 W, with booster 2500 W).
1 induction cooking zone ø 15 cm (1400 W, with booster 1800 W).
Control knobs with cooking zone and output level markings.
Specifications
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Generous control panel for comfortable and secure operation
2 induction cooking zones ø 18 cm (1800 W, with booster 2500 W).
1 induction cooking zone ø 15 cm (1400 W, with booster 1800 W).
Control knobs with cooking zone and output level markings.
Electronic control in 9 output levels.
Cooking zone marking.
Pot detection.
Booster function for all cooking zones (two cooking zones - left and right - can be operated simultaneously with booster function).
Residual heat indication.
Operation indicator.
Safety shut-off.
Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.
Immersion depth 49 mm.
Cooktop clamping range: 20 - 40 mm.
Intermediate shelf is recommended.
Appliance must be fixed from underneath.
Total connected load 7.4 KW.
Connecting cable 1.50 m without plug.
