Can be integrated invisibly in upper cabinet

Energy-saving, low-noise fan

Rim extraction with flat and easy-to-clean glass underside

Dimmable, neutral white LED light for ideal illumination of the whole cooktop

Air extraction or air recirculation system

Energy efficiency class A++

Performance and noise level, output level 3/Intensive:

Air output according to EN 61591. Sound power level according to EN 60704-3. Sound pressure level according to EN 60704-2-13. Odour reduction for air recirculation in accordance with EN 61591.

Odour reduction air recirculation 92 %.

3 electronically controlled power levels and 1 intensive mode.

Remote control is available as a special accessory.

Interval ventilation, 6 min.

Run-on function, 6 min.

Grease filter saturation indicator.

Metal grease filter, dishwasher-safe.

Glas filter cover.

Neutral white LED light (4000 K), dimmable.

Lamp output 2 x LED spot 1W.

Illuminance 244 lx.

Fan technology with highly efficient, brushless DC motor (BLDC).

Energy consumption 29.6 kWh/year.

Ventilation efficiency class A.

Ilumination efficiency class A.

Grease filter efficiency class D.

Sound level min. 44 dB / max. 64 dB normal mode.

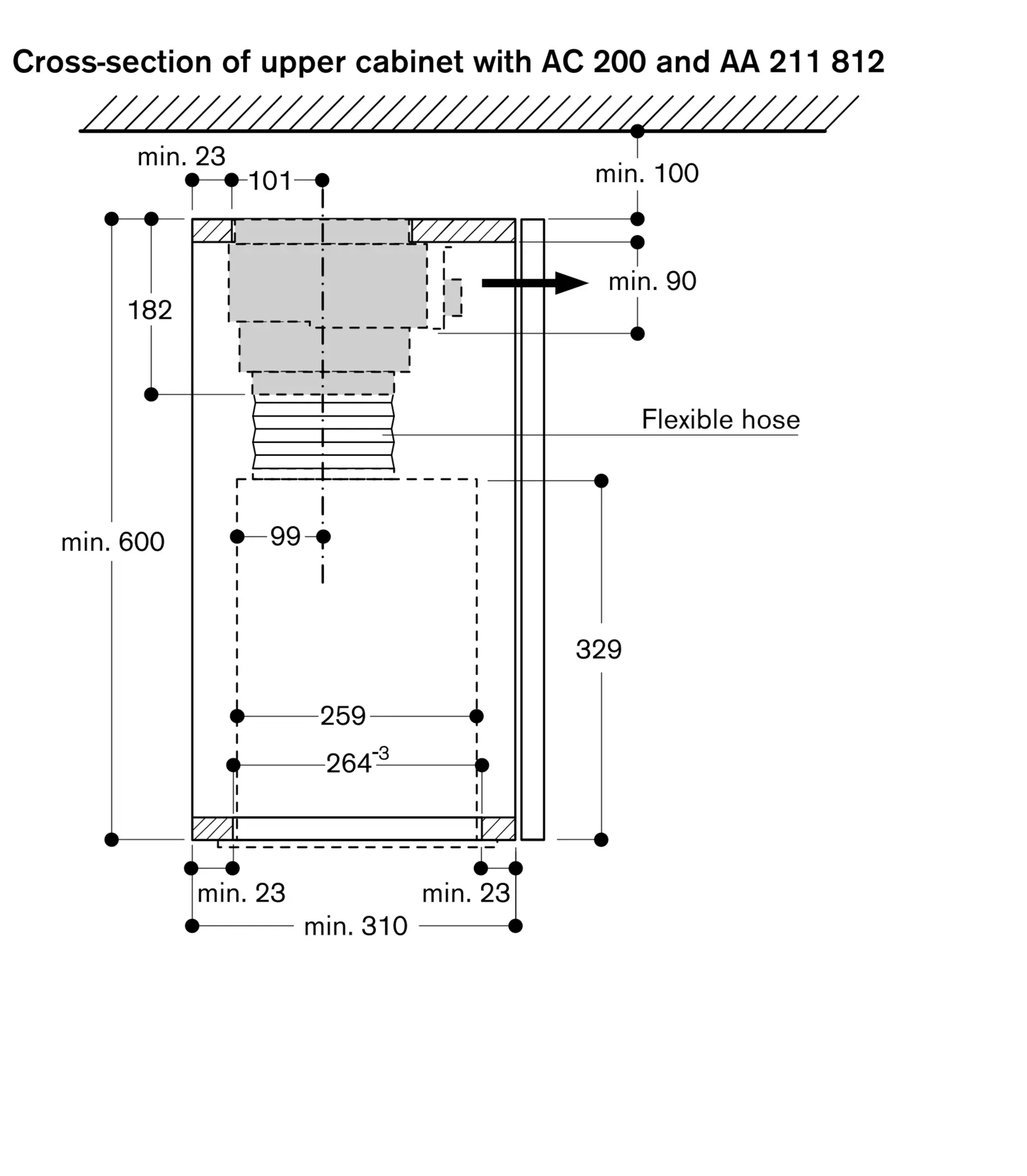

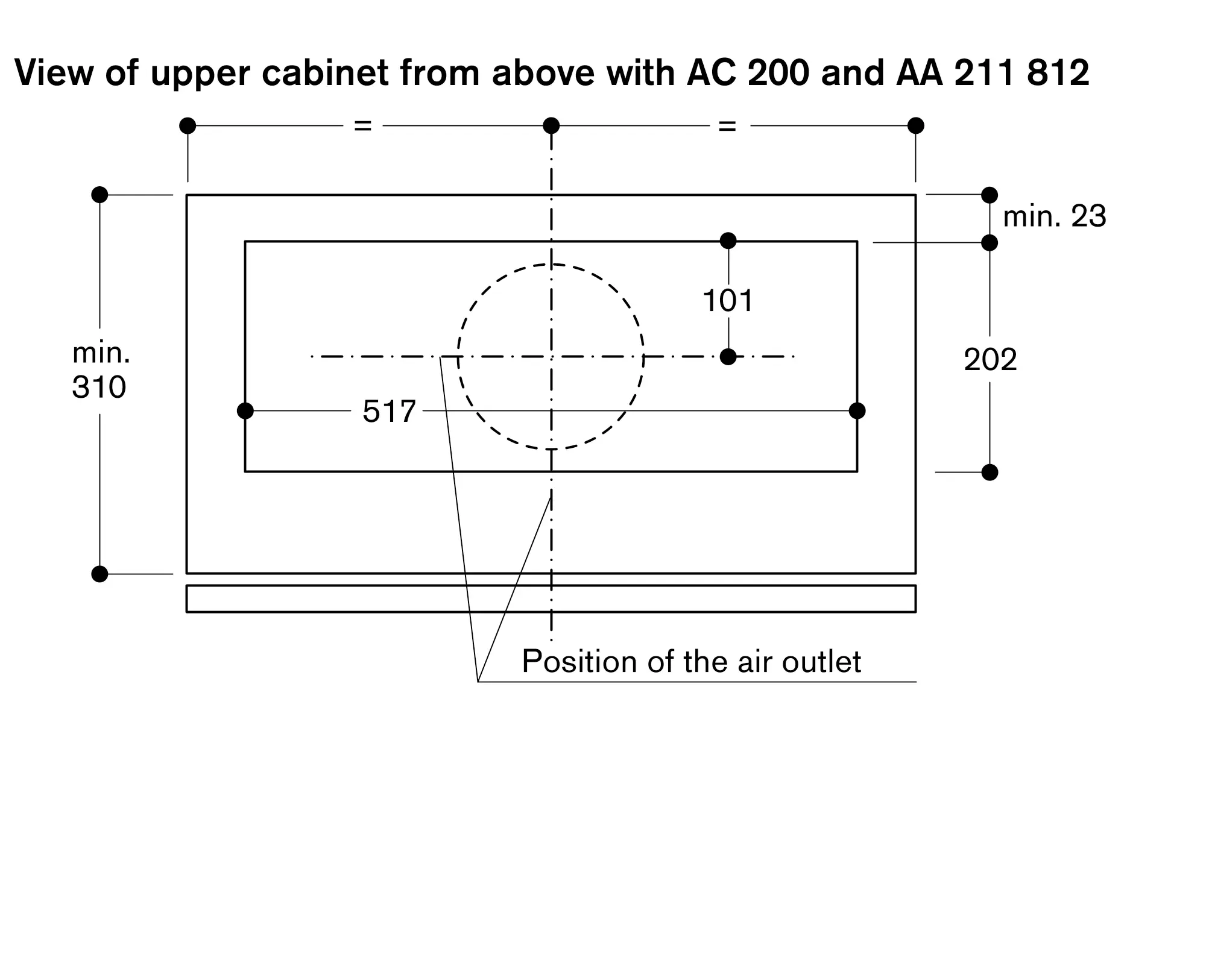

Patented air recirculation module with activated charcoal filter can be installed in the upper cabinet. The activated carbon filter can be changed from the front by simply pulling out the filter drawer.

The door of the upper cabinet must be fully open in order to change the activated charcoal filter.

Can be integrated invisibly in upper cabinet.

Vario cooktops with intensive production of vapours like VR/VP/VF should be placed in the middle beneath the hood (in this case air recirculation is not recommended).

Clearance above gas appliances min. 65 cm(more than total load gas 12 kW min. 70 cm).

Clearance above electric appliances min. 50 cm.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
