Discreet integration into the architecture of the kitchen

Flexible by dimension, performance and ventilation mode

Room ventilation

Modular ceiling ventilation which can be configurated individually by separate components such as filter module, control modules and light module

Motorless, can be combined with Gaggenau BLDC remote fan units

Highly efficient patented rim extraction

Planed and easy to clean underside with covered filters

Power levels depend on the remote fan unit, see table on page XX.

Rim extraction filter, dishwasher-safe.

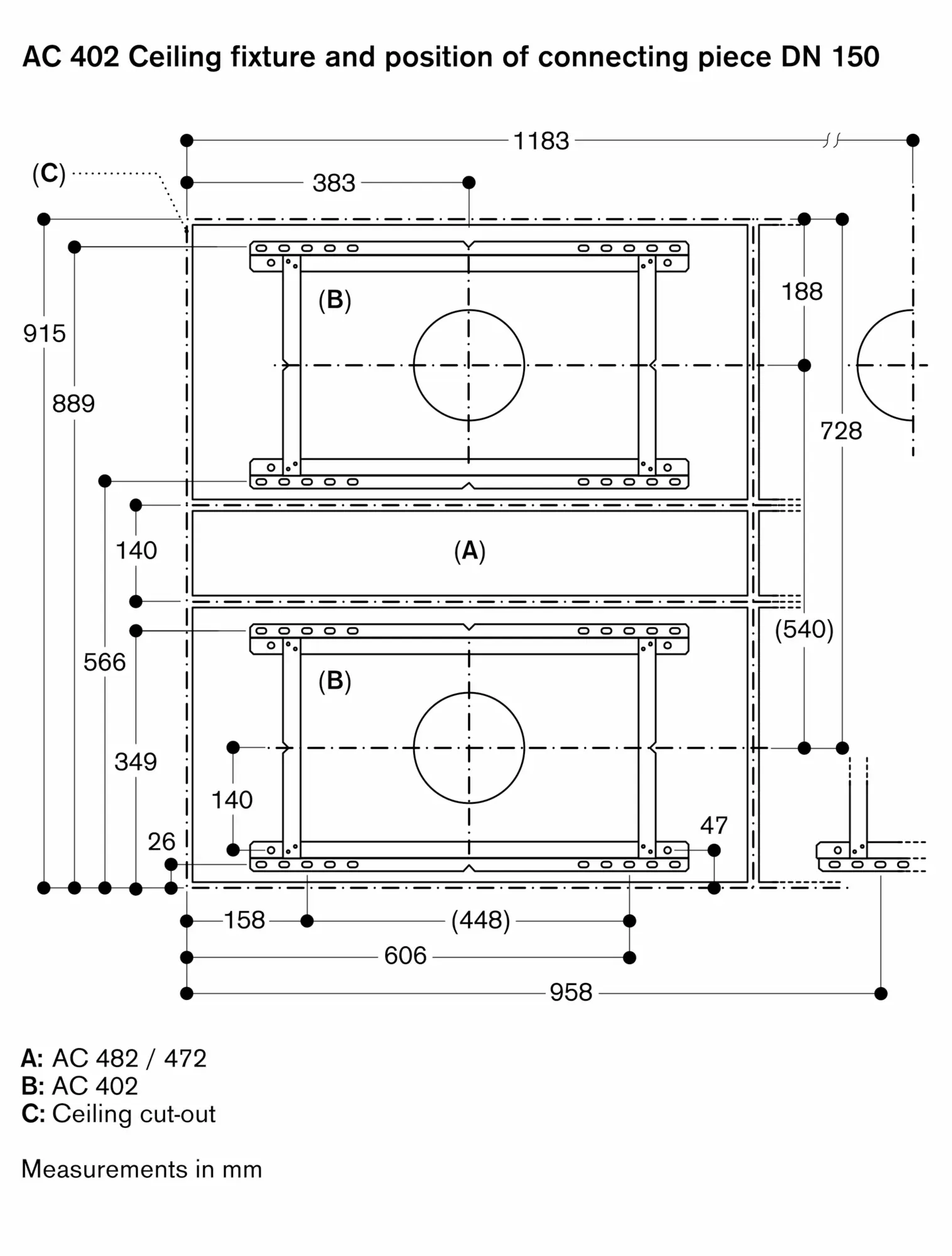

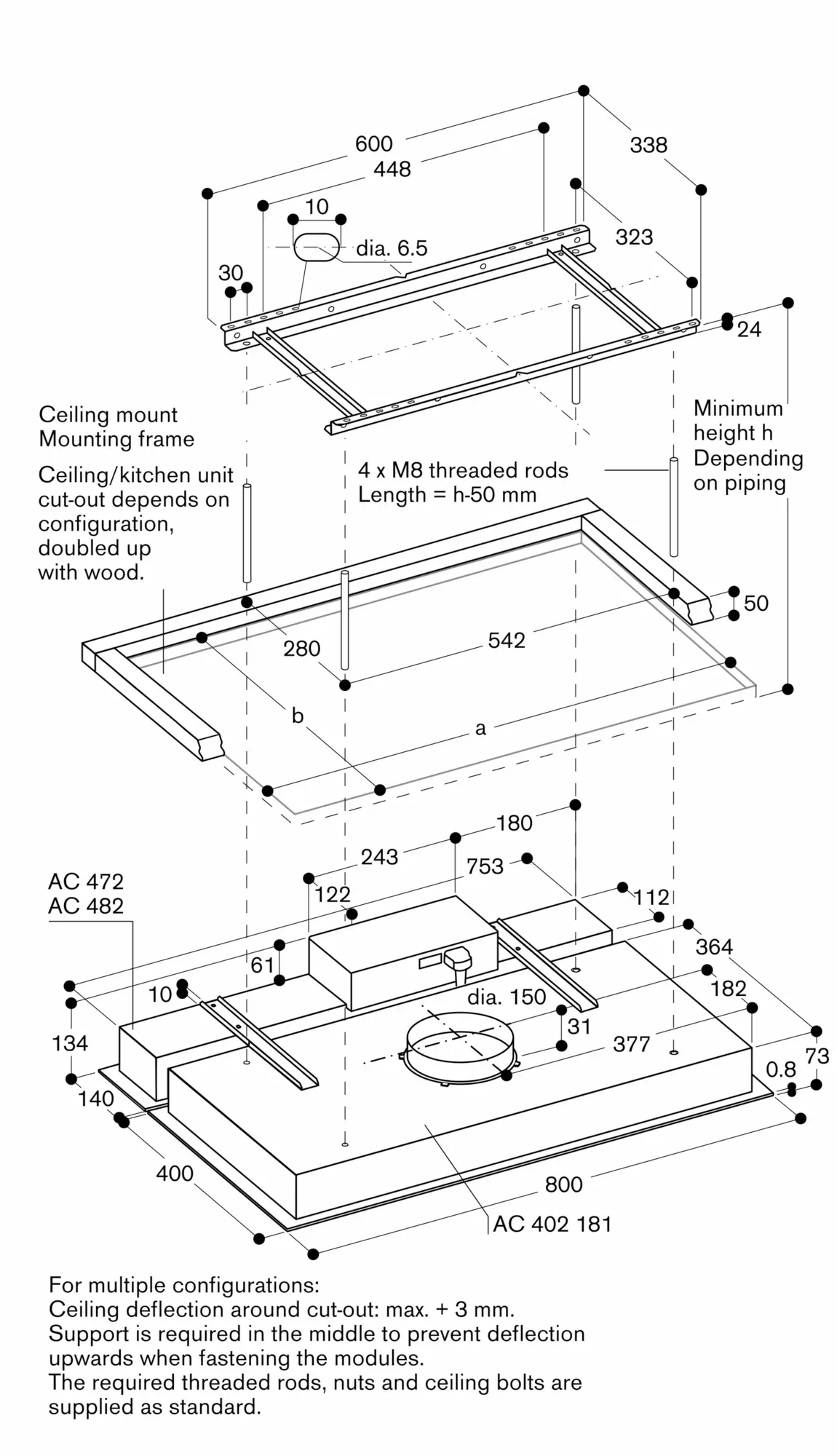

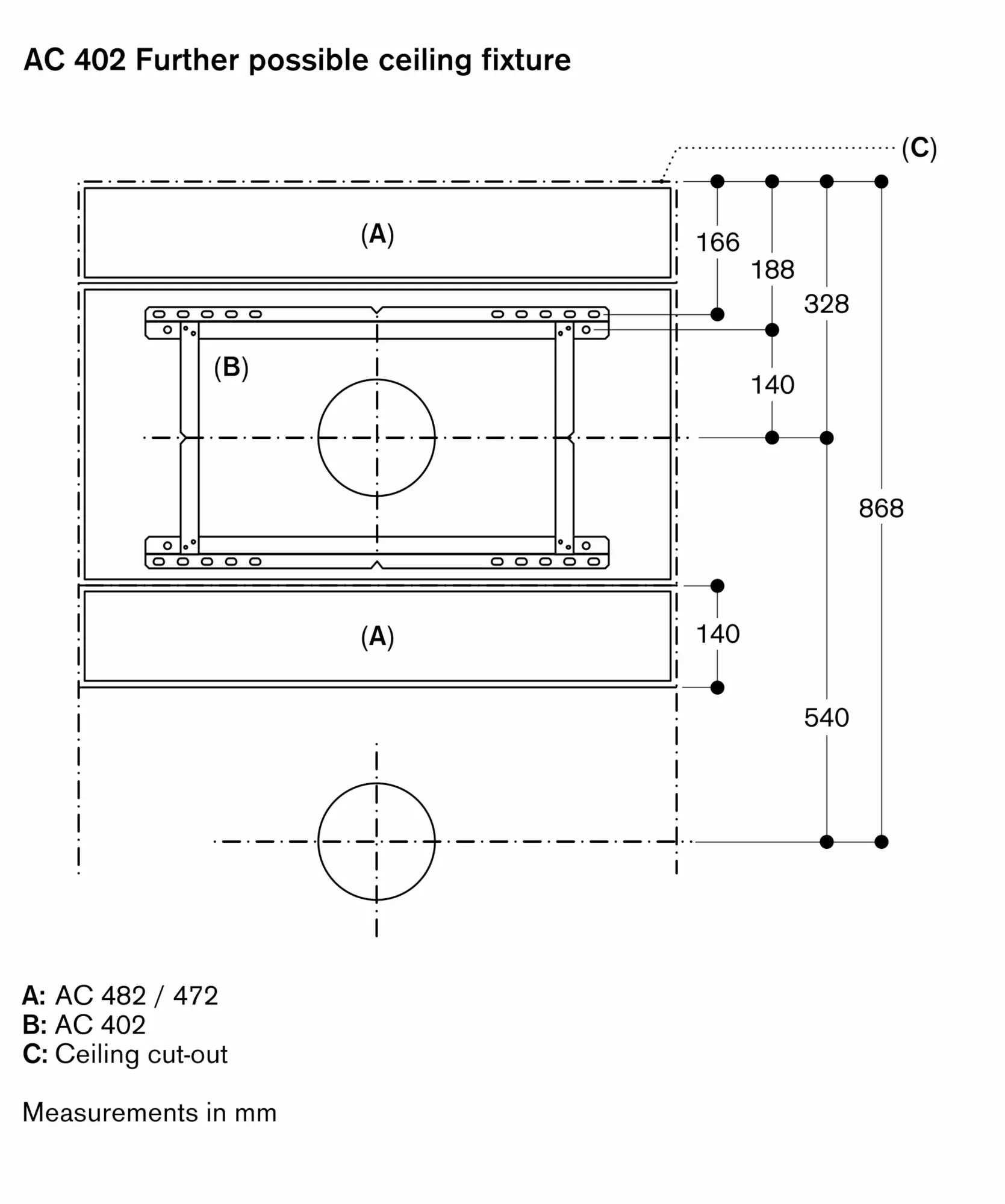

Installation frame for thread rods (threaded rods included in delivery).

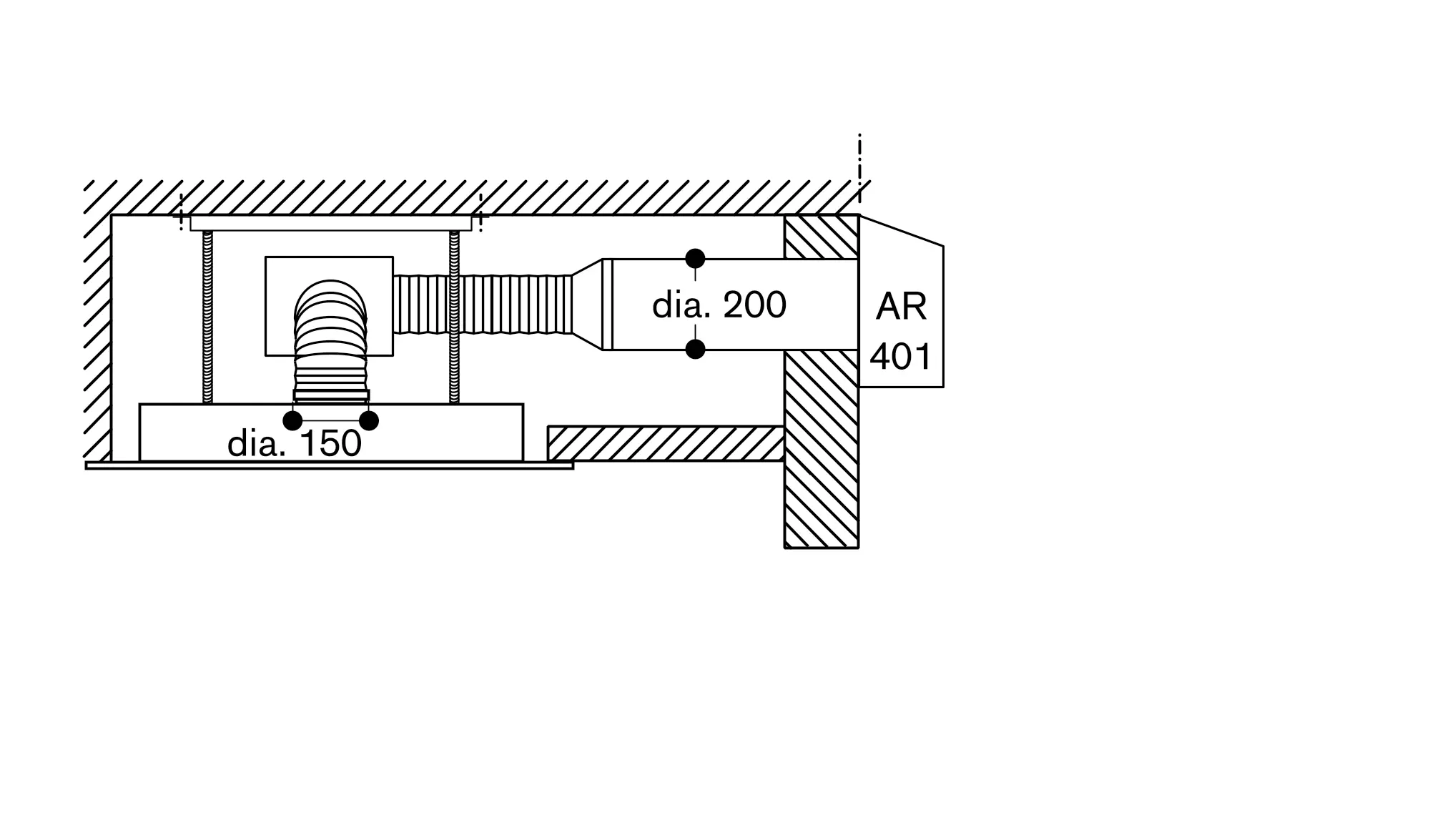

Connecting pipe DW 150 round.

Consumption data is referred to a configuration with the remote fan unit AR 400 142.

Energy consumption 60.6 kWh/year.

Ventilation efficiency class A.

Ilumination efficiency class E.

Grease filter efficiency class B.

Sound level min. 50 dB / max. 65 dB normal mode.

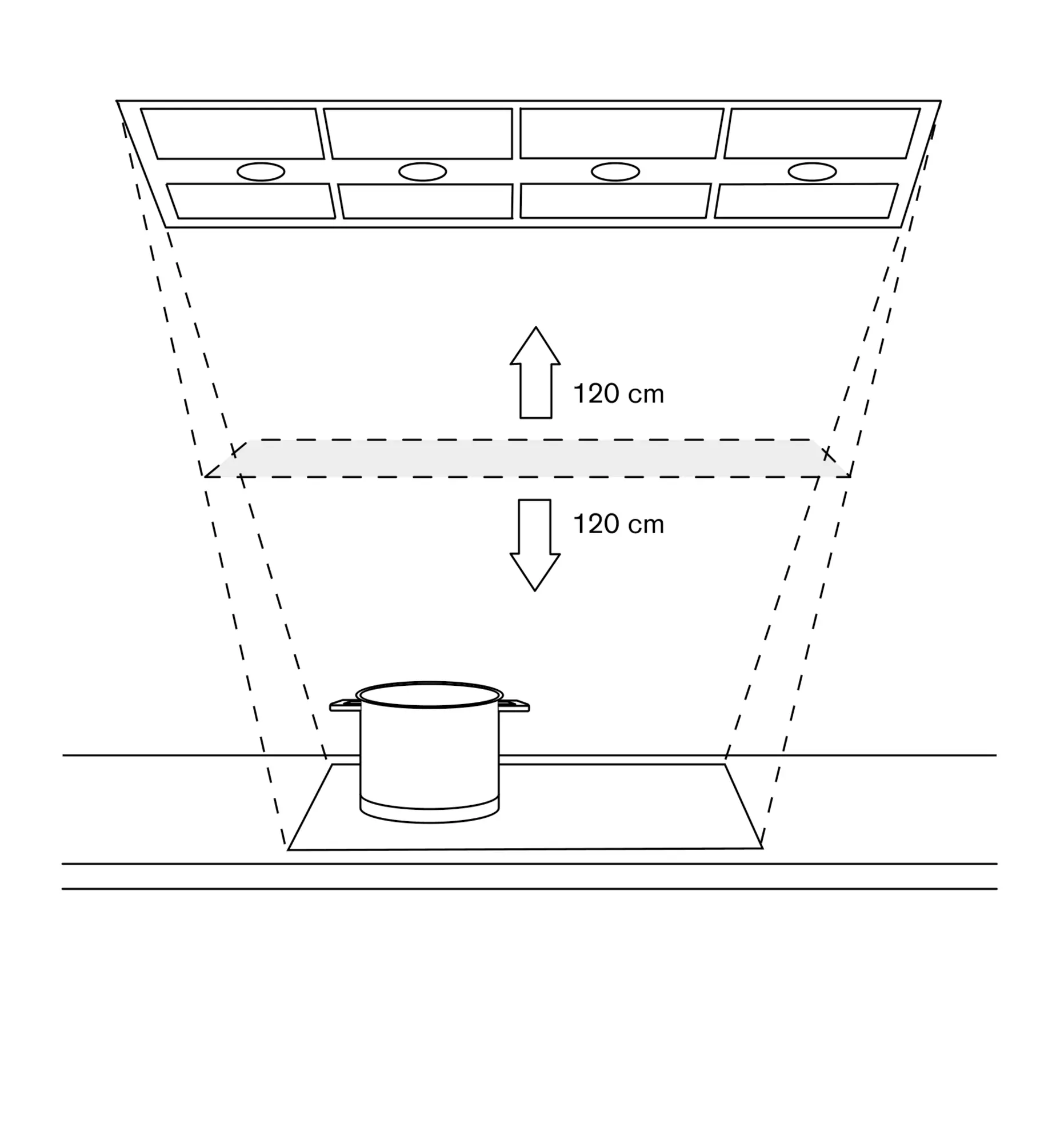

The ceiling ventilation has to be handled as a room ventilation when distance to cooktop is larger than 120 cm since the direct capture of vapours will be limited.

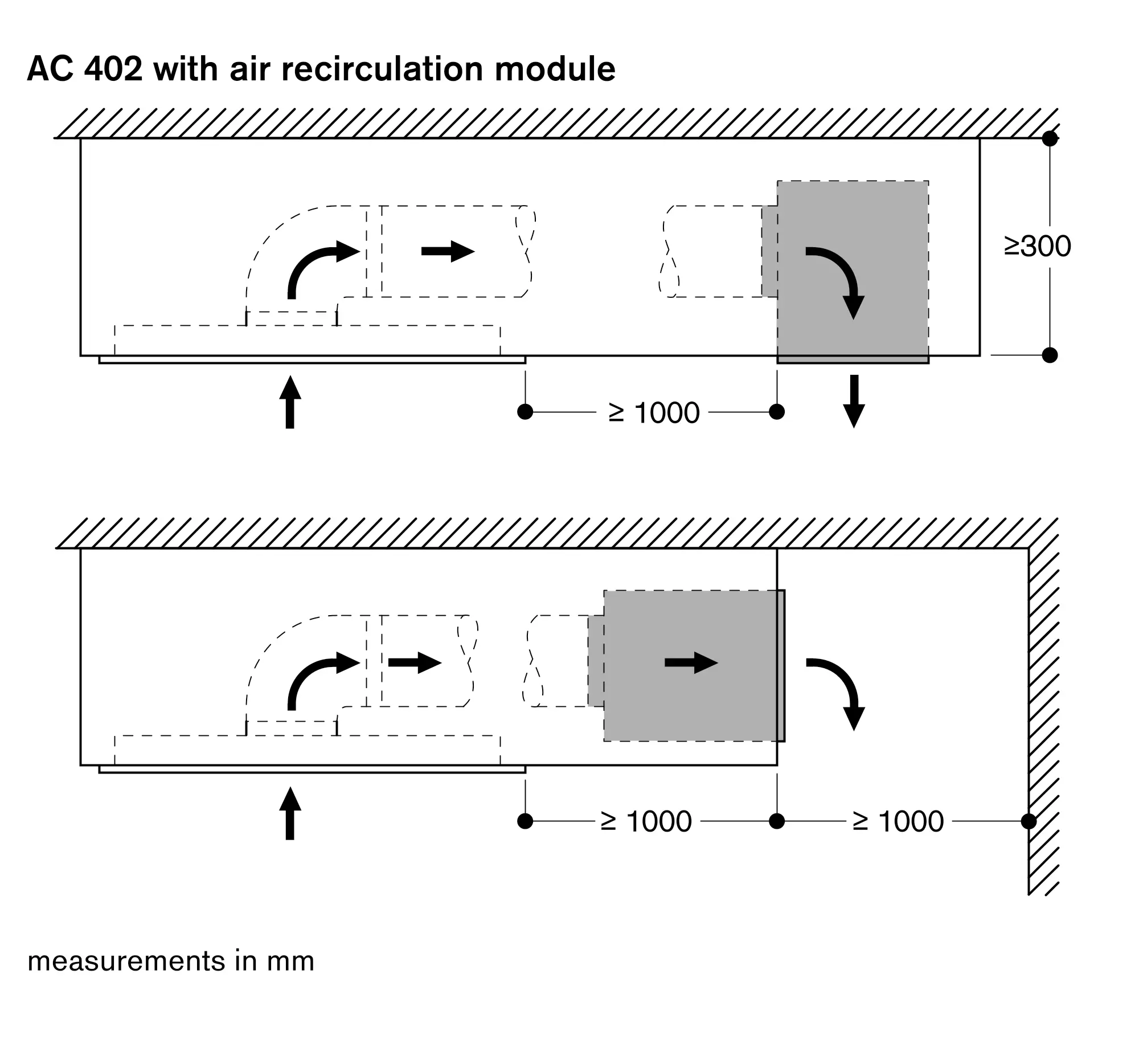

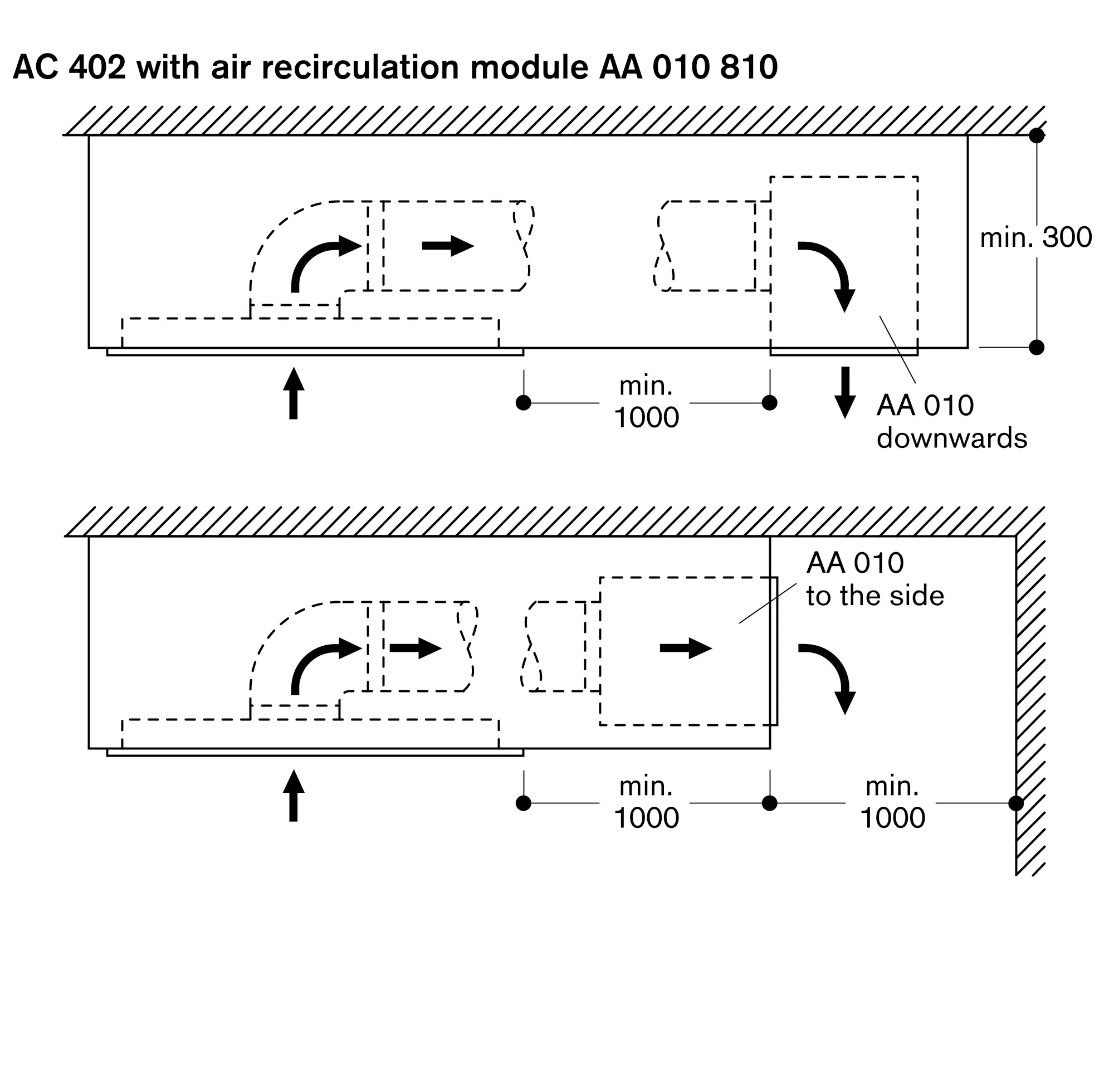

For air recirculation an external filter module is required.

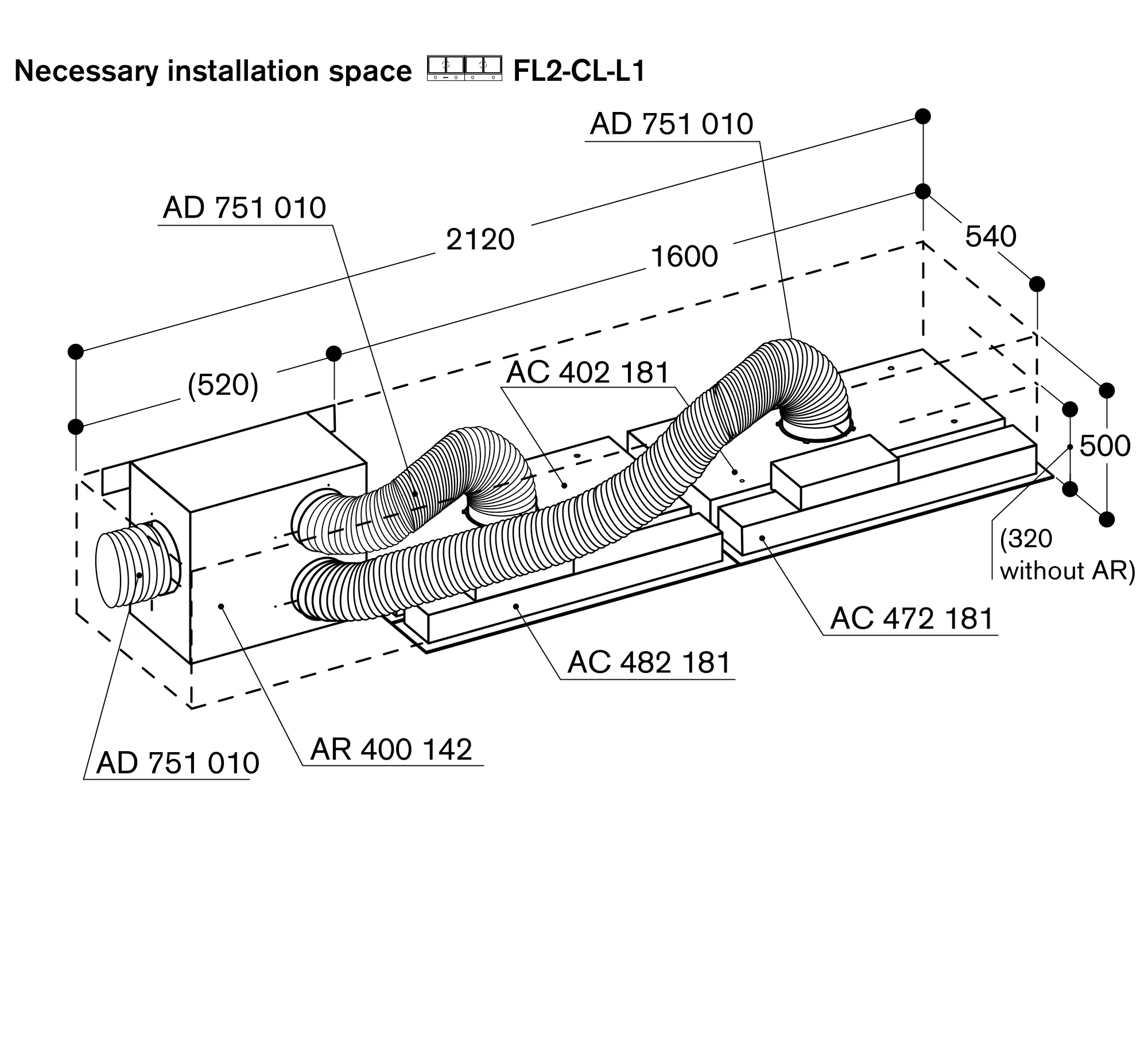

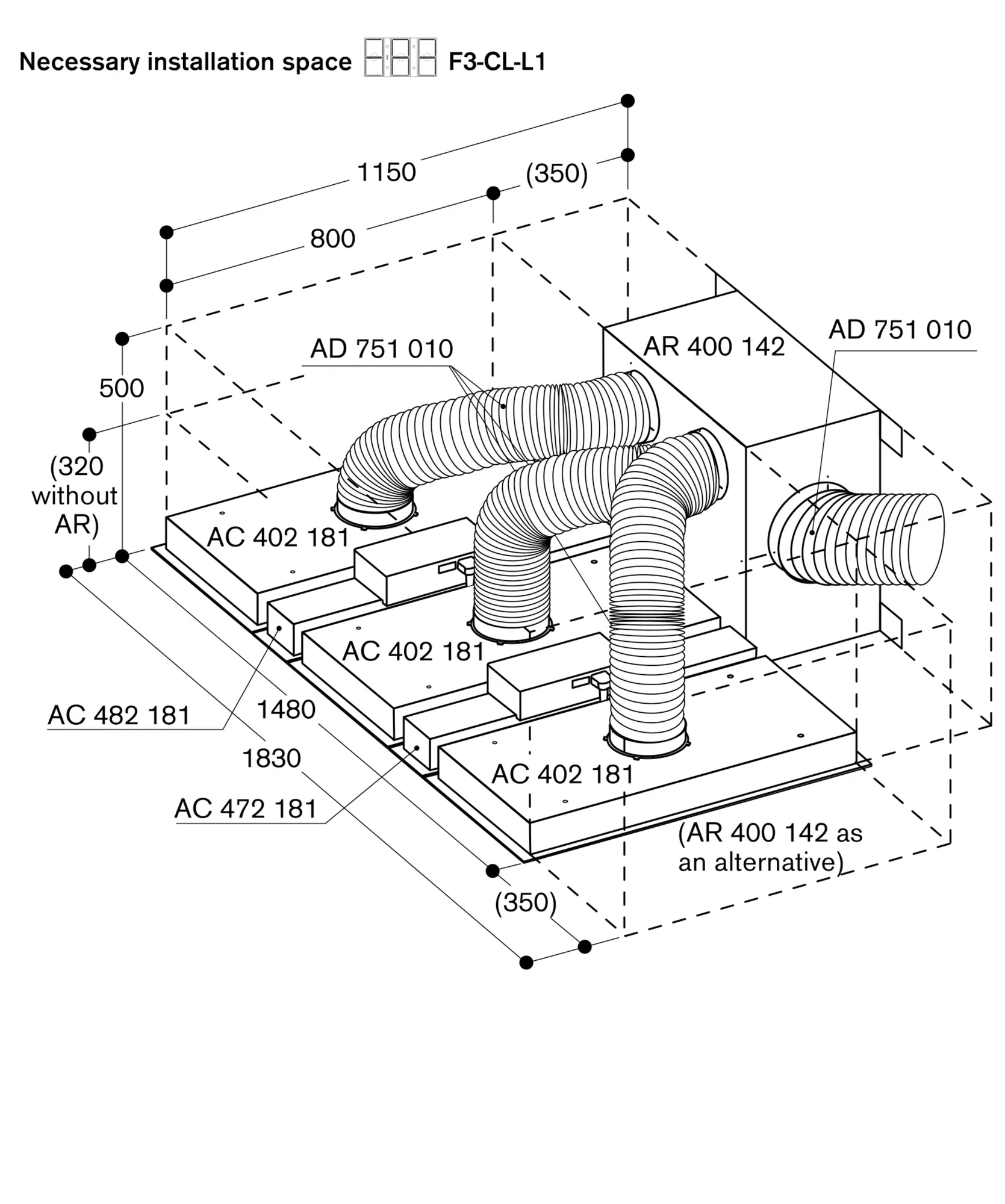

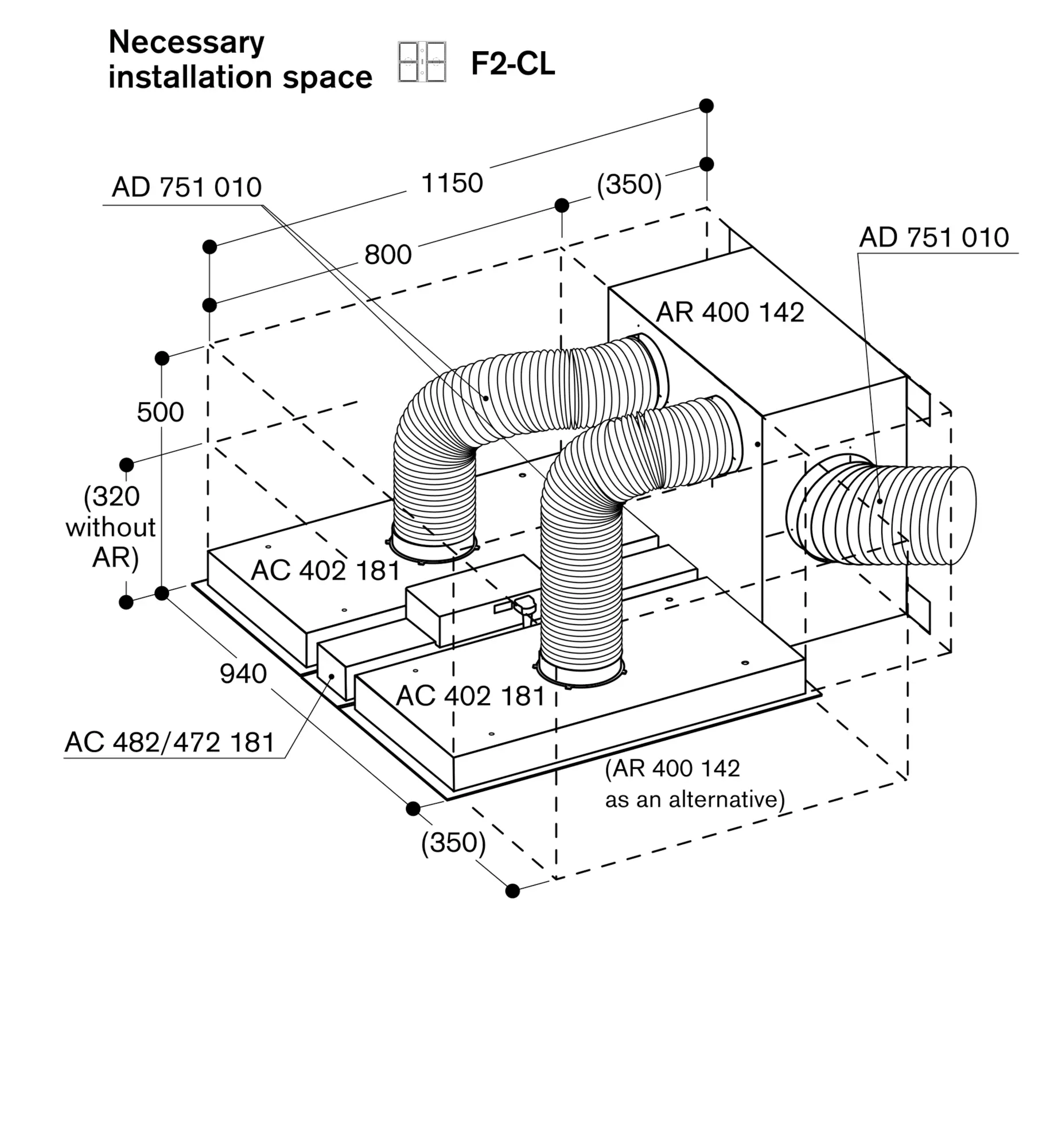

Max. 3 filter modules to be connected to remote fan unit AR 400 142.

When installing remote fan unit within the ceiling or furniture block it must remain accessible through the ceiling cutout or another maintenance access.

Please ensure when installing the exhaust air ducting that no sharp bends are caused and that the cross-section of the ducting is not constricted in any way.
