400 SeriesRemote fan unitsAR400142
Remote fan units

400 series Remote fan unit
AR400142

1 / 4
Photo Nr. 1 of the product AR400142
Photo Nr. 2 of the product AR400142
Photo Nr. 3 of the product AR400142
Photo Nr. 4 of the product AR400142
Photo thumb Nr. 1 of the product AR400142
Photo thumb Nr. 2 of the product AR400142
Photo thumb Nr. 3 of the product AR400142
Photo thumb Nr. 4 of the product AR400142
Photo thumb Nr. 1 of the product AR400142
Photo thumb Nr. 2 of the product AR400142
Photo thumb Nr. 3 of the product AR400142
Photo thumb Nr. 4 of the product AR400142

400 series Remote fan unit
AR400142

Find a local Dealer
Find a local dealer in your vicinity

Check appliance compatibility

How to find your E-Number
The model number (E-number) is located on the type plate of your device.

Technical Overview

Product group for which the accessory is available
Hood

Special Features

Powerful remote fan unit to combine with motorless appliances
Efficient BLDC technology
Power levels depend on the motorless appliances, see table on page XX.
3 electronically controlled power levels and one intensive mode.
Fan technology with highly efficient, brushless DC motor (BLDC).

Specifications

Powerful remote fan unit to combine with motorless appliances
Efficient BLDC technology
Power levels depend on the motorless appliances, see table on page XX.
3 electronically controlled power levels and one intensive mode.
Fan technology with highly efficient, brushless DC motor (BLDC).
Steel housing, zinc-plated.

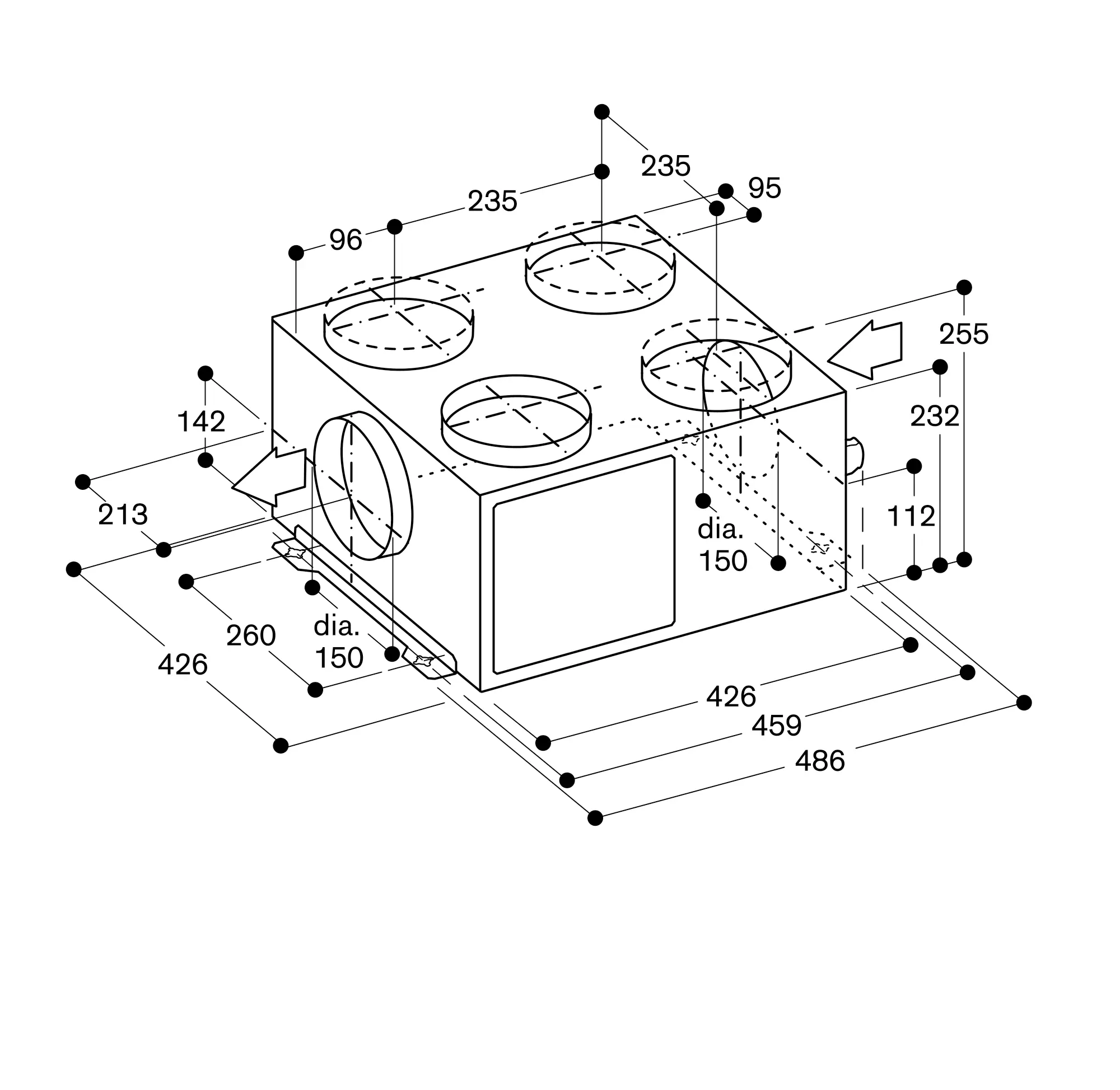

Pipe connection pieces on intake side: 1 x NW 150 round, 4 x NW 150 round.
Pipe connection pieces on output side: 1x NW 150 round.
Spare cover for closing air intake.
Retaining bracket for installation on the ceiling or side of a cupboard enclosed.
Remote fan unit in combination with motorless appliances.
Connection to the respective appliances via network cable.
Installation in the plinth with cut-out for the air ducting in the furniture base.
Installation in a separate room allows for a reduced noise level in the kitchen.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
Total connected load 240 W.
Connecting cable 1.8 m, pluggable.
Network cable 5 m.
