Check appliance compatibility
How to find your E-Number
The model number (E-number) is located on the type plate of your device.
Technical Overview
Product group for which the accessory is available
Hood
Special Features
Efficient BLDC technology
Particularly quiet due to patented noise insulation
Power levels depend on the motorless appliances, see table on page XX.
3 electronically controlled power levels and 1 intensive mode.
Fan technology with highly efficient, brushless DC motor (BLDC).
Specifications
Efficient BLDC technology
Particularly quiet due to patented noise insulation
Power levels depend on the motorless appliances, see table on page XX.
3 electronically controlled power levels and 1 intensive mode.
Fan technology with highly efficient, brushless DC motor (BLDC).
Including sound insulation to minimise the noise level.
Steel housing, zinc-plated.
Pipe connection piece on intake side: 1 x NW 150 flat duct.
Retaining bracket for installation at the furniture base enclosed.
2 activated charcoal filters enclosed ex factory.
Filter is suitable for the preparation of fish and seafood due to special treatment.
Filter replacement interval: 1 year depending on cooking frequency.
Connection to the respective appliances via network cable.
Installation in a cupboard possible with a cut-out in the furniture base or behind the cupboard positioned on the floor. Please refer to the planning information on page XX.

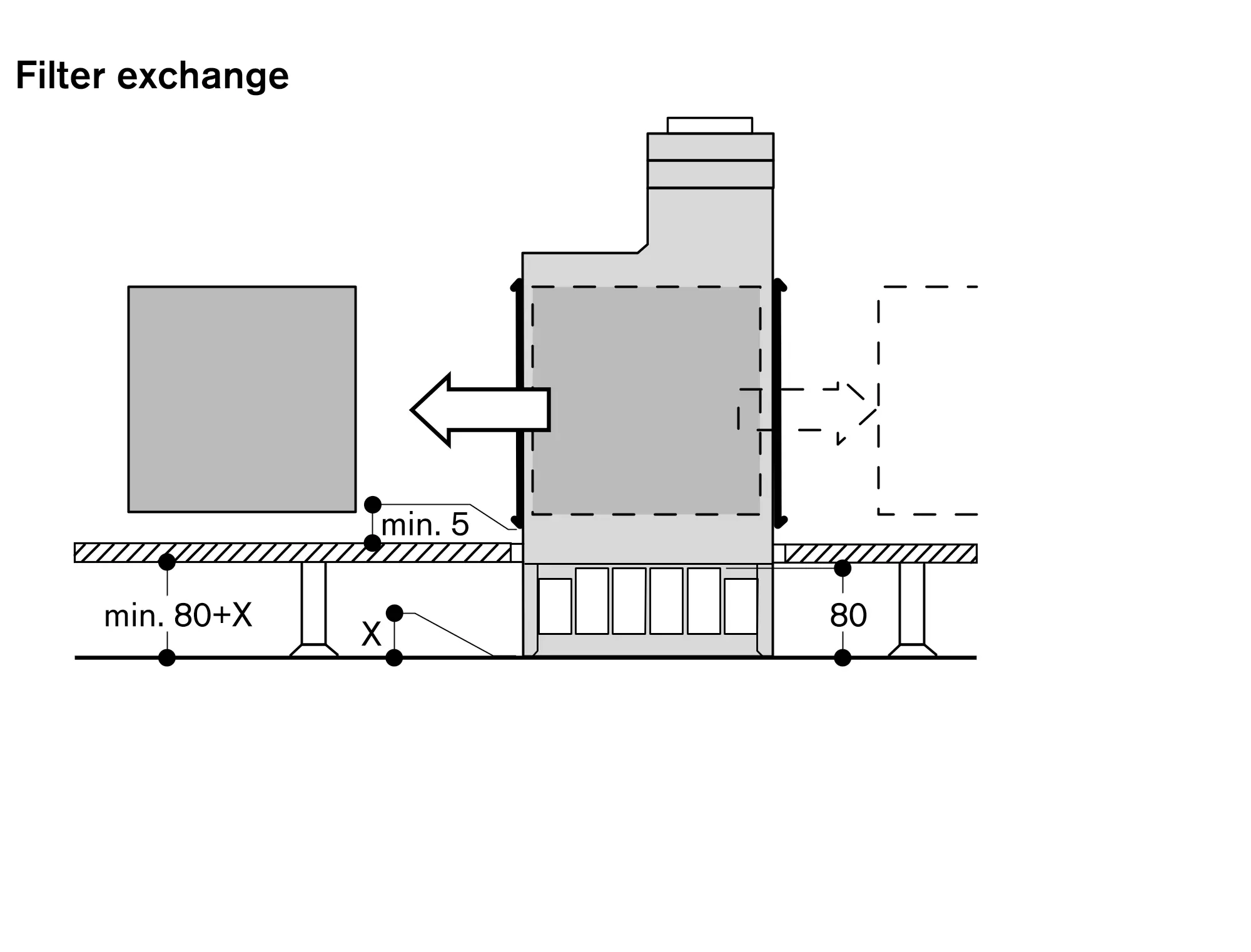

To replace the filter the remote fan unit must be accessible.
Total connected load 180 W.
Connecting cable 1.8 m, pluggable.
