Vario 200 SeriesDowndraft ventilationVL200120
Downdraft ventilation

200 series Vario downdraft ventilation 15 cm Black
VL200120

1 / 29
Photo Nr. 1 of the product VL200120
Photo Nr. 2 of the product VL200120
Photo Nr. 3 of the product VL200120
Photo Nr. 4 of the product VL200120
Photo Nr. 5 of the product VL200120
Photo Nr. 6 of the product VL200120
Photo Nr. 7 of the product VL200120
Photo Nr. 8 of the product VL200120
Photo Nr. 9 of the product VL200120
Photo Nr. 10 of the product VL200120
Photo Nr. 11 of the product VL200120
Photo Nr. 12 of the product VL200120
Photo Nr. 13 of the product VL200120
Photo Nr. 14 of the product VL200120
Photo Nr. 15 of the product VL200120
Photo thumb Nr. 1 of the product VL200120
Photo thumb Nr. 2 of the product VL200120
Photo thumb Nr. 3 of the product VL200120
Photo thumb Nr. 4 of the product VL200120
Photo thumb Nr. 5 of the product VL200120
Photo thumb Nr. 6 of the product VL200120
Photo thumb Nr. 7 of the product VL200120
Photo thumb Nr. 8 of the product VL200120
Photo thumb Nr. 9 of the product VL200120
Photo thumb Nr. 10 of the product VL200120
Photo thumb Nr. 11 of the product VL200120
Photo thumb Nr. 12 of the product VL200120
Photo thumb Nr. 13 of the product VL200120
Photo thumb Nr. 14 of the product VL200120
Photo thumb Nr. 15 of the product VL200120
Photo thumb Nr. 1 of the product VL200120
Photo thumb Nr. 2 of the product VL200120
Photo thumb Nr. 3 of the product VL200120
Photo thumb Nr. 4 of the product VL200120
Photo thumb Nr. 5 of the product VL200120
Photo thumb Nr. 6 of the product VL200120
Photo thumb Nr. 7 of the product VL200120
Photo thumb Nr. 8 of the product VL200120
Photo thumb Nr. 9 of the product VL200120
Photo thumb Nr. 10 of the product VL200120
Photo thumb Nr. 11 of the product VL200120
Photo thumb Nr. 12 of the product VL200120
Photo thumb Nr. 13 of the product VL200120
Photo thumb Nr. 14 of the product VL200120
Photo thumb Nr. 15 of the product VL200120
+ 14

200 series Vario downdraft ventilation 15 cm Black
VL200120

Find a local Dealer

Technical Overview

Installation Type
Built-in
Type of extraction
air extraction / air recirculation

Specifications

Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Highly efficient ventilation system at the cooktop inegrated in the countertop
Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours
Low planning and installation effort.
Low-noise system with the motor AR 410 110
Air extraction or air recirculation system
Noise level depends on the built-in situation.
Control knobs with illuminated ring.
3 electronically controlled power levels and 1 intensive mode.
Large-scale metal grease filter with high grease absorption.
Grease filter and activated charcoal filter saturation indicator.
Airflow-optimised interior for efficient air circulation.
Interval ventilation, 6 min.
Enamelled ventilation grille, dishwasher-safe.

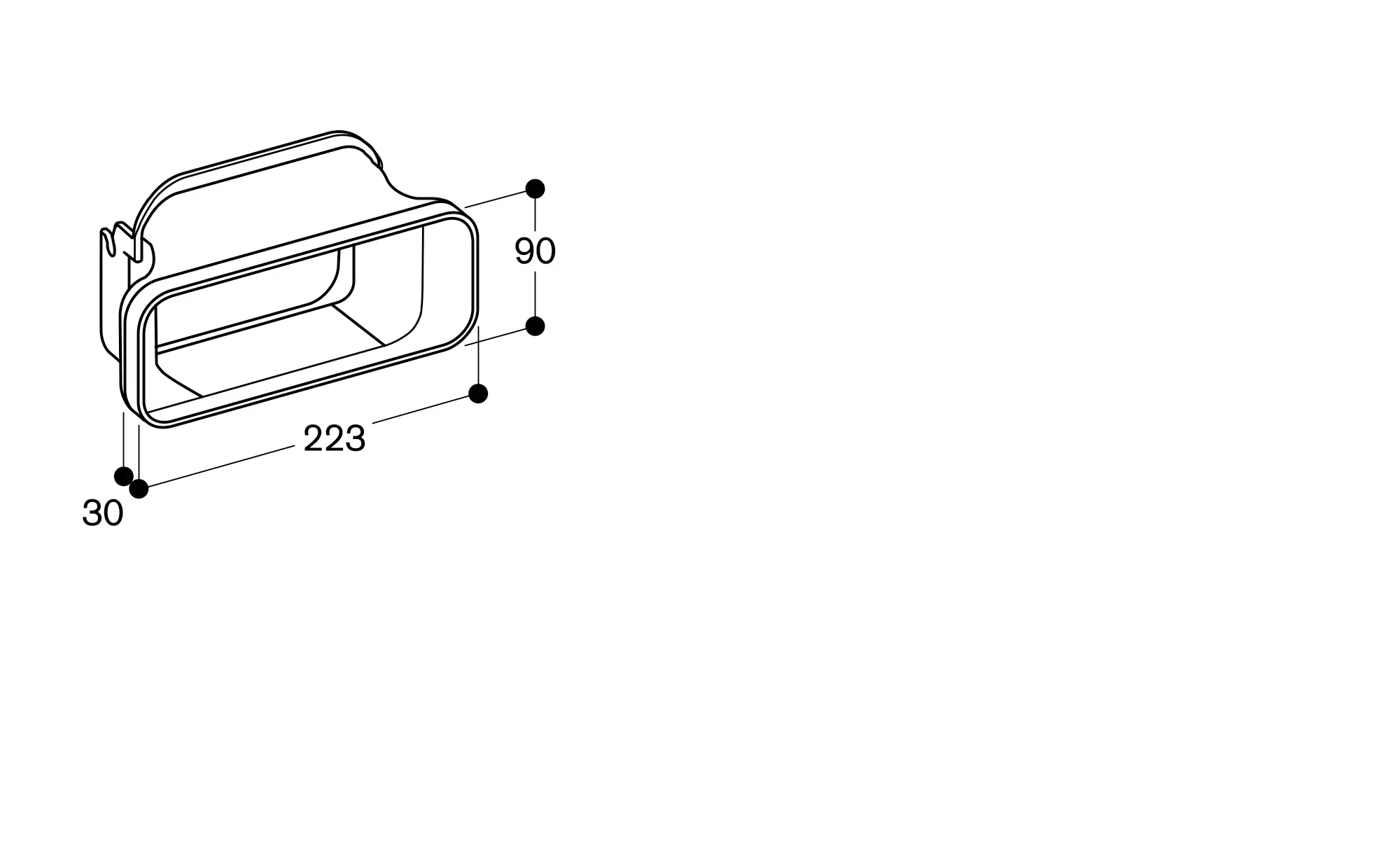

Air exhaust bend included in delivery.
Overflow 250 ml capacity.
Consumption data is referred to a configuration with the recirculation blower AR 410 710.
Sound level min. 56 dB / max. 71 dB normal mode.
For each VL one blower is recommended.
Maximum cooktop width between two VL downdrafts is 24".
If installed next to gas appliances, the ventilation moulding LS 041 001 is recommended to ensure maximum performance of the cooktop.
When having installed the ventilation moulding LS 041 001 the wok pan WP 400 001 can not be used.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs to feature a suitable safety switch.
Please read additional planning notes on page 104.
Connecting cable 1.7 m between VL and blower.
