Vario 200 SeriesElectric cooktopVE260614
Electric cooktop

200 series Electric Cooktop Module
VE260614

1 / 5
Photo Nr. 1 of the product VE260614
Photo Nr. 2 of the product VE260614
Photo Nr. 3 of the product VE260614
Photo Nr. 4 of the product VE260614
Photo Nr. 5 of the product VE260614
Photo thumb Nr. 1 of the product VE260614
Photo thumb Nr. 2 of the product VE260614
Photo thumb Nr. 3 of the product VE260614
Photo thumb Nr. 4 of the product VE260614
Photo thumb Nr. 5 of the product VE260614
Photo thumb Nr. 1 of the product VE260614
Photo thumb Nr. 2 of the product VE260614
Photo thumb Nr. 3 of the product VE260614
Photo thumb Nr. 4 of the product VE260614
Photo thumb Nr. 5 of the product VE260614

200 series Electric Cooktop Module
VE260614

Find a local Dealer

Technical Overview

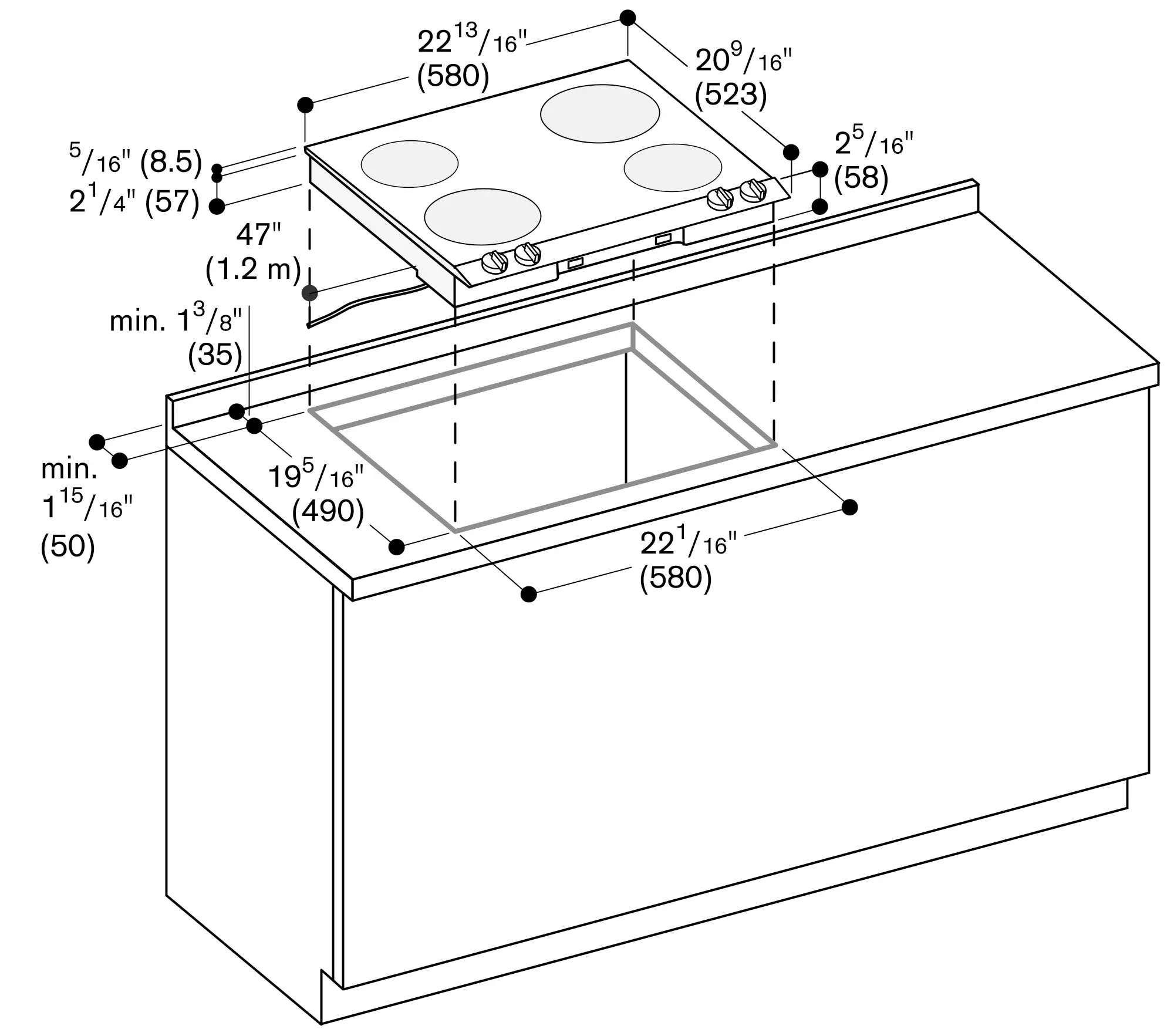

Overall Appliance Dimensions (HxWxD) (in)
5/16 '' + 2 5/16 '' x 22 13/16 '' x 20 9/16 ''
Dimensions (HxWxD)
58x580x523 mm
Color
Black

Special Features

Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Generous control panel for comfortable and secure operation
2 Super-Quick cooking zones ø 18 cm (1800 W).
2 Super-Quick cooking zones ø 14.5 cm (1200 W).
Continuously variable energy controls.

Specifications

Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Generous control panel for comfortable and secure operation
2 Super-Quick cooking zones ø 18 cm (1800 W).
2 Super-Quick cooking zones ø 14.5 cm (1200 W).
Continuously variable energy controls.
Cooking zone marking.
Individual residual heat indicators.
Operation indicator.
Immersion depth 58 mm.
Under the appliance, a 60 mm clearance must be observed from side panels or intermediate shelf must be planned.
Installation in a 60 cm wide bottom cabinet is possible.

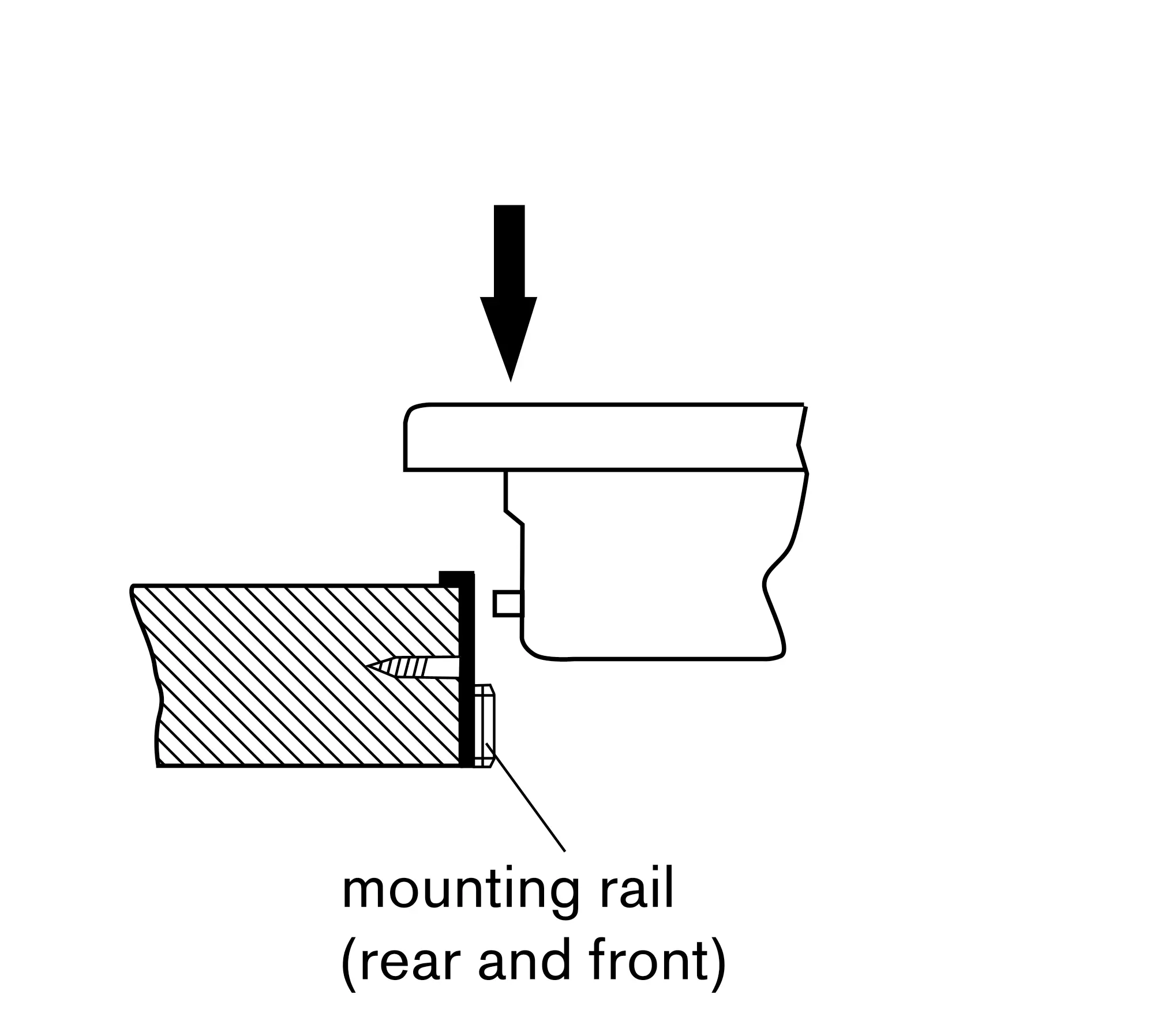

Appliance can be snapped into the worktop from above.
Securing rail on the rear and the front.
Total rating: Connected load: 9360 W
Plan a connection cable.
