Vario gas cooktop Natural gas 15 mbar
Technical Overview
4 1/4" x 11 5/16" x 20 3/16"
148x288x512 mm
Stainless steel
Highlights
Special Features
Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size
Specifications
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Control panel for comfortable and secure operation
Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size
Multi-ring burner of solid, heat-resistant brass as used in professional kitchen
Electric ignition of burner. Simply press the knob, turn it and hold it there until a stable flame burns
1 multi-ring wok burner (300 W – 5500 W), suitable for pots up to max. ø 30 cm.
Control knobs with illuminated ring.
Integrated control panel.
One-handed operation.
Electric ignition.
To close the cover, the cast iron pan support can be easily reversed.
Cast iron pan support.
Brass burner rings.
Thermoelectric safety pilot.
Residual heat indicator.
Operation indicator.
Special nozzles can be ordered as spare parts.
Appliance can be snapped into the worktop from above.

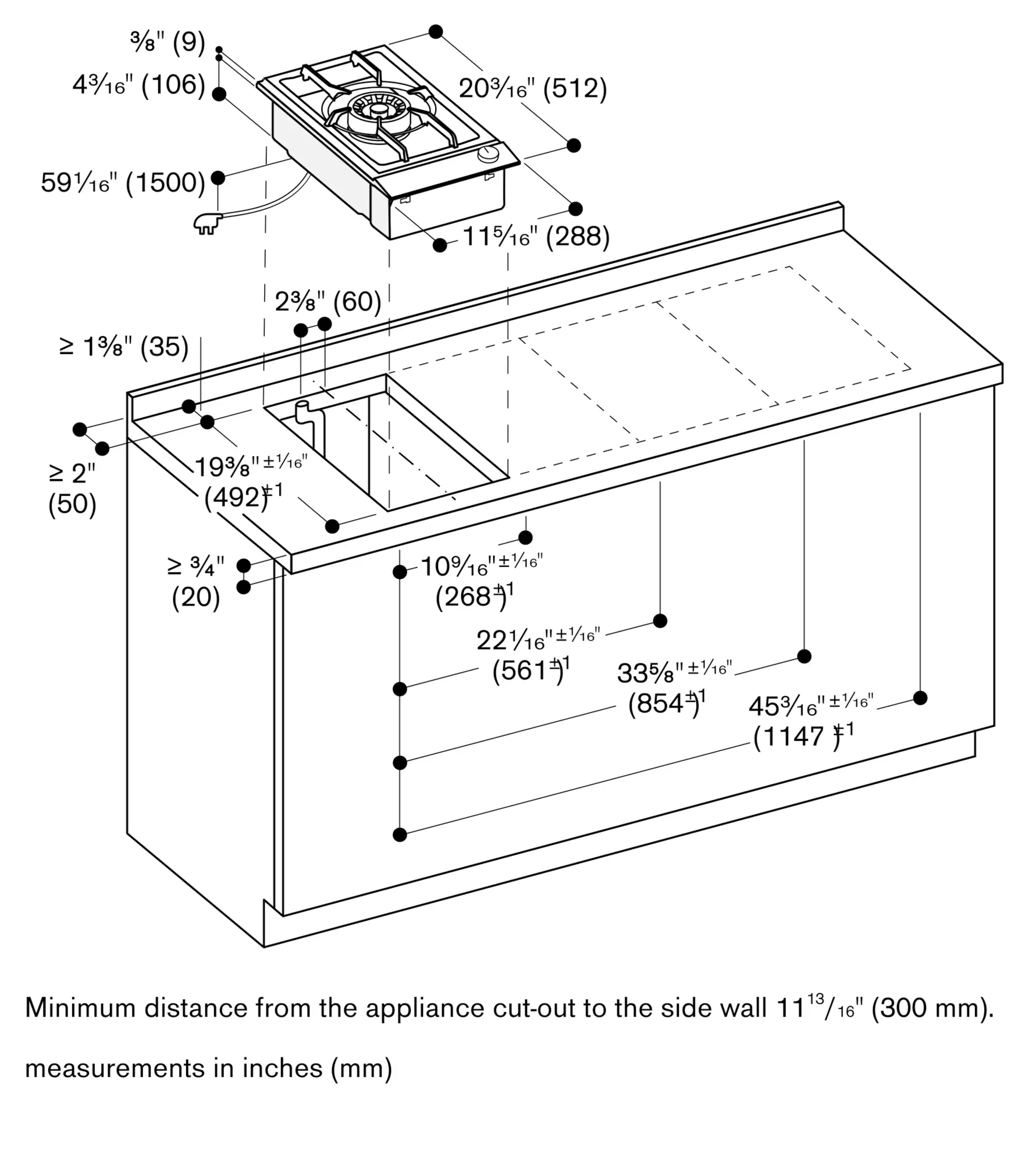

Above countertop minimum clearance of at least 11 13/16'' from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation must be installed.
Minimum distance between gas cooktop(s) with more than 37,533 BTU(11kW) and ventilation hood must be 30'' (76cm).
Appliance weight: approx. 29 kg.
Total connected load gas 5.5 KW.
Total Amps: 1 A. 120 V/60 Hz
Connecting cable 1.5 m with plug.
