200 series Vario gas cooktop Natural gas 15 mbar

VG232220CA

Can be combined with the cooktops of the Vario 200 series to a harmonic unity

Control panel for comfortable and secure operation

Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size

Electric ignition of all burners. Simply press the knob, turn it and hold it there until a stable flame burns

1 high output burner (560 W - 3000 W), suitable for pots up to max. ø 22 cm.

1 standard burner (380 W – 1900 W), suitable for pots up to max. ø 20 cm.

Control knobs with illuminated ring.

Integrated control panel.

One-handed operation.

Electric ignition.

Cast pan support with continuous pot surface.

Enamelled burner cover.

Thermoelectric safety pilot.

Residual heat indicator.

Operation indicator.

Special nozzles can be ordered as spare parts.

Appliance can be snapped into the worktop from above.

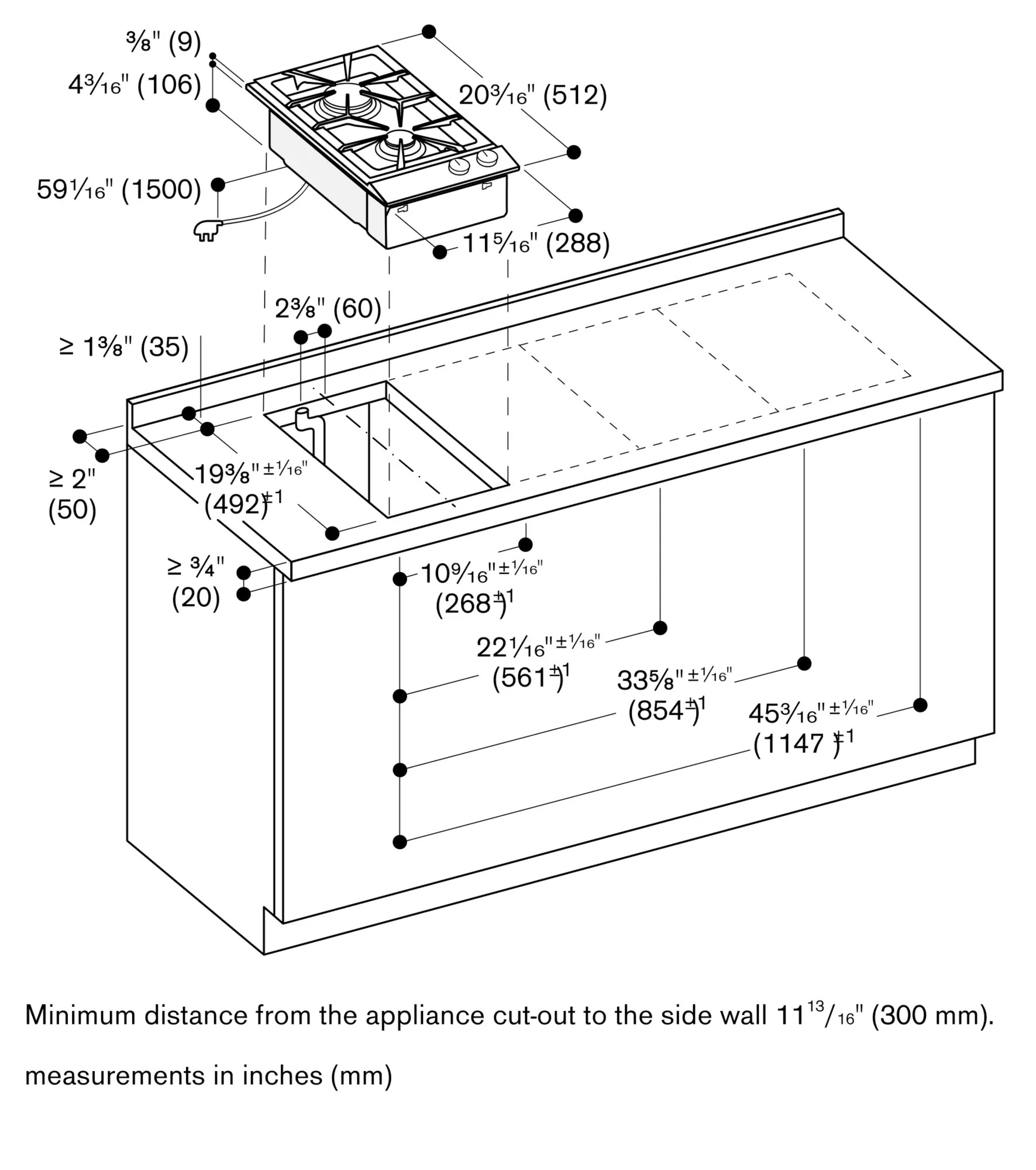

Above countertop minimum clearance of at least 11 13/16'' from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation must be installed.

Minimum distance between gas cooktop(s) with more than 37,533 BTU(11kW) and ventilation hood must be 30'' (76cm).

Appliance weight: approx. 29 kg.

Total connected load gas 4.9 KW.

Total Amps: 1 A. 120 V/60 Hz
