Vario gas cooktop Natural gas 15 mbar
Technical Overview

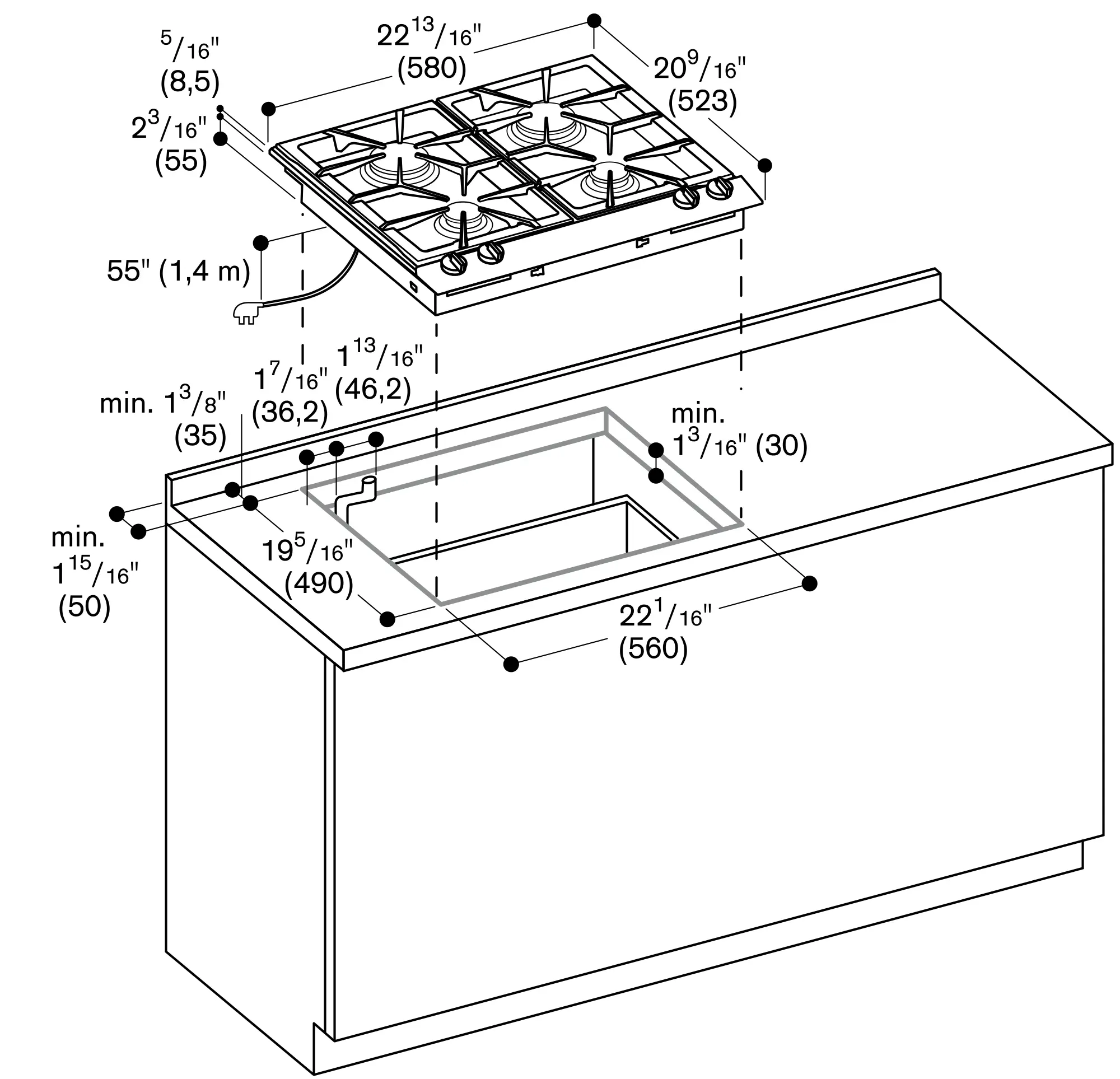

2 3/16 '' x 22 13/16 '' x 20 1/16 ''
63x580x52363.5x580x523 mm
Stainless steel
Special Features
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Generous control panel for comfortable and secure operation
Electric ignition of all burners. Simply press the knob, turn it and hold it there until a stable flame burns
Four gas burners suitable for pots up to max. 8 11/16''.
– 2800 W), suitable for pots up to max. ø 22 cm.
Specifications
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Generous control panel for comfortable and secure operation
Electric ignition of all burners. Simply press the knob, turn it and hold it there until a stable flame burns
Four gas burners suitable for pots up to max. 8 11/16''.
2 high output burners (560 – 2800 W), suitable for pots up to max. ø 22 cm.
2 standard burners (380 – 1900 W), suitable for pots up to max. ø 22 cm.
Control knobs with cooking zone and output level markings.
One-handed operation.
Electric ignition.
Two-part cast iron pan support with continuous pot surface.
Enamelled burner cover.
Thermoelectric safety pilot.
Special nozzles can be ordered as spare parts.
Air intake from above.
No intermediate shelf required.
Appliance can be snapped into the worktop from above.
Securing rail on the rear and the front.
A minimum lateral clearance of at least 150 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
Minimum distance between gas cooktop(s) with more than 37,533 BTU(11kW) and ventilation hood must be 30'' (76cm).
Special nozzles (order 2 of each):
Part No. 433603 Natural gas 20 mbar Part No. 419831 Liquid gas 30 mbar Part No. 419830 Liquid gas 50 mbar
Total Amps: 1 A. 120 V/60 Hz
Connecting cable 1.4 m with plug.
