Technical Overview

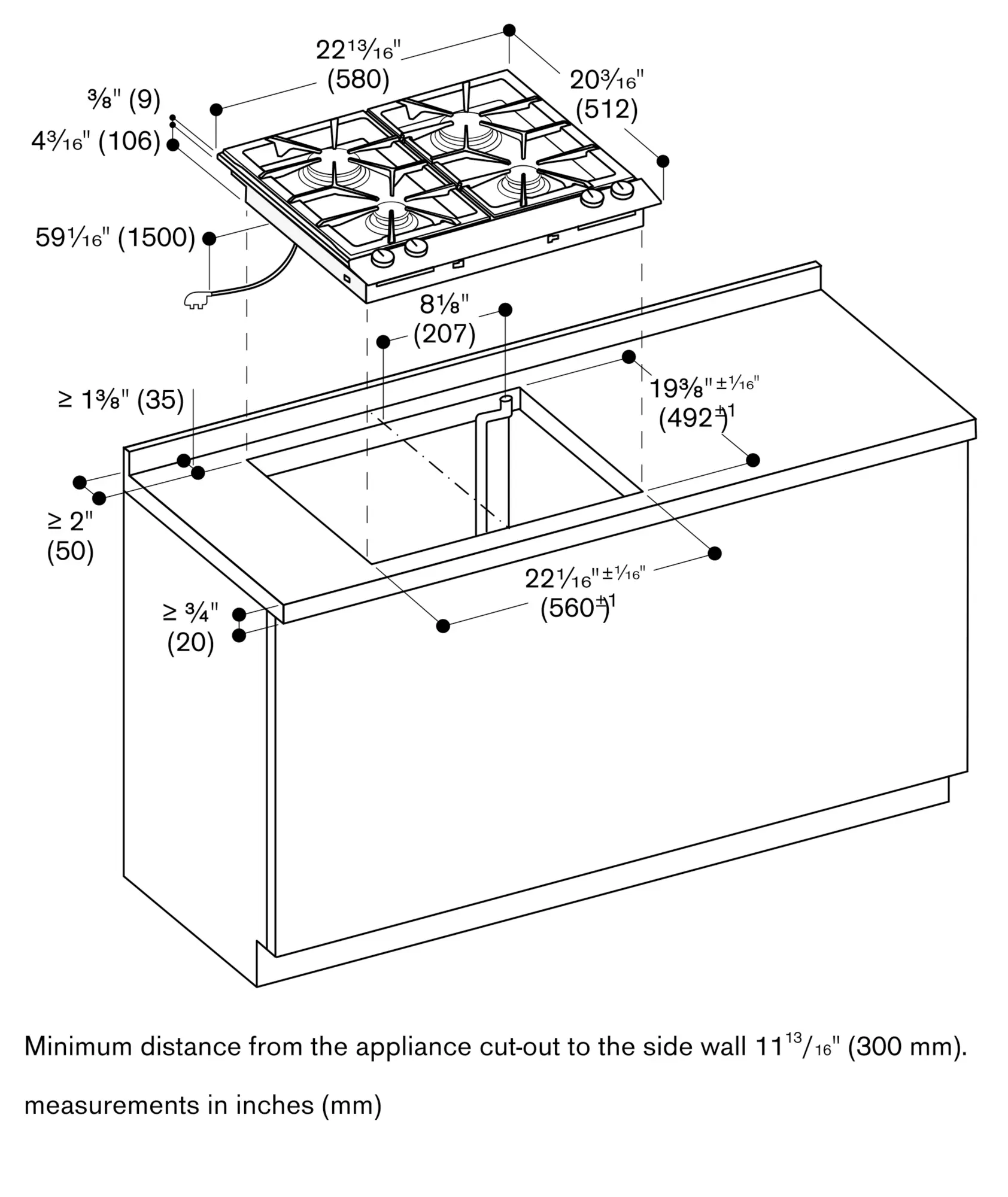

Overall Appliance Dimensions (HxWxD) (in)
4 1/4" x 22 13/16" x 20 3/16"
Dimensions (HxWxD)
132x580x512 mm
Color
Stainless steel
Highlights
Special Features
Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size
Specifications
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Control panel for comfortable and secure operation
Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size
Electric ignition of all burners. Simply press the knob, turn it and hold it there until a stable flame burns
Four gas burners suitable for pots up to max. 8 11/16''.
2 high output burner (560 W - 3000 W), suitable for pots up to max. ø 22 cm.
2 standard burners (380 W – 1900 W), suitable for pots up to max. ø 20 cm.
Control knobs with illuminated ring.
Integrated control panel.
One-handed operation.
Electric ignition.
Two-part cast iron pan support with continuous pot surface.
Enamelled burner cover.
Thermoelectric safety pilot.
Residual heat indicator.
Operation indicator.
Special nozzles can be ordered as spare parts.
No intermediate shelf required.
Appliance can be snapped into the worktop from above.
Above countertop minimum clearance of at least 11 13/16'' from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation must be installed.
Minimum distance between gas cooktop(s) with more than 37,533 BTU(11kW) and ventilation hood must be 30'' (76cm).
Appliance weight: approx. 29 kg.
Total connected load gas 9.8 KW.
Total Amps: 1 A. 120 V/60 Hz
Connecting cable 1.5 m with plug.
