Vario gas cooktop 36'' Natural gas 15 mbar
Technical Overview
5 1/4 x 35 3/4" x 20 1/2"
165x908x520 mm
Stainless steel
Specifications
Five multi-ring burners, up to 17.5 kW
Full electronic power level regulation on 12 levels
Full electronic gas valves for precise and reproducible power regulation
Automatic fast ignition, electronic flame monitoring with automatic re-ignition
Simmer function for cooking on a very low output level
Solid smooth-surface cast iron pan supports
Solid stainless steel control knob
Precision crafted 3mm stainless steel frame

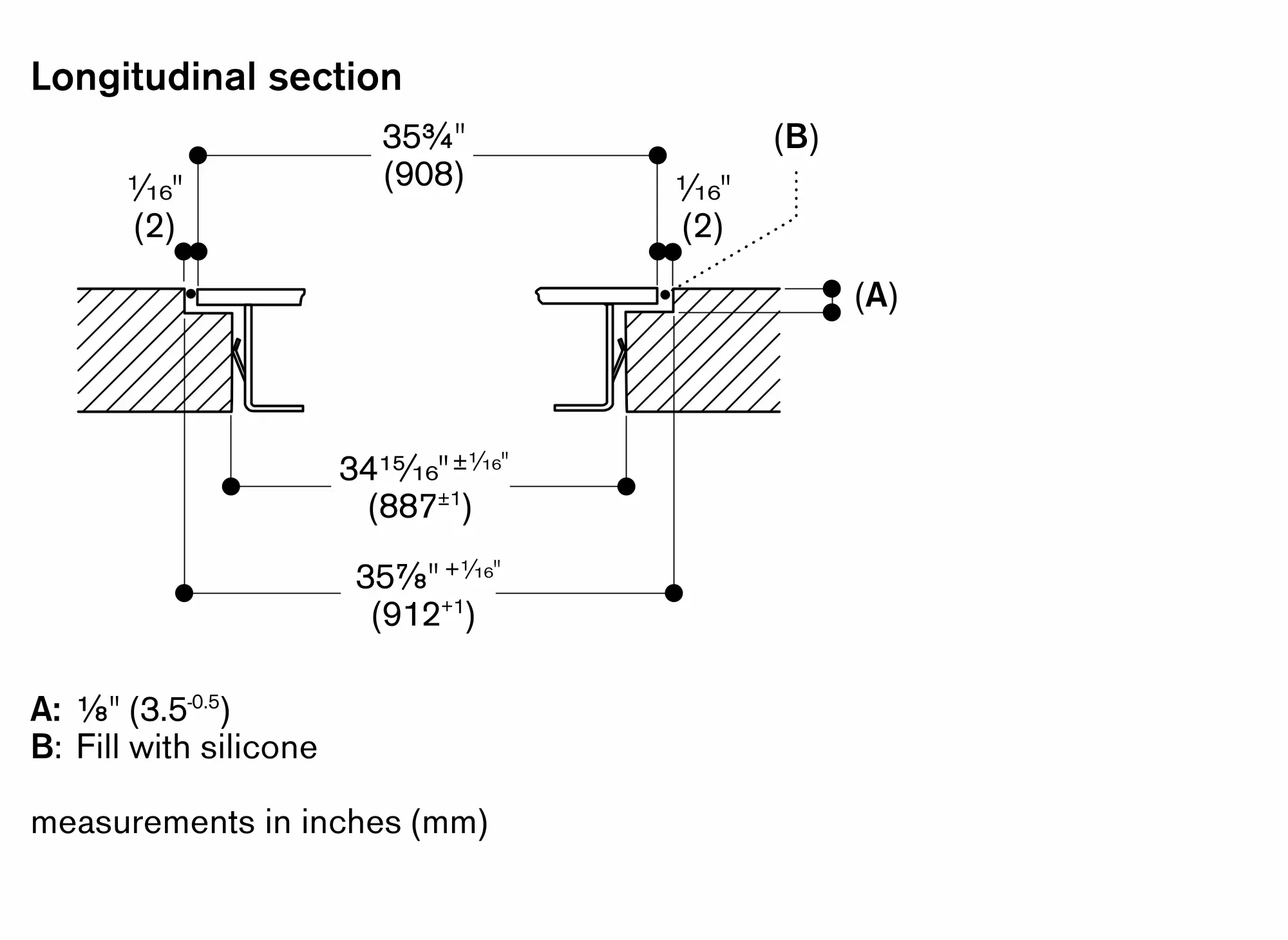

For surface-mount installation with a visible edge or for flush installation
Can be perfectly combined with other Vario 400 series appliances
1 three-ring wok burner (300 W – 5500 W), suitable for pots up to max. ø 32 cm.
2 two-ring high output burners (165 W – 4000 W), suitable for pots up to max. ø 28 cm.
2 two-ring standard burners (165 W - 2000 W), suitable for pots up to max. ø 24 cm.
Control knobs with illuminated ring, cooking zone and output level markings.
One-handed operation.
Full electronic control in 12 output levels for exact power level regulation plus simmer function.
Automatic quick ignition.
Simmer function.
Three-part cast iron pan support with flat, continuous pot surface.
Brass burner rings.
Electronic flame monitoring with automatic re-ignition.
Residual heat indicator.
Safety shut-off.

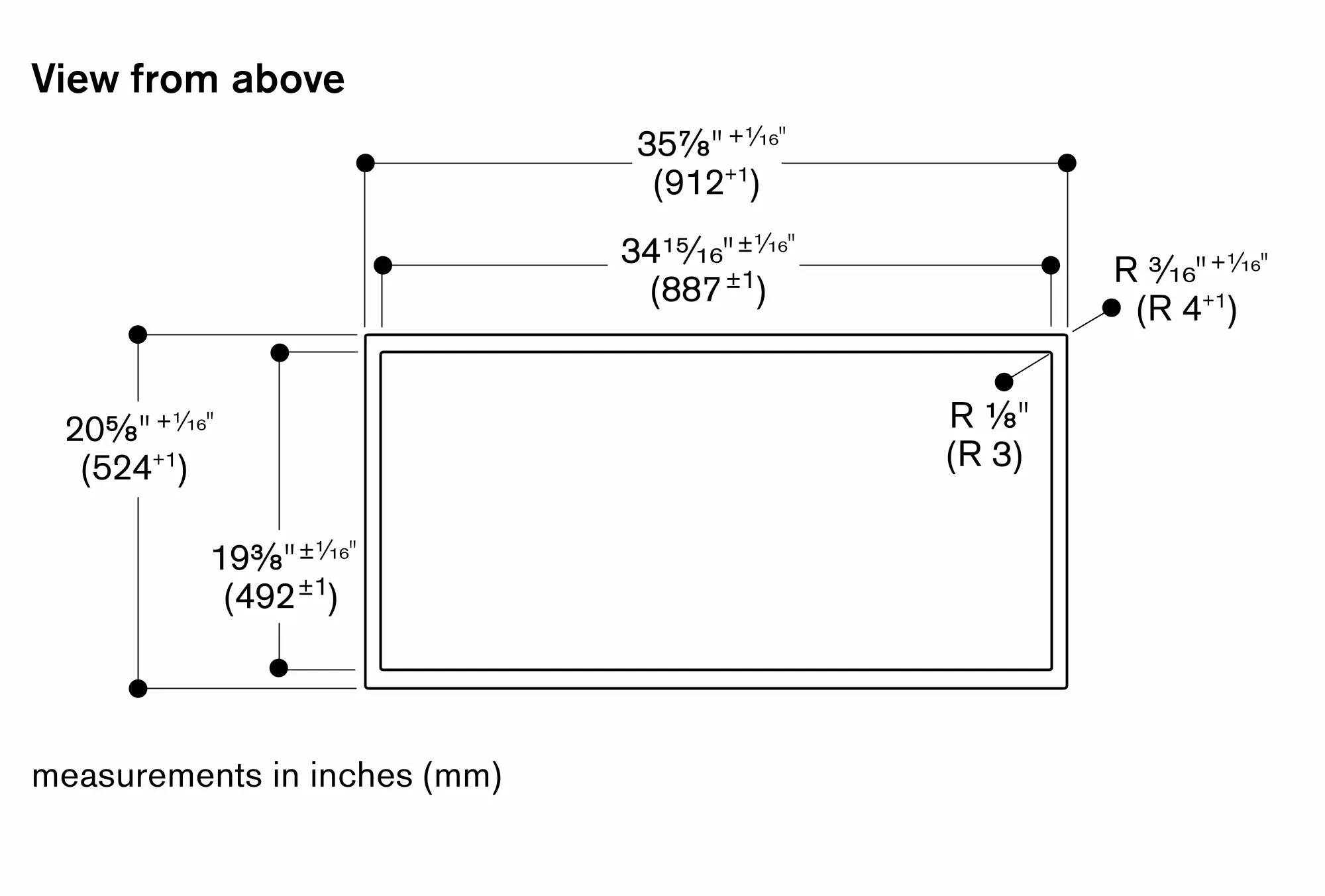

Depending on the type of installation (surface-mounted or flush-mounted, with or without an appliance cover), the specific location of the cut-out and the knob positions may vary.
If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
The joint width may vary due to size tolerances of the combinations and of the worktop cut-out.
If installing several appliances in individual cut-outs allow for a division bar of minimum 50 mm between the individual cut-outs.
Plan for an electrical connection (the appliance is not operable without power supply).
Air intake from above.
No intermediate shelf required.
The rear panel must consist of a non-flammable material. Wall trims must be resistant to heat.
A minimum lateral clearance of at least 300 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.

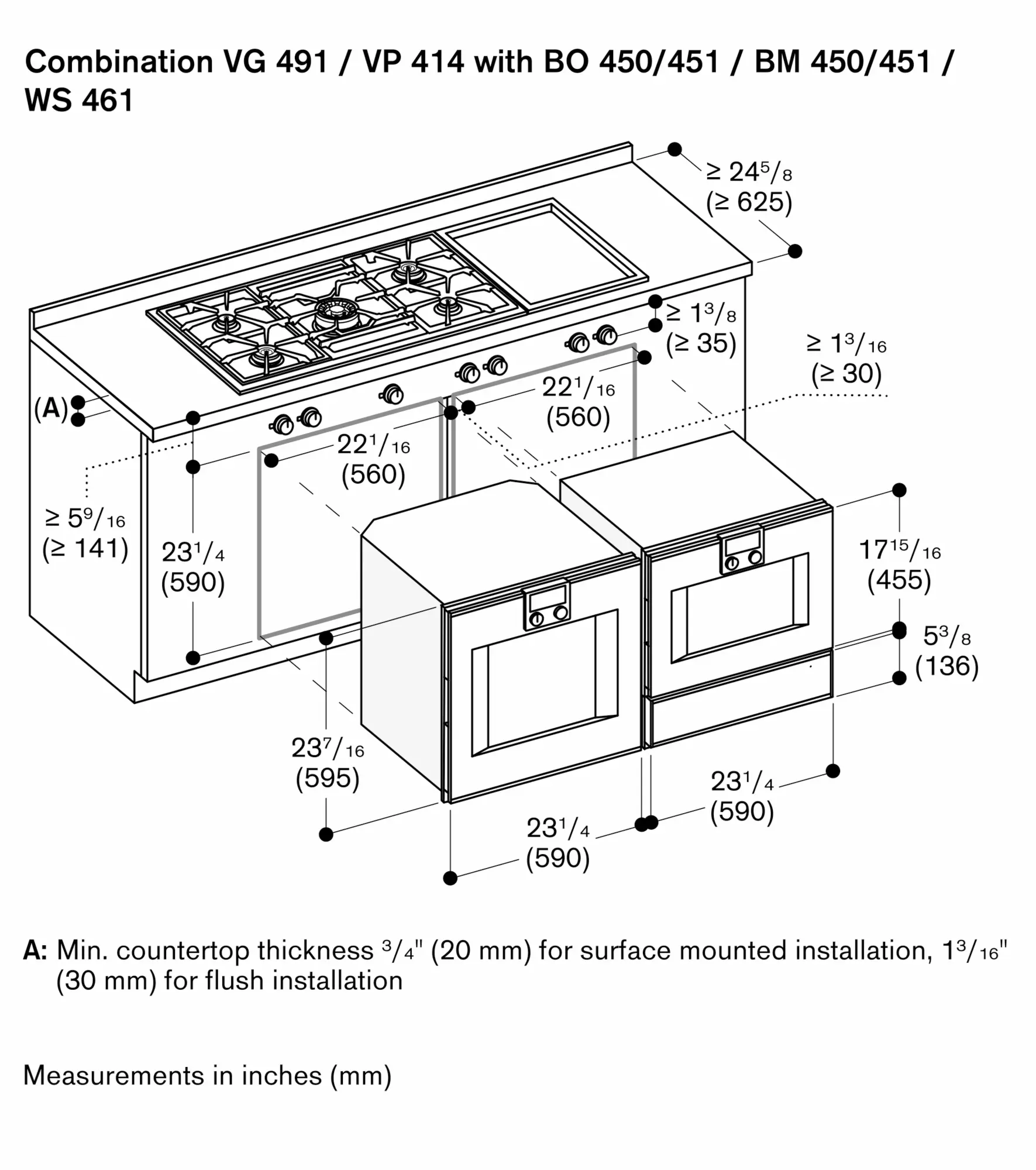

Installation in a 90 cm wide lower cabinet is required.
The combination with VL 414 is not recommended, since the air extraction from the centre burner cannot be guaranteed due to the distance.
Minimum distance between gas cooktop(s) with more than 37,533 BTU(11kW) and ventilation hood must be 30'' (76cm).
Appliance can be snapped into the worktop from above.
Total Amps: 15 A.
120 V / 60 Hz.
Total connected load gas 17.5 kW.
