400 series Dishwasher 24''

DF481701

Optimal protection for sensitive glassware by low temperature drying with zeolite, optimized basket design and intelligent water softening

Flexible basket system with smooth running rails on all levels and cushioned closing of the upper and lower baskets

Perfectly illuminated interior

Push-to-open function for perfect integration into handleless furniture fronts

Very quiet: 42 dB

TFT display indicating remaining or end time, refill for salt and rinsing agent, inflow of water.

Touch key operation.

Flexible cycle time reduction, even during an active cycle.

Personalisation function for storing individual combinations of programmes.

Information key with use indicators.

Sanitized indicator in the control panel.

Time delay up to 24 hours.

Visual and acoustic end of programme indicator.

Remaining time projection.

Perfectly illuminated interior.

Glass protection with zeolite.

Aqua sensor.

Load sensor.

Automatic detergent function.

Yes

Flow-Through Water Heater™

Triple filter system.

Soft lock.

Aqua stop.

Temporary noise reduction (only available with active Home Connect functionality).

Home network integration for digital services (Home Connect) wireless via WiFi.

The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

8 programmes:

Auto 150-160 °F. Auto 127-140 °F. Auto 113-122 °F. Eco 113-136 °F. Wash and Dry. Quick Wash 113 °F (30 min). Glass Care 122 °F. Personalisation function (default setting: Pre-rinse).

Machine Care.

Flexible rack system with smooth running rails on all levels and soft-closing system of the upper and lower rack.

3rd rack for cutlery

Upper basket:

Over extension. Rackmatic with 3 levels, adjustable in height up to 5 cm. 6 folding spines. 4 folding racks for optimal protection of glass.

Cutlery basket.

Holder for long-stemmed glasses.

13 place setting capacity.

Maximum glass loading capacity 23 wine glasses.

Energy star certified

Total annual energy consumption 240 kWh.

Total annual water consumption 505 gallons.

Noise level 42 dB (re 1 pW).

Height-adjustable feet.

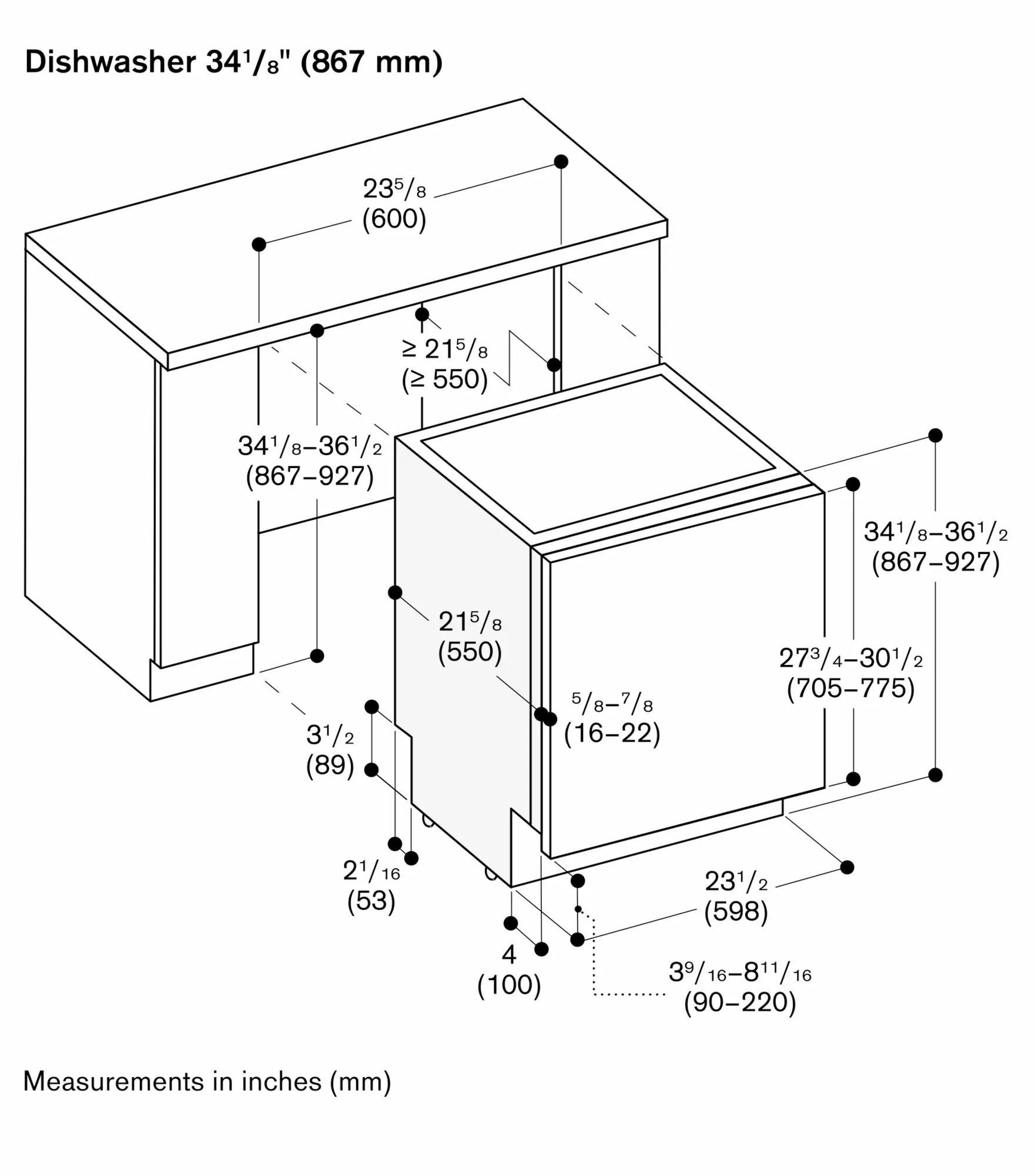

Appliance plinth recess 100 mm (see drawing).

To display the remaining time projection, a minimum plinth protrusion is required (40 mm + thickness of the furniture front).

The maximum plinth height must be reduced by 30 mm to provide an optimal display of the remaining time projection.

Rear feet adjustable at front.

Door weight up to 10 kg.

Door panel dimension dependent on toe-kick height of kitchen cabinetry.

Installation and usage also with furniture handle possible. The push-to-open function remains active.

Total connected load 1440 W.

Connecting cable 47 1/4'' with three-prong plug (NEMA 5-15P).

Water connection with 3/4" screw joint.

Connection to hot or cold water possible.

Power consumption standby/network 2.0 W.

Time auto-standby/network 20 min.
