Technical Overview
Overall Appliance Dimensions (HxWxD) (in)
17 59/64" x 23 15/64" x 22 3/64"
Dimensions (HxWxD)
455x590x559 mm

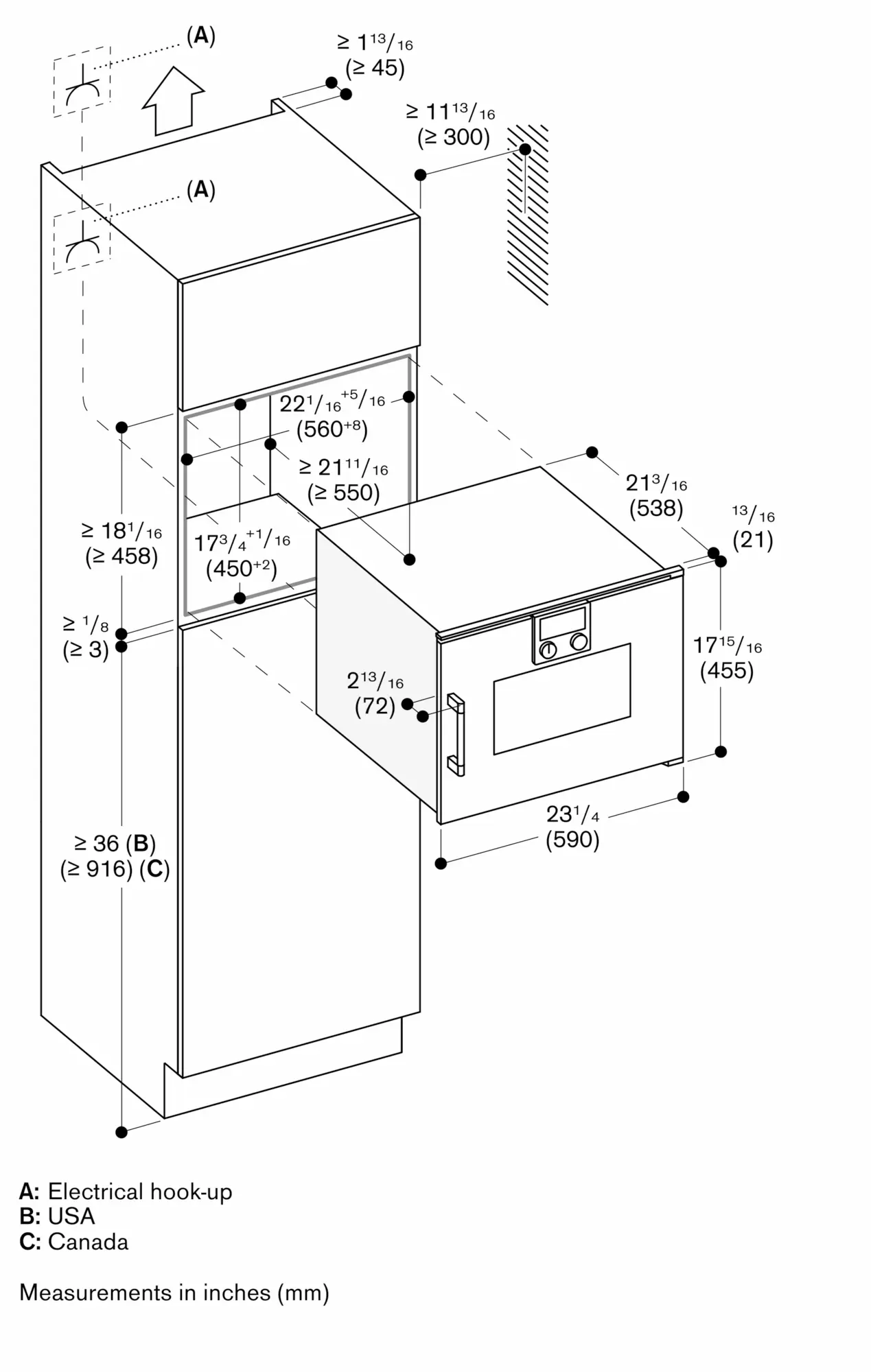

Required Cutout Size (HxWxD) (in)
17 23/32" x 22 1/16" x 21 21/32"
Min. required cutout size (HxWxD)
450-452 x 560-568 x 550 mm
Specifications
Flush installation
Single operation and combination of microwave, grill and oven
Sequential operation of up to 5 modes incl. programming of combined operation and rest time
TFT touch display
Electronic temperature control
Interior volume 36 litres
Microwave operation with 5 output levels: 1000, 600, 360, 180, 90 W.
Oven operation with 4 heating methods:
- Convection at 100°F and from 210°F - 480°F. - Broil + Convection from 210°F - 480°F. - Broil + circulated air from 210°F - 480°F. Broil with 3 levels of intensity, maximum output 2000 W.
Heating methods with microwave output levels 600, 360, 180 and 90 W freely combinable.
15 automatic programmes with weight indication, customisable:
4 defrosting programmes 4 cooking programmes 7 combination programmes
Option to save 50 individual recipes.
Rotary knob and TFT touch display operation.
Clear text display in 44 languages.
Information key with use indicators.
Side-opening door opens up to 110° angle.
Innowave.
Fast heating setting.
4 tray levels.
Actual temperature display.
60 W halogen light on the side.
Thermally insulated door with triple glazing.
Triple door lock.
Child lock.
Safety shut-off.
Cooled housing with temperature protection.
Hygienic stainless steel interior with glass ceramic base.
Interior back wall with catalytic coating.
Door hinge not reversible.
Plan the niche without back wall.
Necessary lateral gap between appliance door and cabinet front of min. 3/16''.
The door panel front of the appliance extends 13/16'' from the cabinet front.
The outer edge of the door handle extends 2 13/16'' from the cabinet front.
Consider the overhang, incl. the door handle, when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the 110° door opening angle.
Plan a power outlet outside of the cut-out niche.
Total rating 2.1 KW.
