400 series built-in compact oven with microwave function 24'' Door hinge: Right, Door hinge: Right, Stainless steel behind glass
BM450710

Find a local Dealer

Technical Overview

Overall Appliance Dimensions (HxWxD) (in)
17 15/16 " x 23 1/4 " x 22 15/16 "
Dimensions (HxWxD)
455x590x582 mm

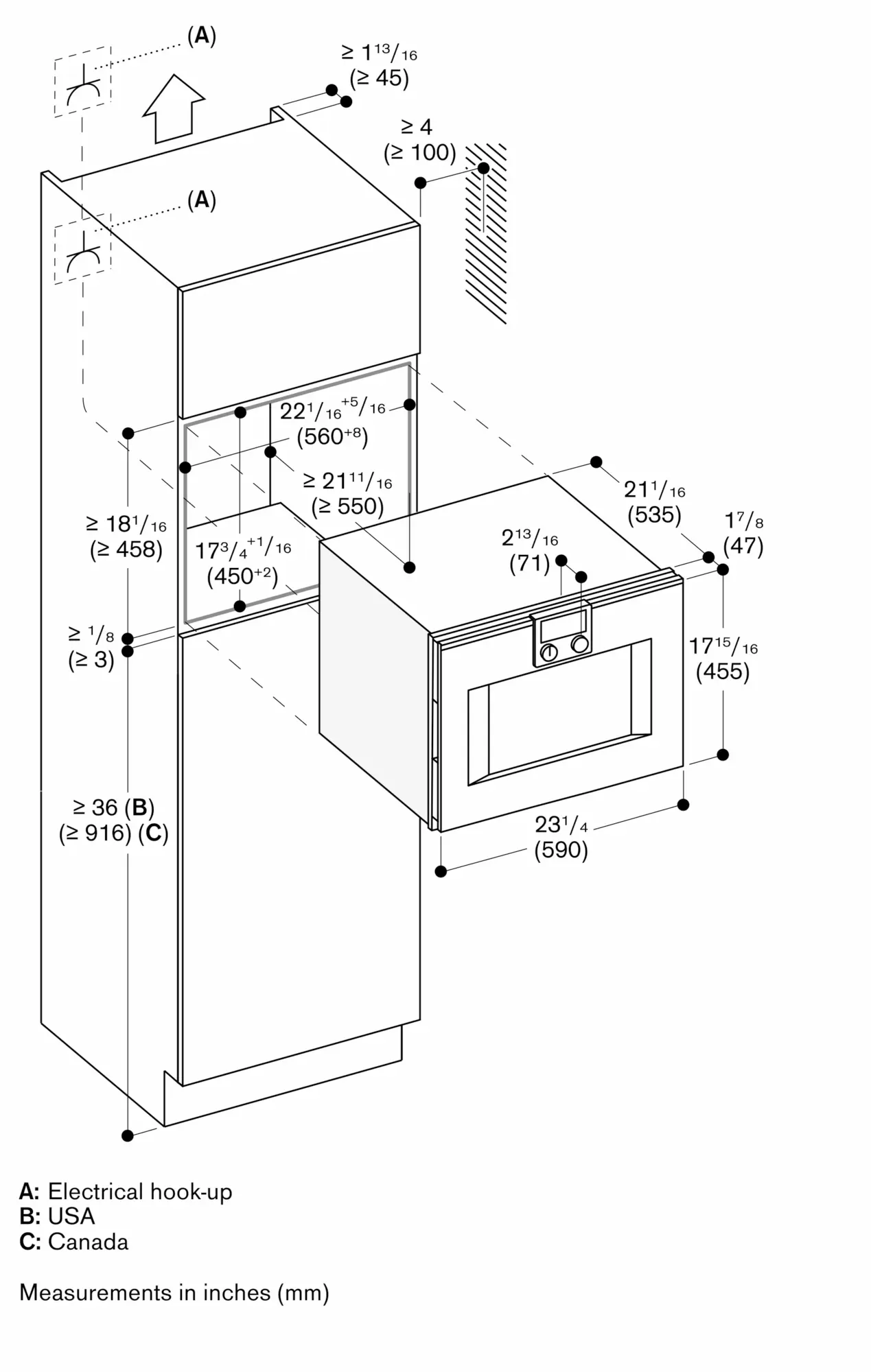

Required Cutout Size (HxWxD) (in)
17 11/16 " x 22 1/16 " x 21 5/8 "
Min. required cutout size (HxWxD)
450-450 x 560-560 x 550 mm

Specifications

Handleless door / automatic door opening
Single operation and combination of microwave, grill and oven
Sequential operation of up to 5 modes incl. programming of combined operation and rest time
TFT touch display
Panel-free appliance with surface control module
Electronic temperature control
Net volume 1.2 cu. ft. (34l)
Microwave operation with 5 output levels: 1000, 600, 360, 180, 90 W.
Oven operation with 4 heating methods:
Convection at 100 °F (40 °C) and from 210 °F to 480 °F (100 °C to 250 °C), Broil+ convection from 210 °F to 480 °F (100 °C to 250 °C), Broil + circulated air from 210 °F to 480 °F (100 °C to 250 °C), Broil with 3 levels of intensity, maximum output 2000 W.
Heating methods with microwave output levels 600, 360, 180 and 90 W freely combinable.
15 automatic programmes with weight indication, customisable:
4 defrosting programmes 4 cooking programmes 7 combination programmes
Option to save 50 individual recipes.
Sabbath mode with constant temperature of 185 °F (85 °C).
One touch control panel and an interactive visual display.
Rotary knob and TFT touch display operation.
Clear text display in 44 languages.
Information key with use indicators.
Side-opening door opens up to 180° angle.
Innowave.
Fast heating setting.
Four rack levels.
Actual temperature display.
60 W halogen light on the side.
Thermally insulated door with triple glazing.
Triple door lock.
Child lock.
Safety shut-off.
Cooled housing with temperature protection.
Hygienic stainless steel interior with glass ceramic base.
Interior back wall with catalytic coating.
Door hinge not reversible.

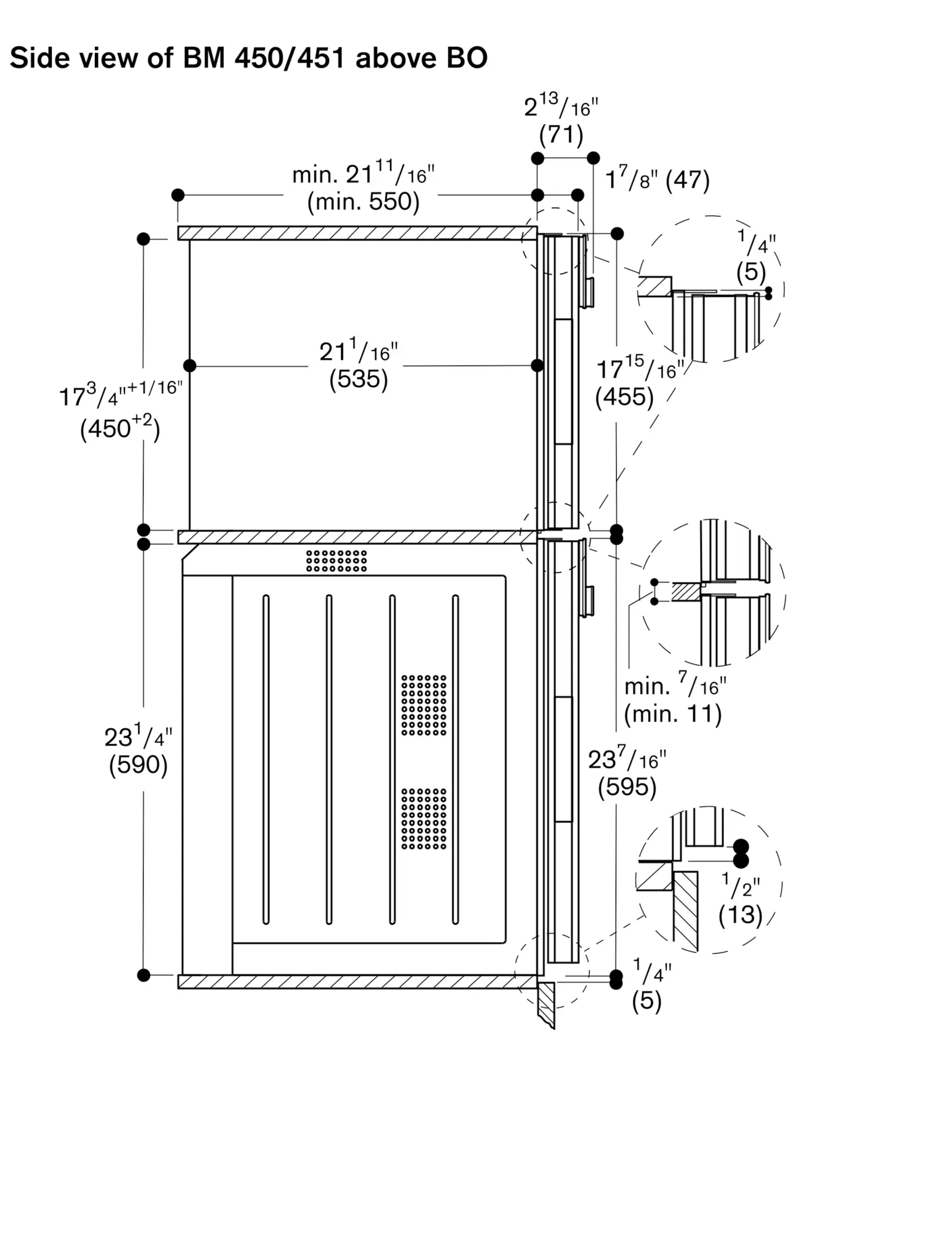

Plan the niche without back wall.
The front of the appliance extends 1 7/8'' from the furniture cavity.
If the handle (optional accessory) is retrofitted, the outer edge of the door handle extends 3 11/16" (94 mm) from the furniture cavity.
Consider the overhang, incl. the door handle where applicable, when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the 110° door opening angle.
The power outlet needs to be planned outside of the niche.
Canada only: Minimum installation height 91,6 cm (top edge of niche bottom).
Total rating 0.95kW.
Total Amps: 2*20 A.
240 / 208 V / 60 Hz.
Connecting cable 59 1/16 without plug (hardwire required).
