400 SeriesCombi-microwave ovensBM484710
Combi-microwave ovens

400 series built-in compact oven with microwave function 30'' Door hinge: Right, Door hinge: Right, Stainless steel behind glass
BM484710

1 / 7
Photo Nr. 1 of the product BM484710
Photo Nr. 2 of the product BM484710
Photo Nr. 3 of the product BM484710
Photo Nr. 4 of the product BM484710
Photo Nr. 5 of the product BM484710
Photo Nr. 6 of the product BM484710
Photo Nr. 7 of the product BM484710
Photo thumb Nr. 1 of the product BM484710
Photo thumb Nr. 2 of the product BM484710
Photo thumb Nr. 3 of the product BM484710
Photo thumb Nr. 4 of the product BM484710
Photo thumb Nr. 5 of the product BM484710
Photo thumb Nr. 6 of the product BM484710
Photo thumb Nr. 7 of the product BM484710
Photo thumb Nr. 1 of the product BM484710
Photo thumb Nr. 2 of the product BM484710
Photo thumb Nr. 3 of the product BM484710
Photo thumb Nr. 4 of the product BM484710
Photo thumb Nr. 5 of the product BM484710
Photo thumb Nr. 6 of the product BM484710
Photo thumb Nr. 7 of the product BM484710

400 series built-in compact oven with microwave function 30'' Door hinge: Right, Door hinge: Right, Stainless steel behind glass
BM484710

Find a local Dealer

Technical Overview

Overall Appliance Dimensions (HxWxD) (in)
17 15/16 " x 29 5/8 " x 22 15/16 "
Dimensions (HxWxD)
455x752x582 mm

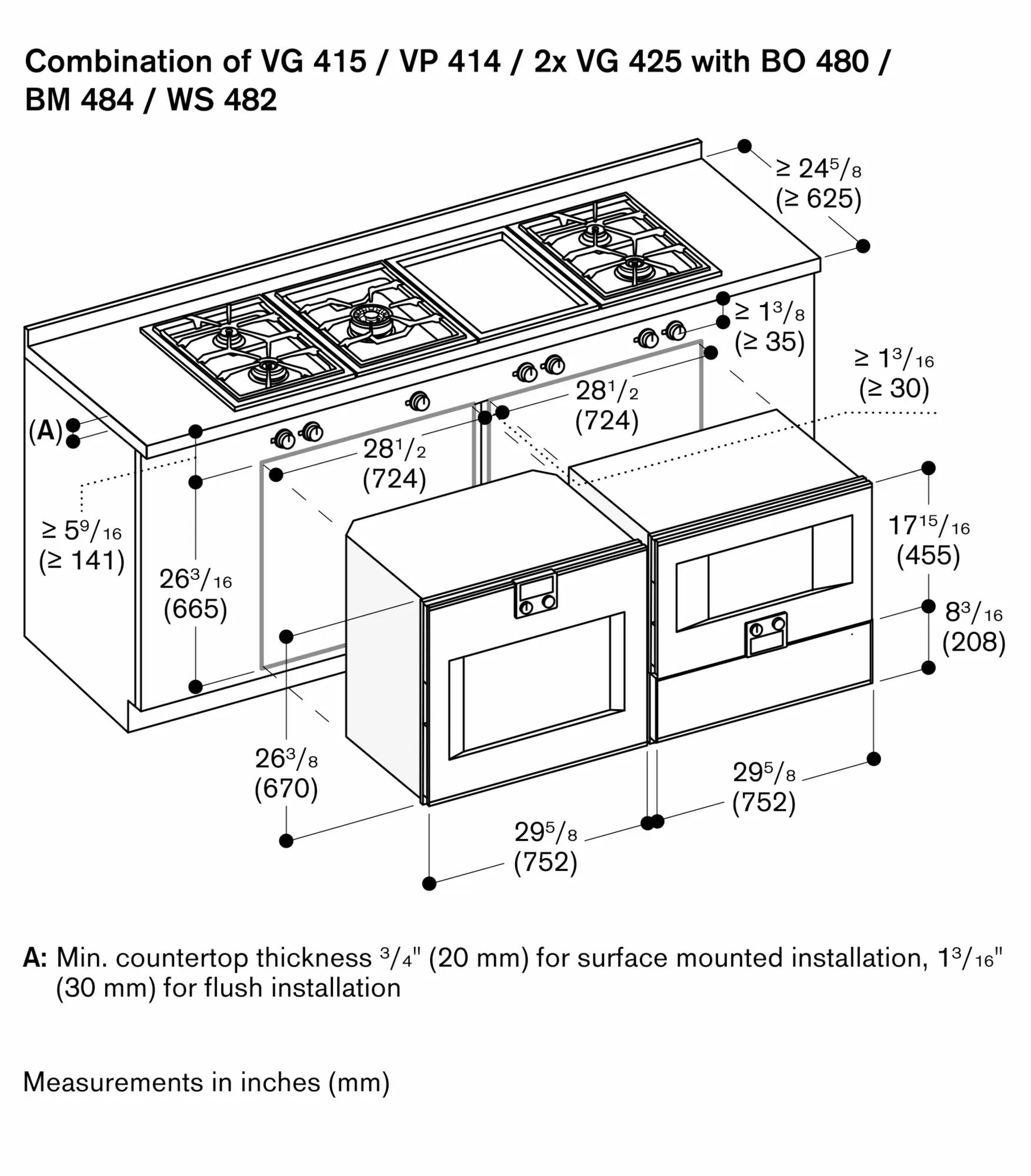

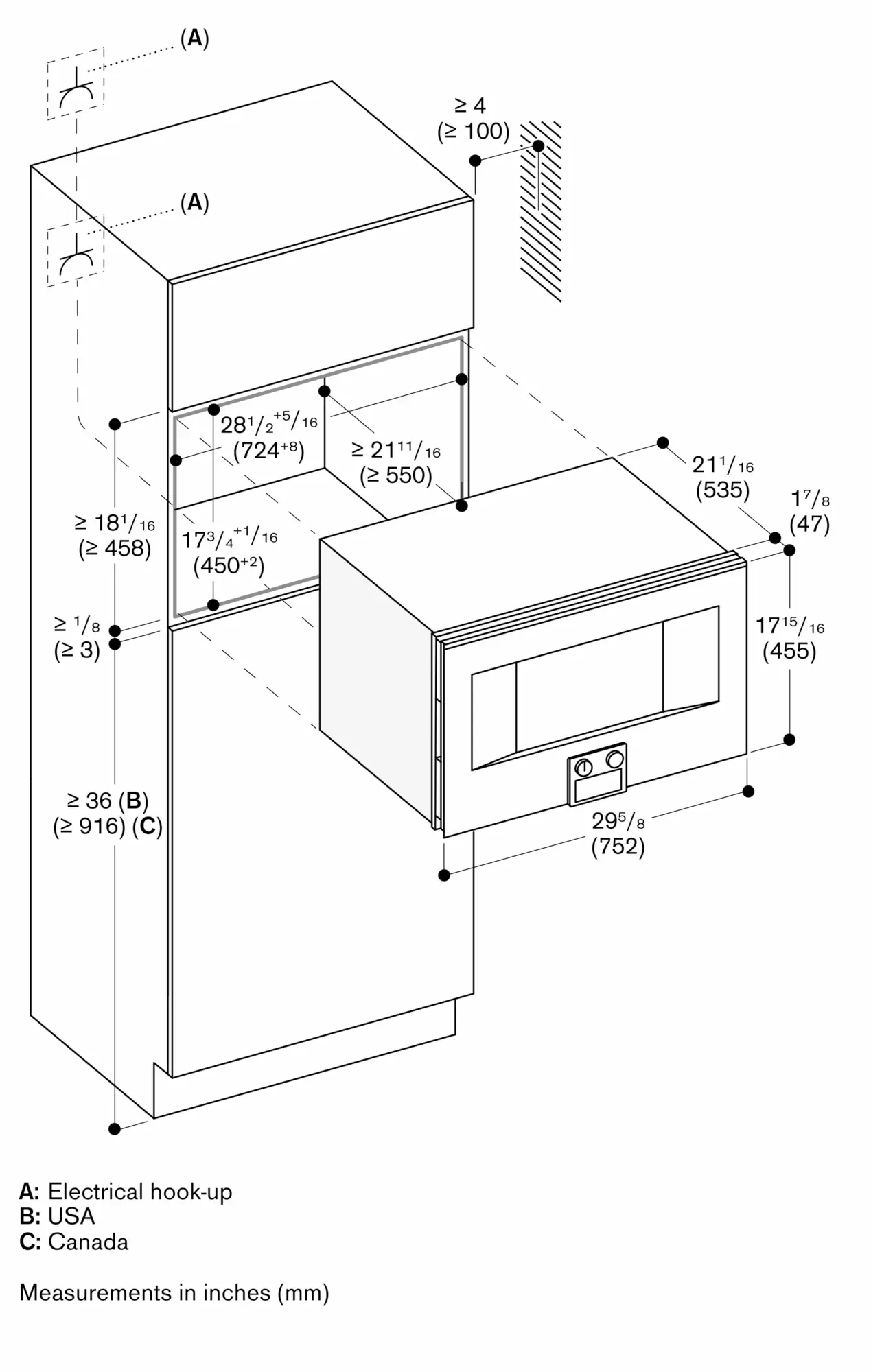

Required Cutout Size (HxWxD) (in)
17 11/16 " x 28 1/2 " x 21 5/8 "
Required cutout size (HxWxD)
450-450 x 724-724 x 550 mm

Specifications

Handleless door / automatic door opening
Single operation and combination of microwave, grill and oven
Sequential operation of up to 5 modes incl. programming of combined operation and rest time
TFT touch display
Electronic temperature control
Net volume 1.2 cu. ft. (34l)
Microwave operation with 5 output levels: 1000, 600, 360, 180, 90 W.
Oven operation with 4 heating methods:
Convection at 100 °F (40 °C) and from 210 °F to 480 °F (100 °C to 250 °C), Broil+ convection from 210 °F to 480 °F (100 °C to 250 °C), Broil + circulated air from 210 °F to 480 °F (100 °C to 250 °C), Broil with 3 levels of intensity, maximum output 2000 W.
Heating methods with microwave output levels 600, 360, 180 and 90 W freely combinable.
15 automatic programmes with weight indication, customisable:
4 defrosting programmes 4 cooking programmes 7 combination programmes
Option to save 50 individual recipes.
Sabbath mode with constant temperature of 185 °F (85 °C).
One touch control panel and an interactive visual display.
Rotary knob and TFT touch display operation.
Information key with use indicators.
Side-opening door opens up to 180° angle.
Innowave.
Fast heating setting.
Four rack levels.
Actual temperature display.
60 W halogen light on the side.
Thermally insulated door with triple glazing.
Triple door lock.
Child lock.
Safety shut-off.
Cooled housing with temperature protection.
Hygienic stainless steel interior with glass ceramic base.
Interior back wall with catalytic coating.
Door hinge not reversible.

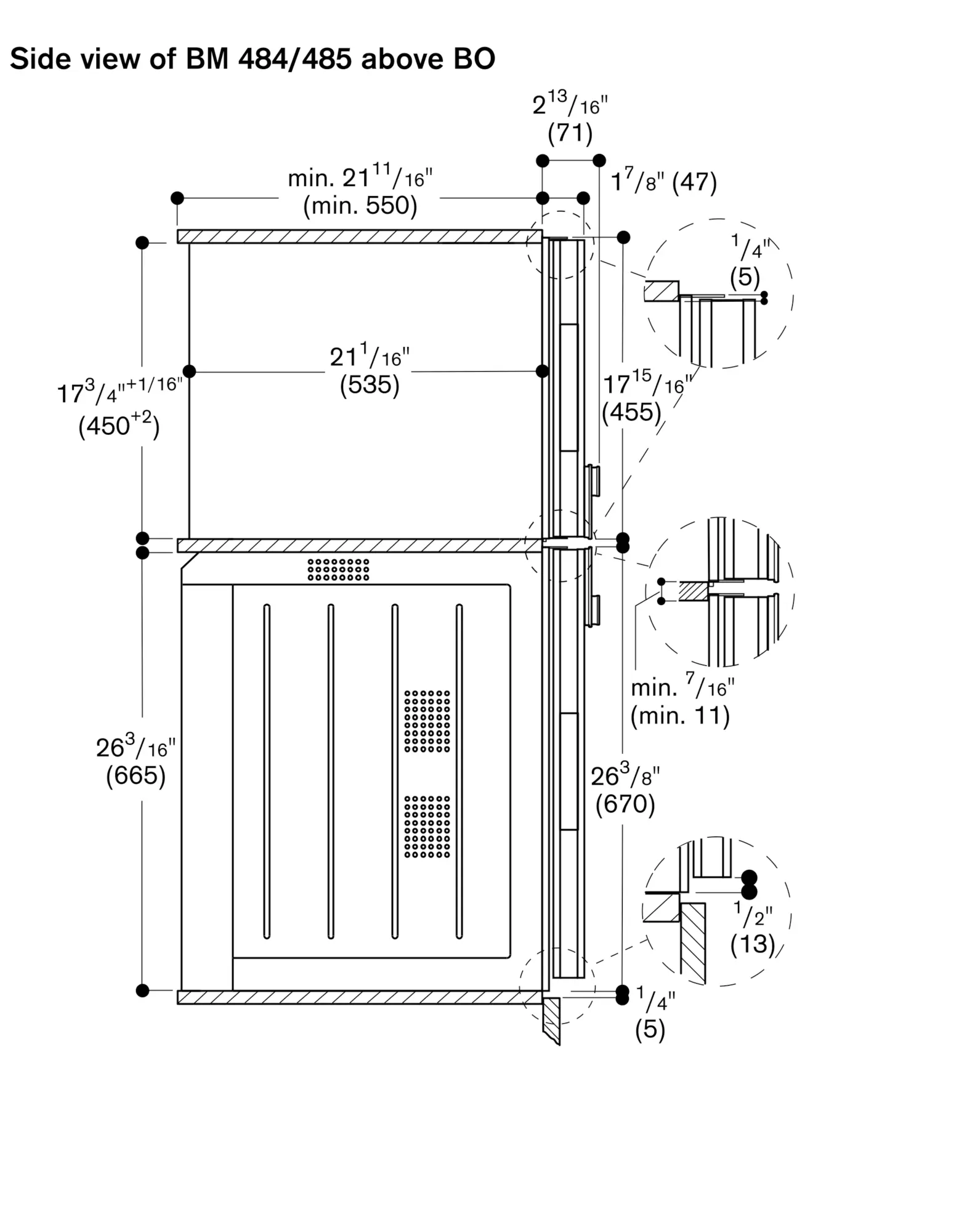

The front of the appliance extends 1 7/8'' from the furniture cavity.
If the handle (optional accessory) is retrofitted, the outer edge of the door handle extends 3 11/16" (94 mm) from the furniture cavity.
Consider the overhang, incl. the door handle where applicable, when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the 110° door opening angle.
The power outlet needs to be planned outside of the niche.
Total rating 0.95kW.
Total Amps: 2*20 A.
240 / 208 V / 60 Hz.
Connecting cable 59 1/16 without plug (hardwire required).
