400 series Double Wall Oven 30''

BX481612

Pyrolytic self-cleaning system

Universal heating system with 17 heating methods, with core temperature probe, rotisserie spit and baking stone operation

Core temperature probe with estimation of cooking time

TFT touch display

Electronic temperature control from 30 °C to 300 °C

2 x 110 litres net volume

Convection.

Economy convection. Top + bottom heat. Top + 1/3 bottom heat. Top heat. 1/3 top + bottom heat. Bottom heat. Convection + bottom heat. Convection + 1/3 bottom heat. Convection broiling. Broiling. Compact grill. Baking stone operation. Roaster function. Dough proofing. Defrosting. Keeping warm.

Rotary knob and TFT touch display operation.

Clear text display in 44 languages.

Information key with use indicators.

Side-opening door opens up to 180° angle.

Three-point core temperature probe with automatic shut-off and estimation of cooking time.

Rotisserie spit (lower oven).

Baking stone outlet.

Actual temperature display.

Fast heating setting.

60 W halogen light on the top.

10 W halogen light on the side.

Enamelled side shelf supports with 5 tray levels, pyrolysis-safe.

Thermally insulated door with quadruple glazing.

Child lock.

Safety shut-off.

Cooled housing with temperature protection.

Pyrolytic self-cleaning.

Gaggenau Clean-Enamel.

Heated air cleaning catalyst.

Door hinge not reversible.

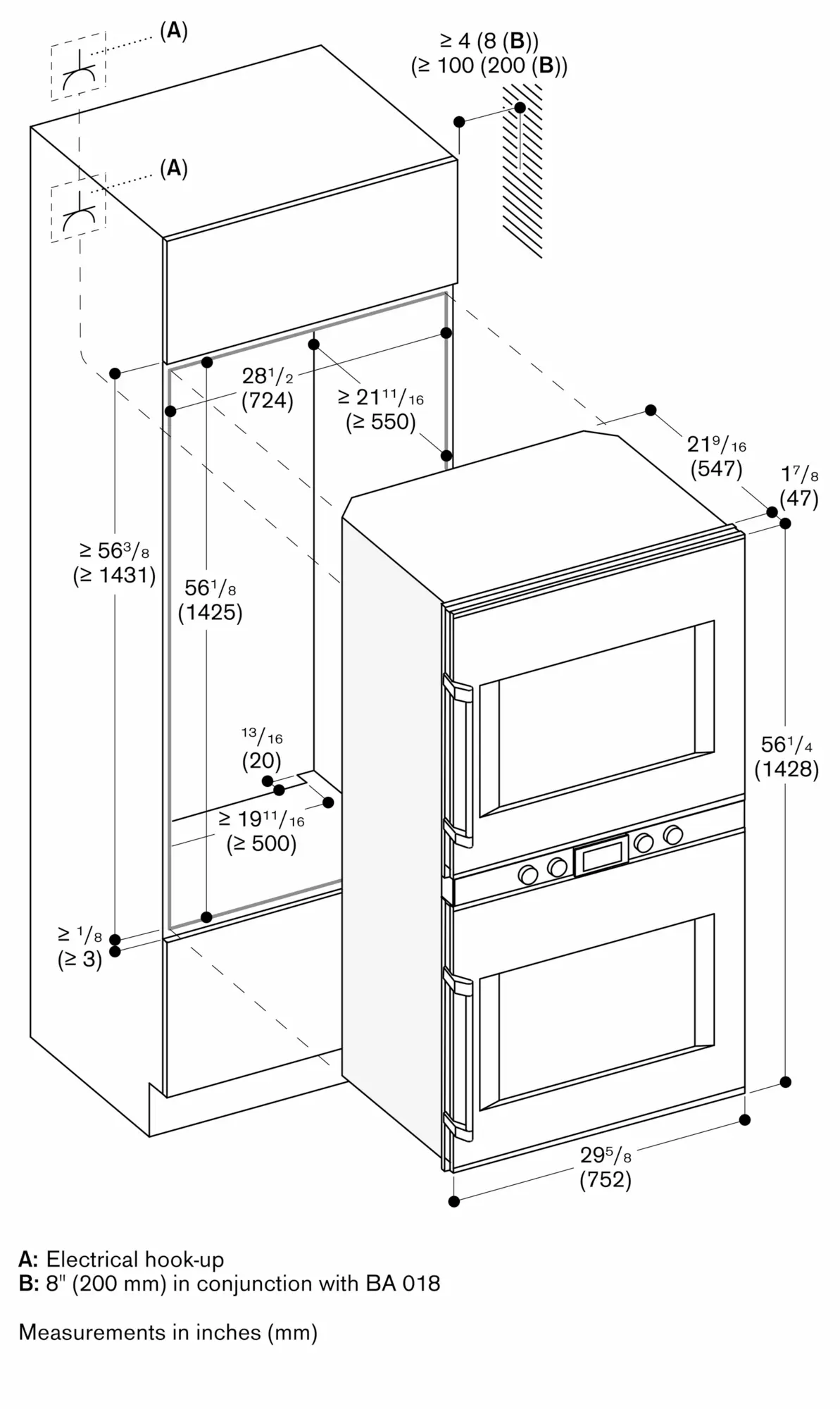

The front of the appliance extends 1 7/8'' from the cabinet front.

Consider the overhang when planning to open drawers next to the appliance.

When planning a corner solution, pay attention to the 90° door opening angle.

To achieve the 21 5/8'' installation depth, the connection cable needs to follow the slanted edge on the lower right hand corner of the housing.

Plan a power outlet outside of the cut-out niche.

Total rating 2.1 KW.

Total Amps: 40 A.

110-120 V / 220-240 V / 60 Hz.
