One-piece front-hinged door with 3 mm precision crafted stainless steel front door panel

Soft door opening and closing system

Diagonally positioned light sources for optimal interior lighting

Pyrolytic self-cleaning system

Universal heating system with 17 heating methods, with core temperature probe, rotisserie spit and baking stone operation

Automatic programmes

Core temperature probe with estimation of cooking time

Hot air fan rotates in both directions for ideal heat distribution

TFT touch display

Panel-free appliance with control module behind glass

Electronic temperature control from 30 °C to 300 °C

Net volume (42 litres)

Convection.

Economy convection. Top + bottom heat. Top + 1/3 bottom heat. Top heat. 1/3 top + bottom heat. Bottom heat. Convection + bottom heat. Convection + 1/3 bottom heat. Convection broiling. Broiling. Compact grill. Baking stone operation. Roaster function. Dough proofing. Defrosting. Keeping warm.

Rotary knob and TFT touch display operation.

Clear text display in 44 languages.

Option to save 50 individual recipes (incl. core temperature probe).

Personalisation of automatic programmes.

Information key with use indicators.

Front-hinged door with 90° door opening angle.

Three-point core temperature probe with automatic shut-off and estimation of cooking time.

Automatic programmes.

Rotisserie spit.

Baking stone outlet.

Actual temperature display.

Fast heating setting.

60 W halogen light on the top.

2 x 10 W halogen light on the side.

Enamelled side shelf supports with 3 tray levels, pyrolysis-safe.

Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi.

The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Thermally insulated door with quintuple glazing.

Child lock.

Safety shut-off.

Cooled housing with temperature protection.

Pyrolytic self-cleaning.

Gaggenau Clean-Enamel.

Heated air cleaning catalyst.

The door panel surface of the appliance extends 40 mm from the furniture cavity.

The outer edge of the door handle extends 90 mm from the furniture cavity.

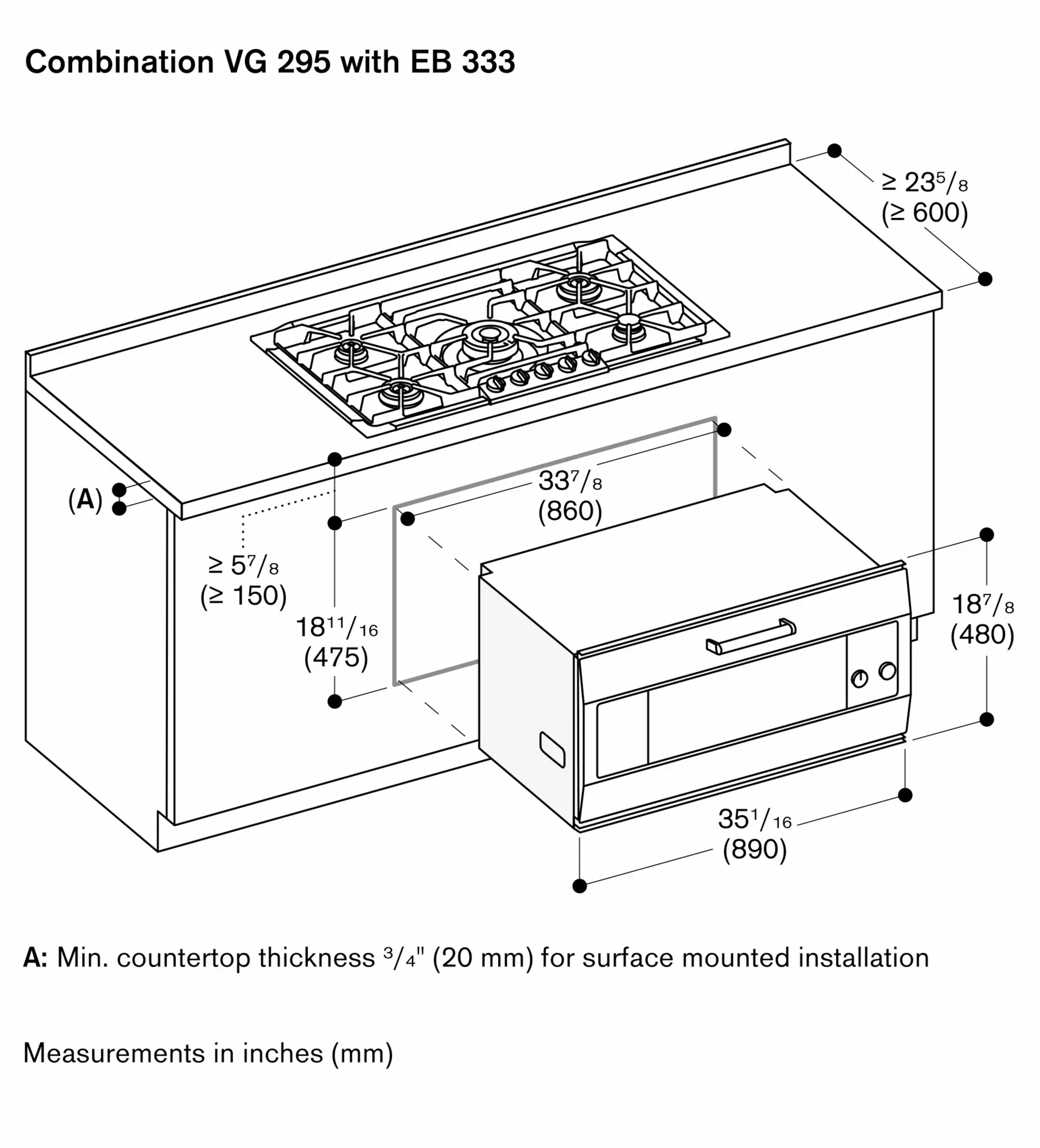

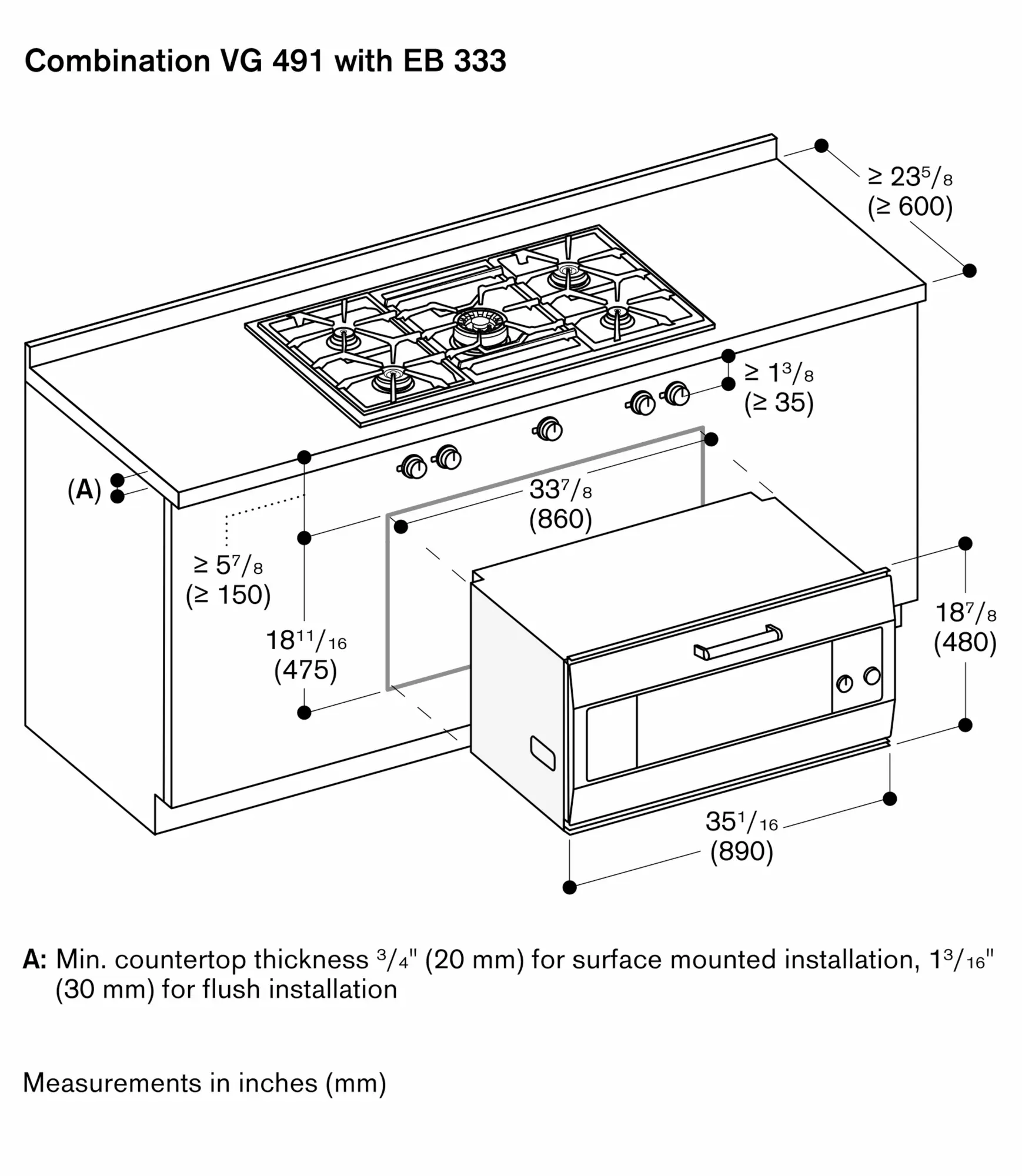

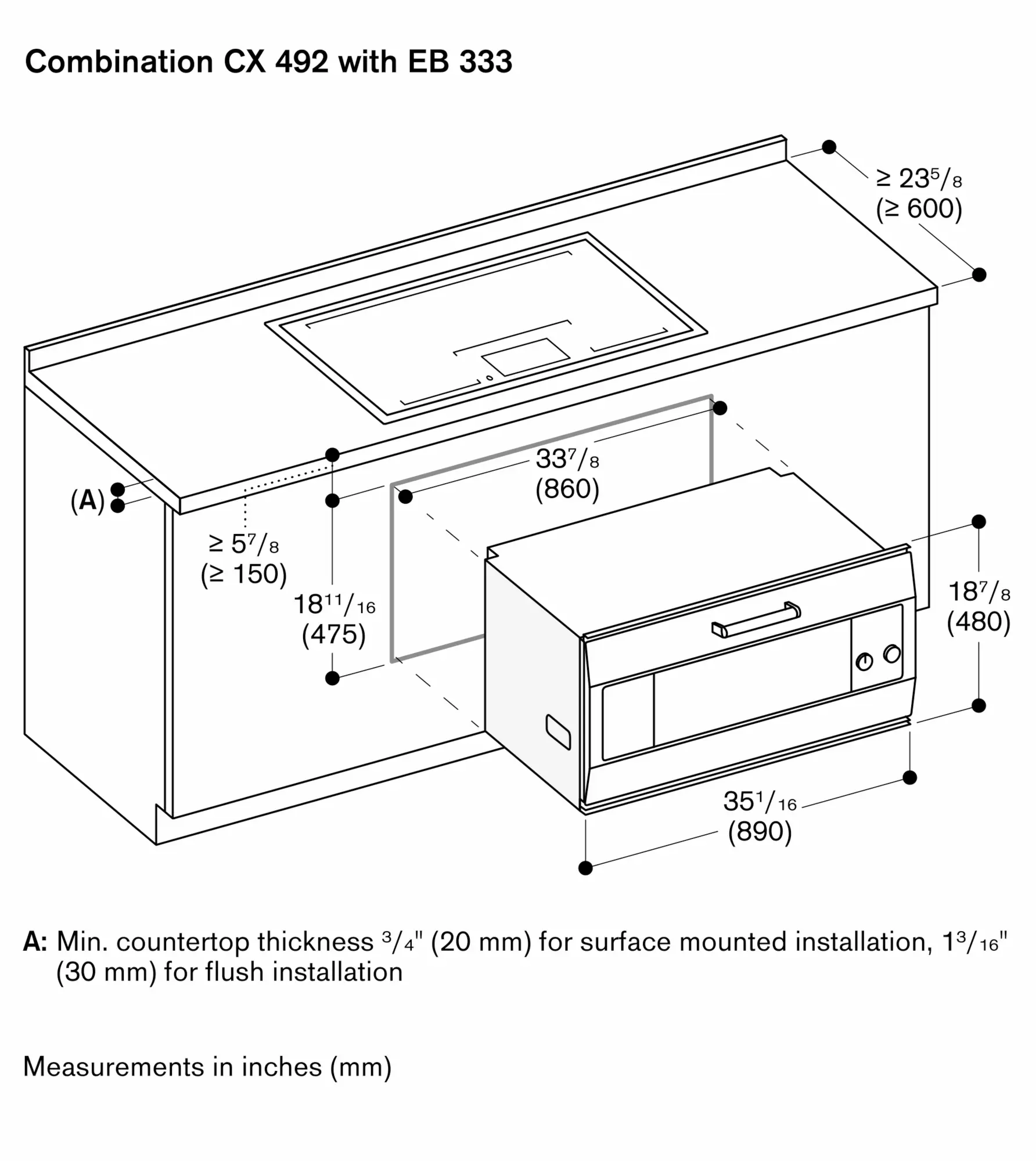

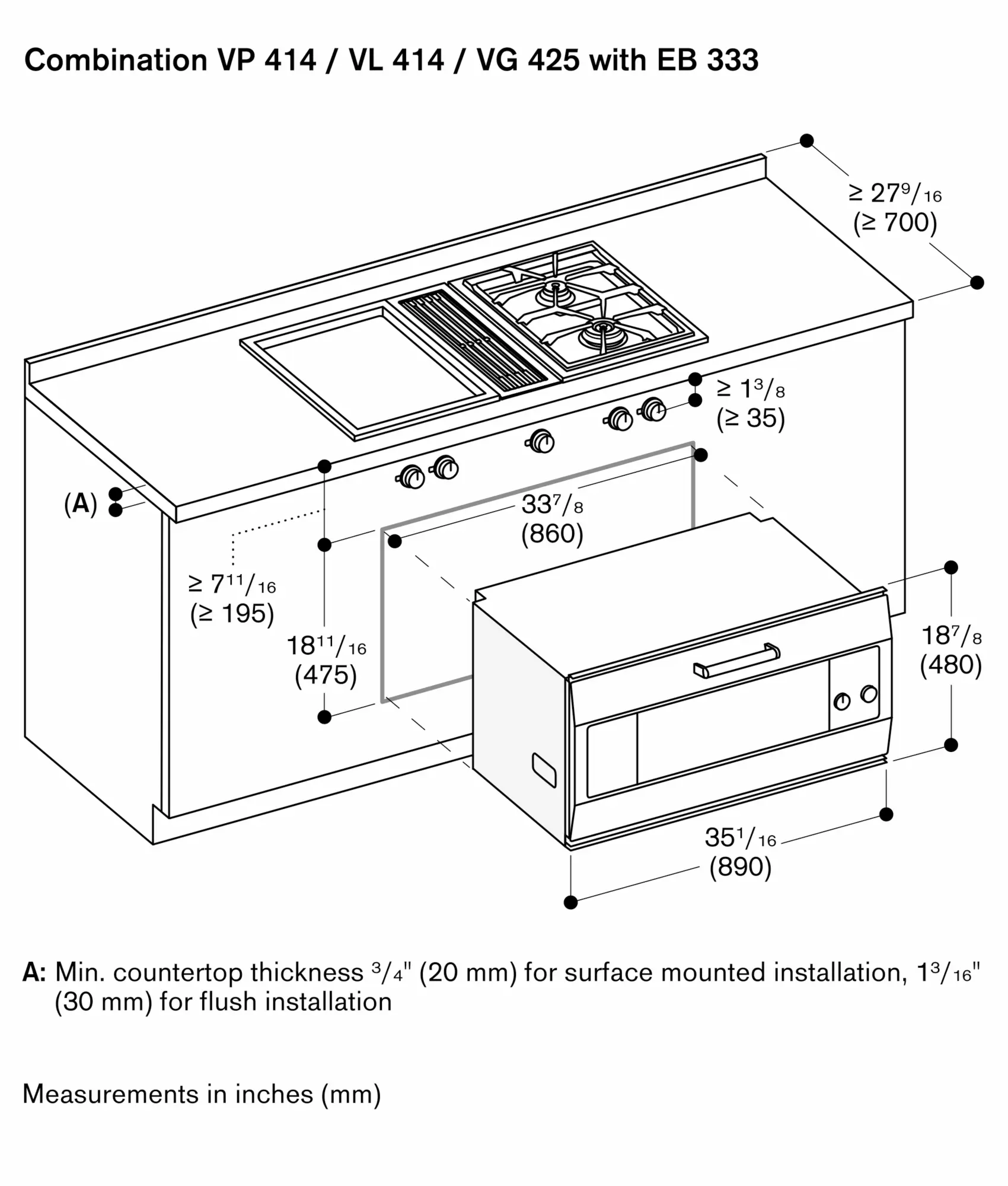

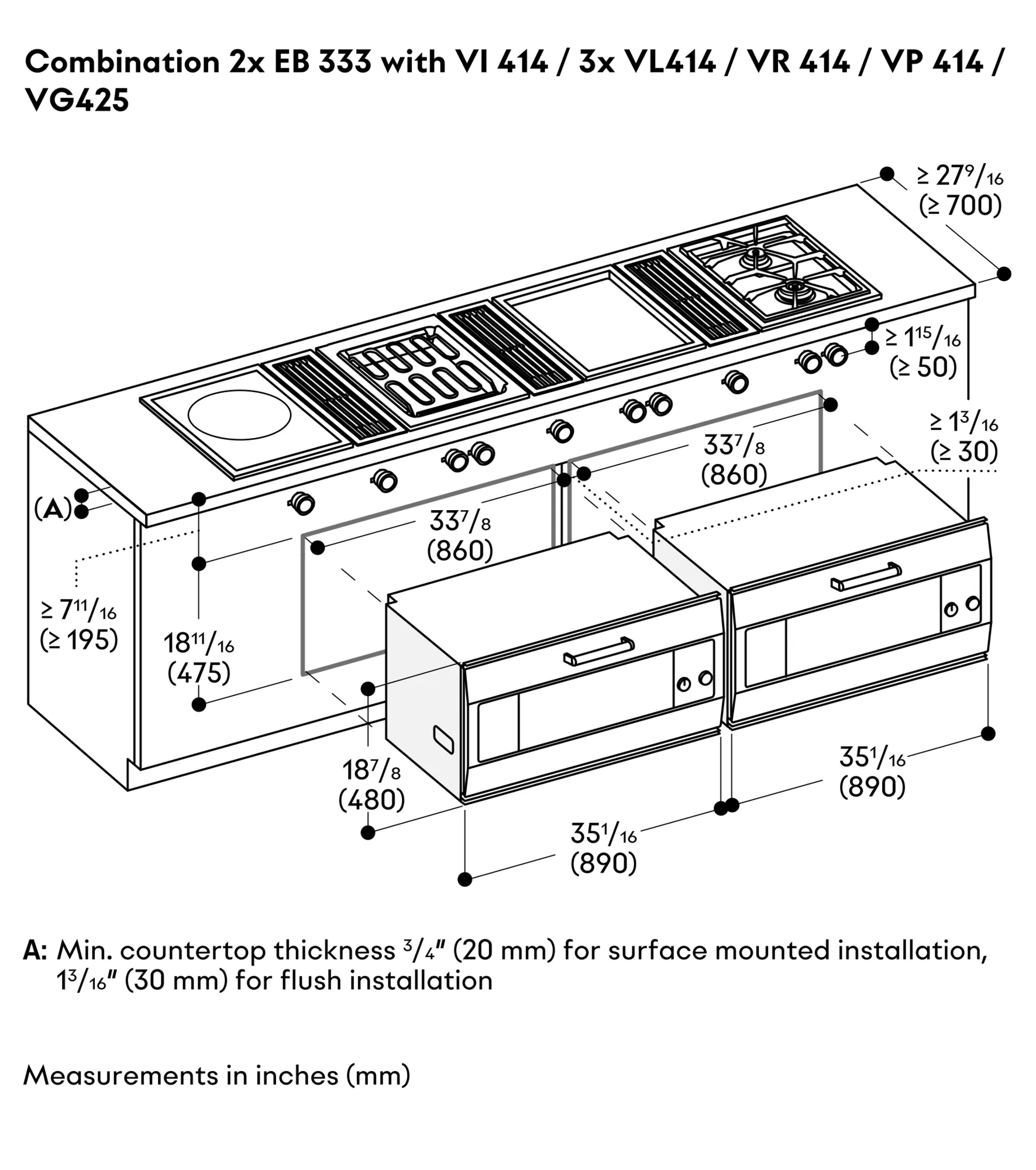

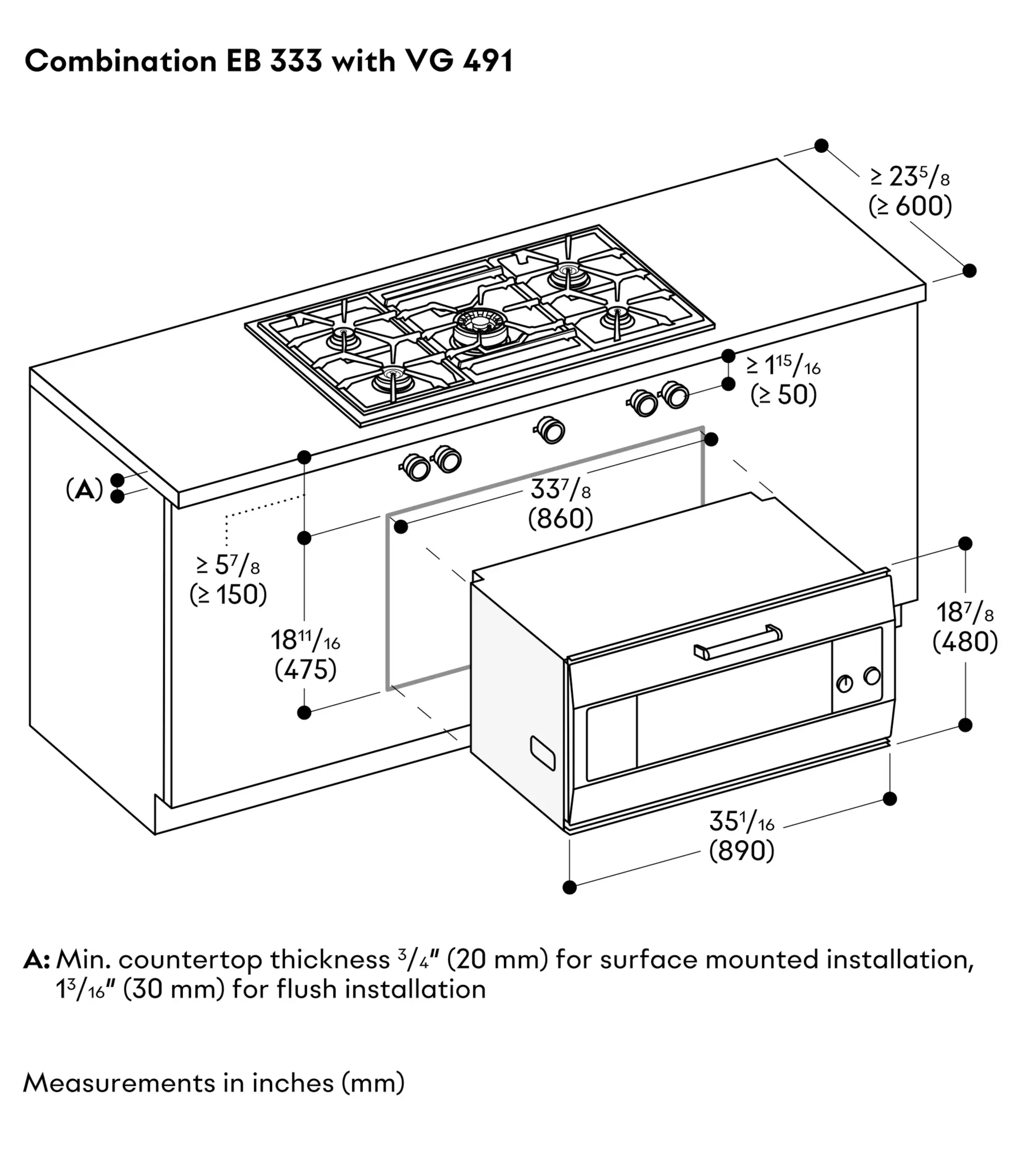

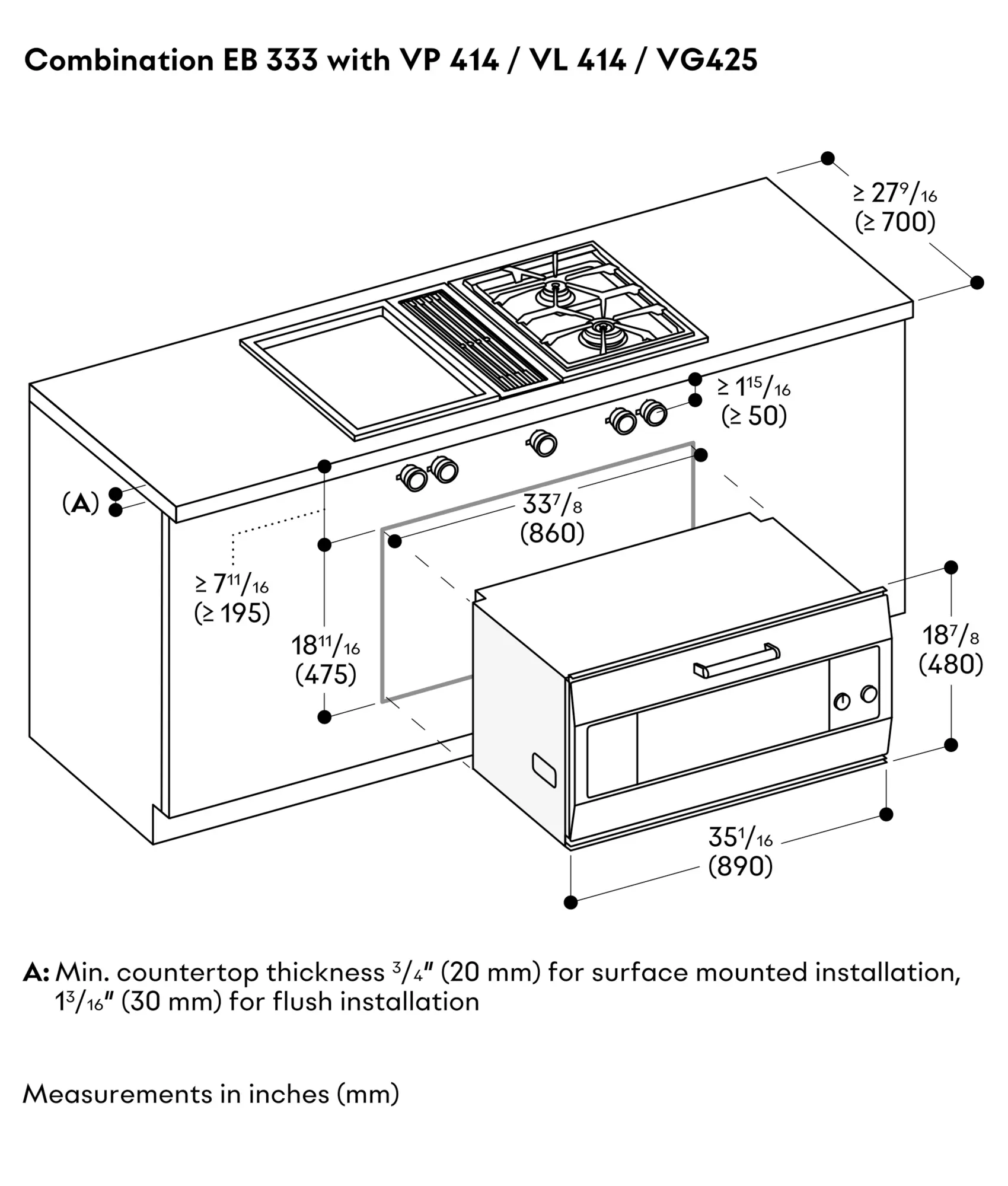

For installation underneath cooktops: Distance between the underside of the cooktop and the top edge of the oven cavity: min. 15 mm. The planning notes for the cooktops (particularly regarding ventilation, gas/electric connection) must be taken into account.

To achieve the 550 mm installation depth, the connection cable needs to follow the slanted edge on the corner of the housing.

Plan a power outlet outside of the cut-out niche.

The LAN port can be found at the back on the upper left side.

Total rating 5.9 KW.

Total Amps: 25 A.

208 / 220 - 240 V / 60 Hz.

Connecting cable 59 1/16 without plug (hardwire required).
