400 series Vario built-in freezer 24'' Softclose® Flat HingeRF463707
Replacement for
RF463705
1 / 12
400 series Vario built-in freezer 24'' Softclose® Flat HingeRF463707
Replacement for
RF463705
Find a local Dealer
Technical Overview

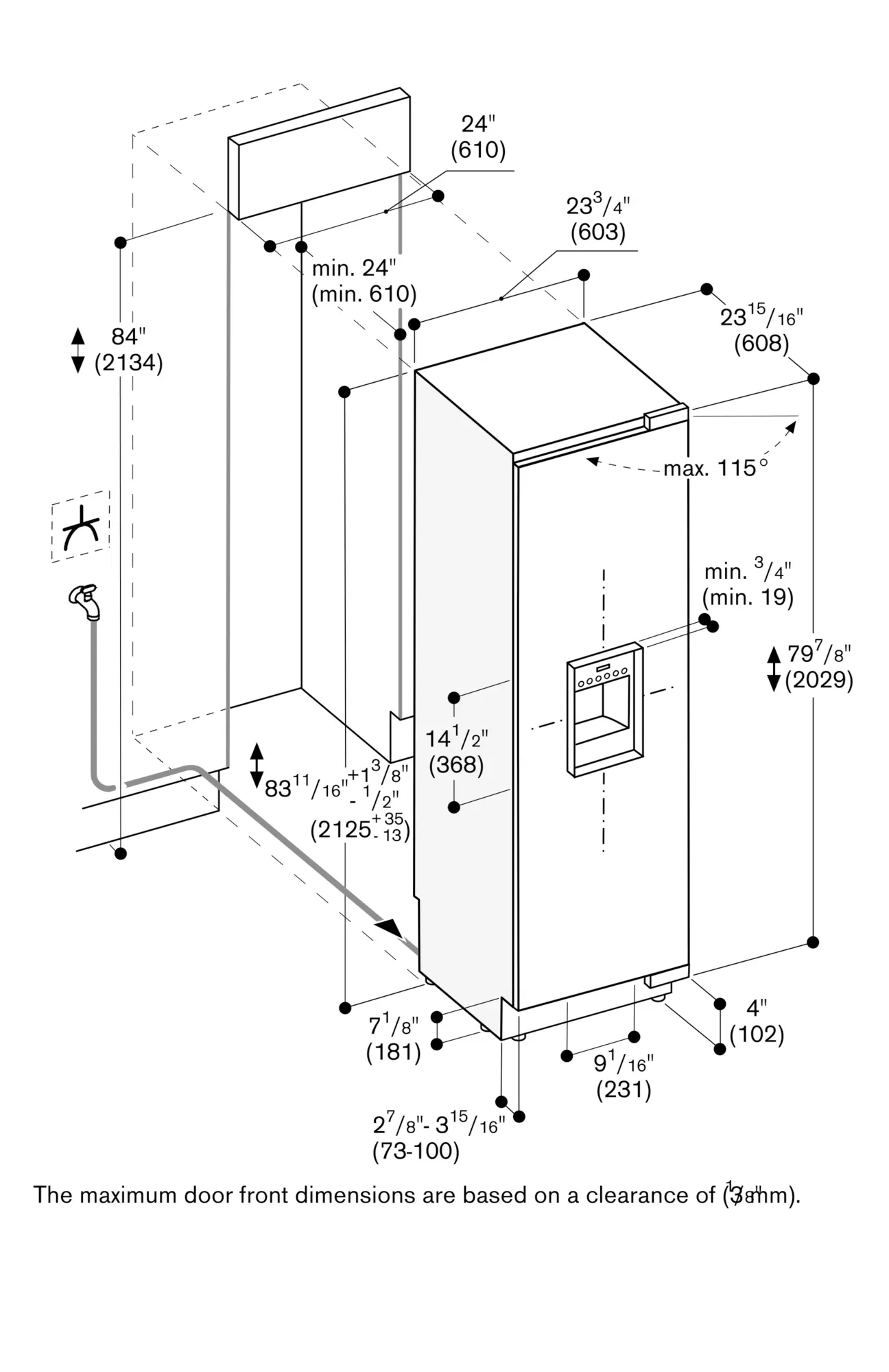

Overall Appliance Dimensions (HxWxD) (in)
83 3/4 " x 23 3/4 " x 24"
Dimensions (HxWxD)
2125x603x608 mm
Required Cutout Size (HxWxD) (in)
84" x 24" x 24 3/4"
Required cutout size (HxWxD)
2134.0 x 610 x 610 mm
Specifications
Stainless steel interior with solid anthracite aluminium elements
Warm white and glare-free LED light spots
Opening assist for door with two options:
1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
The drawers in the RC and RF models are positioned at the same height. With side-by-side installation, the glass shelves and door racks can be aligned on the same level
Flat stainless steel inner door, full-length
Integrated ice maker with fixed inlet water connection
Proximity sensor for ice and water dispenser
Illuminated dispenser for ice cubes, crushed ice and chilled water
TFT touch display
Net volume 318 litres
TFT touch display operation.
Clear text display in 44 languages.
Touch key operation for ice and water dispenser.
Dynamic cold air distribution with Multi-Flow Air System.
Automatic defrosting with defrost water evaporation.
Cushioned door closing system.
Sabbath mode certified by Star-K.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction warning system.
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
No-frost technology with fast freezing at -30 °C.
Temperature adjustable from -24 °C to -14 °C.
4-star freezer compartment.
Freezing capacity 8.7 kg/24 h.
2 fully extendable drawers with transparent front.
Warm white LED lighting.
Proximity sensor for automatic activation of light and touch keys for ice and water dispenser.
Integrated, with fixed inlet water connection.
Particle filter for water inlet, integrated in ventilation grille area.
Saturation indicator shown in TFT touch display.
Ice maker can be switched off independently.
Ice cube production approx. 1.1 kg/24 h.
Ice cubes and crushed ice.
Removable ice storage container with approx. 3.2 kg capacity.
Chilled water supply approx. 1.3litres.
Energy consumption 454 kWh/year.
Noise level 42 dB (re 1 pW).
Flat hinge.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight 67 kg.
Shut-off valve for water connection must be planned next to the appliance and always be accessible.
If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.
Total rating 1.079 kWh/24h.
Total Amps: 10 A.
Connecting cable 118" (3.0 m), detachable.
Cold water connection required.
Electrical location 6'' above ground in lower left corner of unit.
Supply hose 1.2 m with 1/4'' male compression fitting (standard icemaker connector).
Water pressure 2 to 8 bar.
