Vario 400 SeriesFreezerRY492701
Freezer

400 series Vario built-in freezer 36'' Flat Hinge
RY492701

1 / 6
Photo Nr. 1 of the product RY492701
Photo Nr. 2 of the product RY492701
Photo Nr. 3 of the product RY492701
Photo Nr. 4 of the product RY492701
Photo Nr. 5 of the product RY492701
Photo Nr. 6 of the product RY492701
Photo thumb Nr. 1 of the product RY492701
Photo thumb Nr. 2 of the product RY492701
Photo thumb Nr. 3 of the product RY492701
Photo thumb Nr. 4 of the product RY492701
Photo thumb Nr. 5 of the product RY492701
Photo thumb Nr. 6 of the product RY492701
Photo thumb Nr. 1 of the product RY492701
Photo thumb Nr. 2 of the product RY492701
Photo thumb Nr. 3 of the product RY492701
Photo thumb Nr. 4 of the product RY492701
Photo thumb Nr. 5 of the product RY492701
Photo thumb Nr. 6 of the product RY492701

400 series Vario built-in freezer 36'' Flat Hinge
RY492701

Find a local Dealer

Technical Overview

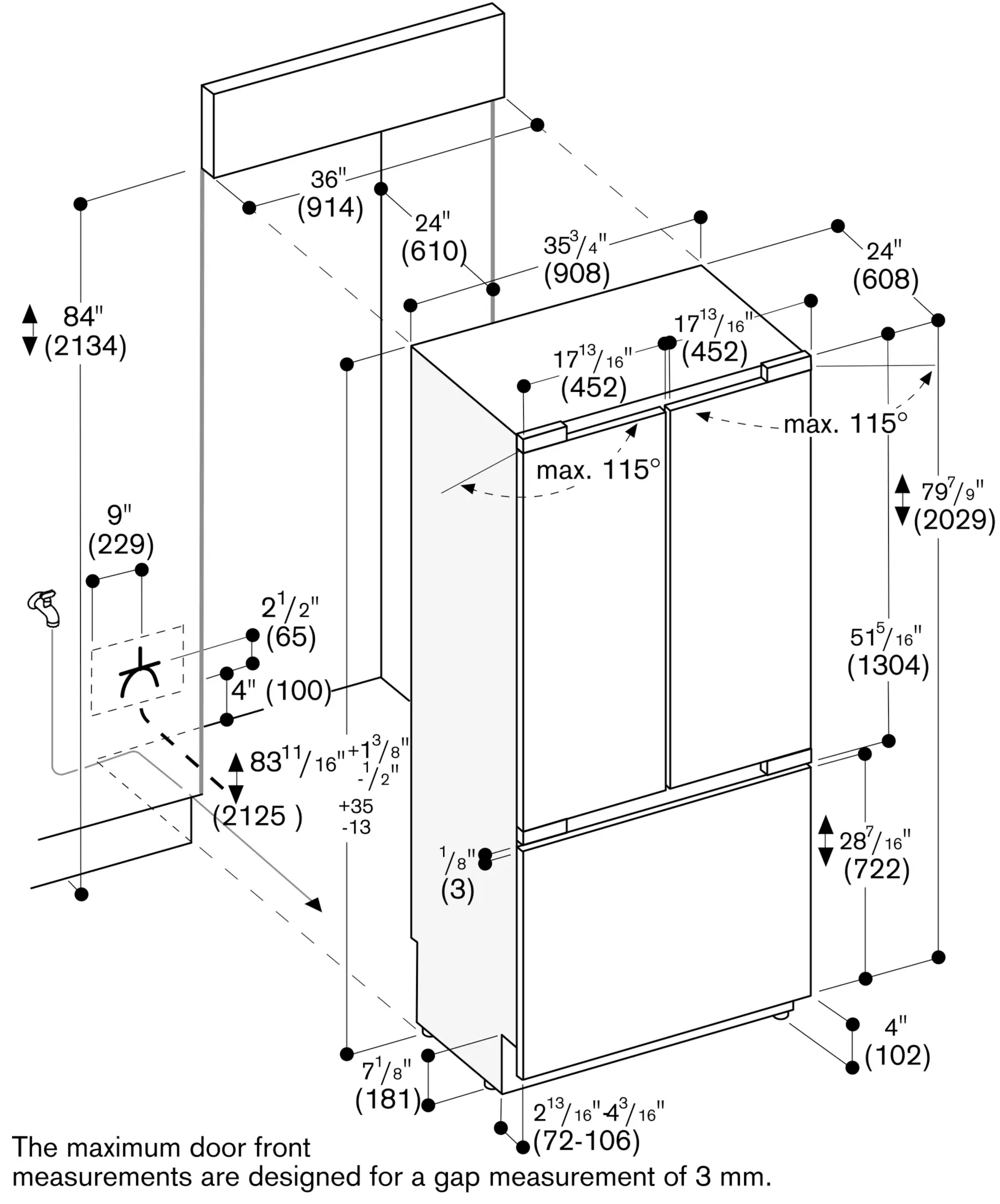

Overall Appliance Dimensions (HxWxD) (in)
83 3/4 " x 35 3/4'' x 24"
Dimensions (HxWxD)
2125x908x608 mm
Required Cutout Size (HxWxD) (in)
84" x 36" x 24 3/4"
Required cutout size (HxWxD)
2134.0 x 914.0 x 610 mm

Specifications

Stainless steel interior
Generous lighting concept
Solid aluminium door racks
Net volume 557 litres
Integrated ice maker with fixed inlet water connection
One motorised glass shelf, adjustable when fully loaded
One asymmetricly split glass shelf
Fully extendable freezer drawer with practical divider
Electronic precision temperature control with digital display.
Dynamic cold air distribution with Multi-Flow Air System.
Automatic defrosting with defrost water evaporation.
Sabbath mode certified by Star-K.
Open-door and malfunction warning system.
No-Frost technology with fast cooling.
2 safety glass shelves, 1 of which is motorised.
1 asymmetrically split safety glass shelf, with manual height adjustment.
2 fully extendable drawers with transparent front.
Bright interior lighting with light pillars.
4 height adjustable door racks, 2 of which are extra deep.
2 door racks with transparent front flap.
No-frost technology.
1 full width fully extendable fresh cooling drawer with transparent front, manually controllable.
Net volume 165 litres.
No-frost technology with fast freezing.
4-star freezer compartment.
2 fully extendable drawers.
Interior lighting with 2 spots.
Integrated automatic ice maker in the freezer compartment, with fixed water connection.
Ice maker can be switched off independently.
Ice cube production approx. 1.4 kg/24 h.
Removable ice storage container with approx. 3 kg capacity.
Energy consumption 590 kWh/year.
Energy consumption 1.616 kWh/24 h.
Noise level 41 dB (re 1 pW).
Flat hinge.

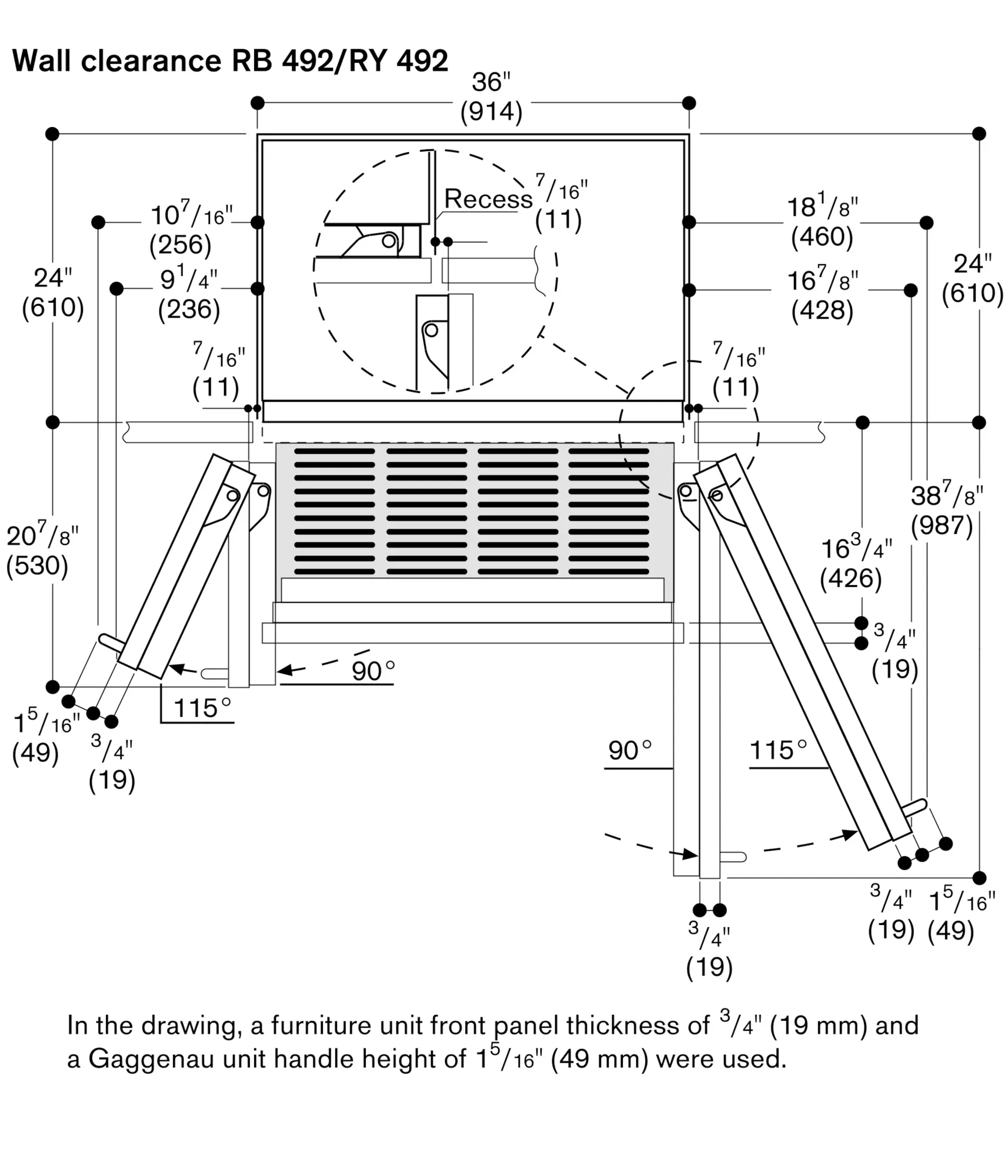

Door opening angle of 115°, fixable at 90°.
Max. door panel weight:
Each door 57 kg. Drawer 10 kg.
Shut-off valve for water connection must be planned next to the appliance and always be accessible.
If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.
Total rating 1.079 kWh/24h.
Connecting cable 118,1" (3.0 m) with plug.
Cold water connection required.
Electrical location 6'' above ground in lower left corner of unit.
Water pressure 2 to 8 bar.
