Vario 400 SeriesRefrigeratorsRC492705
Refrigerators

400 series Vario built-in fridge with freezer section 36'' Softclose® Flat Hinge
RC492705

1 / 4

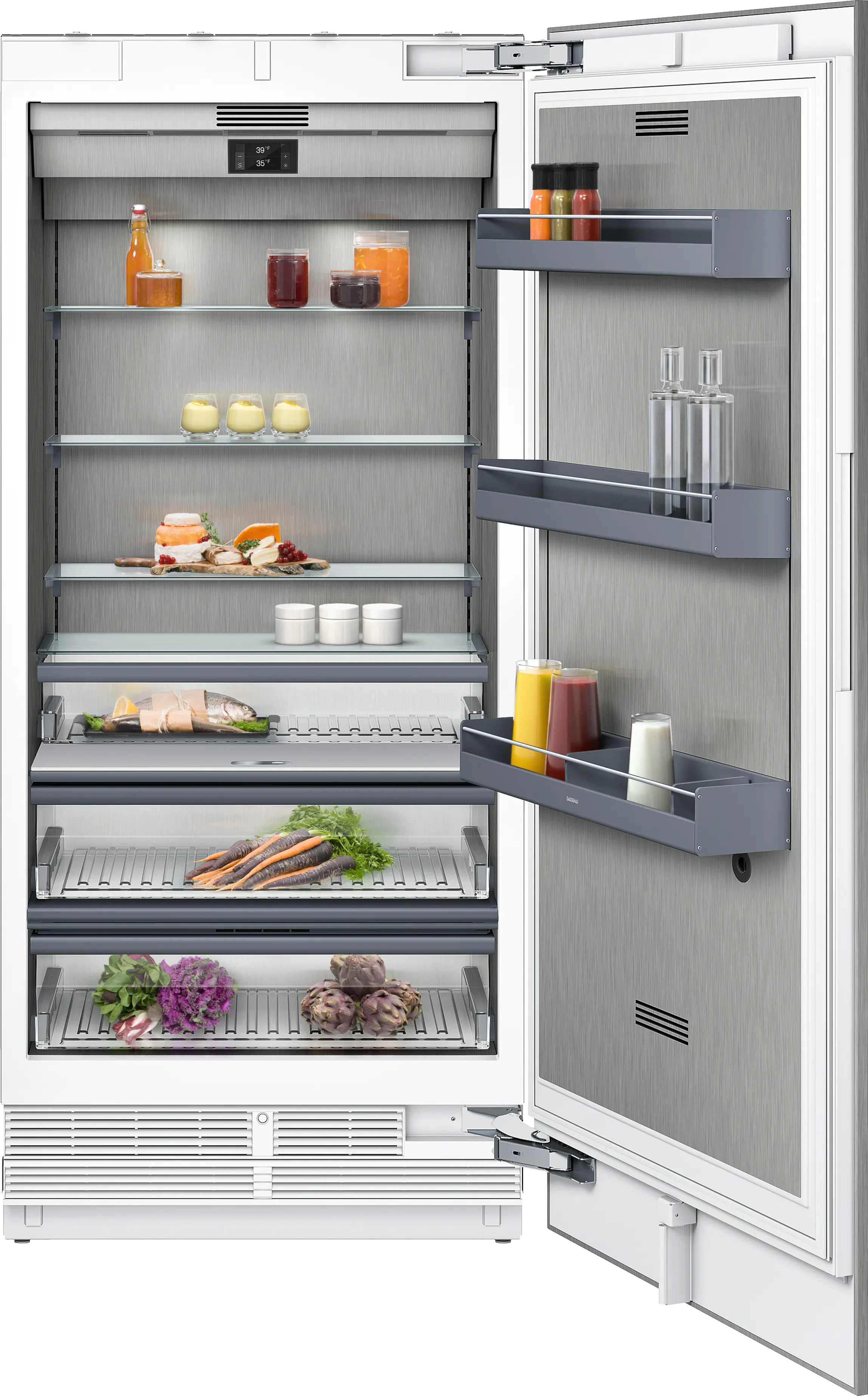

Photo Nr. 1 of the product RC492705
Photo Nr. 2 of the product RC492705
Photo Nr. 3 of the product RC492705
Photo Nr. 4 of the product RC492705
Photo thumb Nr. 1 of the product RC492705
Photo thumb Nr. 2 of the product RC492705
Photo thumb Nr. 3 of the product RC492705
Photo thumb Nr. 4 of the product RC492705
Photo thumb Nr. 1 of the product RC492705
Photo thumb Nr. 2 of the product RC492705
Photo thumb Nr. 3 of the product RC492705
Photo thumb Nr. 4 of the product RC492705

400 series Vario built-in fridge with freezer section 36'' Softclose® Flat Hinge
RC492705

Find a local Dealer

Technical Overview

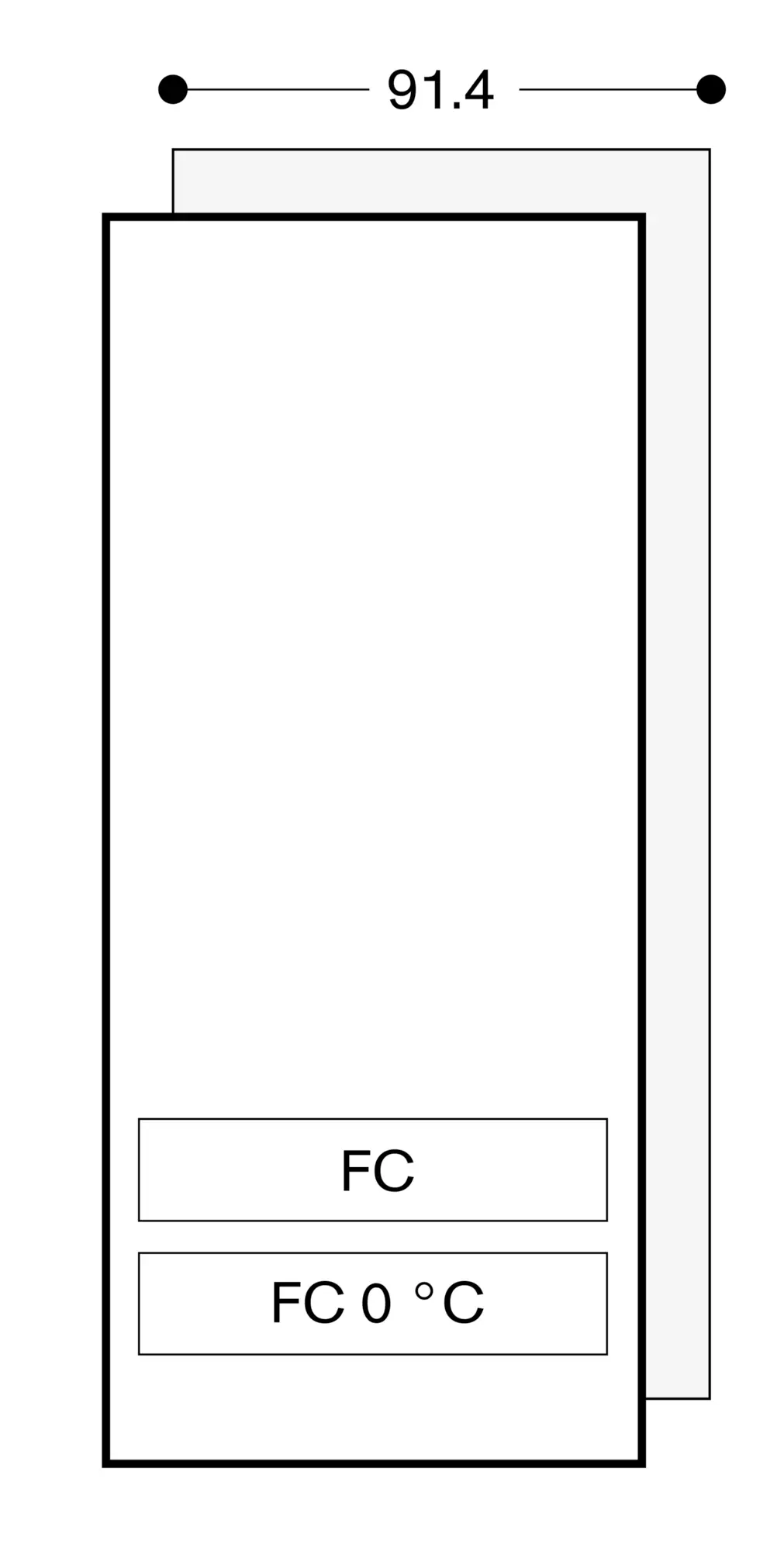

Overall Appliance Dimensions (HxWxD) (in)
83 3/4 " x 35 3/4" x 24"
Dimensions (HxWxD)
2125x908x608 mm
Required Cutout Size (HxWxD) (in)
84" x 36" x 24 3/4"
Min. required cutout size (HxWxD)
2134.0 x 914.0 x 610 mm

Specifications

Stainless steel interior with solid anthracite aluminium elements
Warm white and glare-free LED light spots
Opening assist for door with two options:
1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
The drawers in the RC and RF models are positioned at the same height. With side-by-side installation, the glass shelves and door racks can be aligned on the same level
Flat stainless steel inner door, full-length
Almost invisible rail system for shelves and door racks for flexible positioning
Solid anthracite aluminium door racks
1 fresh cooling drawer 32 °F with temperature control from 32° F to 37 °F and one fresh cooling drawer with manually adjustable humidity
TFT touch display
Net volume 583 litres
TFT touch display operation.
Clear text display in 44 languages.
Dynamic cold air distribution with Multi-Flow Air System.
Automatic defrosting with defrost water evaporation.
Cushioned door closing system.
Activated charcoal air filter.
Sabbath mode certified by Star-K.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction warning system.
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
Temperature adjustable from +2 °C to +8 °C.
1 shallow, fully extendable drawer with transparent front.
Cushioned closing system.
Flat door rail system with fully flexible positioning of door racks.
4 height-adjustable door racks, 1 of which is extra deep.
Net volume 498 litres.
1 large, fully extendable fresh cooling 0 °C drawer with transparent front, illuminated.
Cushioned closing system.
Temperature control via central TFT display, temperature can be adjusted from -1 °C to +3 °C.
Ideal for meat, fish and poultry.
Net volume 85 litres.
1 fully extendable fresh cooling drawer with transparent front, illuminated.
Cushioned closing system.
Humidity can be adjusted manually.
Ideal for fruit and vegetables.
Energy consumption 312 kWh/year.
Noise level 40 dB (re 1 pW).
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight 43 kg.
Total rating 1.079 kWh/24h.
Total Amps: 10 A.
Connecting cable 118" (3.0 m), detachable.
