200 series Wall Hood 36'' Stainless SteelAW230790
Find a local Dealer
Wall Hood 36'' Stainless Steel
Technical Overview
Wall-mounted
air extraction / air recirculation
Special Features
Classic Gaggenau design
Highly efficient extraction of cooking vapours
Low-noise fan
Patented filter technology with high grease absorption
Rim extraction filter with flat and easy-to-clean stainless steel underside
Specifications
Classic Gaggenau design
Highly efficient extraction of cooking vapours
Low-noise fan
Patented filter technology with high grease absorption
Rim extraction filter with flat and easy-to-clean stainless steel underside
Air extraction or air recirculation system
Air recirculation module with activated charcoal filter: quiet and highly efficient air recirculation solution with odour reduction as in air extraction mode and long replacement intervals
Odour reduction air recirculation 95%.
3 electronically controlled power levels and 1 intensive mode.
Grease filter saturation indicator.
Patented rim extraction filter, dishwasher-safe.
Airflow-optimised interior for efficient air circulation.
Easy mounting system for simple installation and alignment.
The package includes an one-way flap.

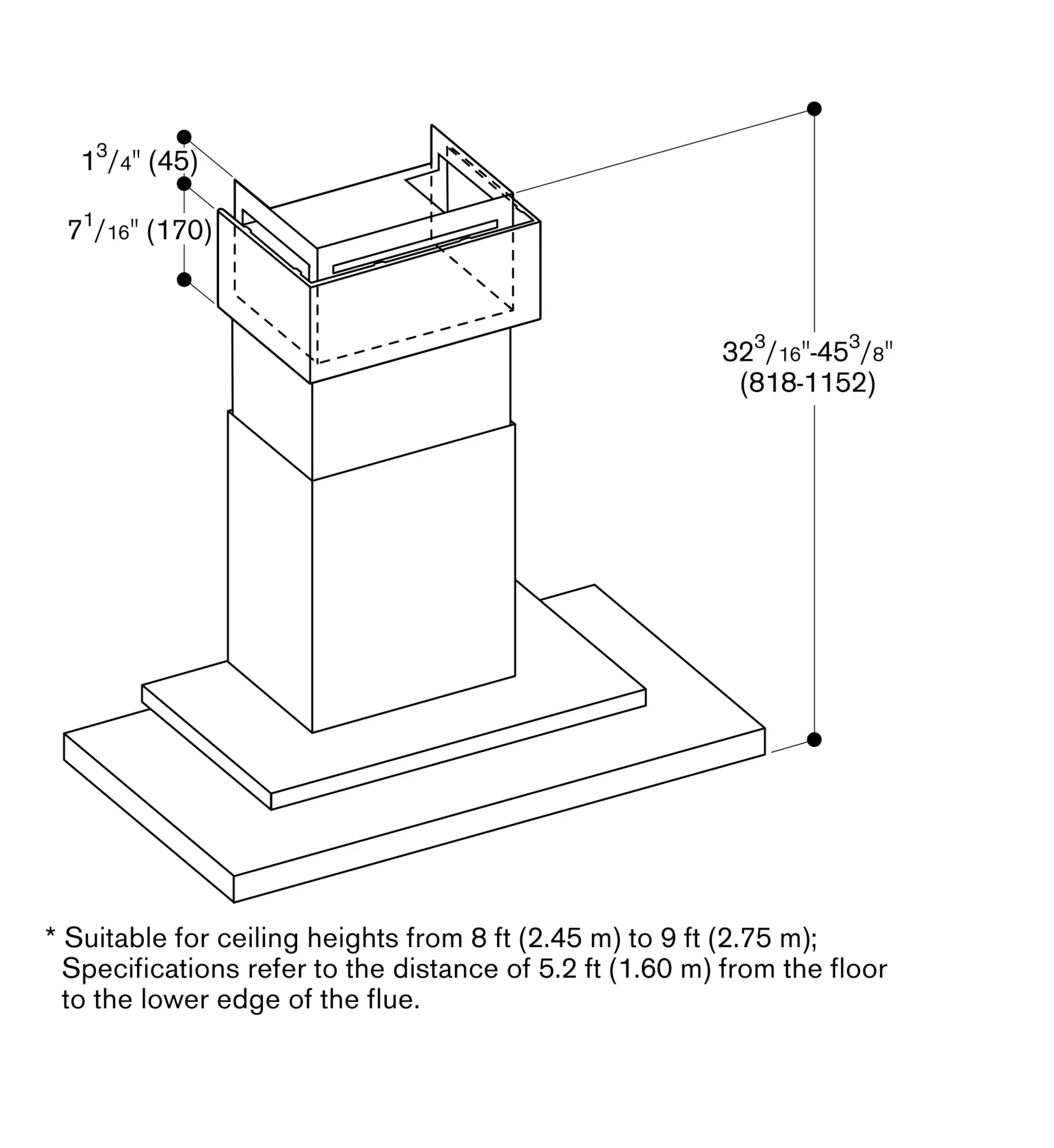

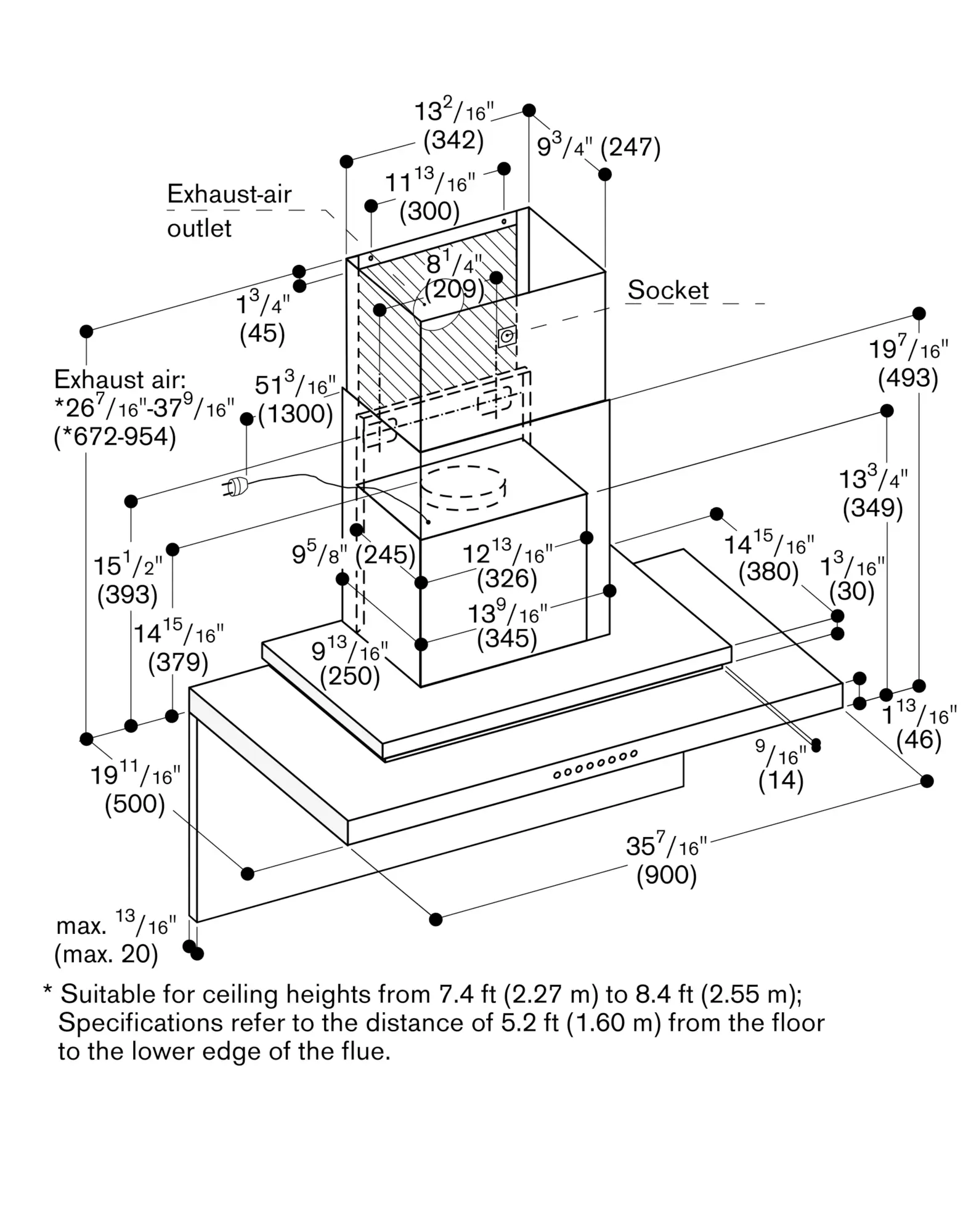

The package includes the two-part chimney with the dimensions from 582 mm to 864 mm. Individual planning solutions can be implemented using the special accessory chimney extension AD 200 322 or by shortening the lower edge of the inner chimney.
Clearance above gas appliances min. 76 cm(more than total load gas 12 kW min. 70 cm).
Clearance above electric appliances min. 76 cm.
The air recirculation module with activated charcoal filter can be installed on the external chimney or inner chimney.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
Total Amps: 3 A.
110 - 127 V / 60 Hz.
Connecting cable 1.3 m with plug.
