400 series Downdraft Ventilation 36'' Stainless Steel
AL400792

Find a local Dealer

Technical Overview

Installation Type
Built-in
Type of extraction
air extraction / air recirculation

Highlights

Special Features

When not in use it can be completely lowered into the worktop blends elegantly into worktop

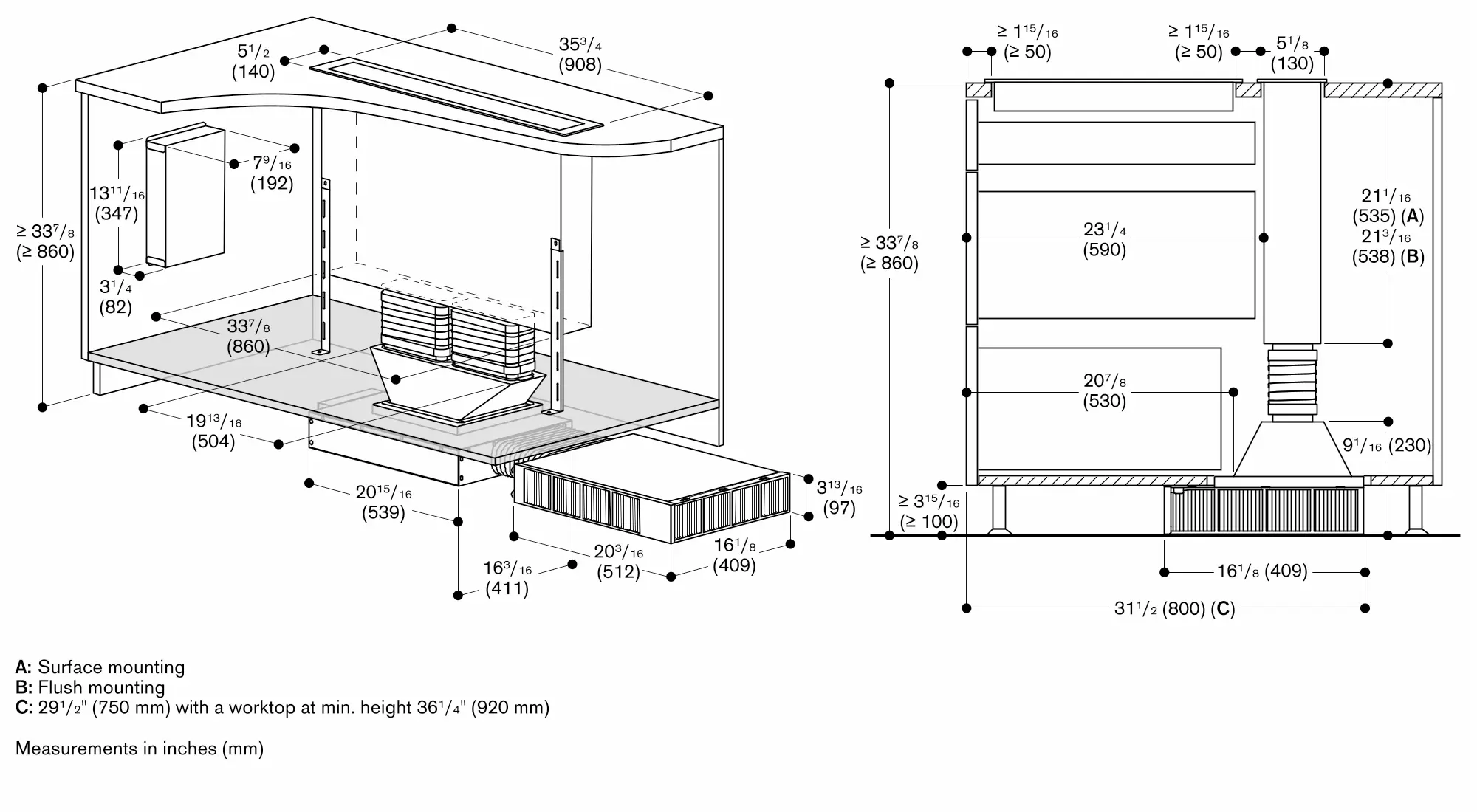

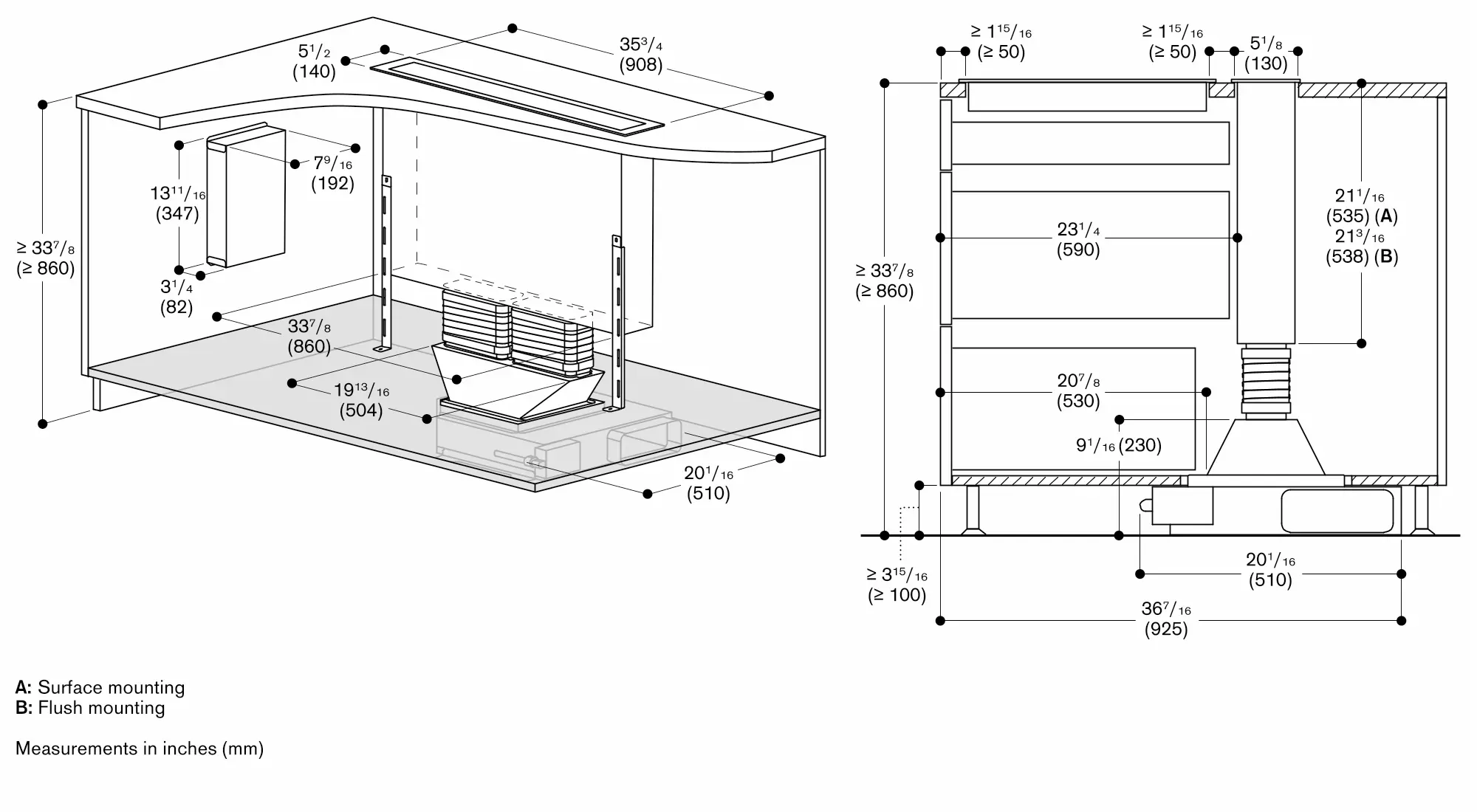

For surface mounting with a visible edge or for flush mounting

Specifications

Downdraft for combination with all Gaggenau cooktops, completely retractable when not in use.
Can be combined perfectly with all Vario cooktops 400 series
Dimmable, neutral white surface LED light for ideal illumination of the whole cooktop
Precision crafted 3mm stainless steel frame
For surface-mount installation with a visible edge or for flush installation

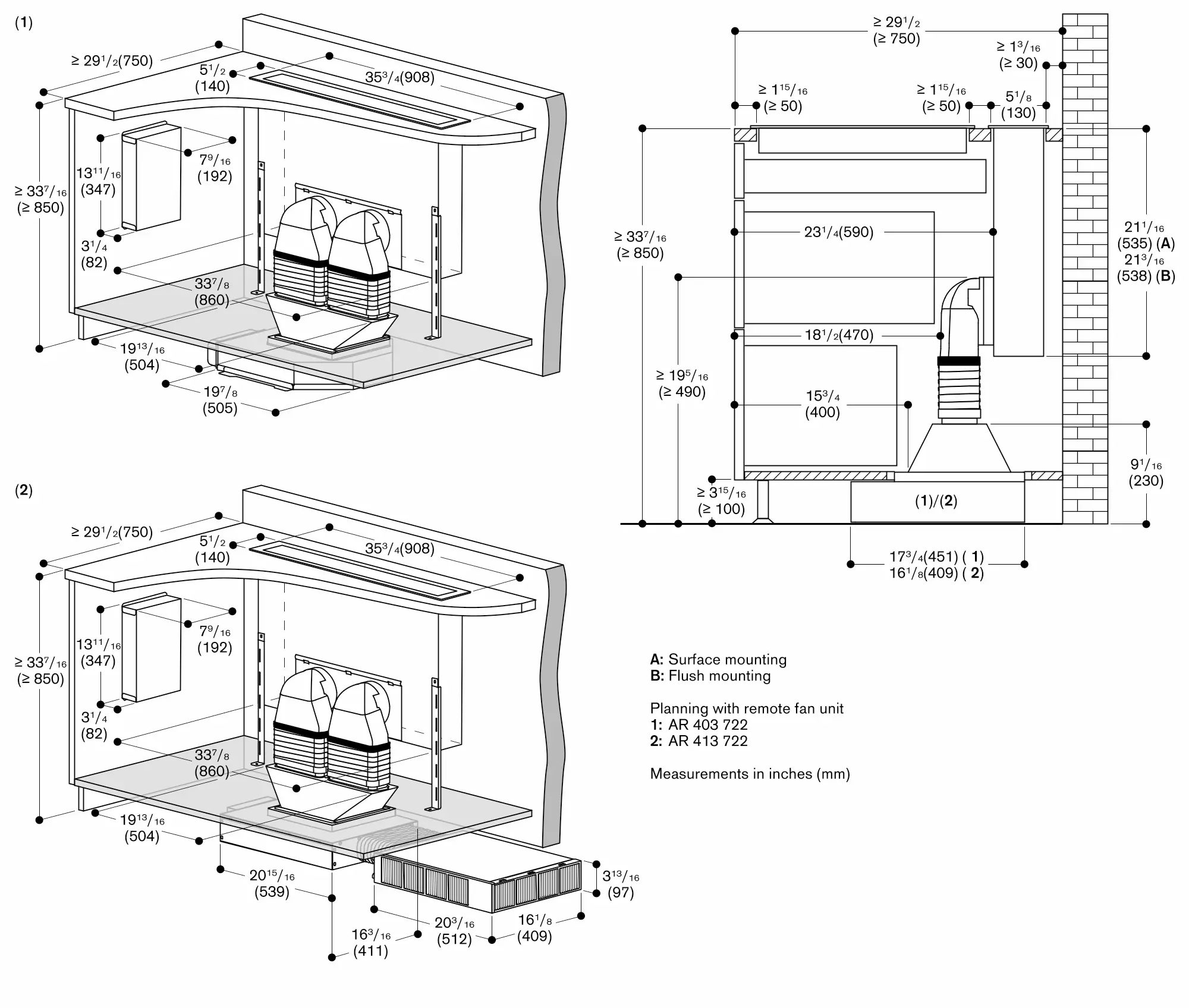

For operation with 400 series AR400742 inline, AR401742 remote or AR413722 and AR410710 recirculation blowers.
Noise level depends on the built-in situation.
3 electronically controlled power levels and 1 intensive mode.
Interval ventilation, 6 min.
Run-on function, 6 min.
Grease filter saturation indicator.
2 large-scale metal grease filters included, easy to remove and dishwasher-safe.
Grease drip trays, easy to remove and dishwasher-safe.
Neutral white surface LED light (3600 K), continuously dimmable.
Lamp output 4 x LED 6medium power 5W stripe.
Illuminance 200 lx.

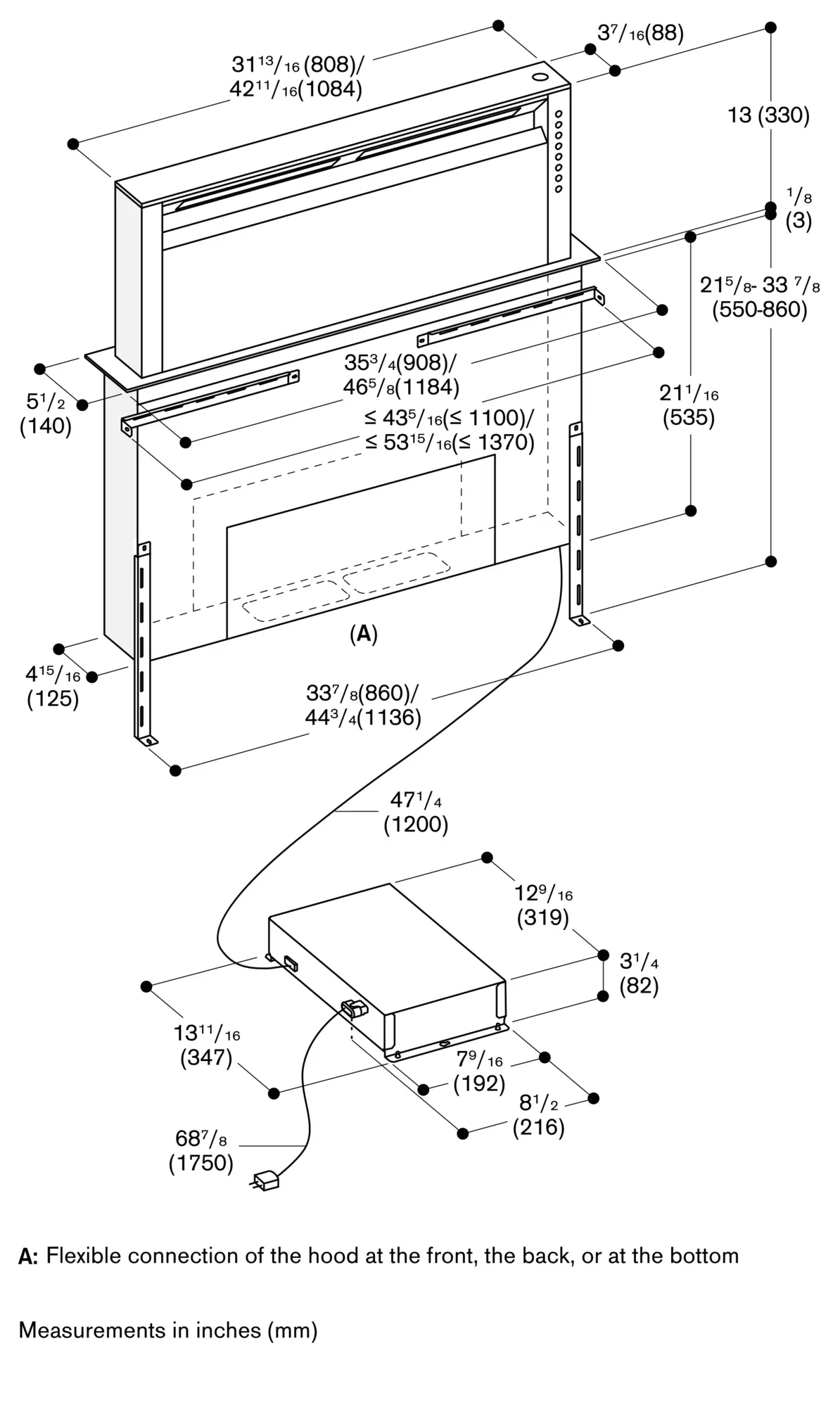

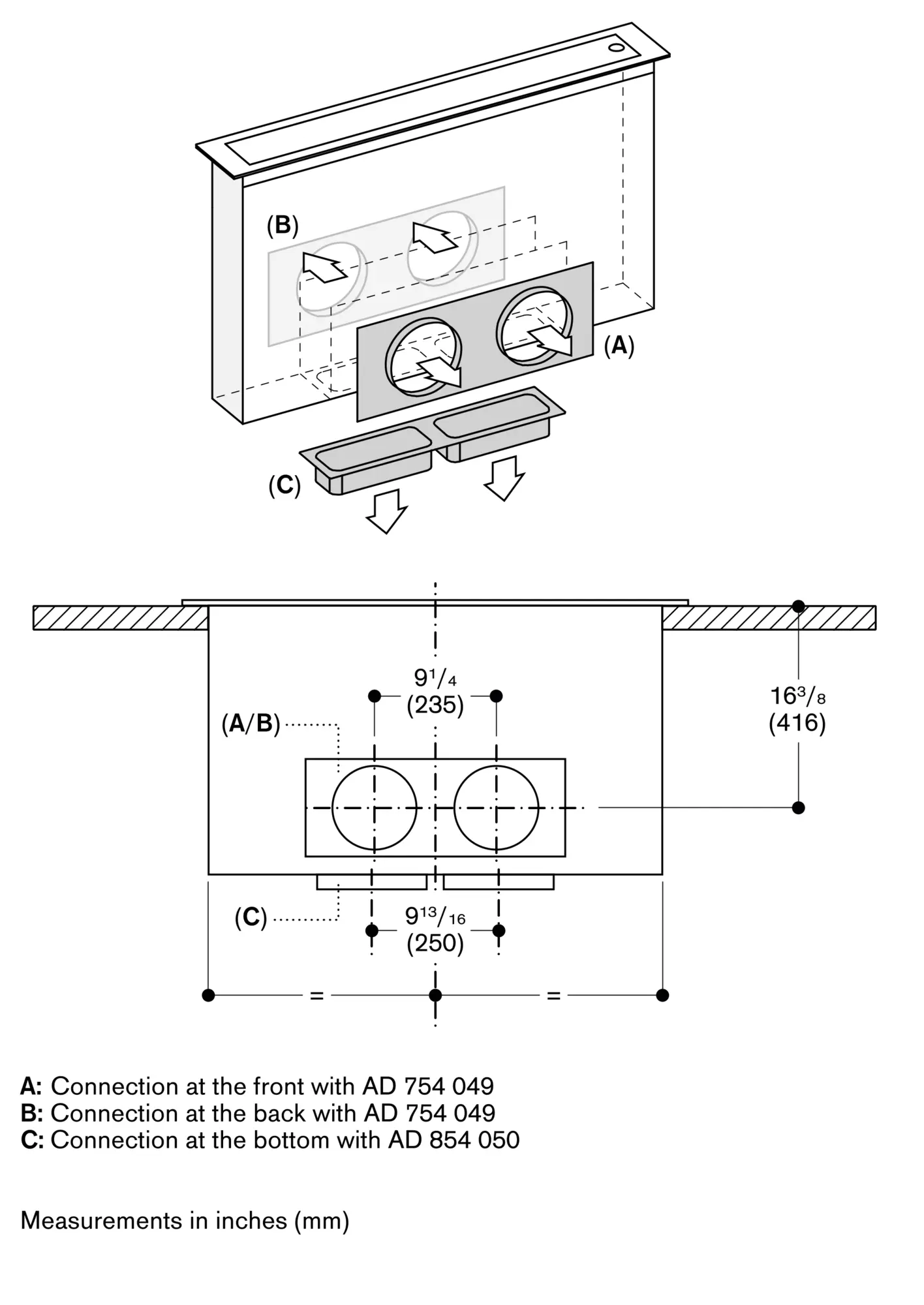

Flexible connection options to the remote fan unit: at the bottom, at the front or at the back.
In all the options, it is possible to have space for drawers in front of the table ventilation.
Consumption data is referred to a configuration with the recirculation blower AR 410 710.
Refer to the table on page XX for the matching remote fan units for air recirculation or air extraction mode.
Depending on the type of installation, the corresponding accessories must be ordered separately.
Air recirculation is not recommended in combination with Vario electric grill.
Operation of Vario cooking appliances only possible without appliance cover.
Max. output of cooktops 18 kW.

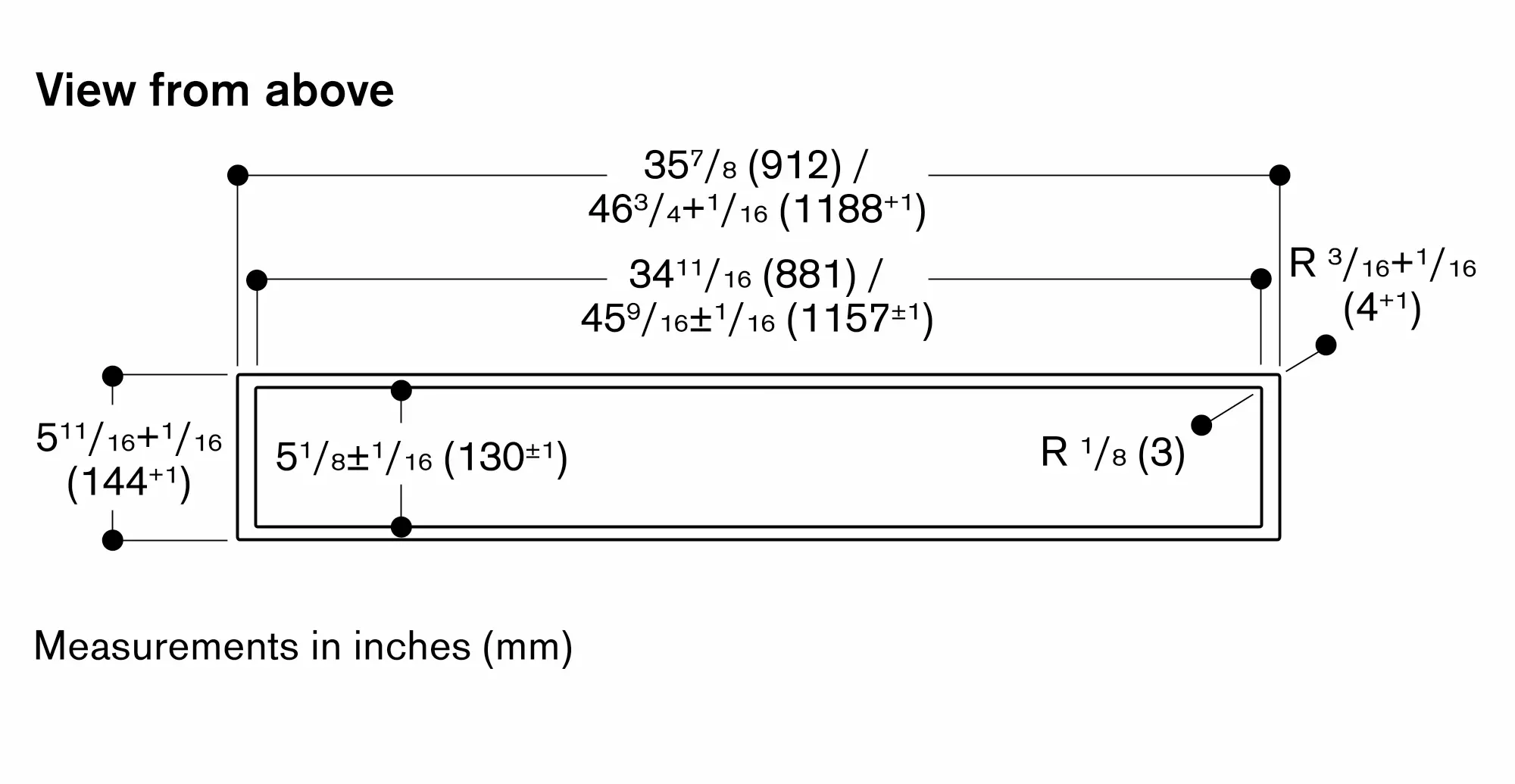

The table ventilation must have its own worktop cut-out.
The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
The remaining surface of the worktop (min. 50 mm) between the cut-outs must be reinforced with a support. It is recommended to use furniture support AA 409 401/431.

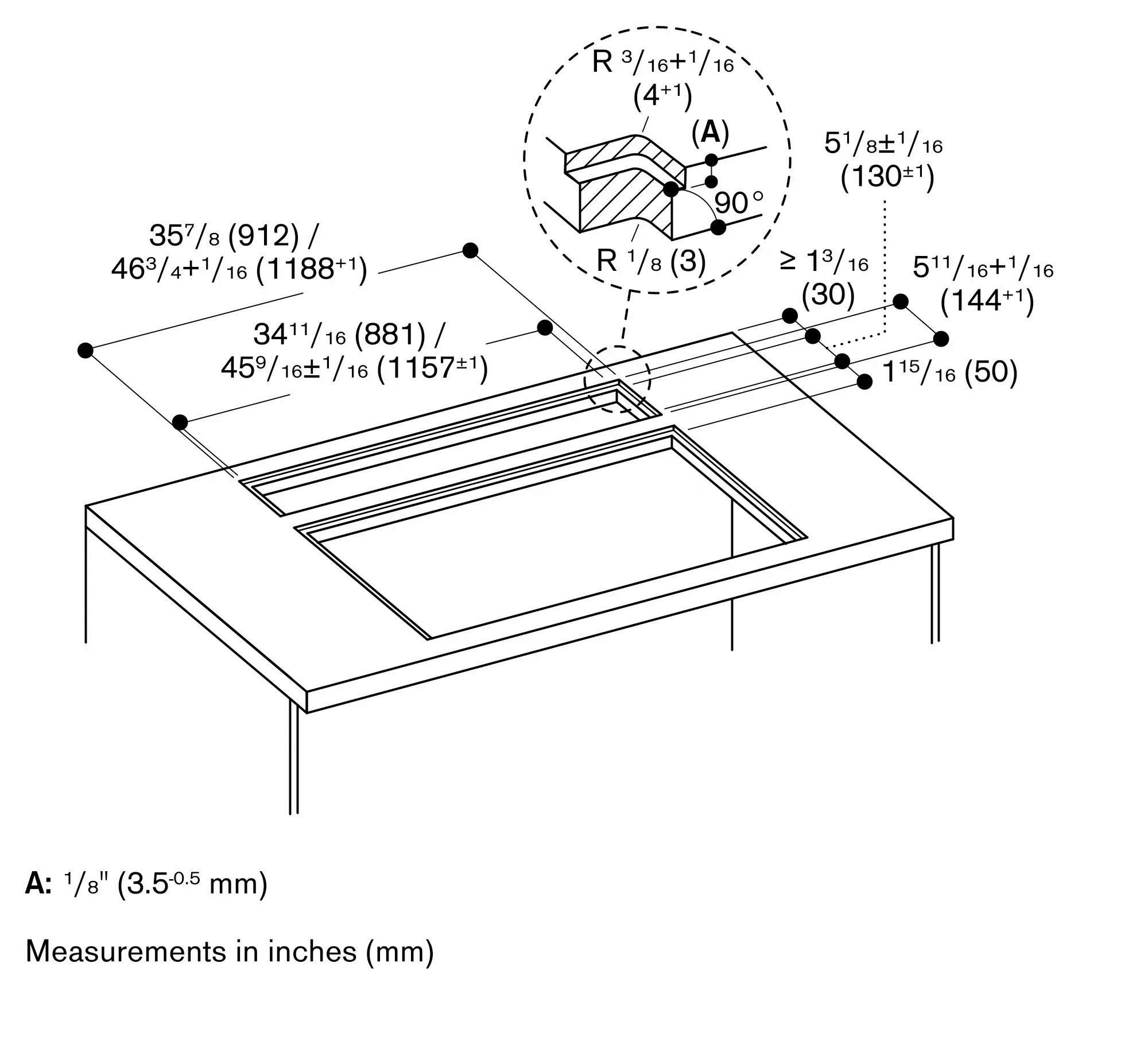

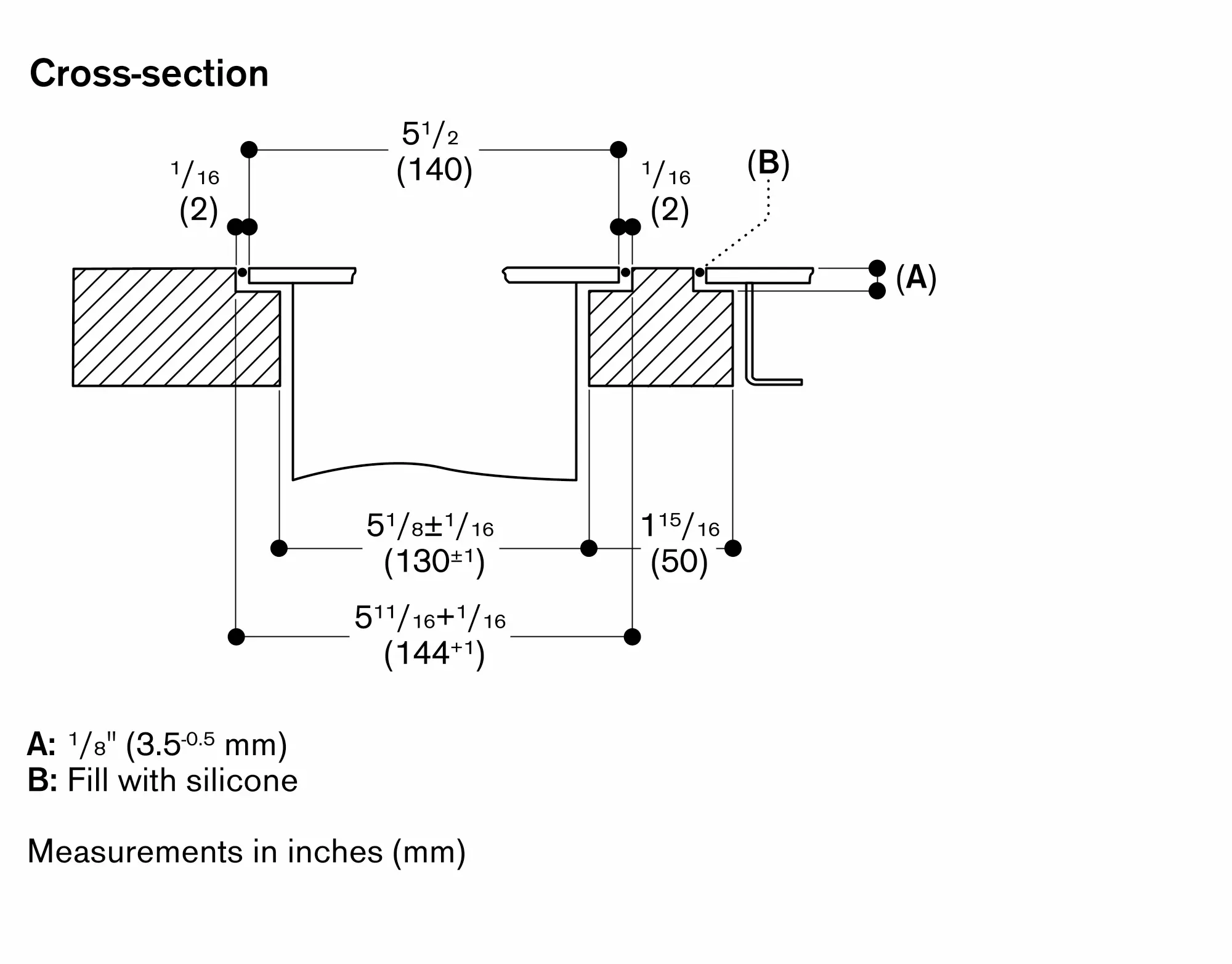

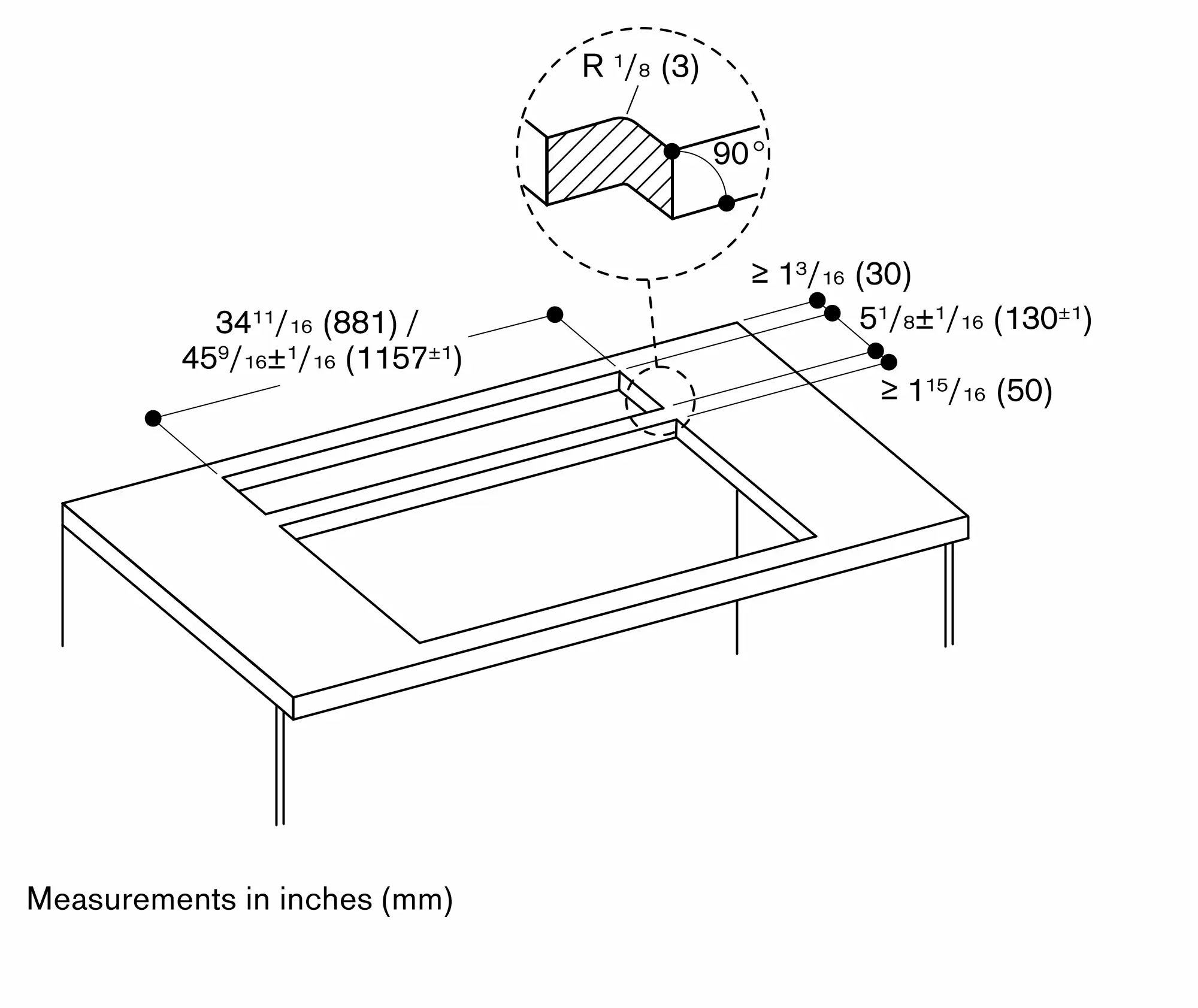

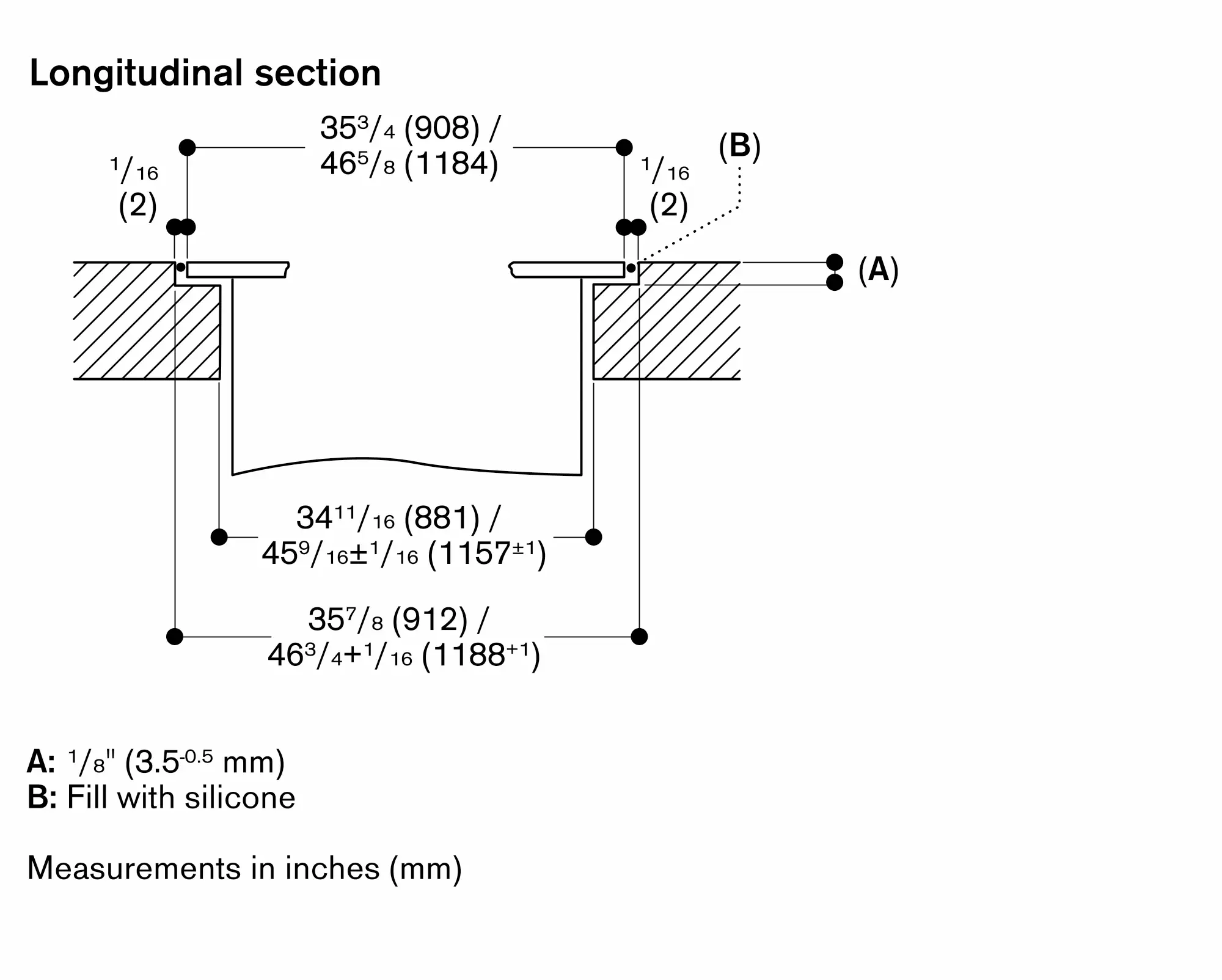

Additional instructions for flush mounting:
Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
Depending on the type of installation, ovens can be combined with the table ventilation.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs to feature a suitable safety switch.
The control unit should be accessible and be secured to a panel of the cabinet that avoids any risk of flooding.
Total rating: 65 W.
100 - 120 V / 60 Hz.
Total amps: 10 A.
Connecting cable 1.8 m with plug.
Network cable 1.2 m.
