400 series 24''
RW466765

Find a local Dealer

Technical Overview

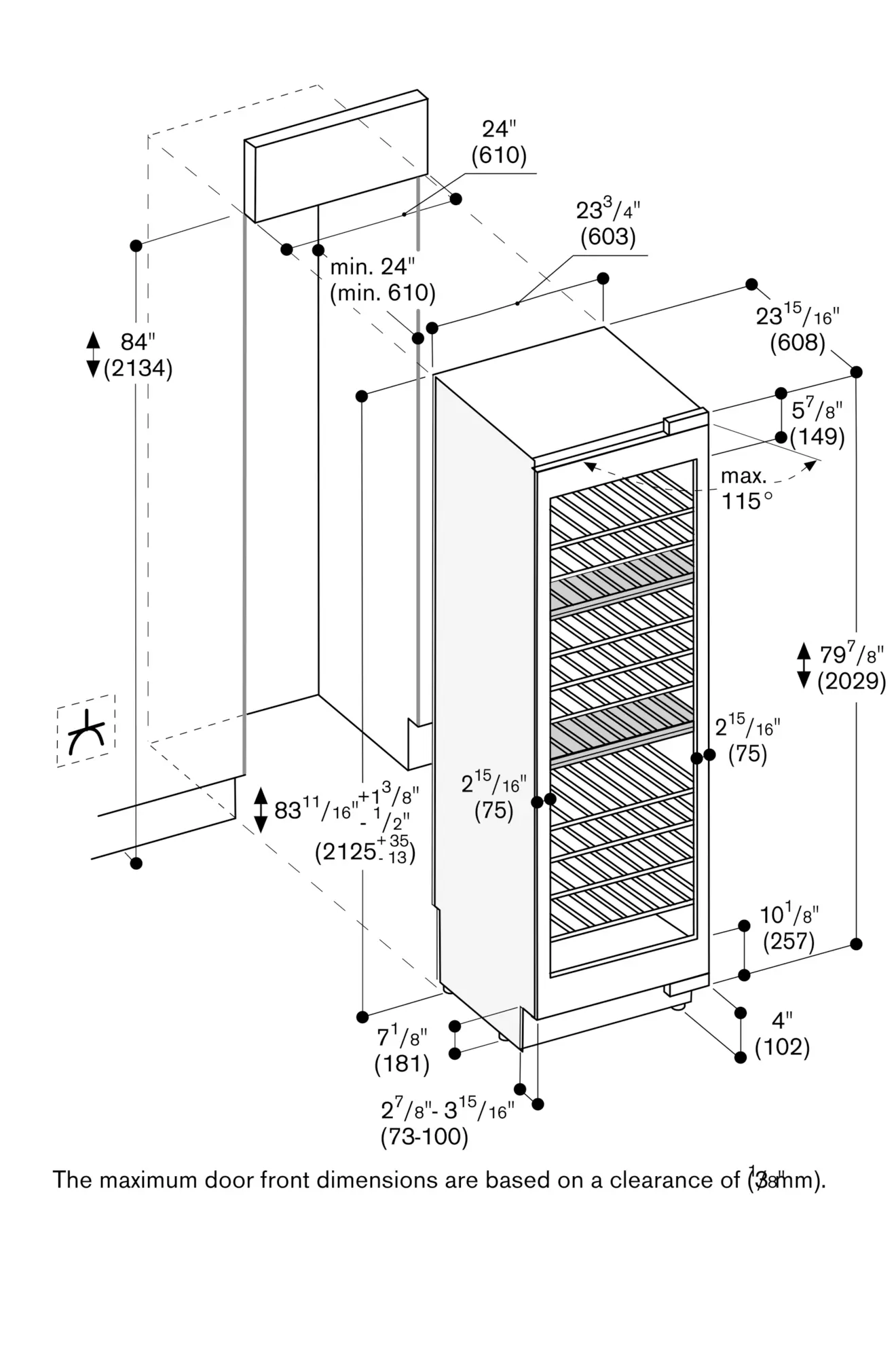

Overall Appliance Dimensions (HxWxD) (in)
83 3/4 " x 23 3/4" x 24"
Dimensions (HxWxD)
2125x603x608 mm
Wine Bottle Storage Capacity
99

Highlights

Special Features

5 preset lighting scenarios, selectable via TFT display
Independently controllable climate zones from +41 °F to +68 °F
High-quality interior for optimum wine presentation
Humidity control
Low-vibration operation

Specifications

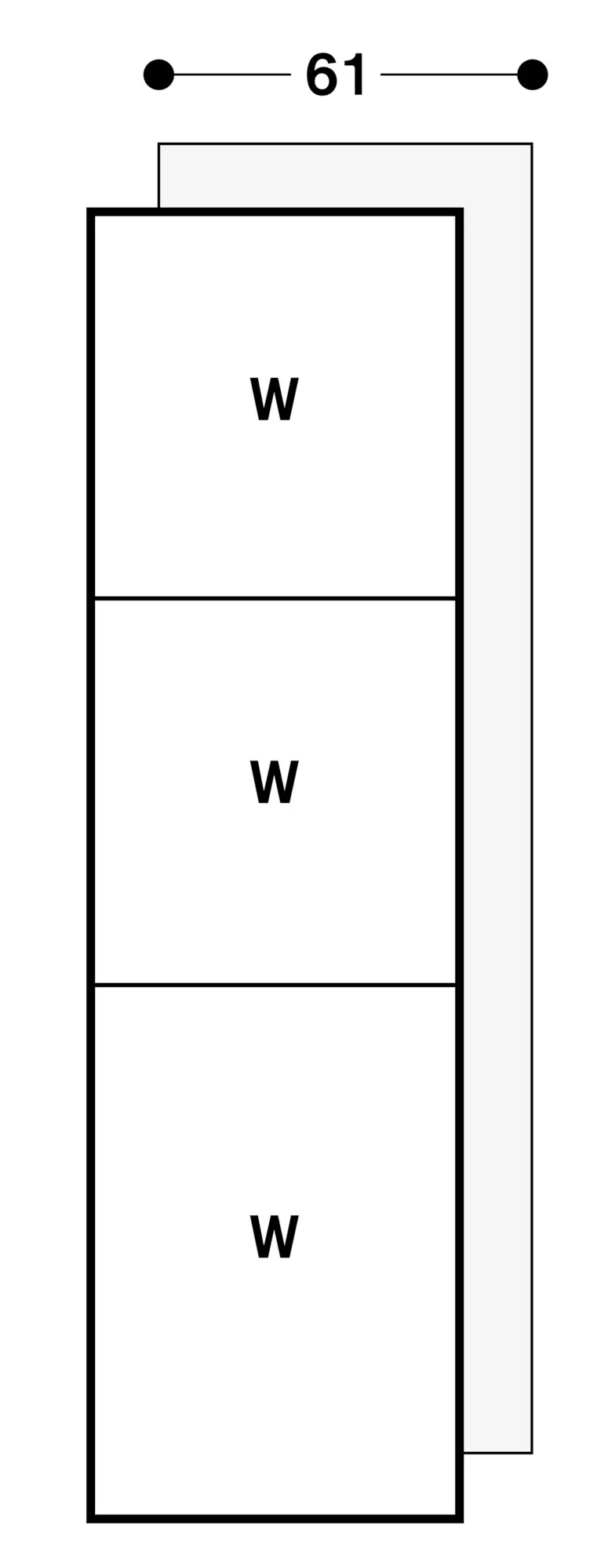

3 independently controllable climate zones
Consistant temperatures with exact control from 41 °F to 64 °F
Humidity control
Stainless steel interior
Fully extendable bottle trays in oak wood and solid aluminium in anthracite
Bottle trays with hidden telescopic rails
Warm white and glare-free LED light spots
5 preset lighting scenarios, selectable via TFT display
Opening assist for door with two options:
1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
Low-vibration operation
TFT touch display
Capacity 99 bottles
TFT touch display operation.
Clear text display in 44 languages.
Dynamic cold air distribution with Multi-Flow Air System.
Automatic defrosting with defrost water evaporation.
Cushioned door closing system.
Activated charcoal air filter.
UV-protection.
Sabbath mode certified by Star-K.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction warning system.
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

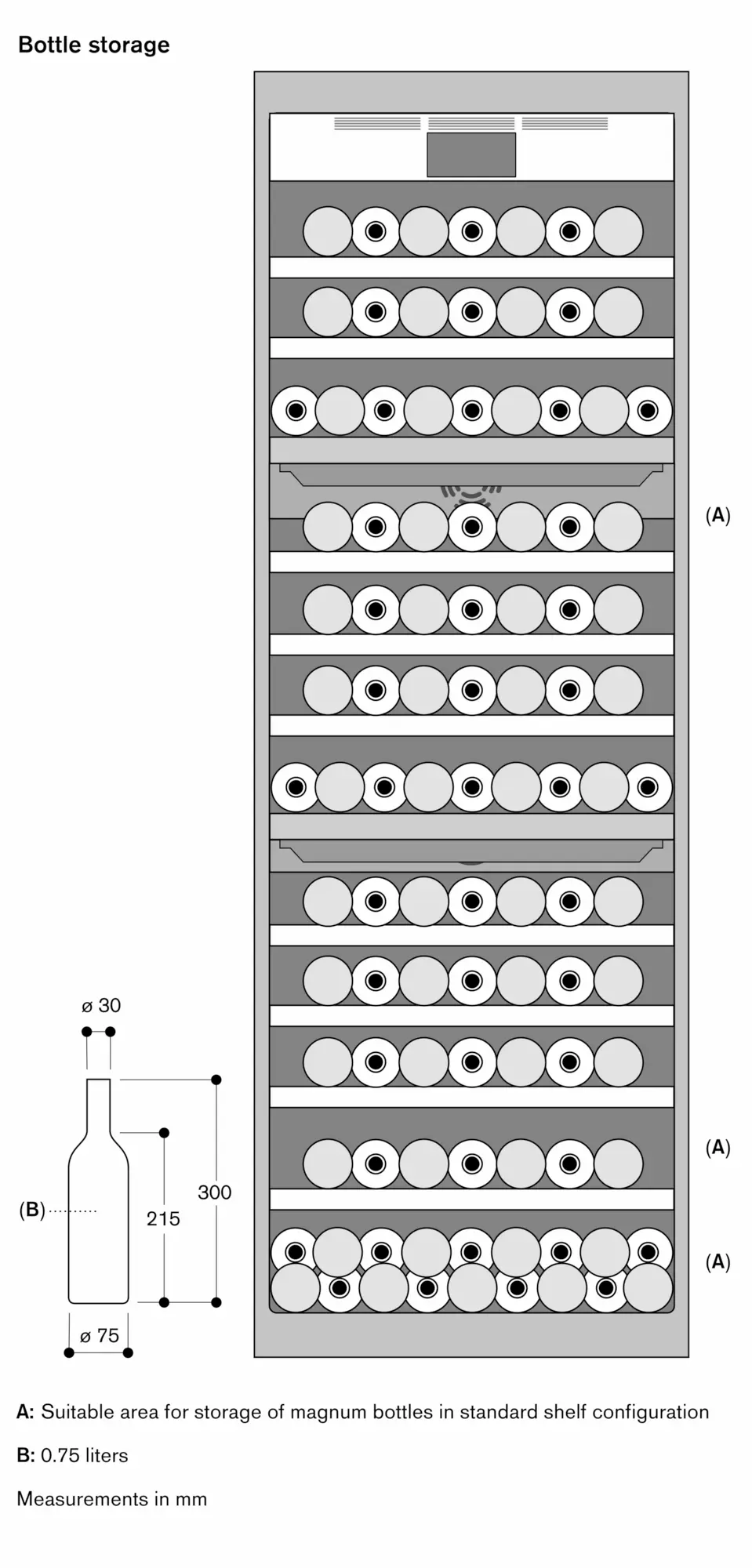

Capacity 99 bottles (based on 0.75 l standard bottles).
12 bottle trays,
- 9 fully extendable trays - 3 suitable for storage of Magnum bottles.
Flexible interior configuration possible by adding or removing fully extendable bottle trays.
Storage of up to 12 Magnum bottles with standard tray configuration (12 bottle trays).
Space for max. 12 bottle trays.
5 different lighting scenarios can be selected for individual wine presentation.
Net volume 381 litres.
Energy consumption 179 kWh/year.
Noise level 42 dB (re 1 pW).
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight 73 kg.
Plan a power outlet outside of the cut-out niche.
No transport/operation above 2000 m sea level.
Total rating 1.079 kWh/24h.
Total Amps: 10 A.
Connecting cable 118" (3.0 m), detachable.
