Unobtrusive flat kitchen hood design thanks to integrated glass panel in the steam screen

Especially quiet operation thanks to integrated sound insulation

Steam screen extends by touching the handle bar

Steam screen and visible corpus made of brushed stainless steel

Integration of a spice rack is possible

Energy-saving, low-noise fan

Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours

Dimmable, neutral white LED light for ideal illumination of the whole cooktop

The patented lowering frame allows the flat kitchen hood to disappear completely into the upper cabinet

Air extraction or recirculation system

Recirculation module with activated charcoal filter: Silent and highly efficient air recirculation solution with odour reduction compareable to air extraction and long replacement intervals

Performance and noise level, output level 3/Intensive:

Air output according to DIN EN 61591.

Sound power level according to EN 60704-3.

Sound pressure level according to EN 60704-13.

Odour reduction air recirculation 94%.

Controls at front.

Three electronically controlled power levels and an intensive mode.

Automatic function with sensor-controlled run-on function.

Grease filter saturation indicator.

Stainless steel grease filter, dishwasher-safe.

Neutral white LED light (3500 K), continuously dimmable.

Illuminance: 648 lx

Light can be switched on separately.

Fan technology with highly efficient, brushless DC motor.

Integrated sound insulation for quiet operation.

The fan is activated when the steam screen is extended.

Patented technology for extension of the steam screen.

Extendable steam screen 198 mm.

Airflow-optimised interior for efficient air circulation and ease of cleaning.

Patented easy mounting system for simple installation.

The package includes an one-way flap.

Energy consumption 37.7 kWh/year.

Ventilation efficiency class B.

Ilumination efficiency class A.

Grease filter efficiency class B.

Sound level min. 39 dB / max. 55 dB normal mode.

The door of the upper cabinet must be fully open in order to change the activated charcoal filter.

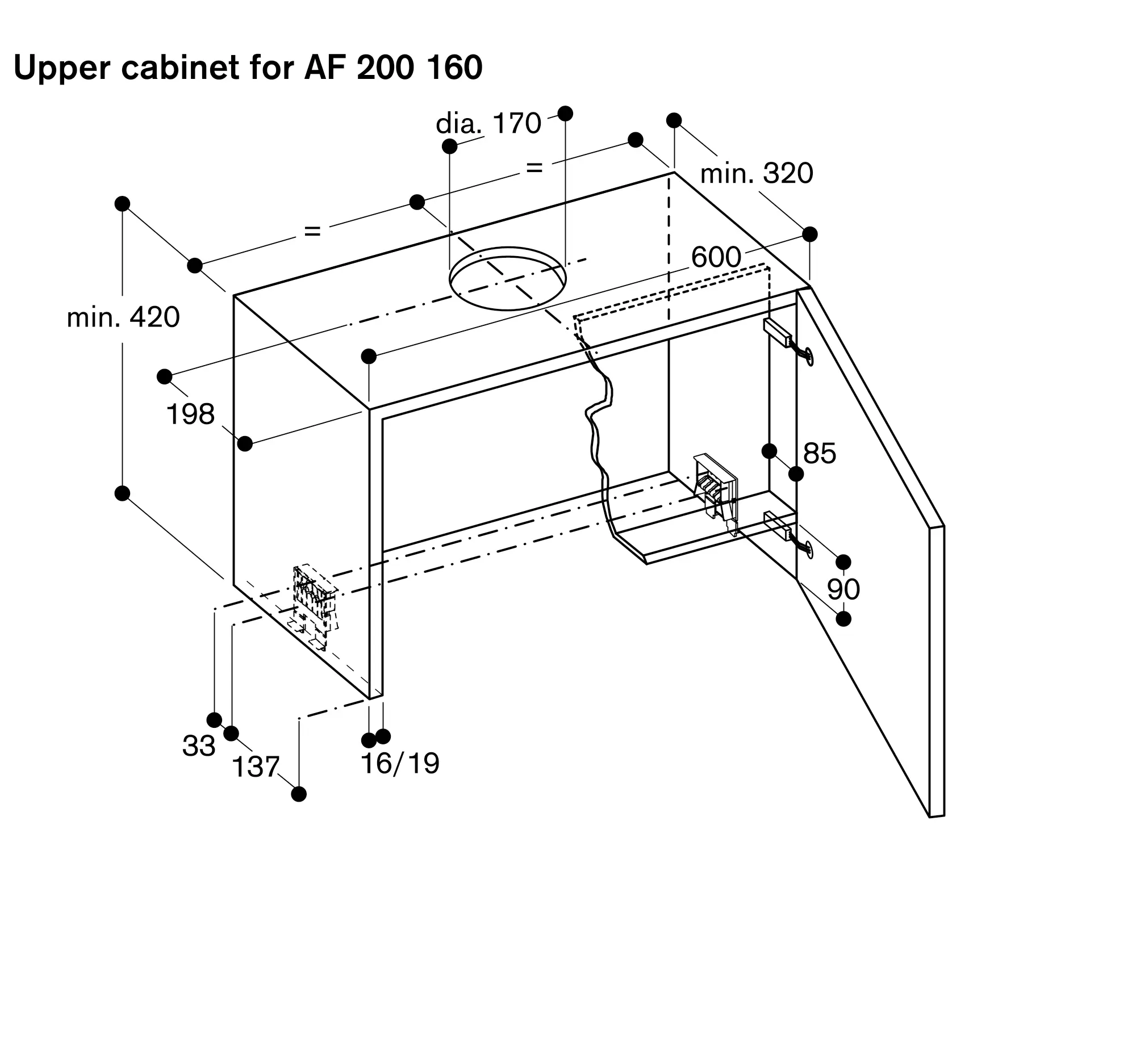

To be installed in an upper cabinet without base.

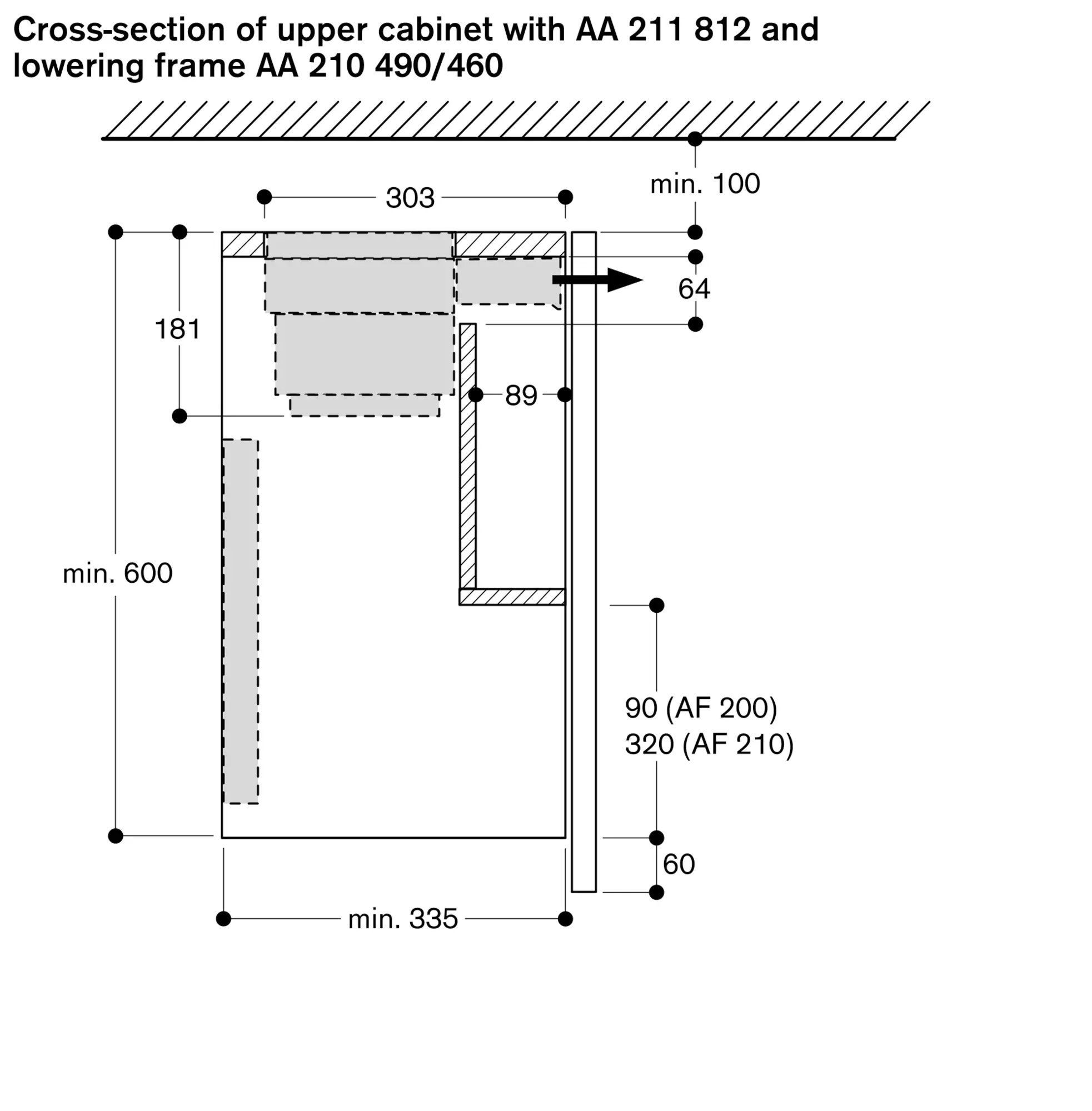

The required cavity height of the upper cabinet together with the lowering frame measures 600 mm.

Clearance above gas appliances min. 65 cm (more than total load gas 12 kW min. 70 cm).

Clearance above electric appliances min. 43 cm.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood's power supply line needs a suitable safety switch.

Total connected load 146 W.
