Top appliance in the market, 18 kW on 5 burners

Solid smooth-surface cast pan supports

Automatic fast ignition, electronic flame monitoring

1 three-ring wok burner (300 W – 6000 W), suitable for pots up to max. ø 32 cm.

2 two-ring high output burners (165 W – 4000 W), suitable for pots up to max. ø 28 cm.

2 two-ring standard burners (165 W – 2000 W), suitable for pots up to max. ø 28 cm.

Integrated control panel with cooking zone and output level markings.

One-handed operation.

Gas valve with fine control.

Three-part cast pan support with flat, continuous pot surface.

Brass burner rings.

Electronic flame monitoring with automatic re-ignition.

Automatic fast ignition.

Special nozzles can be ordered as spare parts.

Plan for an electrical connection (the appliance is not operable without power supply).

Panel thickness 16 – 26 mm.

Air intake from above.

No intermediate shelf required.

Rear panel and wall trims must be heat-resistant and consist of a non-flammable material.

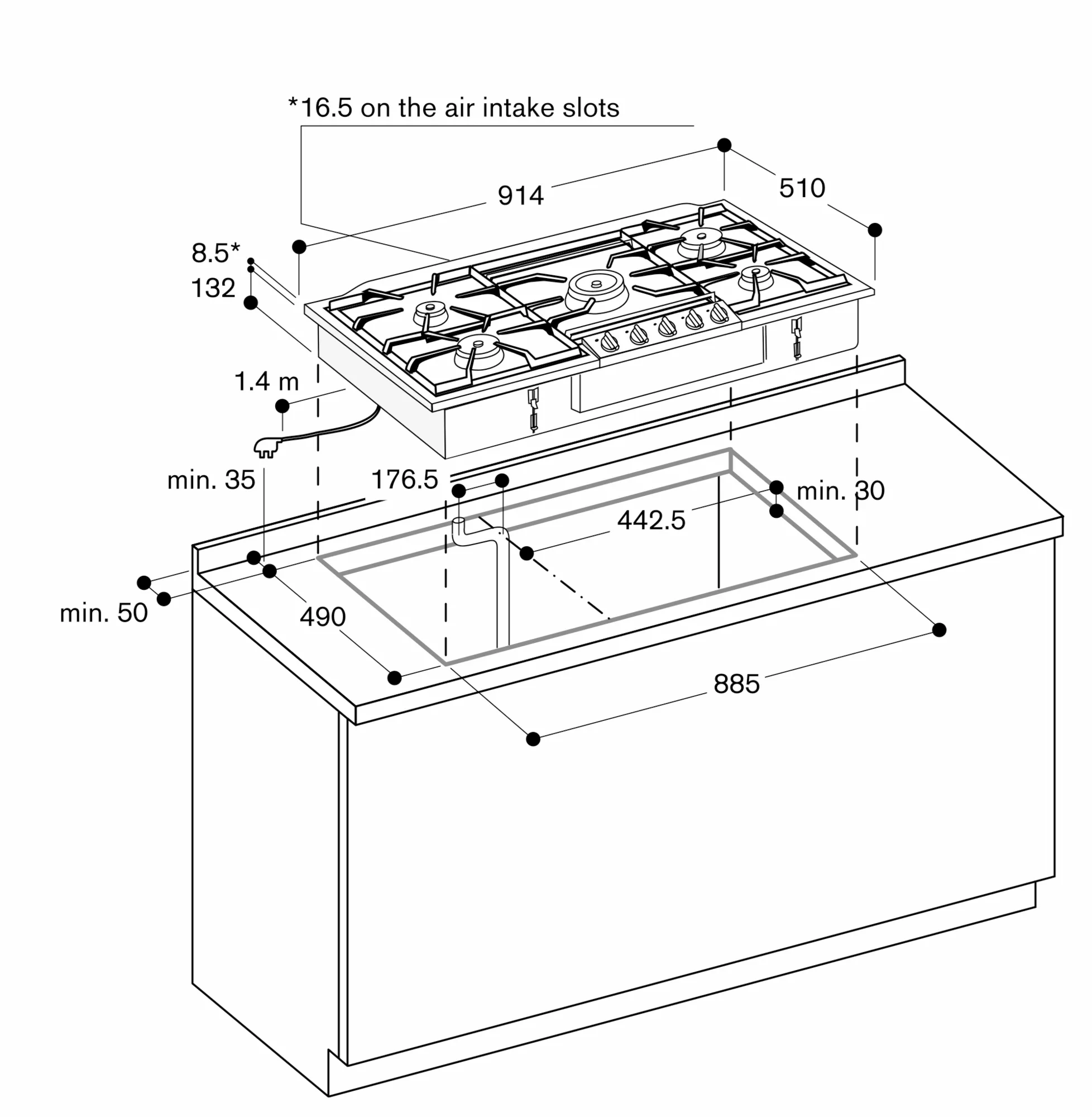

Installation in a 90 cm wide lower cabinet is required.

An oven can be installed under the cooktop.

Appliance must be fixed from underneath.

A minimum lateral clearance of at least 300 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.

Cooktop clamping range: 30 - 50 mm.

An air extraction hood must be switched on during operation of the gas cooktop.

Distance between ventilation hood and gas cooktop at least 760 mm.
