200 series Vario downdraft ventilation 15 cm BlackVL200120
In a range from: A+++ to D
Find a local Dealer

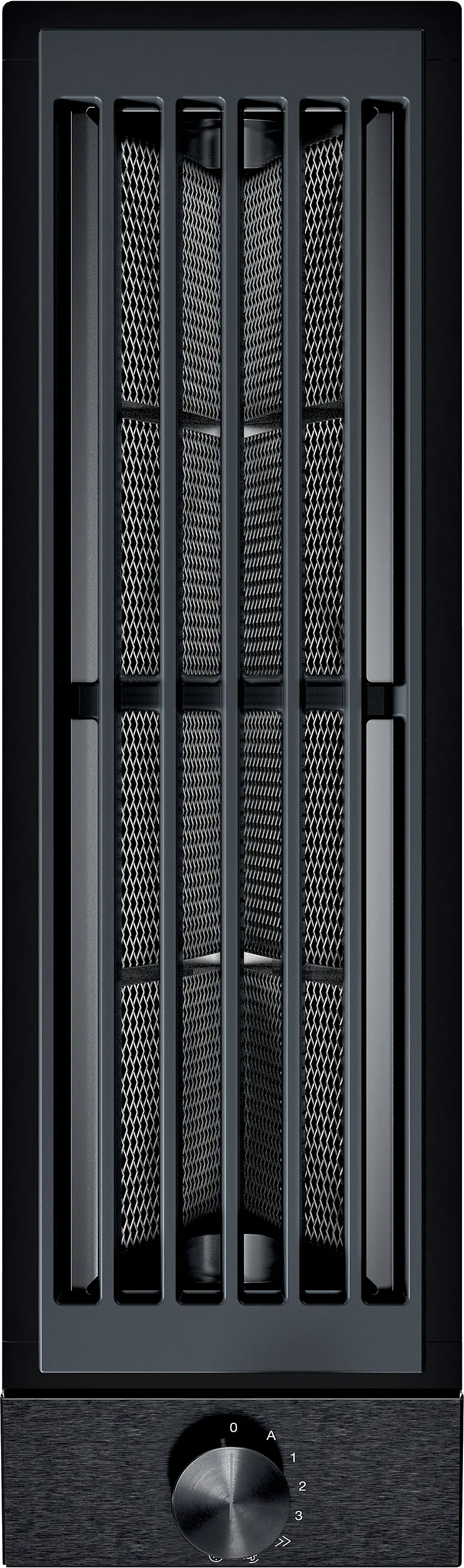

Vario downdraft ventilation 15 cm Black
In a range from: A+++ to D
Technical Overview
Built-in
15 cm
Black
71 dB
550 m³/h
Convertible
No
Highlights
Special Features
Highly efficient ventilation
The power levels are regulated automatically
Advanced interior performance
Motorless, can be combined with Gaggenau BLDC remote fan units

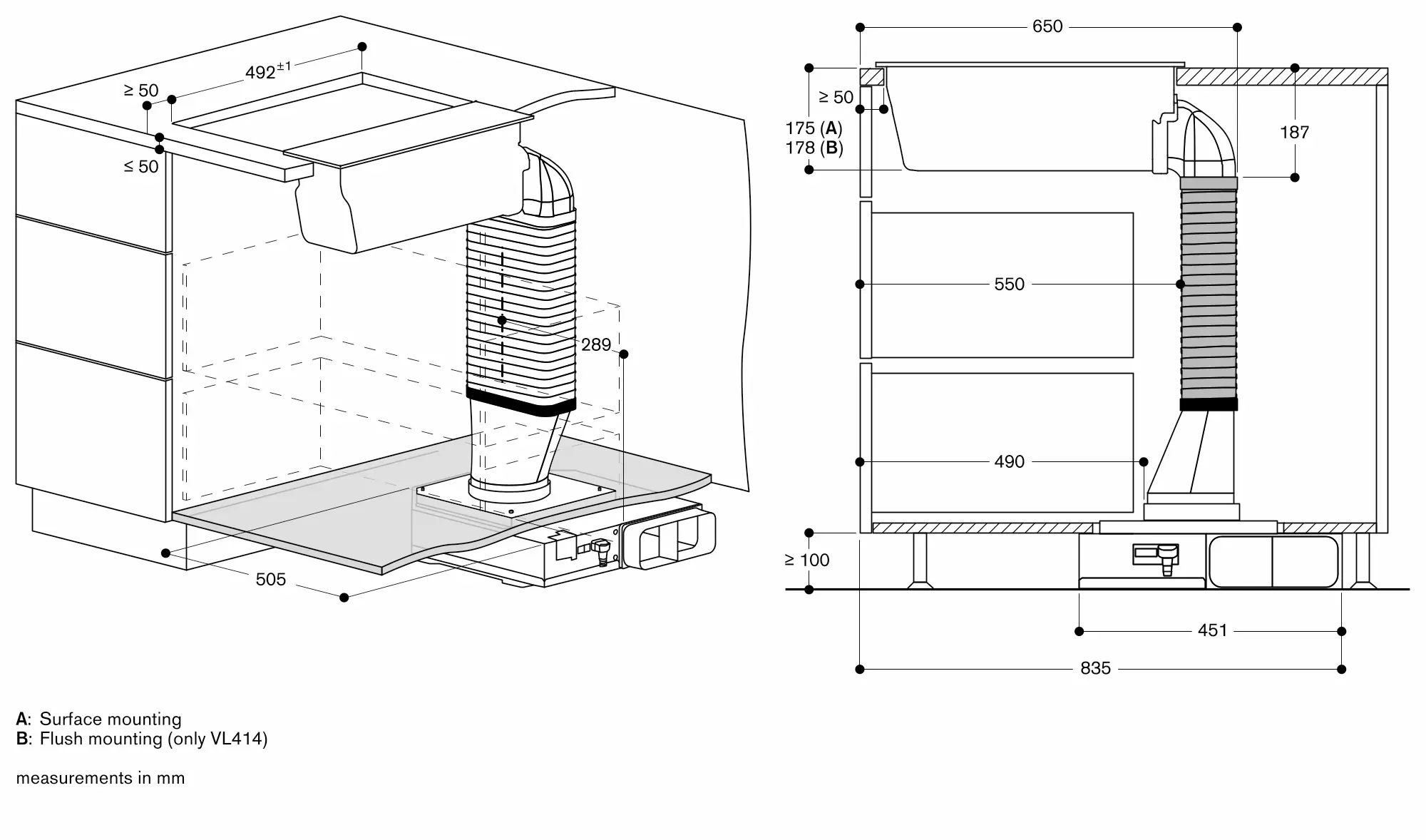

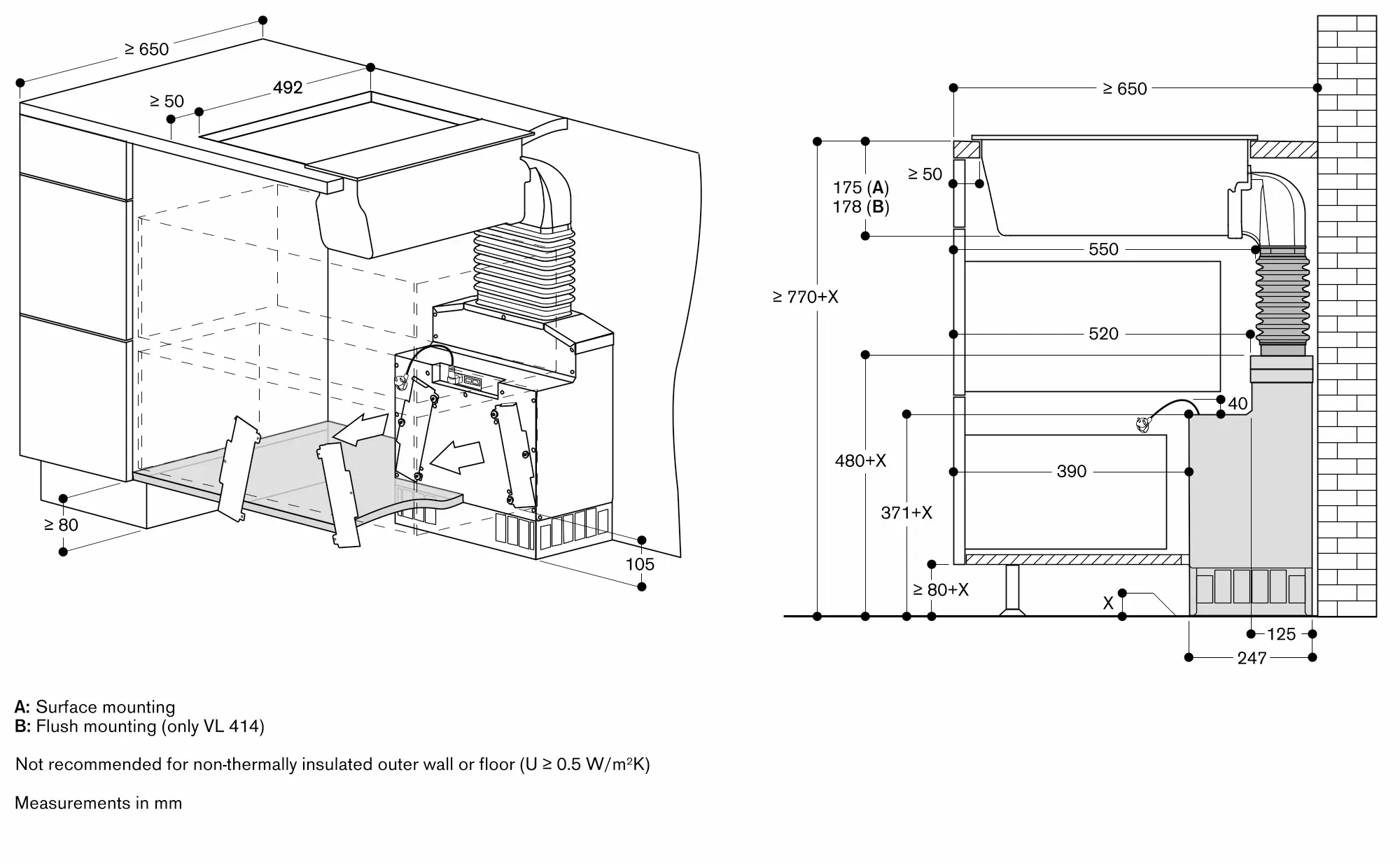

For surface installation with a visible edge or for flush installation
Additional information

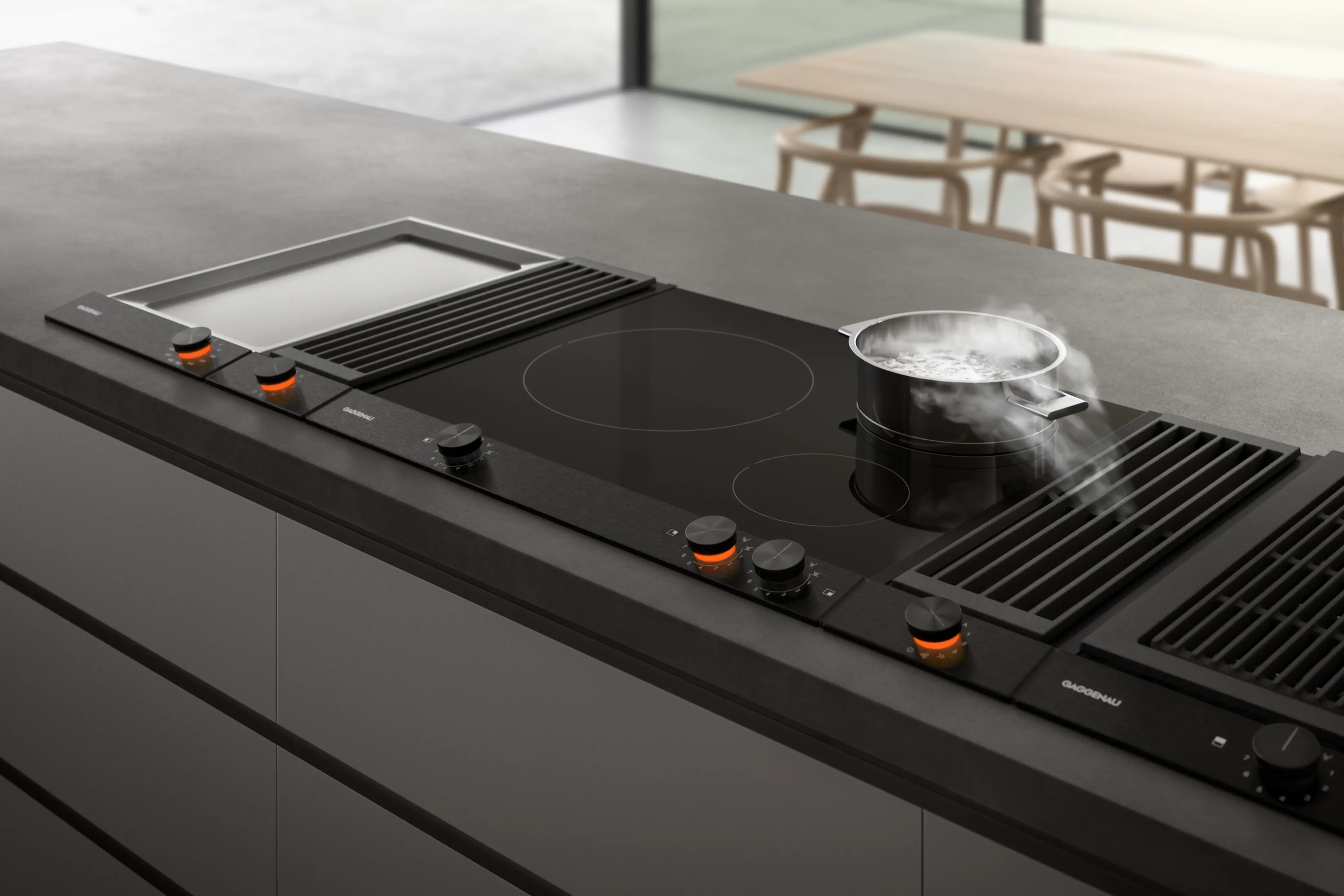

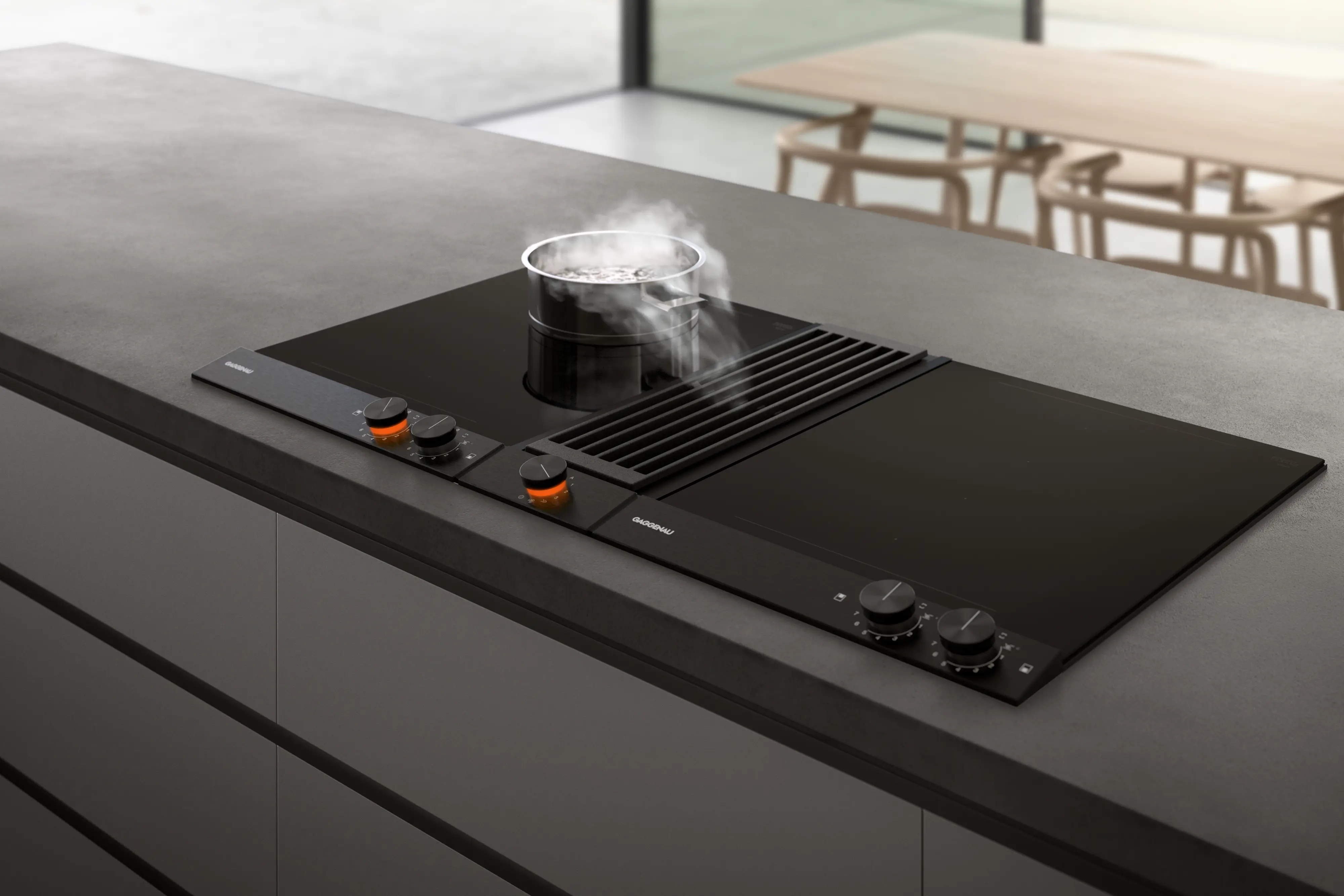

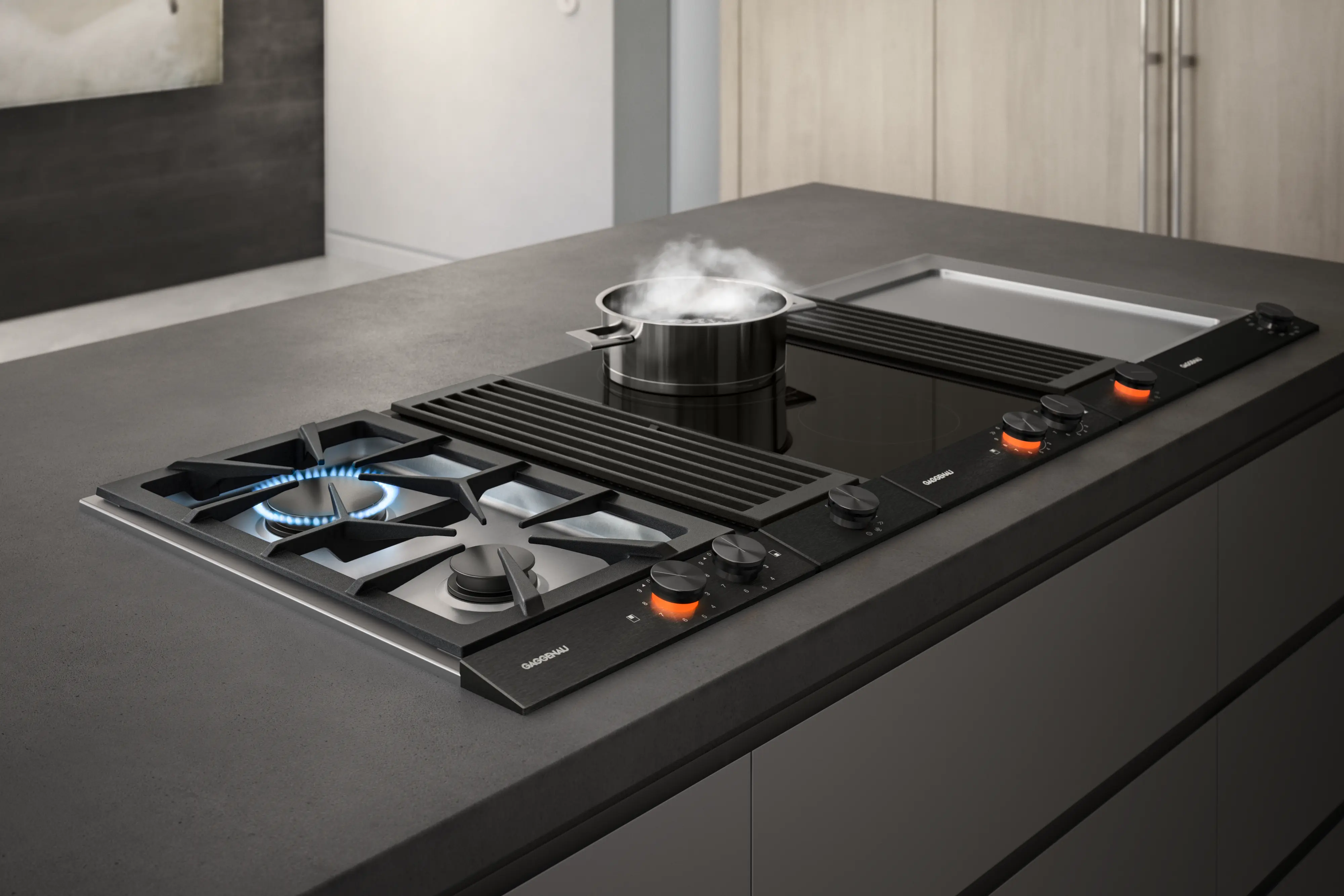

Can be combined with the cooktops of the Vario 200 series to a harmonic unity.
Highly efficient ventilation system at the cooktop integrated in the worktop
Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours
Low planning and installation effort
Low-noise system with the motor AR 410 110
Air extraction or recirculation system
Power levels depend on the remote fan unit.
Control knobs with illuminated ring.
Three electronically controlled power levels and an intensive mode.
Automatic sensor-controlled performance adjustment of the ventilation system.
Automatic sensor-controlled or manual run-on function.
Large-scale metal grease filter with high grease absorption.
Removable, dishwasher-safe grease filter unit.
Grease filter and activated charcoal filter saturation indicator.
Airflow-optimised interior for efficient air circulation.
Interval ventilation, 6 min.
Enamelled ventilation grille, dishwasher-safe.

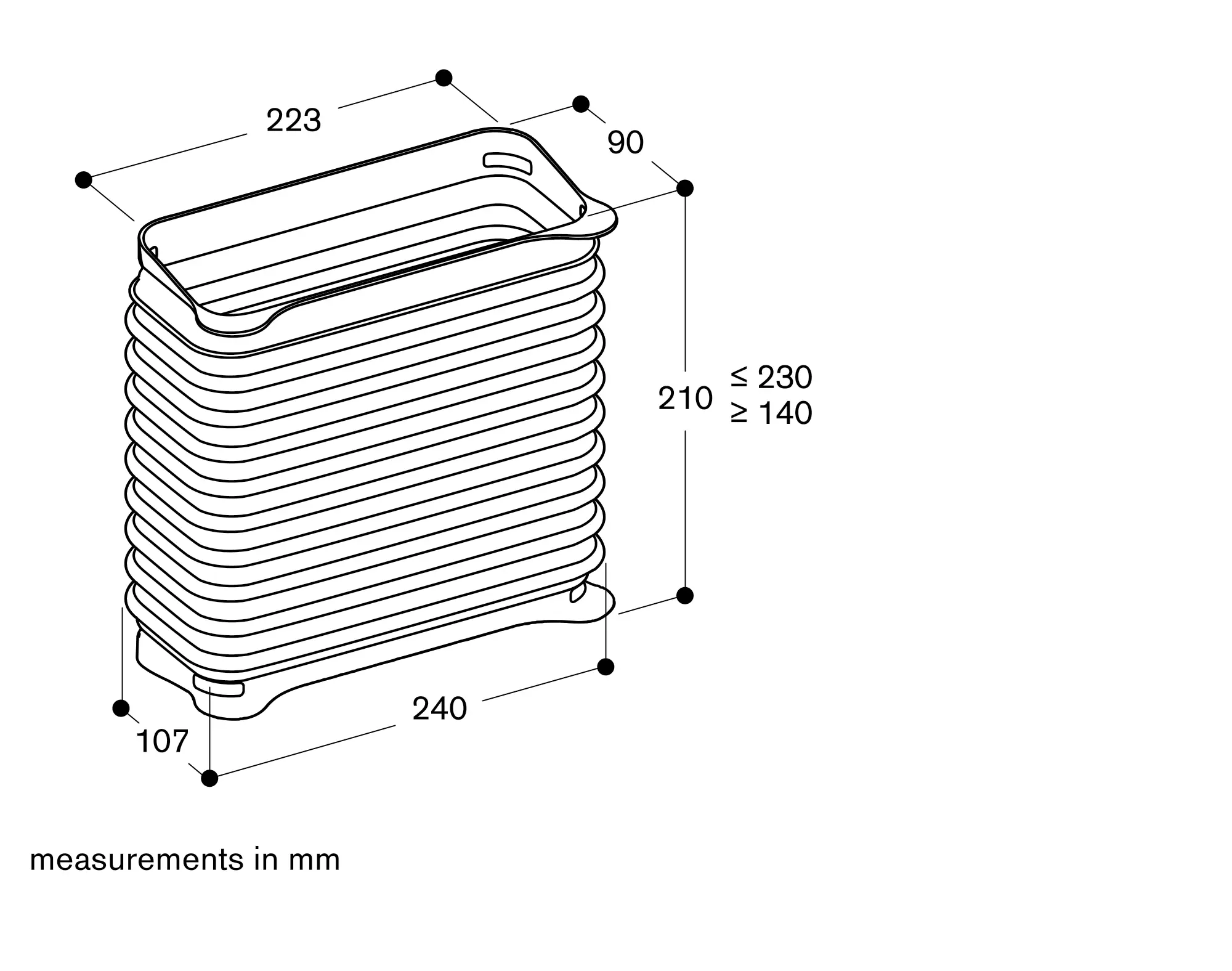

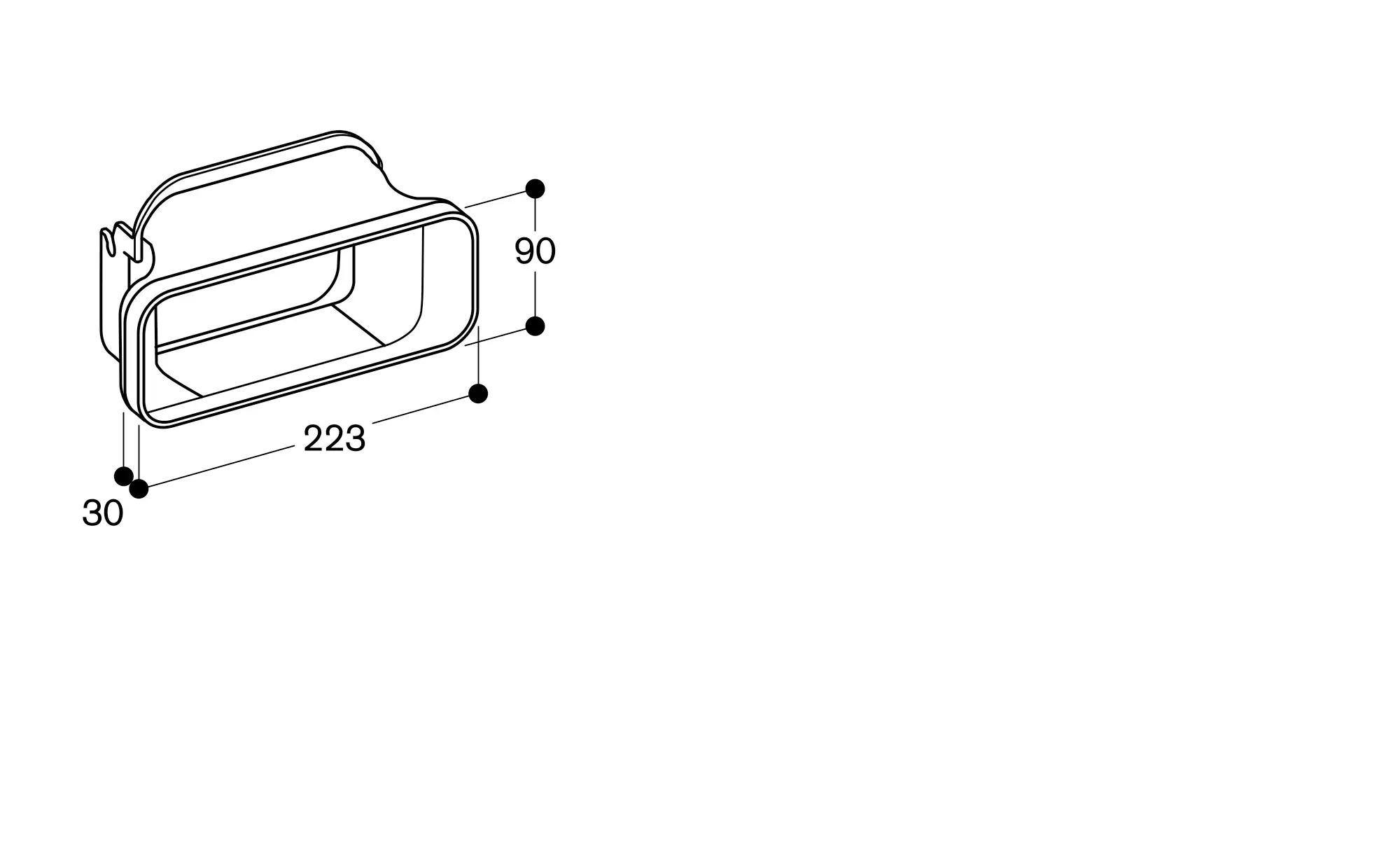

Air exhaust bend included in delivery.
Overflow 250 ml capacity.
Consumption data is referred to a configuration with the remote fan unit AR 403 122.
Energy efficiency class A at a range of energy efficiency classes from A+++ to D.
Energy consumption 48.3 kWh/year.
Ventilation efficiency class A.
Ilumination efficiency class -.
Grease filter efficiency class B.
Sound level min. 56 dB / max. 71 dB normal mode.
For each VL one remote fan unit is recommended.

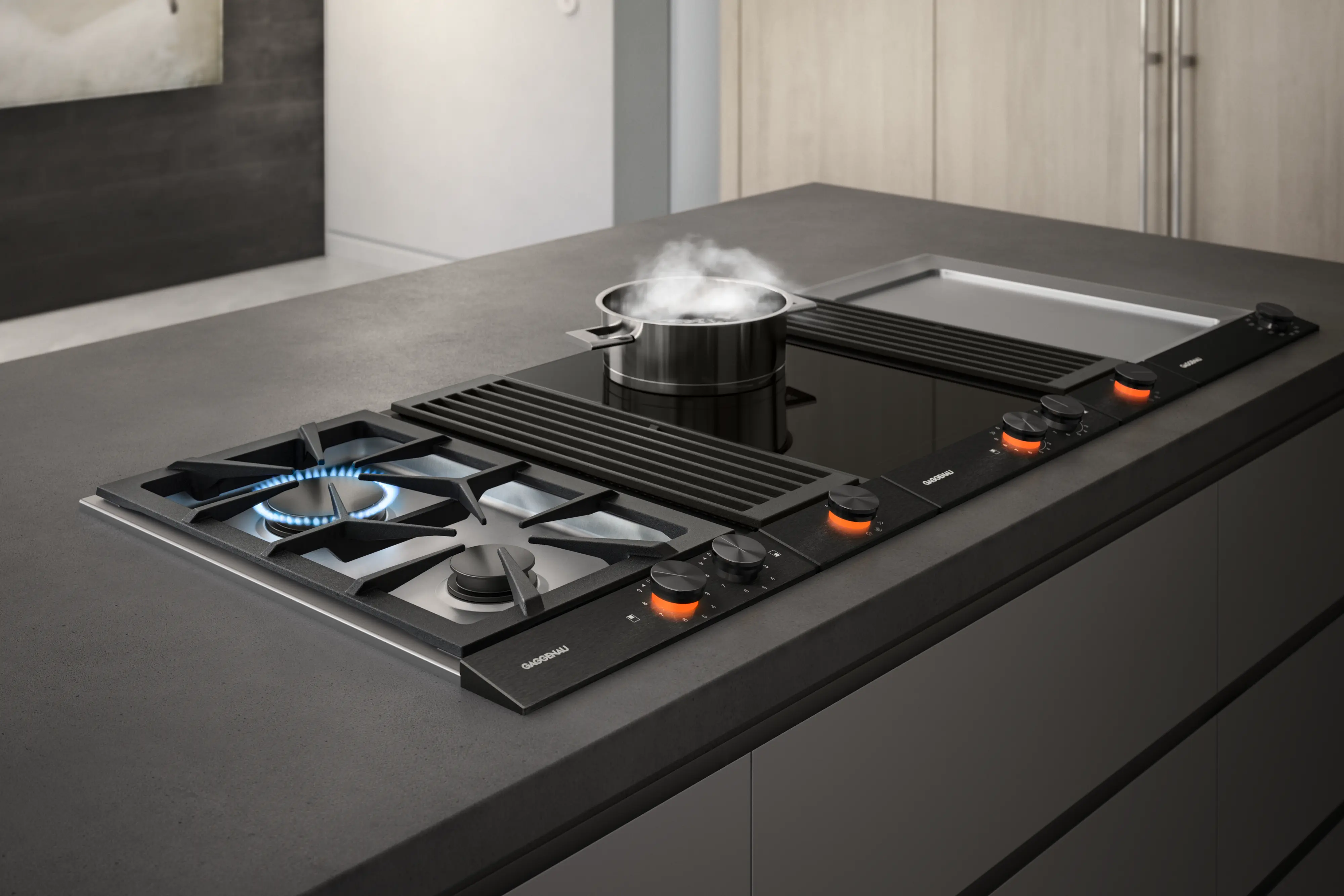

If installed next to gas appliances, the ventilation moulding LS 041 001 is recommended to ensure maximum performance of the cooktop.
When having installed the ventilation moulding LS 041 001 the wok pan WP 400 001 can not be used.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs to feature a suitable safety switch.
For optimum performance in air recirculation we recommend an outflow surface area of at least 400 cm².
Please read additional planning notes on page xx.

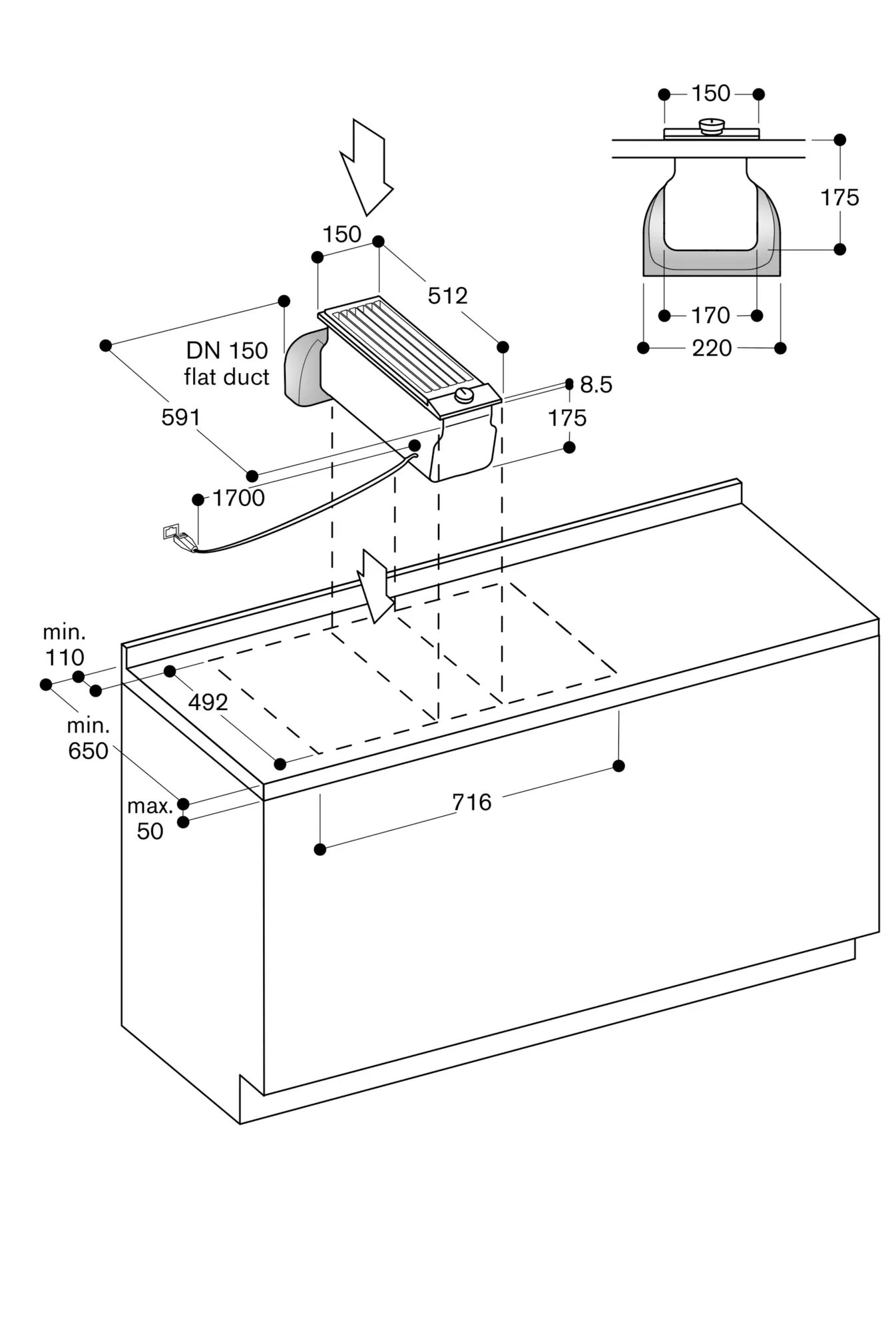

Connecting cable 1.7 m between VL and remote fan unit.
