Flex function for combining the rectangular cooking areas

Free positioning of cookware inside combined cooking areas

Solid stainless steel control knob

Easy control of cooktop functions with bicoloured display

Highly efficient ventilation system close to the cooktop

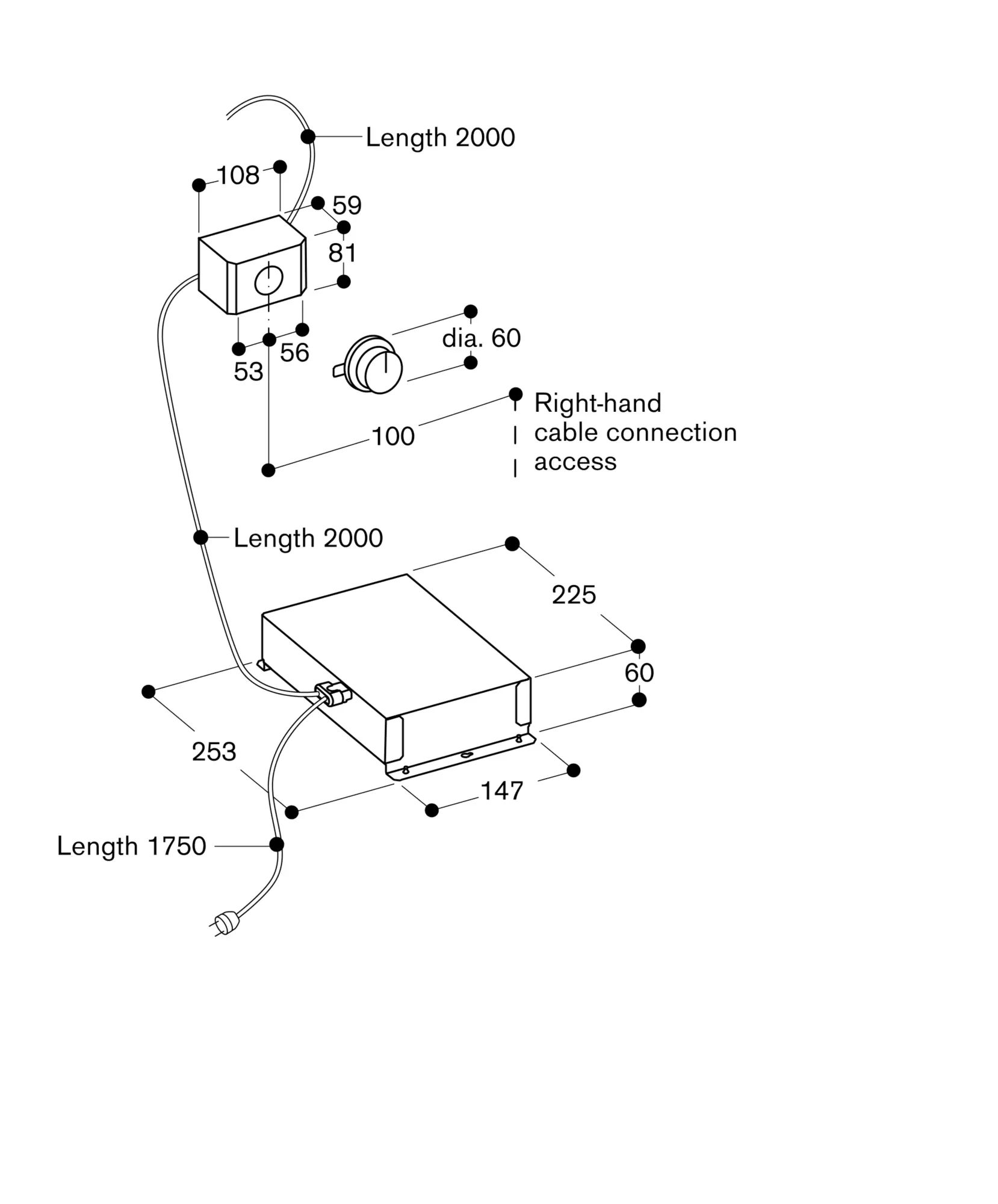

Motorless, can be combined with Gaggenau BLDC remote fan units

Air extraction or recirculation system

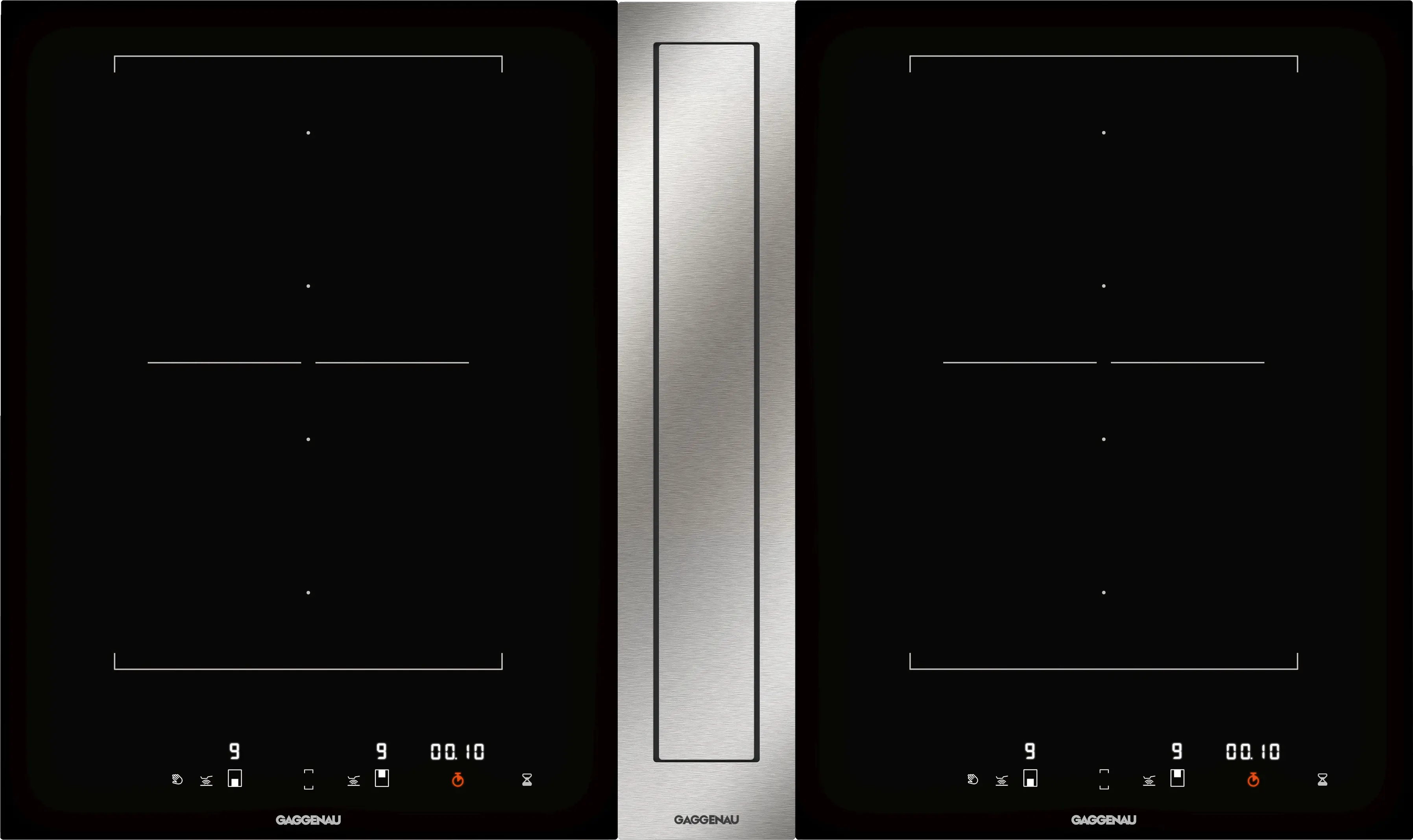

2 flex induction cooking areas 24x19 cm (2200 W, with booster 3700 W), linked together 24x38 cm (3300 W, with booster 3700 W).

Power levels depend on the remote fan unit.

Control knobs with illuminated ring, cooking zone and output level markings.

Electronic power control of the cooking zone in 12 stage (1…12).

User friendly control of cooktop functions with bicoloured display (white / orange).

Control of ventilation system with 3 electronically controlled power levels and 1 intensive mode.

Flex function for rectangular cooking areas.

Frying sensor function.

Booster function.

Stopwatch.

Short-term timer.

Options menu.

Manual opening of the ventilation element.

Closing element made of stainless steel, dishwasher-safe.

Metal grease filter, dishwasher-safe.

Consumption data is referred to a configuration with the remote fan unit AR 403 122.

Energy consumption 42.7 kWh/year.

Ventilation efficiency class A.

Ilumination efficiency class -.

Grease filter efficiency class C.

Sound level min. 56 dB / max. 68 dB normal mode.

Operation indicator.

Pot detection.

Individual residual heat indicators.

Safety shut-off.

Refer to the table on page XX for the matching remote fan units for air recirculation or air extraction mode.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs to feature a suitable safety switch.

The horizontal positioning of the knobs may be aligned with the specific cooking areas and downdraft ventilation.

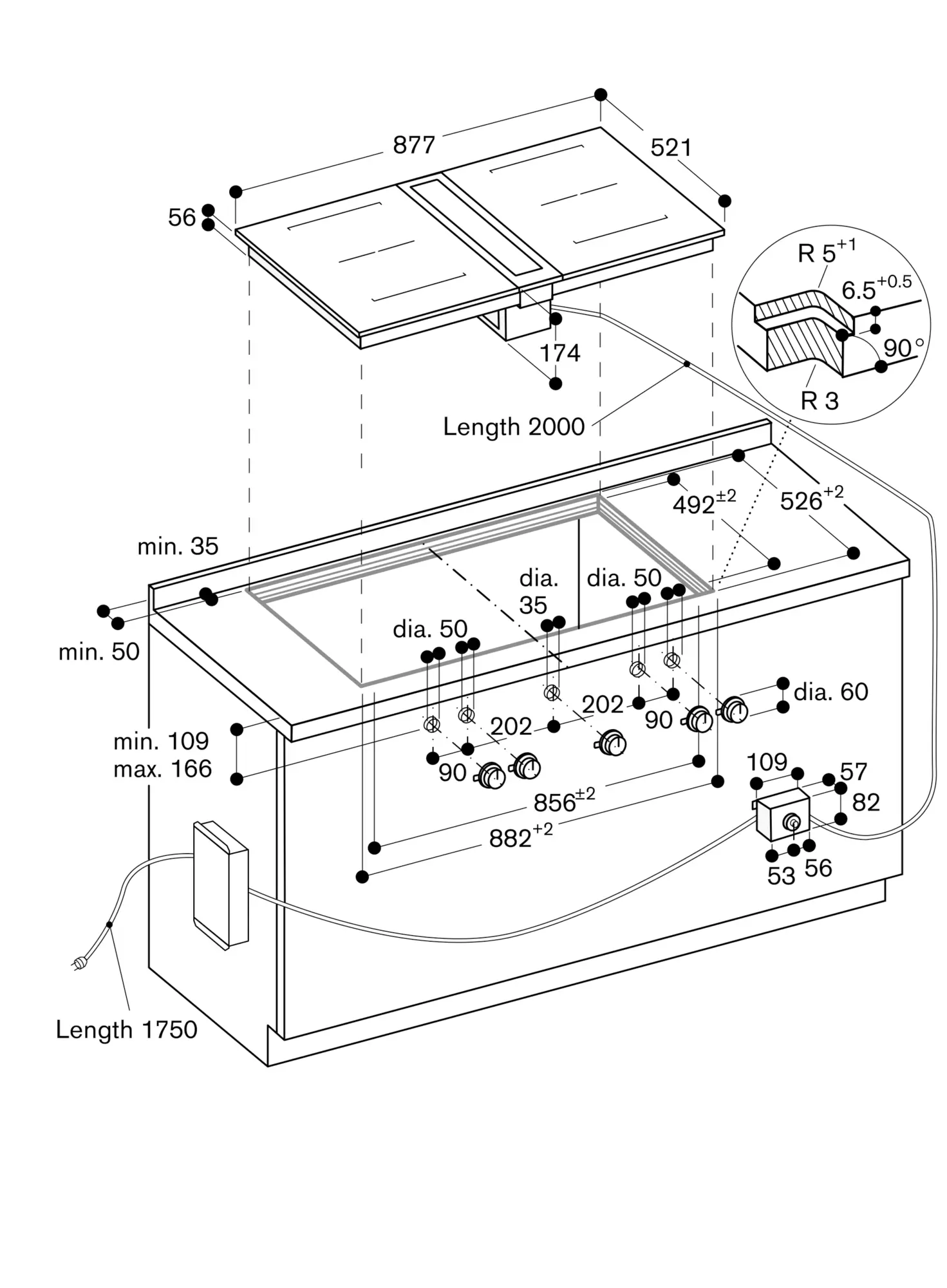

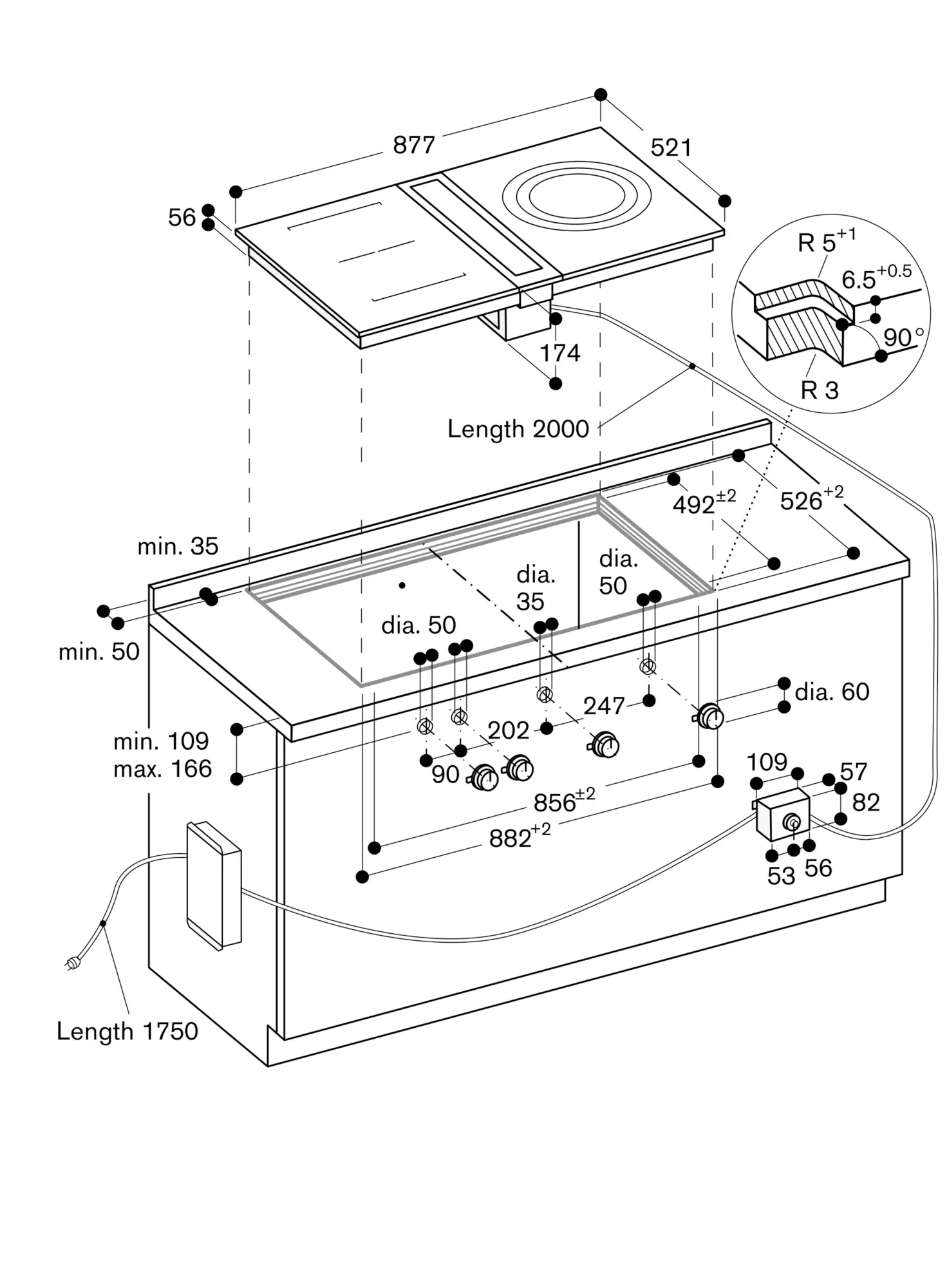

The drawing "Installation of the control knob" must be observed if the panel is more than 23 mm thick (there must be a recess at the rear).

In the cut-out, the installation system requires the side edge to be at least 13 mm for flush mounting. Ensure a continuous cut surface of 90°.

The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.

Installation is possible in worktops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the cut edges must be observed. Concerning other materials please consult the worktop manufacturer.

The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.

Joint width may vary due to dimensional tolerances of the glass ceramic cooktop and the worktop cut-out.

Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.

Appliance can be snapped into the worktop from above.

Connected load cooktops 7.4 kW.

Connecting cable cooktops 1.5 m without plug.

Connecting cable downdraft ventilation 1.8 m, pluggable.
