200 series Wall-mounted hood 90 cm Stainless steelAW240191
In a range from: A+++ to D
Find a local Dealer
Wall-mounted hood 90 cm Stainless steel
In a range from: A+++ to D
Technical Overview
Wall-mounted
90 cm
Stainless steel
64 dB
618 m³/h
971 m³/h
Convertible
Yes
Highlights
Special Features
Energy saving low-noise fan
Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours
Perforated stainless steel grease filters with high grease absorption rate
Additional information
Stainless steel hood with glass cover fitting to oven 200 series
Highly efficient vapour collection by moved slightly inwards filters
Energy-saving, low-noise fan
Perforated sheet metal filter with high grease absorption
Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours
Dimmable, neutral white LED light for ideal illumination of the whole cooktop
Air extraction or recirculation system
Three electronically controlled power levels and an intensive mode.
Automatic function with sensor-controlled run-on function.
Grease filter saturation indicator.
Activated charcoal filter saturation indicator.
Perforated sheet metal filter, dishwasher-safe.
Interval ventilation, 6 min.
Cooktop-based ventilation control (with suitable cooktop).
Neutral white LED light (3500 K), continuously dimmable.
Light colour in different white tones (2700 - 5000 Kelvin) can be adjusted via Home Connect.
Lamp output 3 x 3W LED lights.
Illuminance 551 lx continuously dimmable.
Fan technology with highly efficient, brushless DC motor.
Airflow-optimised vapour collection area with slightly inward facing filters.
The package includes an one-way flap.
Easy mounting system for simple installation and alignment.
Integrated WiFi module for digital services
(Home Connect).
The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country – for further information please check: www.home-connect.com
Energy consumption 45.1 kWh/year.
Ventilation efficiency class A.
Ilumination efficiency class A.
Grease filter efficiency class B.
Sound level min. 44 dB / max. 64 dB normal mode.

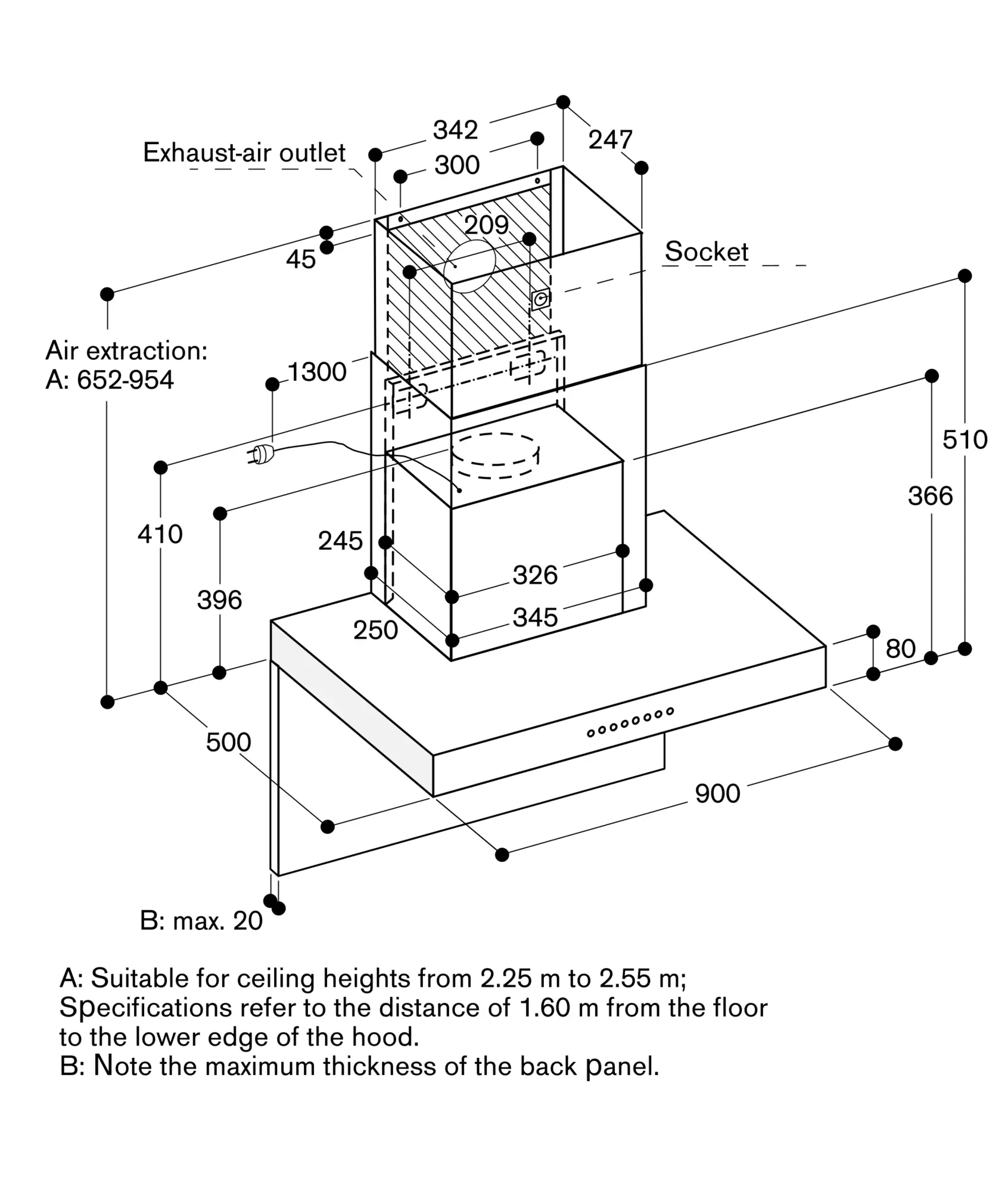

The package includes the two-part chimney with the dimensions from 572 mm to 874 mm. Individual planning solutions can be implemented using the special accessory chimney extension AD200322 or by shortening the lower edge of the inner chimney.
Clearance above gas appliances min. 65 cm(more than total load gas 12 kW min. 70 cm).
Clearance above electric appliances min. 55 cm.
The recirculation module with activated charcoal filter can be installed on the telescopic chimney.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs to feature a suitable safety switch.
Total connected load 269 W.
Connecting cable 1.3 m with plug.
Power consumption standby/display off 0.5 W.
Please check the user manual for how to switch off the WiFi module.
