400 series Ceiling ventilation 80 cmAC402181
Replacement for
AC402180
1 / 16
+ 1
400 series Ceiling ventilation 80 cmAC402181
Replacement for
AC402180
In a range from: A+++ to D
Find a local Dealer
Technical Overview
Installation typology
Built-in
Width of appliance
80 cm
Sound power level extraction (max)
65 dB
Maximum output air extraction
570 m³/h
Type of extraction
air extraction / air recirculation
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Highlights
Special Features
Discreet integration into the architecture of the kitchen
Flexible by dimension, performance and ventilation mode
Room ventilation to always have clean and fresh air
Perfect Integration with Vario Cooktops 400 series
Additional information
Discreet integration into the architecture of the kitchen
Flexible by dimension, performance and ventilation mode
Room ventilation

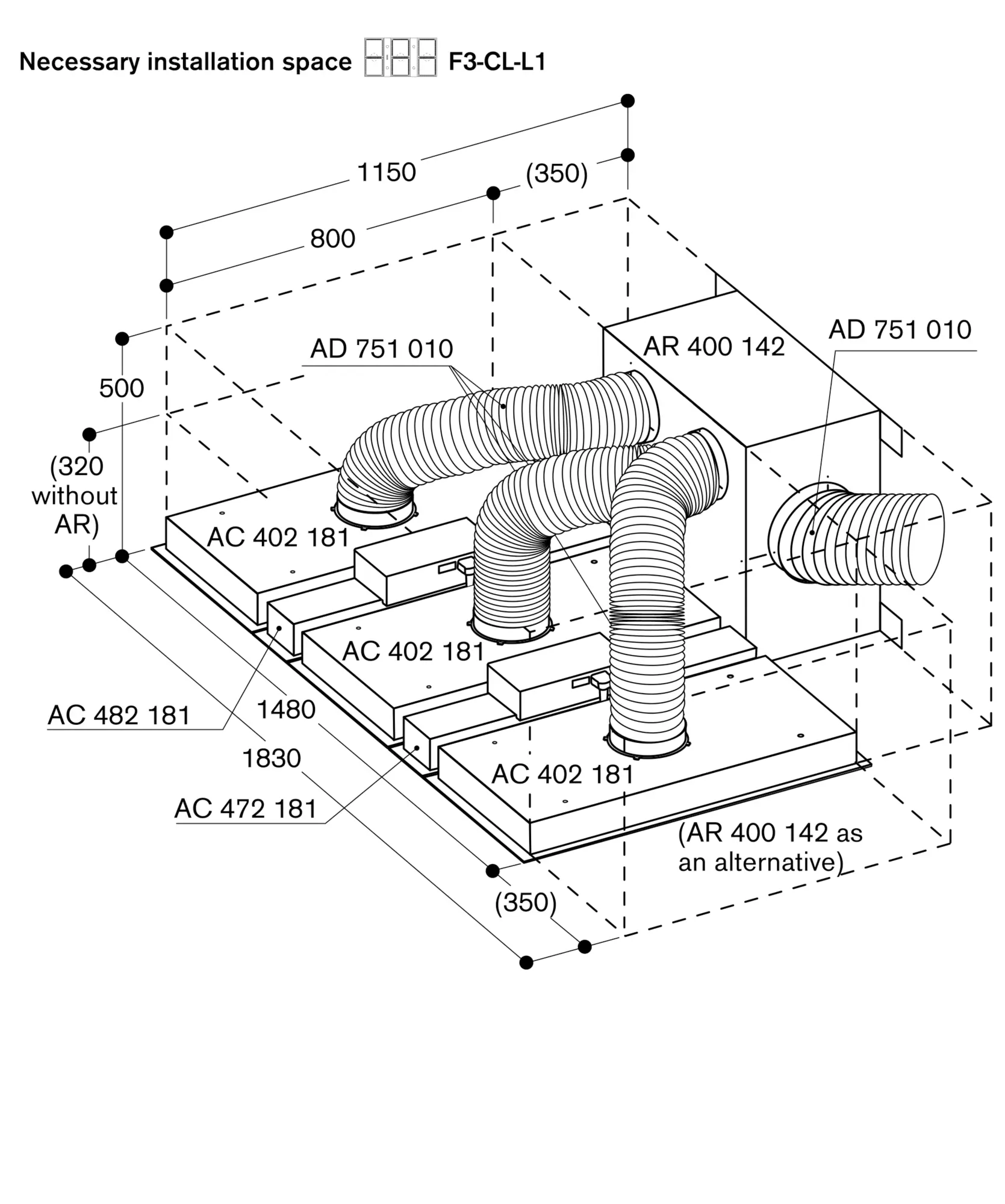

Modular ceiling ventilation which can be configurated individually by separate components such as filter module, control modules and light module
Motorless, can be combined with Gaggenau BLDC remote fan units
Highly efficient patented rim extraction
Planed and easy to clean underside with covered filters
Noise level depends on the built-in situation.
Power levels depend on the remote fan unit.
Rim extraction filter, dishwasher-safe.

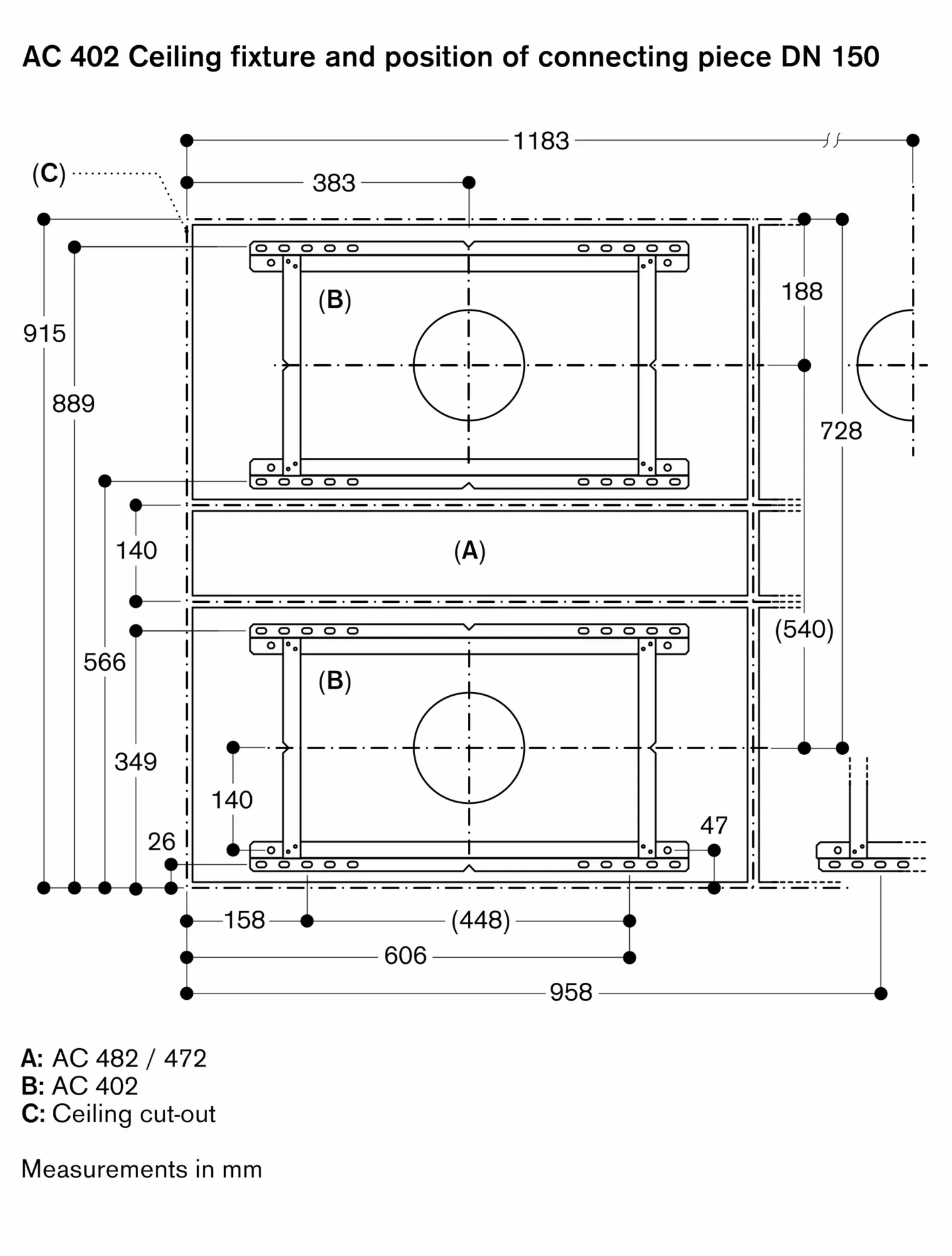

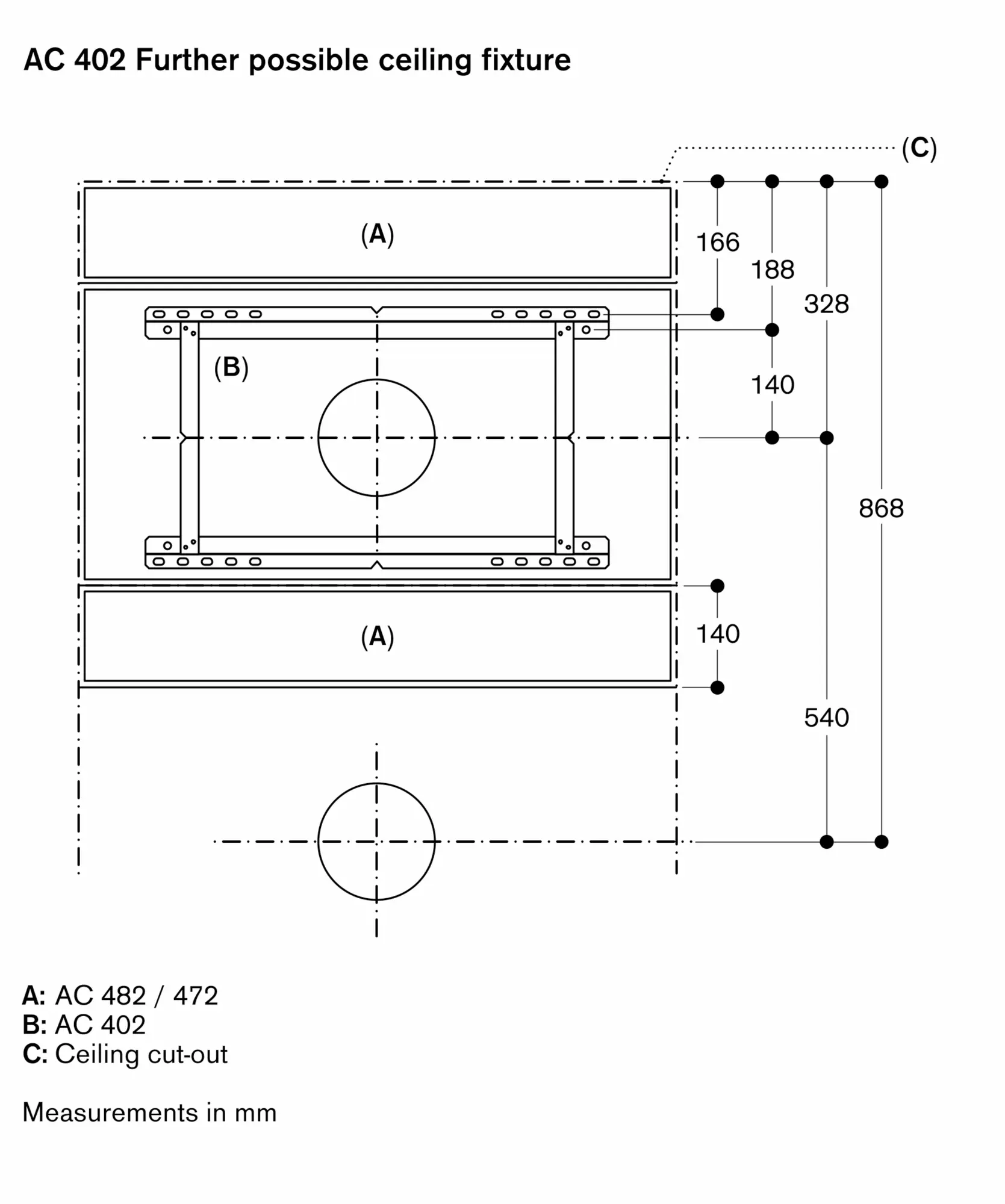

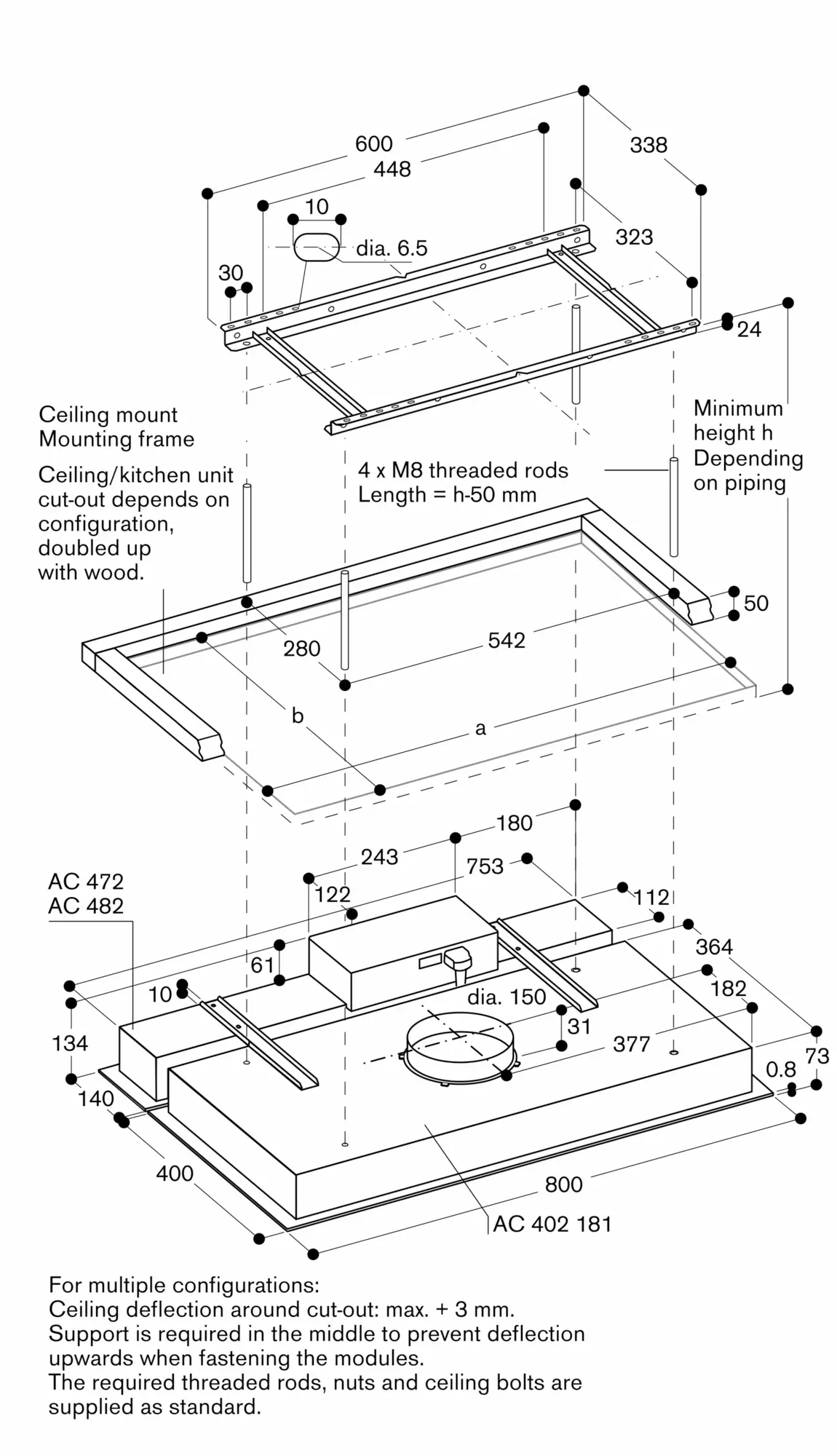

Installation frame for thread rods (rods not included).

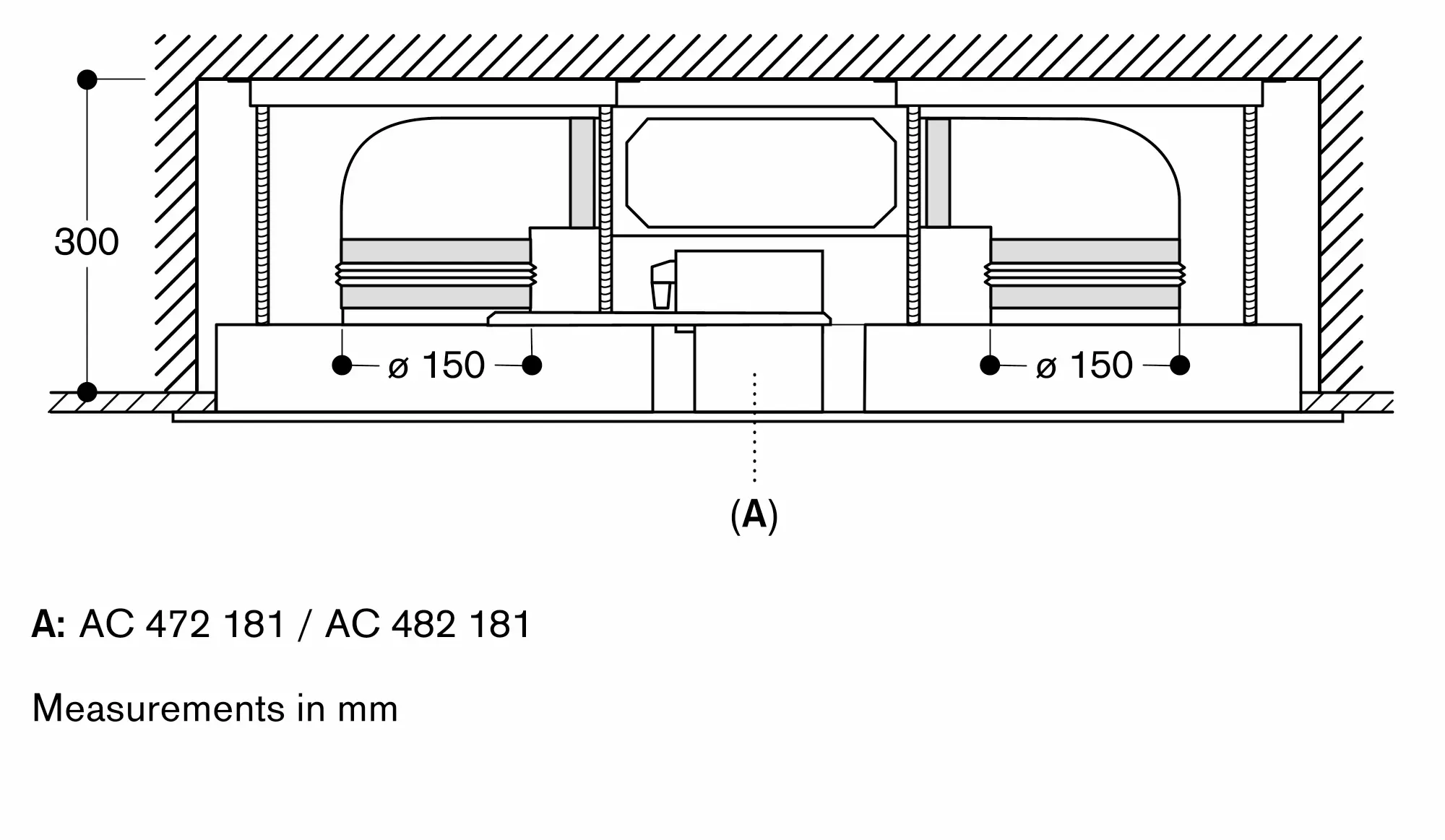

Connection piece DN 150 cylindrical.
Consumption data is referred to a configuration with the remote fan unit AR 400 142.
Energy efficiency class B at a range of energy efficiency classes from A+++ to D.
Energy consumption 60.6 kWh/year.
Ventilation efficiency class A.
Ilumination efficiency class E.
Grease filter efficiency class B.
Sound level min. 50 dB / max. 65 dB normal mode.
Lmax, the equivalent ducting length to ensure good performance is depending on the configuration.

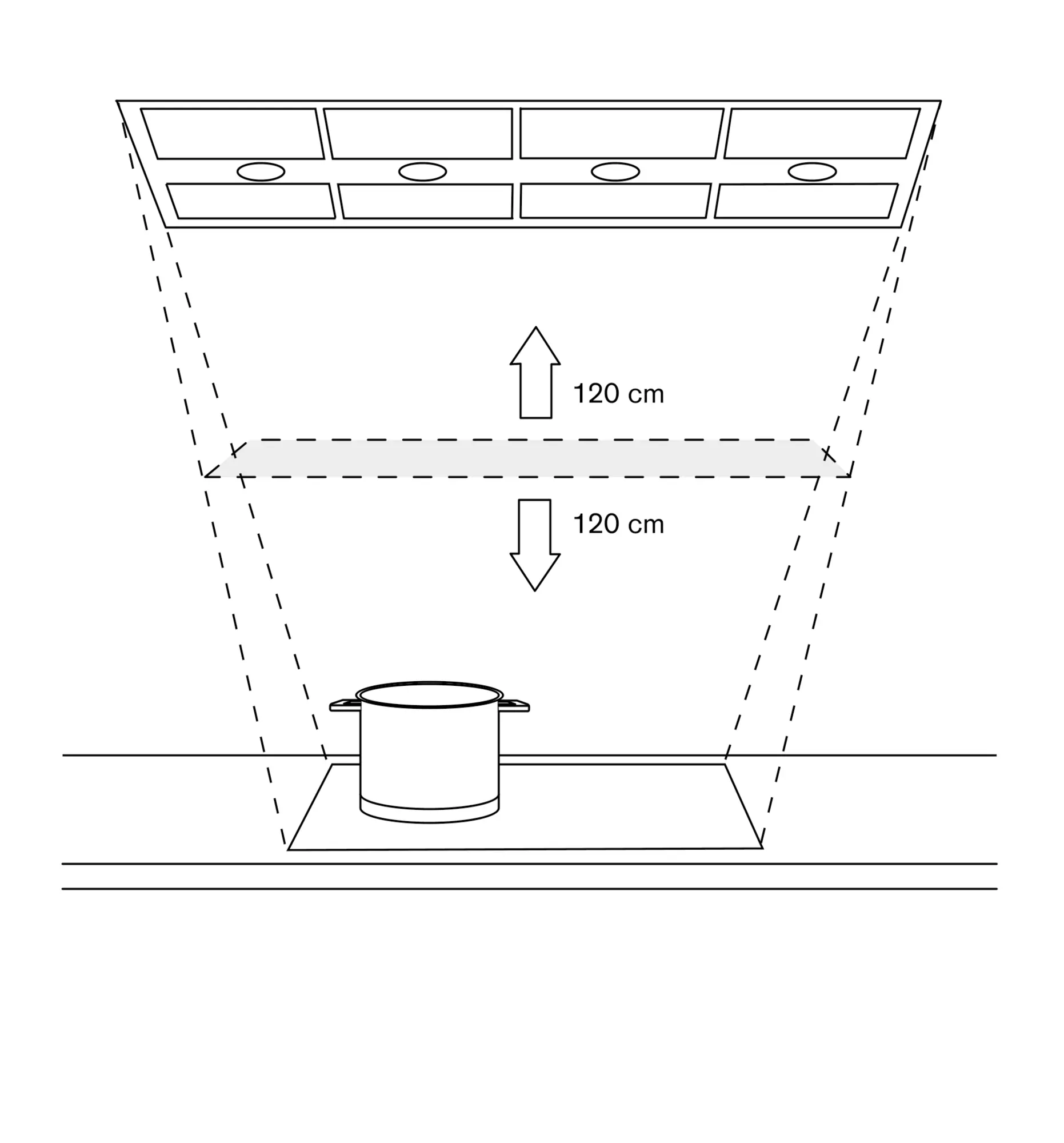

For optimum extraction performance, the maximum distance between the cooktop and the ventilation appliance is 120 cm.
The ceiling ventilation has to be handled as a room ventilation when distance to cooktop is larger than 120 cm since the direct capture of vapours will be limited.
Please consider to consult an HVAC (Heating and ventilation air conditioning) specialist.
For air recirculation an external air recirculation module is required.

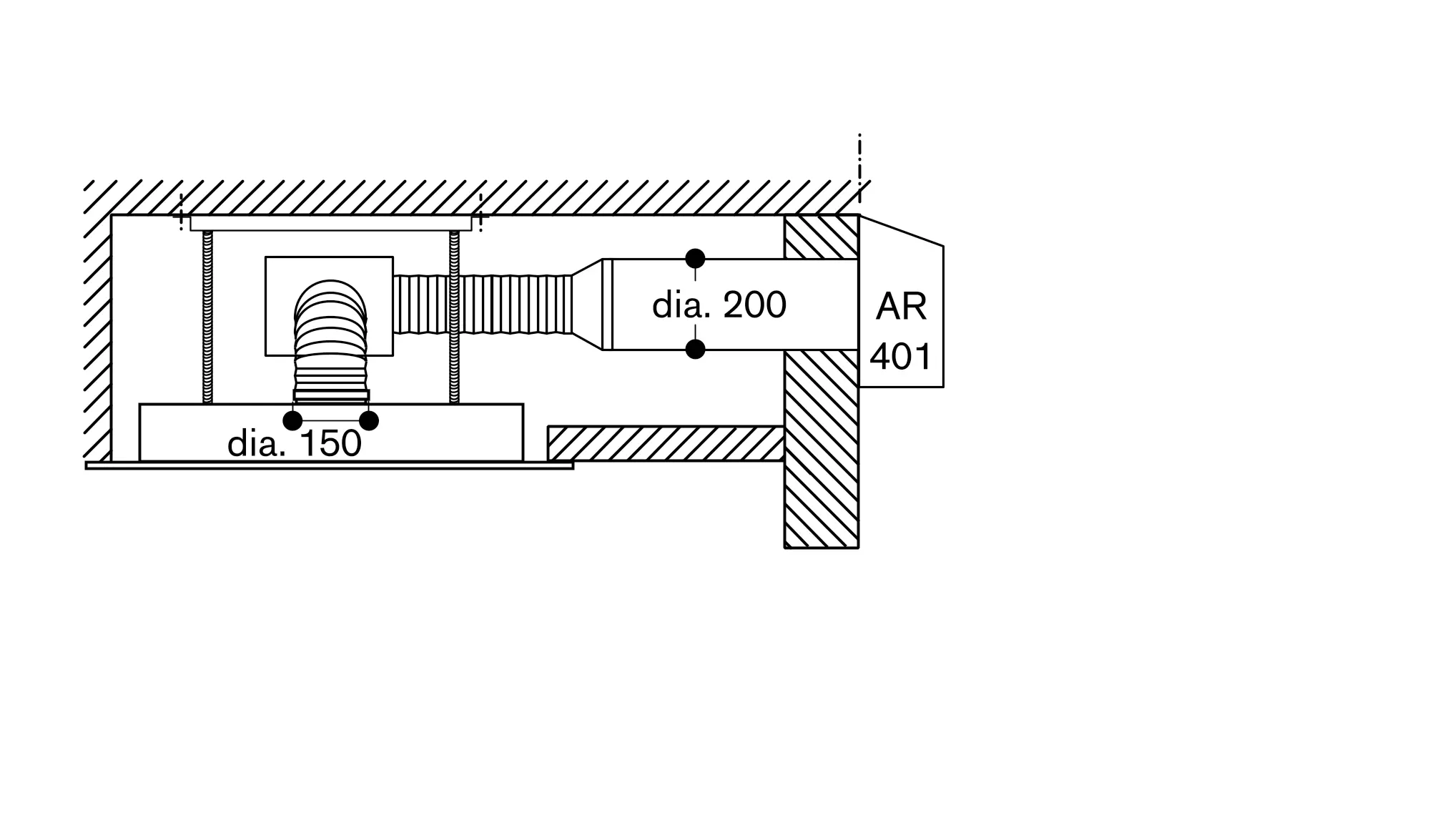

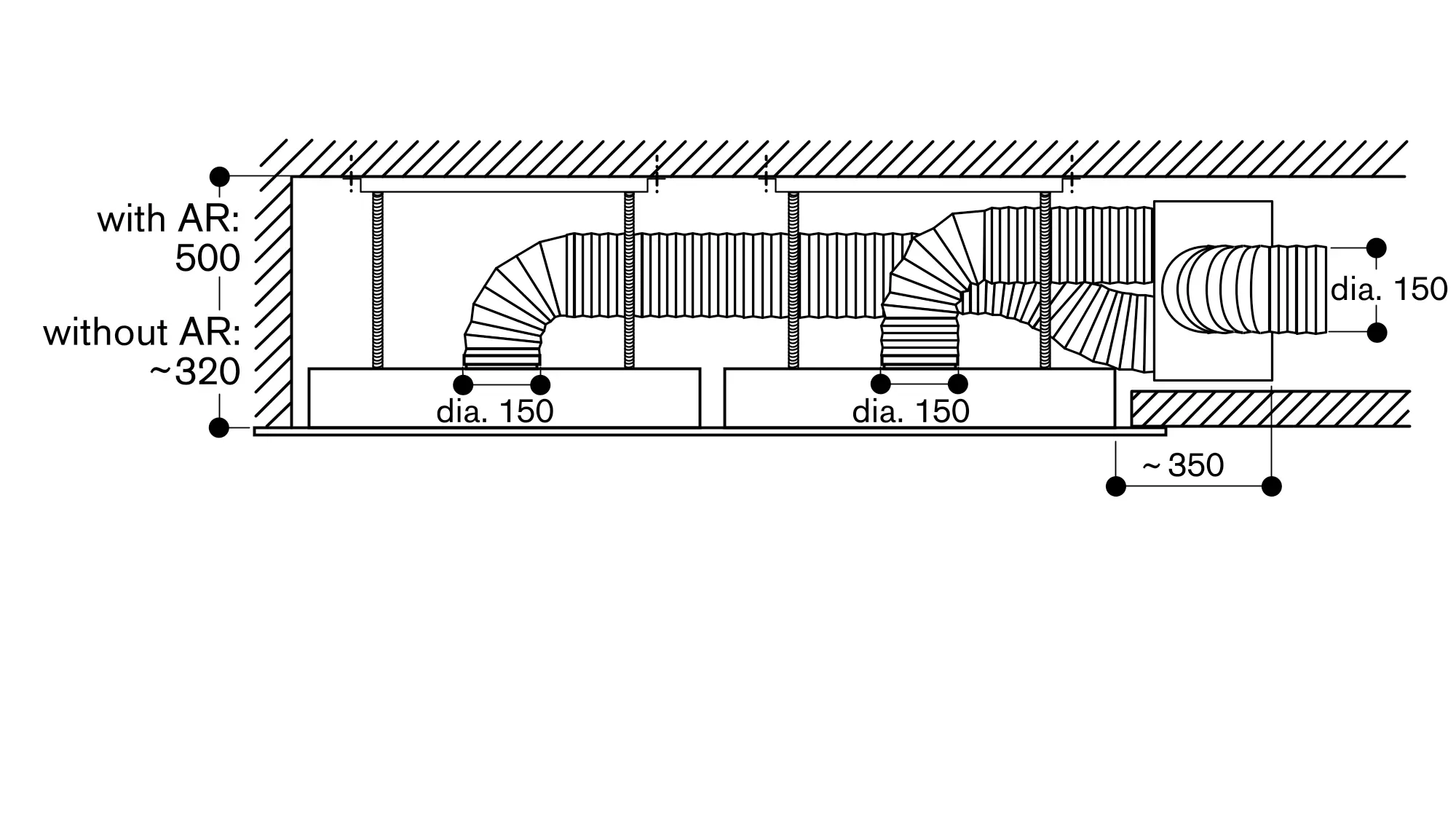

When installing remote fan unit AR 400 within the ceiling or furniture block it must remain accessible through the ceiling cutout or another maintenance access.
When installing a ventilation hood with air extraction mode or recirculation outlet in another area of room air (e.g. cellar) and a chimney-vented fireplace, the hood's power supply line needs a suitable safety switch.
