400 series Vario fridge-freezer combination 212.5 x 75.6 cm soft close flat hinge
RB472305

Replacement for
RB472304
Energy label E from G to AEU-Datasheet
Find a local Dealer

Technical Overview

Energy Efficiency Class Footnote 1: Scale of Energy Efficiency Classes from A to G
E
Automatic defrosting
no
Airborne acoustical noise emissions
42 dB(A) re 1pW
Freshness system
Freshness Plus, Hyper fresh premium, Freshness Standard
bigbox
No
Home Connect Footnote 2: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Airborne acoustical noise emission class
D

Highlights

Special Features

Stainless steel interior with solid anthracite aluminium elements
Opening assist for door with two options
TFT Touch Display
Immerse your kitchen in a mesmerizing glow with Gaggenau´s Glare-Free LED Light Spots and showcase your dishes like never before.
Integrated ice maker

Additional information

Stainless steel interior with solid anthracite aluminium elements
Warm white and glare-free LED light spots
Opening assist for door with two options:
1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
Flat stainless steel inner door, full-length
Smooth design rail system providing flexible positioning for shelves and door racks
Solid anthracite aluminium door racks
One fresh cooling drawer close to 0 °C with manually adjustable temperature and one fresh cooling drawer with manually adjustable humidity
Integrated ice maker with fixed inlet water connection
Fully extendable freezer drawer with practical divider in anthracite
TFT touch display
Total volume 452 litres
TFT touch display operation.
Clear text display.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Cushioned door closing system.
Activated charcoal air filter.
Rest mode certified by Star-K.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction alarm.
Remote control and monitoring.
Remote diagnostics.
Integrated WiFi module for digital services
(Home Connect).
The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country – for further information please check: www.home-connect.com
No-frost technology with fast cooling.
Temperature adjustable from +2 °C to +8 °C.
2 safety glass shelves, white glass, individually adjustable in height.
1 integrated shelf.
4 brilliant LED light spots with warm white, glare-free light (3500 K) within cooling area and drawers.
Smooth design door rail system with fully flexible positioning of door racks.
3 height adjustable door racks, 1 of which is extra deep.
Total volume all refrigerator compartments 316 litres.
1 fully extendable fresh cooling drawer close to 0 °C with transparent front, illuminated.
Cushioned closing system.
Temperature can be adjusted manually.
Ideal for meat, fish and poultry.
1 fully extendable fresh cooling drawer with transparent front, illuminated.
Cushioned closing system.
Humidity can be adjusted manually.
Ideal for fruit and vegetables.
No-frost technology with fast freezing at -30 °C.
Temperature adjustable from -14 °C to -24 °C.
4-star freezer compartment.
Freezing capacity 14 kg /24 h.
Storage time after a malfunction 13 h.
2 fully extendable drawers, one of them inside. Outer drawer with synchronously running pull-out rails.
Interior lighting with 2 LED light spots, warm white light.
Volume 136 litres.
Integrated in the freezer compartment, with fixed inlet water connection.
Particle filter for water inlet, integrated in ventilation grille area.
Saturation indicator shown in TFT touch display.
Can be switched off.
Ice cube production approx. 1.7 kg/24 h.
Removable ice storage container with approx. 3 kg capacity.
Energy efficiency class E at a range of energy efficiency classes from A to G.
Energy consumption 295 kWh/year.
Noise level 42 dB (A) re 1 pW.
Flat hinge.
Door hinge right, reversible.

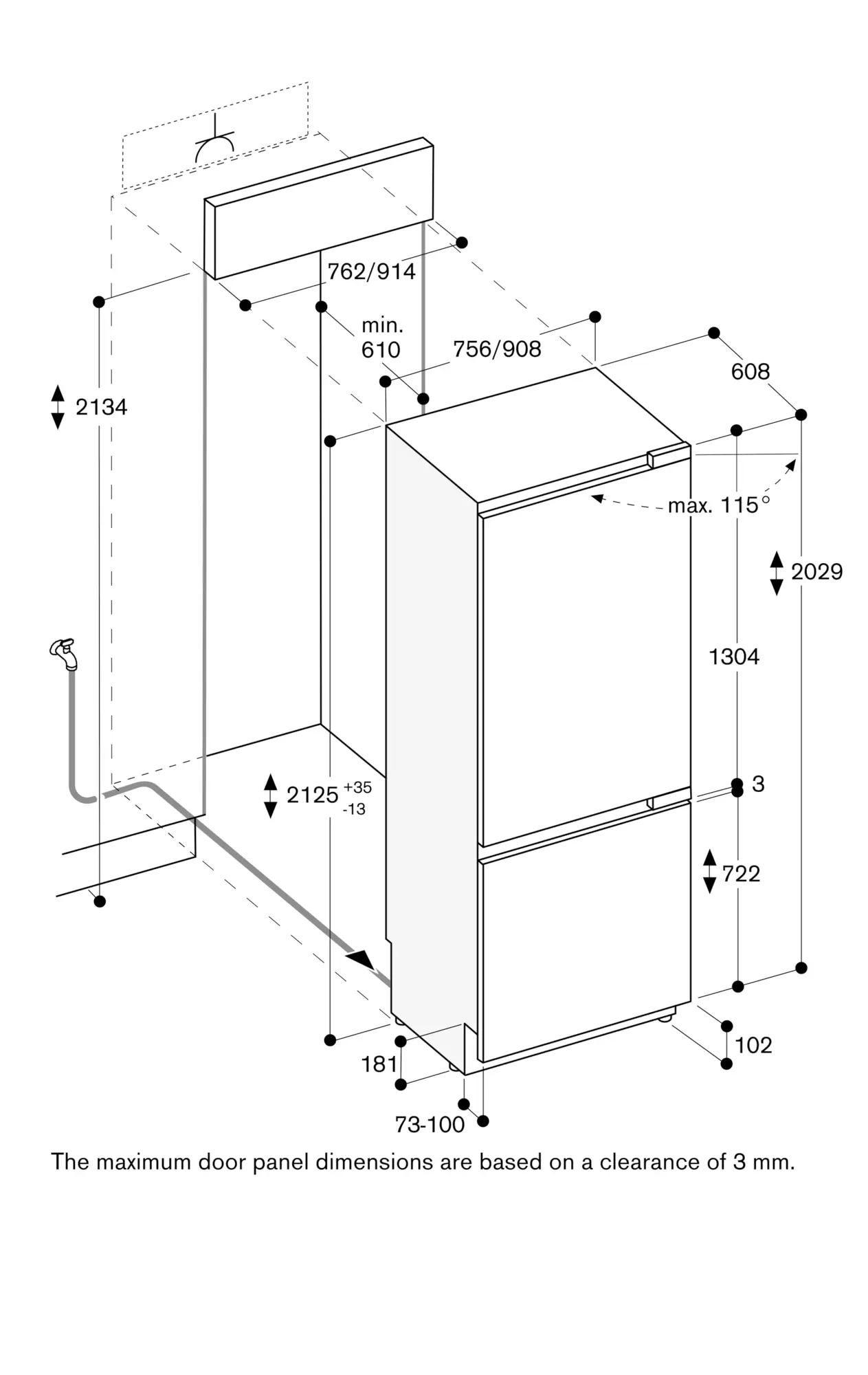

Door opening angle of 115°, fixable at 90°.
Max. door panel weight:
Door 41 kg. Drawer 10 kg.
Shut-off valve for water connection must be planned next to the appliance and always be accessible.
If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.
Total connected load 0.300 KW.
Connecting cable 3.0 m, pluggable.
Water inlet.
Supply hose 2.0 m with 3/4 " connection.
Water pressure 2 to 8 bar.
