Gas cooktop 100 cm Natural gas 20 mbar
Technical Overview
Gas cooktop
Gas cooktop
Total number of positions that can be used at the same time
5
Wok burner
Yes
Gas type
Natural gas 20 mbar
Step Flame technology - 9 steps
No
Material of pan supports
Cast iron
Home Connect
No
Specifications
Five multi-ring burners, up to 18 kW
Full electronic power level regulation on 12 levels
Precise and reproducible flame size
Automatic fast ignition, electronic flame monitoring with automatic re-ignition
Simmer function for cooking on a very low output level
Solid smooth-surface cast pan supports on the same level as the worktop
Solid stainless steel control knob
2 two-ring standard burners (150 – 2000 W), suitable for pots up to max. ø 28 cm.
2 two-ring standard burners (150 – 2000 W), suitable for pots up to max. ø 28 cm.
Control knobs with illuminated ring, cooking zone and output level markings.
One-handed operation.
Full electronic control in 12 output levels for exact power level adjustment plus simmer function.
Automatic fast ignition.
Simmer function.
Three-part pan support with flat, continuous pot surface.
Brass burner rings.
Electronic flame monitoring with automatic re-ignition.
Residual heat indication.
Safety lock.

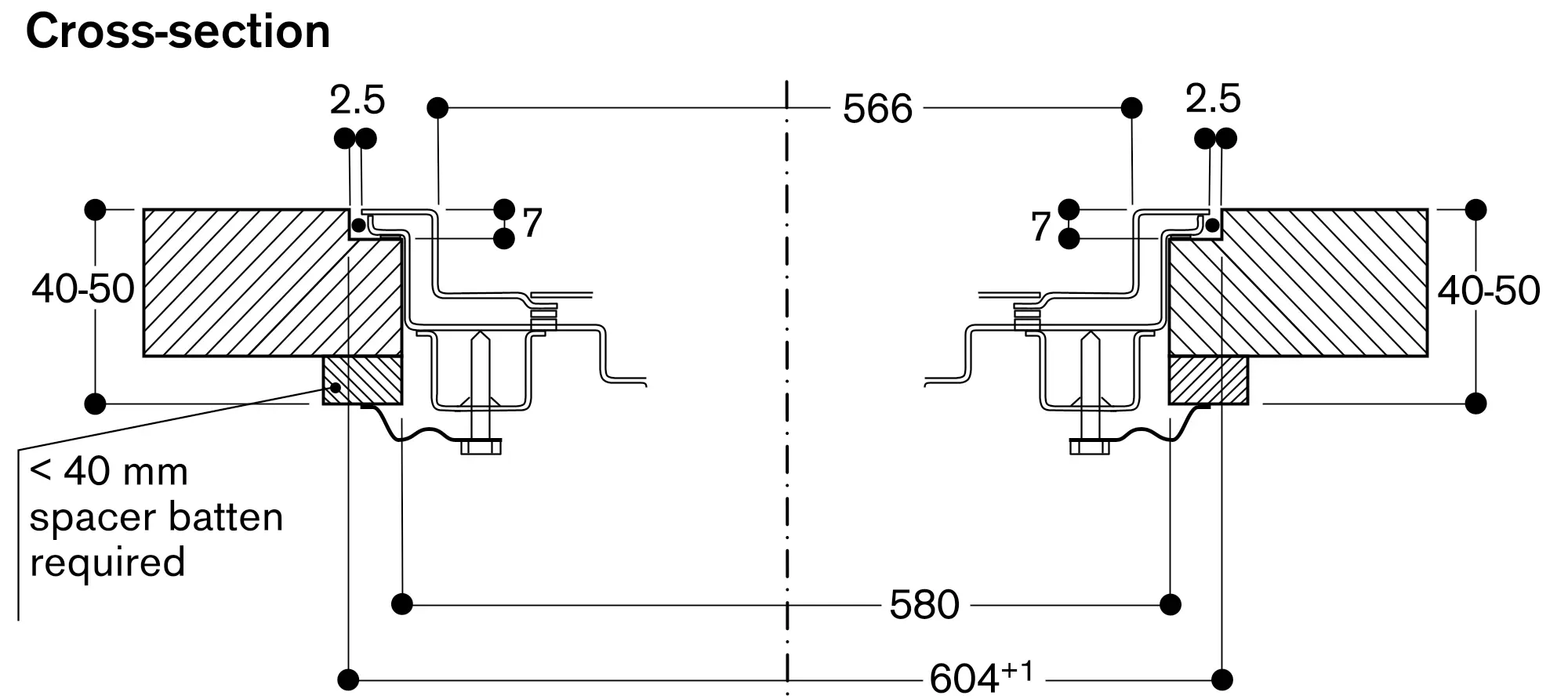

The frame set (necessary accessory)can be sent in advance to the manufacturer of the stainless steel or granite worktop for fitting.
Special nozzles can be ordered as spare parts.
Plan for an electrical connection (the appliance is not operable without power supply).
The horizontal positioning of the knobs may be aligned with the specific burners.

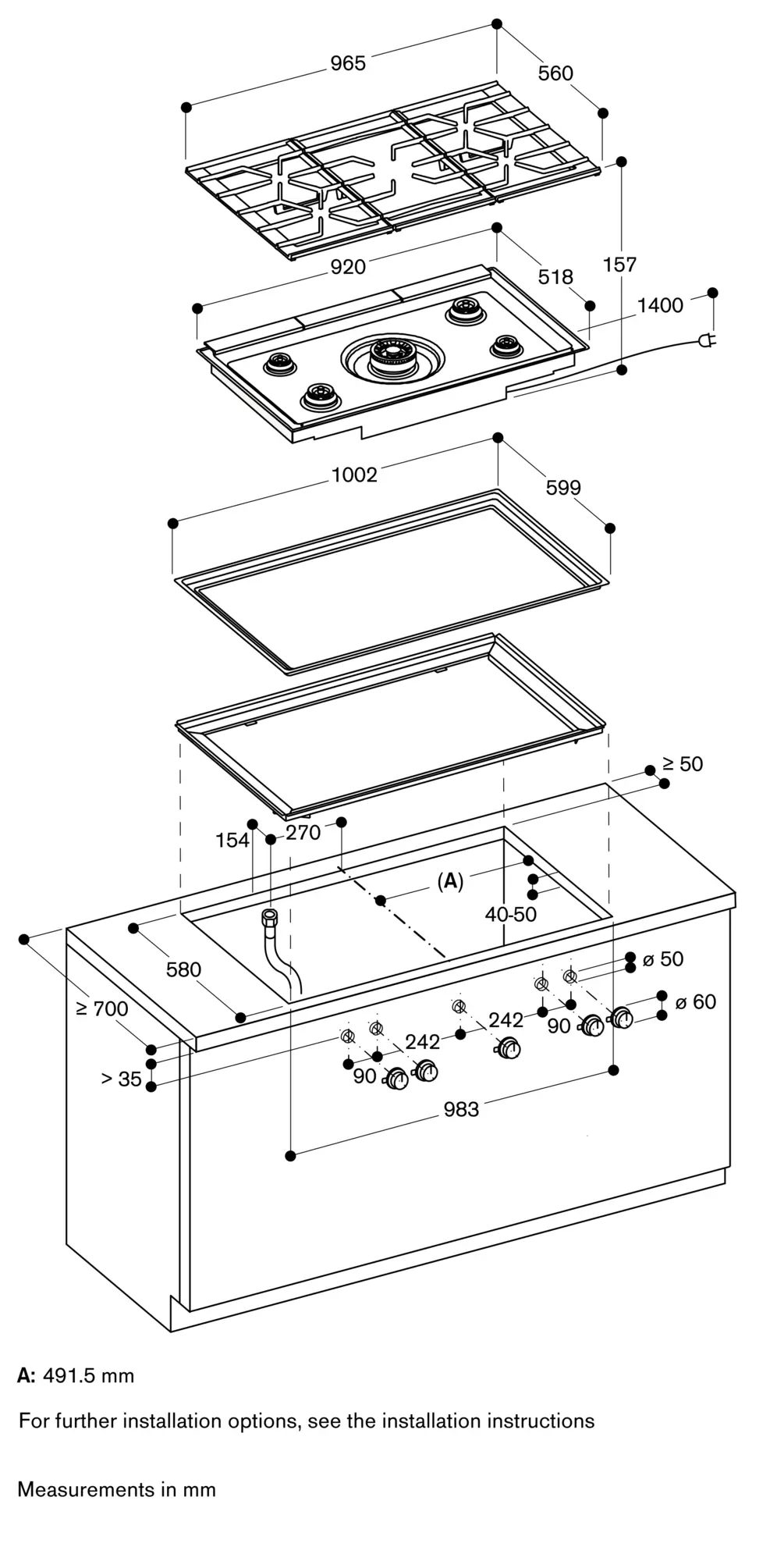

The drawing "Installation of the control knob" must be observed if the panel is more than 23 mm thick (there must be a recess at the rear).
Minimum worktop depth 70 cm.
Air intake from above.
No intermediate shelf required.
Due to the separate frame welded into the worktop, all parts remain fully accessible.
Rear panel and wall trims must be heat-resistant and consist of a non-flammable material.
The appliance can be fixed from above.
A minimum lateral clearance of at least 300 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
With a total connected load of more than 12 kW local regulations concerning room ventilation, room size and combination of extraction or recirculation hoods must be observed. Minimum clearance between gas cooktop(s) with more than 12 kW and ventilation hood 70 cm.
The combination with VL 430/431 is not recommended, since the air extraction from the centre burner cannot be guaranteed due to the distance.
Appliance weight: approx. 35.
Total connected load gas 18.0 KW.
Total connected load electric 15.0 W.
Connecting cable 1.4 m with plug.
