200 series fully-integrated dishwasher 60 cm
DF271101

Energy label B from G to ADatasheet
Find a local Dealer

Technical Overview

Width of the appliance
598 mm
Height of the appliance
865 mm
Energy Efficiency Class Footnote 1: Scale of Energy Efficiency Classes from A to G
B
Airborne acoustical noise emissions
43 dB(A) re 1pW
aquaStop
Yes
brilliantShine System
No
Home Connect Footnote 2: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Airborne acoustical noise emission class
B

Specifications

Optimal protection for sensitive glassware by low temperature drying with zeolite, elaborated basket design and intelligent water softening
6 programmes with aqua sensor and 3 options, such as Power for cleaning and drying dishes in 57 minutes and Intensive for particularly thorough cleaning in the lower basket
Flexible basket system with smooth running rails on all levels
Bright interior light
Push-to-open function for perfect integration into handleless furniture fronts
Remaining time projection onto the kitchen floor
Very quiet: 43 dB
TFT display indicating remaining or end time, refill for salt and rinsing agent, inflow of water.
Touch key operation.
Flexible cycle time reduction, even during an active cycle.
Drying assistant for optional door opening at the end of the programme (only available with active Home Connect functionality).
Personalisation function for saving individual combinations of programmes.
Information key with use indications.
Time delay up to 24 hours.
Visual and acoustic end of programme indicator.
Remaining time projection.
Bright interior light.
Glass protection with zeolite.
Aqua sensor.
Load sensor.
Automatic detergent function.
Regenerative electronics
Heat exchanger.
Continuous flow heater.
Triple filter system, self-cleaning.
Soft lock.
Aqua stop.
Programme assistant.
Temporary noise reduction.
Drying assistant for optional door opening at the end of the programme.
Downloadable programmes.
Integrated WiFi module for digital services
(Home Connect).
The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country – for further information please check: www.home-connect.com
6 programmes:
Auto 35 °C - 45 °C. Auto 45 °C - 65 °C. Auto 65 °C - 75 °C. Eco 50 °C. Quick wash 45 °C (35 min.). Personalisation function (default setting: Pre-rinse).
3 options:
Intensive. Power. Half Load.
Machine Care.
Flexible basket system with smooth running rails on all levels.
Upper basket:
Over extension. Optional extra cleaning area by activating additional spray nozzles. Rackmatic with 3 levels, adjustable in height up to 5 cm. 6 folding spines. 4 folding racks for optimal protection of glass.
Lower basket:
8 folding spines. 2 folding racks for optimal protection of glass. Dividable glass support.
Cutlery basket.
Maximum dish sizes (upper/lower basket)
29/28, 26.5/30.5 or 24/34 cm respectively.
12 place setting capacity.
Maximum glass loading capacity 23 wine glasses.
Energy efficiency class B at a range of energy efficiency classes from A to G.
From 9.5 l water.
From 0.626 kWh.
Noise level 43 dB (re 1 pW).
Height-adjustable feet.

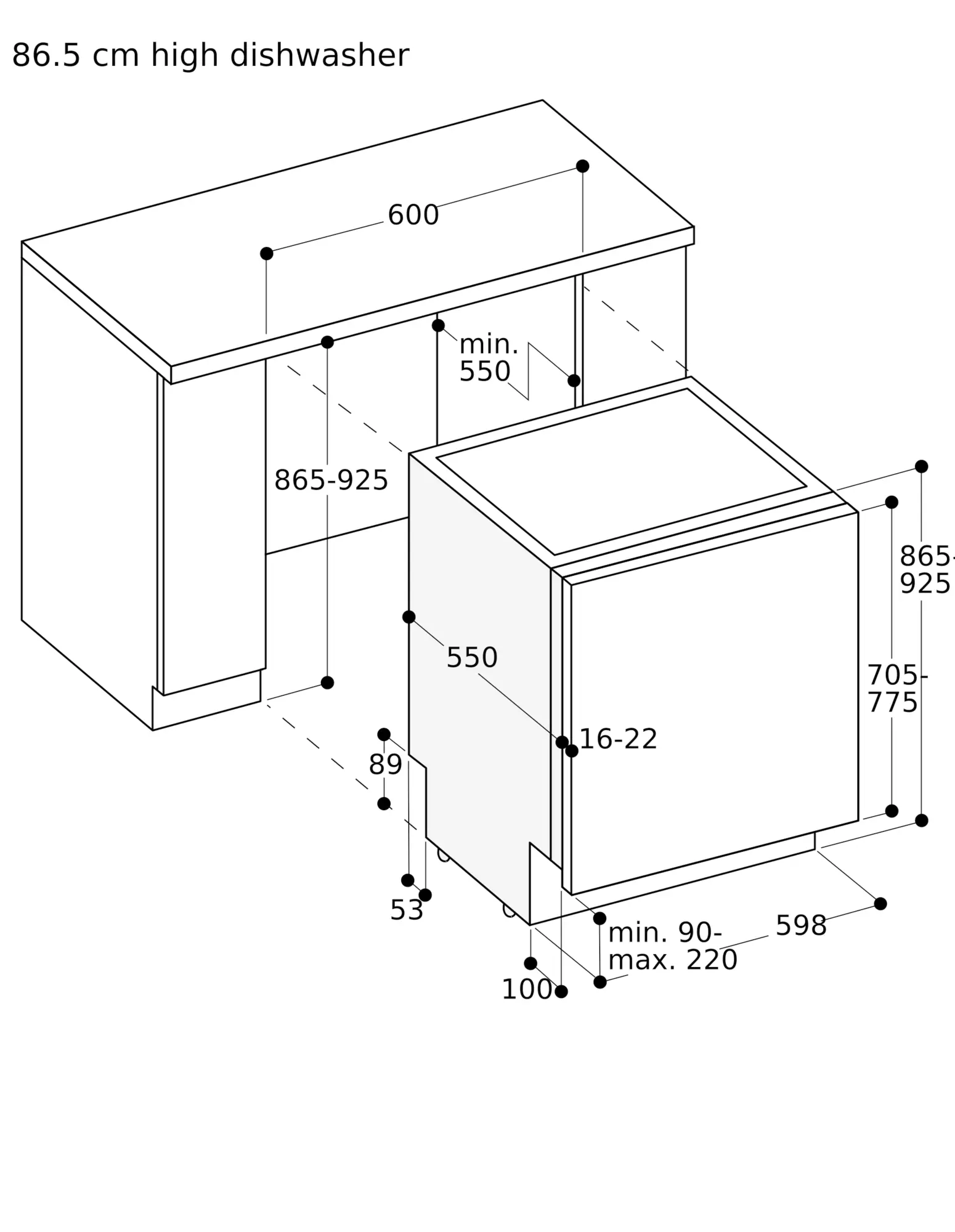

Appliance plinth recess 100 mm (see drawing).
To display the remaining time projection, a minimum plinth protrusion must be present (40 mm + thickness of the furniture front).
The maximum plinth height must be reduced by 30 mm to provide an optimal display of the remaining time projection.
Rear feet adjustable at front.
Door weight up to 10 kg.
Door panel dimension dependent on plinth height of kitchen furniture.
Installation and usage also with furniture handle possible. The push-to-open function remains active.
Total connected load 2.0 KW - 2.4 KW.
Connecting cable plugable.

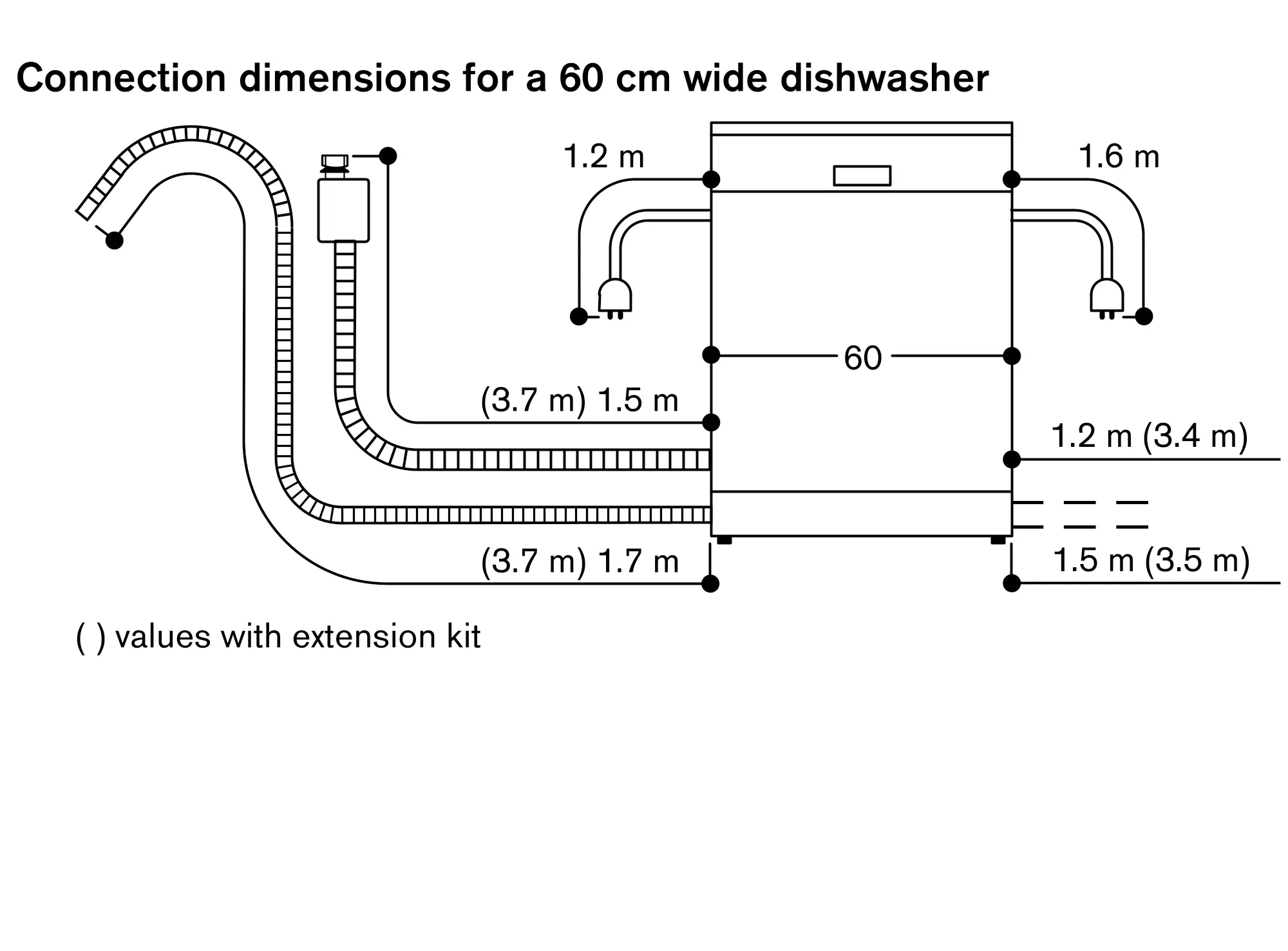

Water connection with 3/4 " screw joint.
Connection to hot or cold water possible.
Power consumption standby/network 2 W.
Time auto-standby/network 2 min.
Left-on-mode duration 0 min.
Please check the user manual for how to switch off the WiFi module.
