Technical Overview
Installation typology
Built-in
Dimensions (HxWxD)
455x752x582 mm
Microwave power levels (W)
90, 180, 360, 600, 1000 W
Colour of appliance
Stainless steel behind glass
Cavity capacity
36 l
Integrated Cleaning system
Catalytic partial
Number of automatic programmes
15
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Highlights
Special Features
Handleless door / automatic door opening
Combination of microwave, grill and oven
Sequential operation of up to 5 modes including programming of combined operation and rest time
Specifications
Handleless door / automatic door opening
Single operation and combination of microwave, grill and oven
Sequential operation of up to 5 modes incl. programming of combined operation and rest time
TFT touch display
Panel-free appliance with surface control module
Electronic temperature control
Interior volume 36 litres
Microwave operation with 5 output levels: 1000, 600, 360, 180, 90 W.
Oven operation with 4 heating methods:
Hot air 40 °C and from 100 °C to 250 °C, Full surface grill + hot air from 100 °C to 250 °C, Full surface grill + circulated air from 100 °C to 250 °C Full surface grill with 3 levels of intensity, maximum output 2000 W.
Heating methods with microwave output levels 600, 360, 180 and 90 W freely combinable.
15 automatic programmes with weight indication, customisable:
4 defrosting programmes 4 cooking programmes 7 combination programmes
Option to save individual recipes.
Automatic door opening.
Rotary knob and TFT touch display operation.
Clear text display.
Information key with use indications.
Side-opening door opens up to 180° angle.
Innowave.
Rapid heating.
Timer functions: cooking time, cooking time end, timer, stopwatch, long-term timer (certified by Star-K).
Four rack levels.
Actual temperature display.
60 W halogen light on the side.
Thermally insulated door with triple glazing.
Child lock.
Safety shut-off.
Cooled housing with temperature protection.
Hygienic stainless steel interior with glass ceramic base.
Interior back wall with catalytic coating.
Door hinge not reversible.

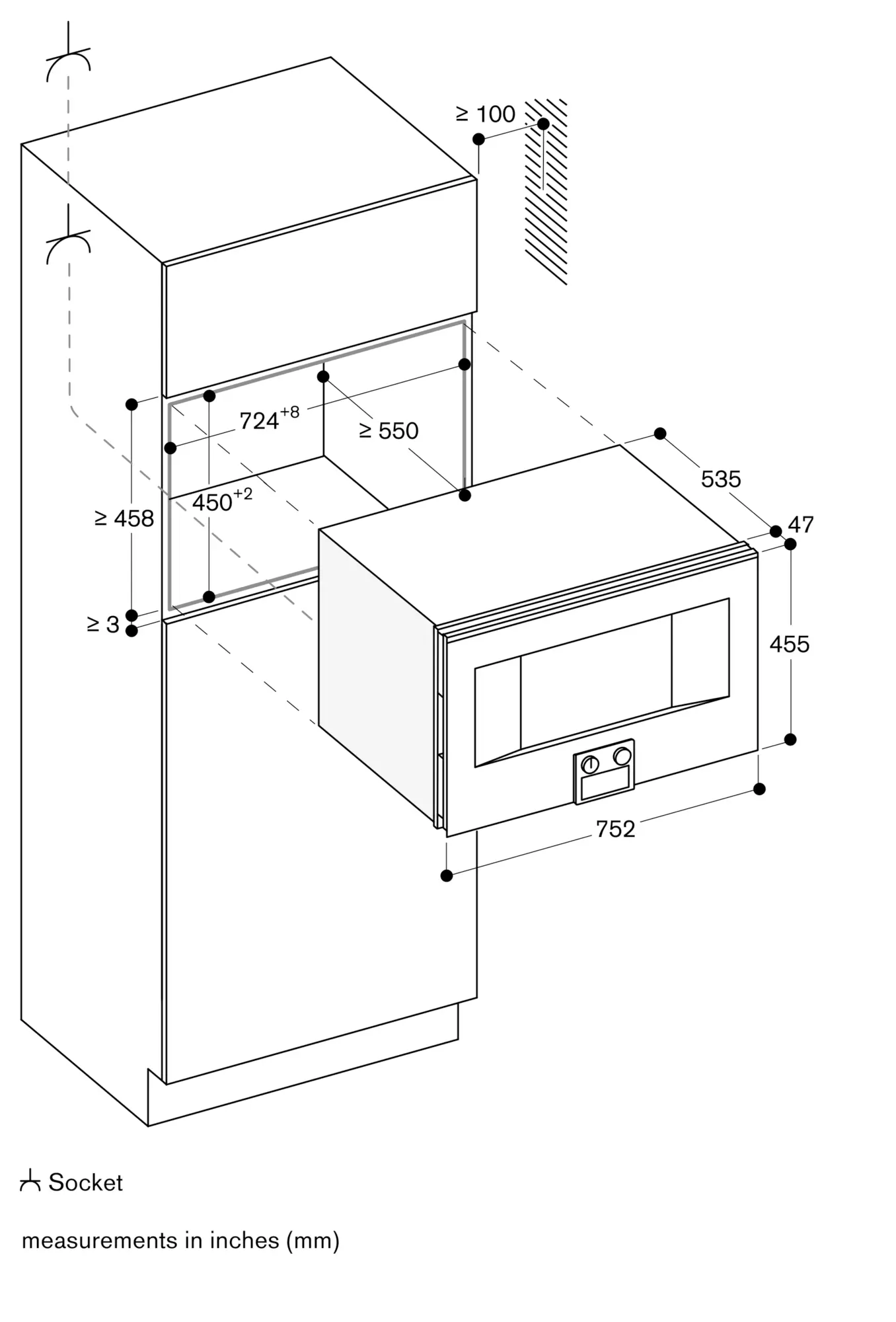

The door panel surface of the appliance extends 47 mm from the furniture cavity.
If the handle (optional accessory) is retrofitted, the outer edge of the door handle extends 94 mm from the furniture cavity.
Consider the overhang, incl. the door handle where applicable, when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the side-opening door and the minimum required distance to the wall.
The mains socket needs to be planned outside of the built-in niche.
Total connected load 3.1 KW.
Connection cable 1.5 m without plug.
