Technical Overview
Energy Efficiency Class Footnote 1 Scale of Energy Efficiency Classes from A to G End of the footnote
E
Never defrost again with full Nofrost
Yes
Airborne acoustical noise emissions
42 dB(A) re 1pW
Airborne acoustical noise emission class
D
Home Connect
Yes
Specifications
Stainless steel interior with solid anthracite aluminium elements
Warm white and glare-free LED light spots
Opening assist for door with two options:
1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
The drawers in the fridge and freezer models are positioned at the same height.
With side-by-side installation, the glass shelves and door racks can be aligned on the same level
Material and aesthetics of interior as for RC model
- Glass shelves - Solid anthracite aluminium door racks
Flat stainless steel inner door, full-length
Smooth design rail system providing flexible positioning for shelves and door racks
TFT touch display
Total volume 240 litres
TFT touch display operation.
Clear text display.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Cushioned door closing system.
Rest mode certified by Star-K.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction system.
Remote control and monitoring.
Remote diagnostics.
Integrated WiFi module for digital services
(Home Connect).
The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country – for further information please check: www.home-connect.com
No-frost technology with fast freezing at -30 °C.
Temperature adjustable from -14 °C to -24 °C.

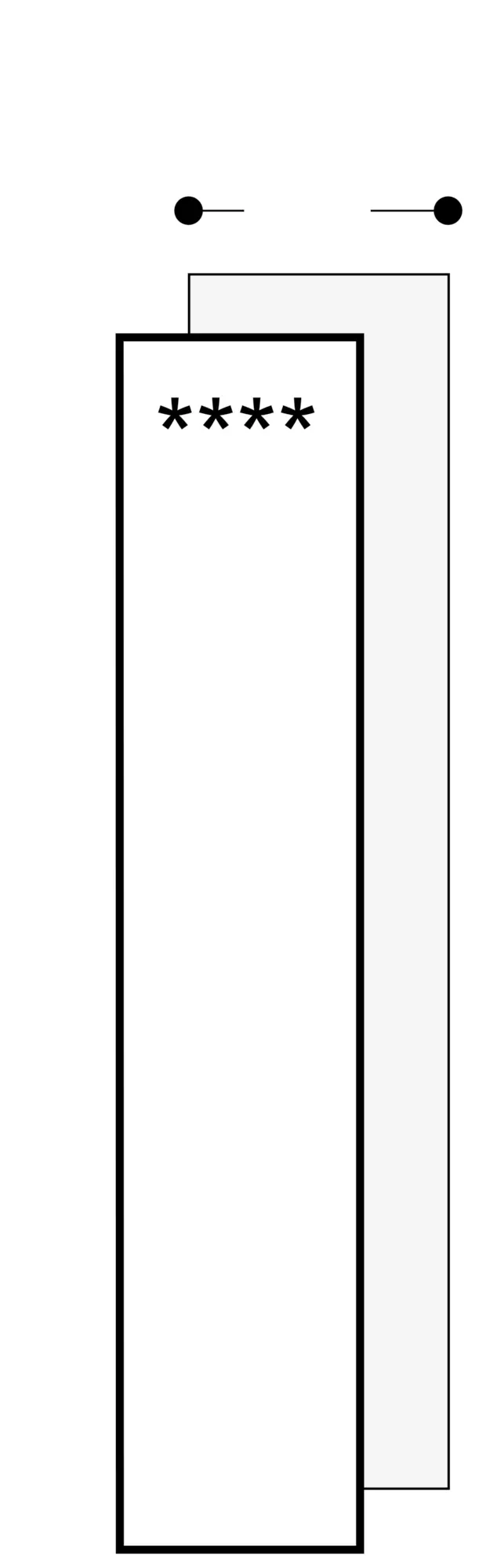

4-star freezer compartment.
Freezing capacity 16 kg /24 h.
Storage time after a malfunction 6 h.
4 safety glass shelves, 4 of which are individually height adjustable.
2 fully extendable drawers with transparent front.
Brilliant LED light spots with warm white, glare-free light (3500 K).
Smooth design door rail system with fully flexible positioning of door racks.
4 height-adjustable door racks.
Energy efficiency class E at a range of energy efficiency classes from A to G.
Energy consumption 246 kWh/year.
Noise level 42 dB (A) re 1 pW.
Flat hinge.
Door hinge left, reversible.

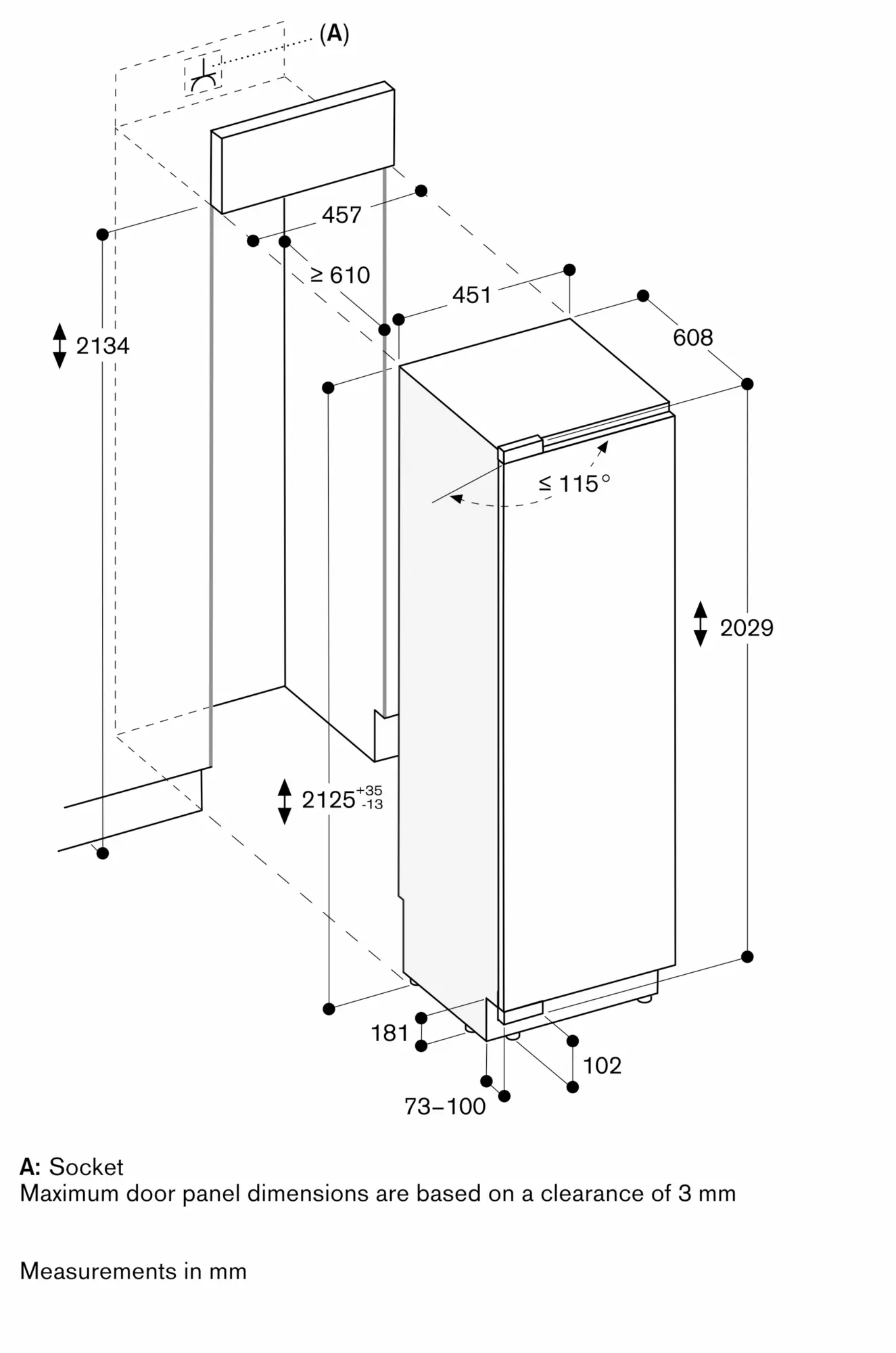

Door opening angle of 115°, fixable at 90°.
For an installation with a door opening angle of 90°, the drawers have a restricted access.
Max. door panel weight 59 kg.
Connecting cable 3.0 m, pluggable.
