Technical Overview
Product group for which the accessory is available
Hood
Accessory type
In-line blower
Special Features
Powerful remote fan unit to combine with motorless appliances
Efficient BLDC technology
Air output according to DIN EN 61591. Sound power and sound pressure depending on built-in situation.
630 / 830 m³/h.
Power levels depend on the motorless appliances, see table on page XX.
Specifications
Powerful remote fan unit to combine with motorless appliances
Efficient BLDC technology
Performance output level 3/Intensive:
Air output according to DIN EN 61591. Sound power and sound pressure depending on built-in situation.
Air extraction:
630 / 830 m³/h.
Power levels depend on the motorless appliances, see table on page XX.
3 electronically controlled power levels and one intensive mode.
Fan technology with highly efficient, brushless DC motor (BLDC).
Metal housing, zinc-plated.

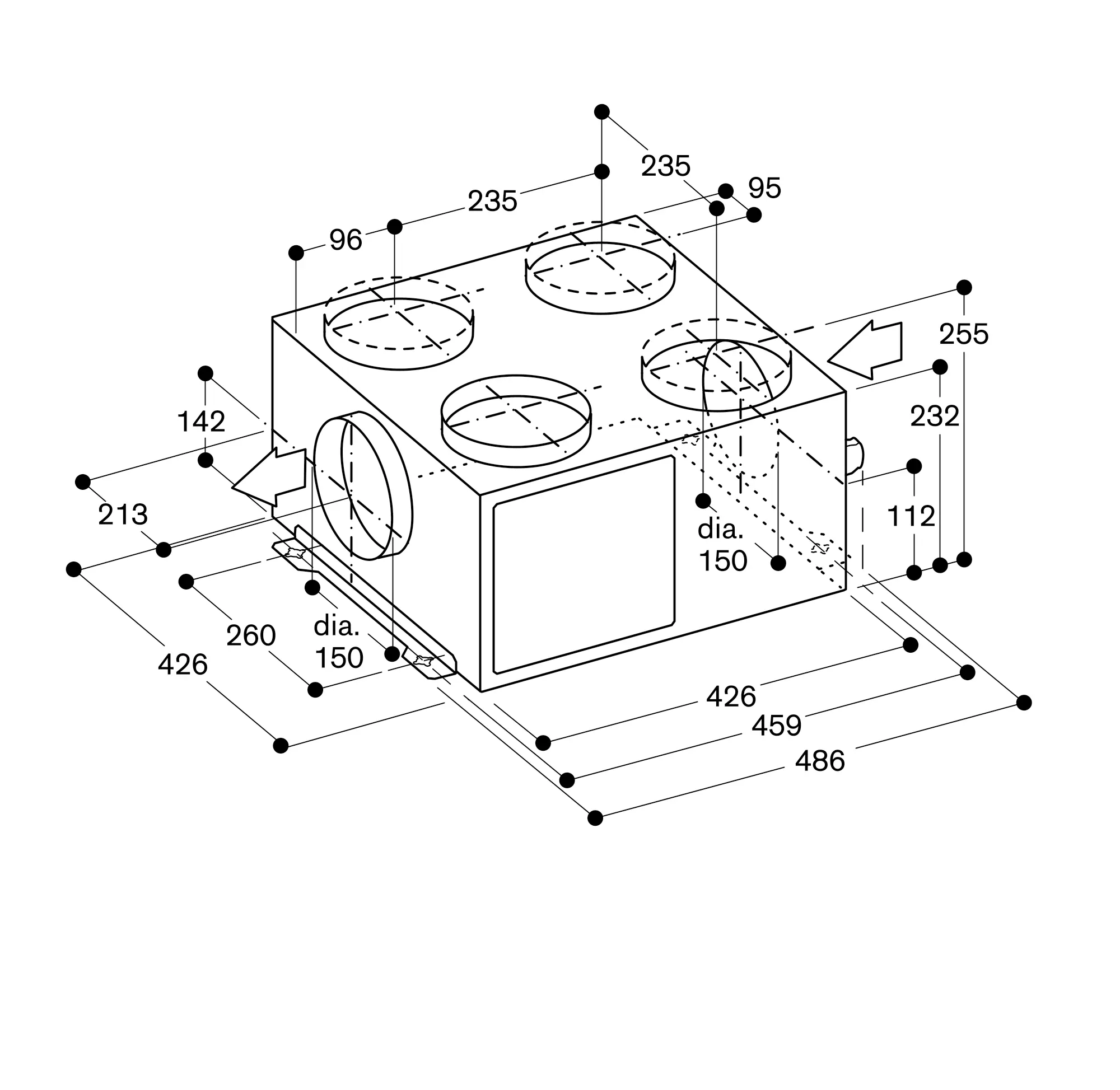

Pipe connection pieces on intake side: 1 x NW 200 round, 4 x NW 150 round.
Pipe connection pieces on output side: 1x NW 150 round.
Spare cover for closing air intake.
Retaining bracket for installation on the ceiling or side of a cupboard enclosed.
Remote fan unit in combination with motorless appliances.
Connection to the respective appliances via network cable.
Installation in the plinth with cut-out for the air ducting in the furniture base.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
Total connected load 240 W.
Connecting cable 1.8 m, pluggable.
Network cable 5 m.
