400 series Table ventilation 120 cm Stainless steelAL400122
In a range from: A+++ to D
Find a local Dealer
Table ventilation 120 cm Stainless steel
In a range from: A+++ to D
Technical Overview
Built-in
120 cm
Stainless steel
1020 m³/h
1140 m³/h
Convertible
No
Specifications
Telescopic table ventilation for combination with all Gaggenau cooktops, completely retractable when not in use
Can be combined perfectly with all Vario cooktops 400 series
Dimmable, neutral white surface LED light for ideal illumination of the whole cooktop
Precision crafting of 3 mm stainless steel
For surface installation with a visible edge or for flush installation
Motorless, can be combined with Gaggenau BLDC remote fan units
Power levels depend on the remote fan unit.
Three electronically controlled power levels and an intensive mode.
Interval ventilation, 6 min.
Run-on function, 6 min.
Grease filter saturation indicator.
2 large-scale metal grease filters included, easy to remove, dishwasher-safe.
Grease drip trays, easy to remove and dishwasher-safe.
Neutral white surface LED light (3600 K), continuously dimmable.
Lamp output 4 x LED light bars 10W.
Illuminance: 400 lx

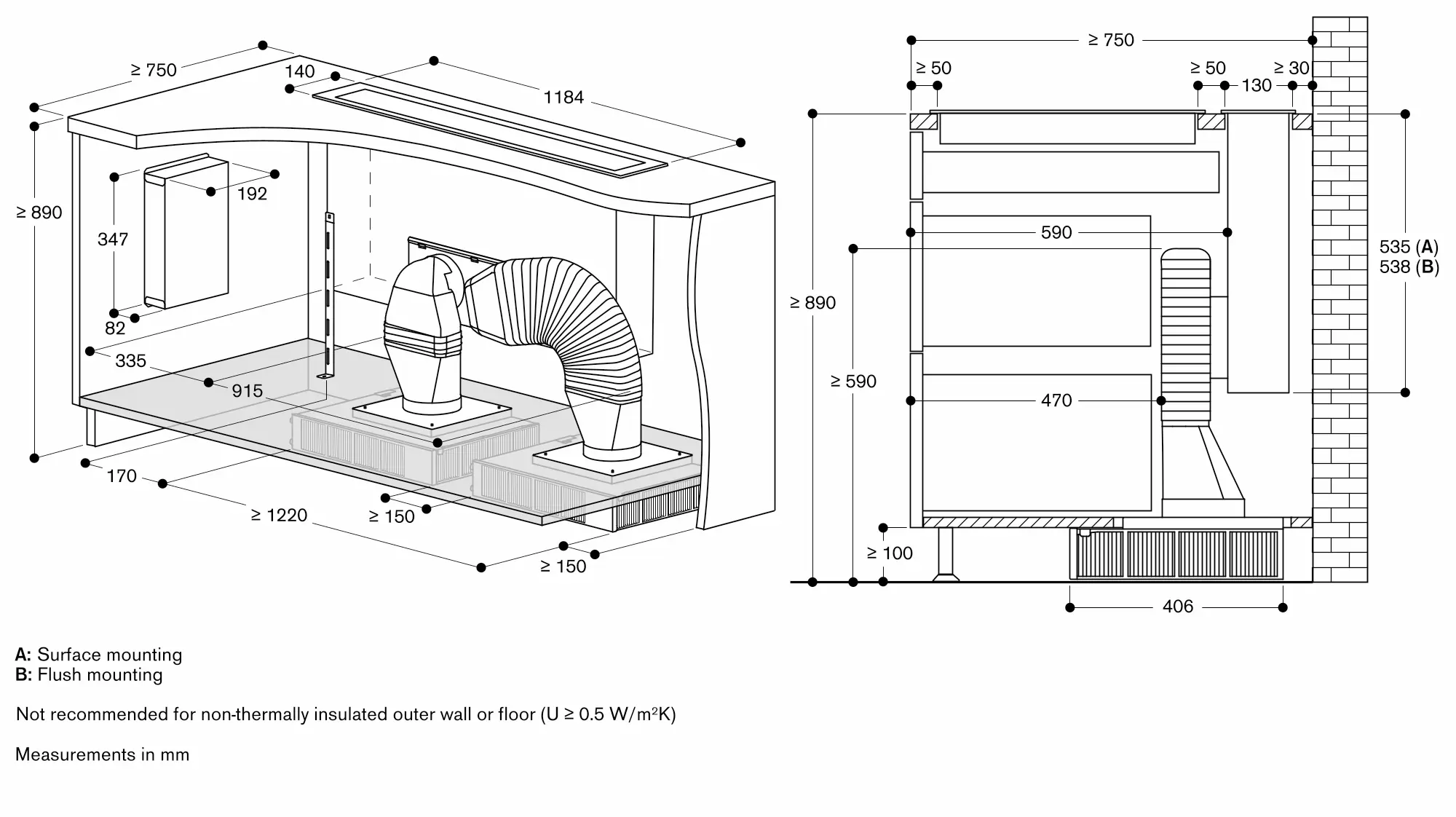

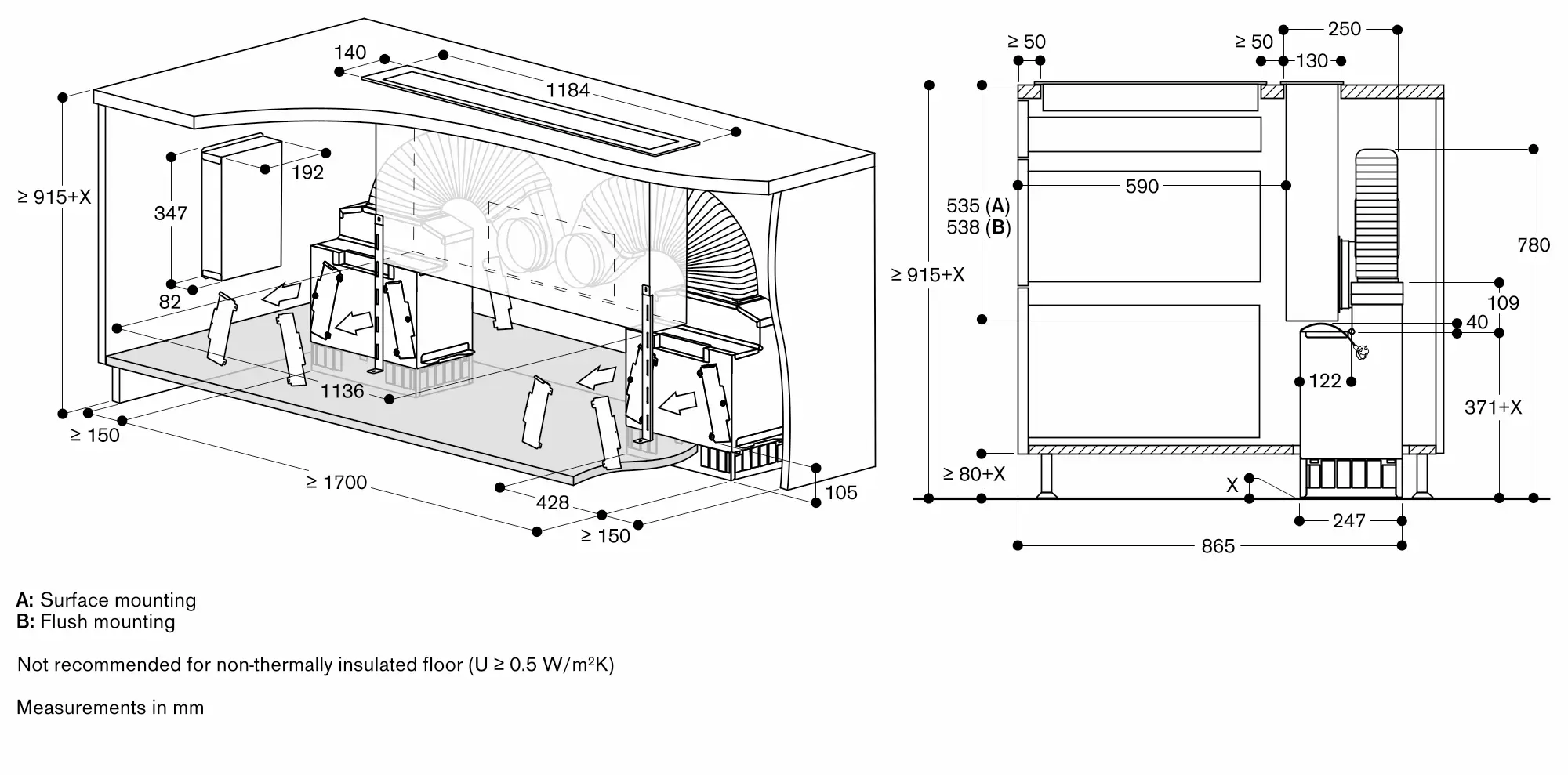

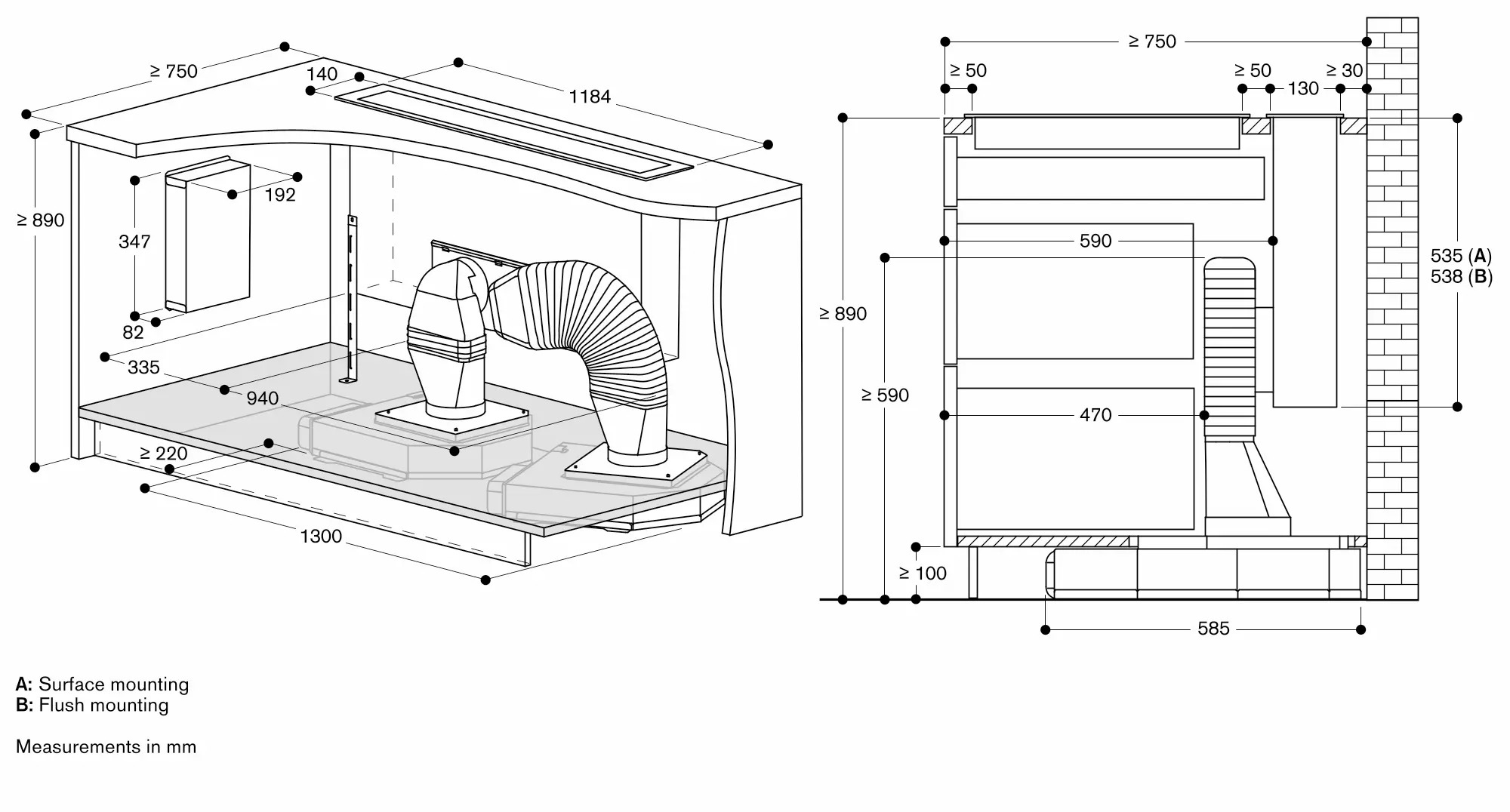

Flexible connection options to the remote fan unit: at the bottom, at the front or at the back.
In all the options, it is possible to have space for drawers in front of the table ventilation.
The table ventilation is recommended only in recirculation mode for Europe, the consumption data is not mandatory in this mode.
Refer to the table on page XX for the matching remote fan units for air recirculation or air extraction mode.
Combinable with all cooktops Vario 400 series and 400 series.
Maximum cooktops width: 120 cm.
It is recommended to use two remote fan units so that sufficient vapour captation will be ensured.

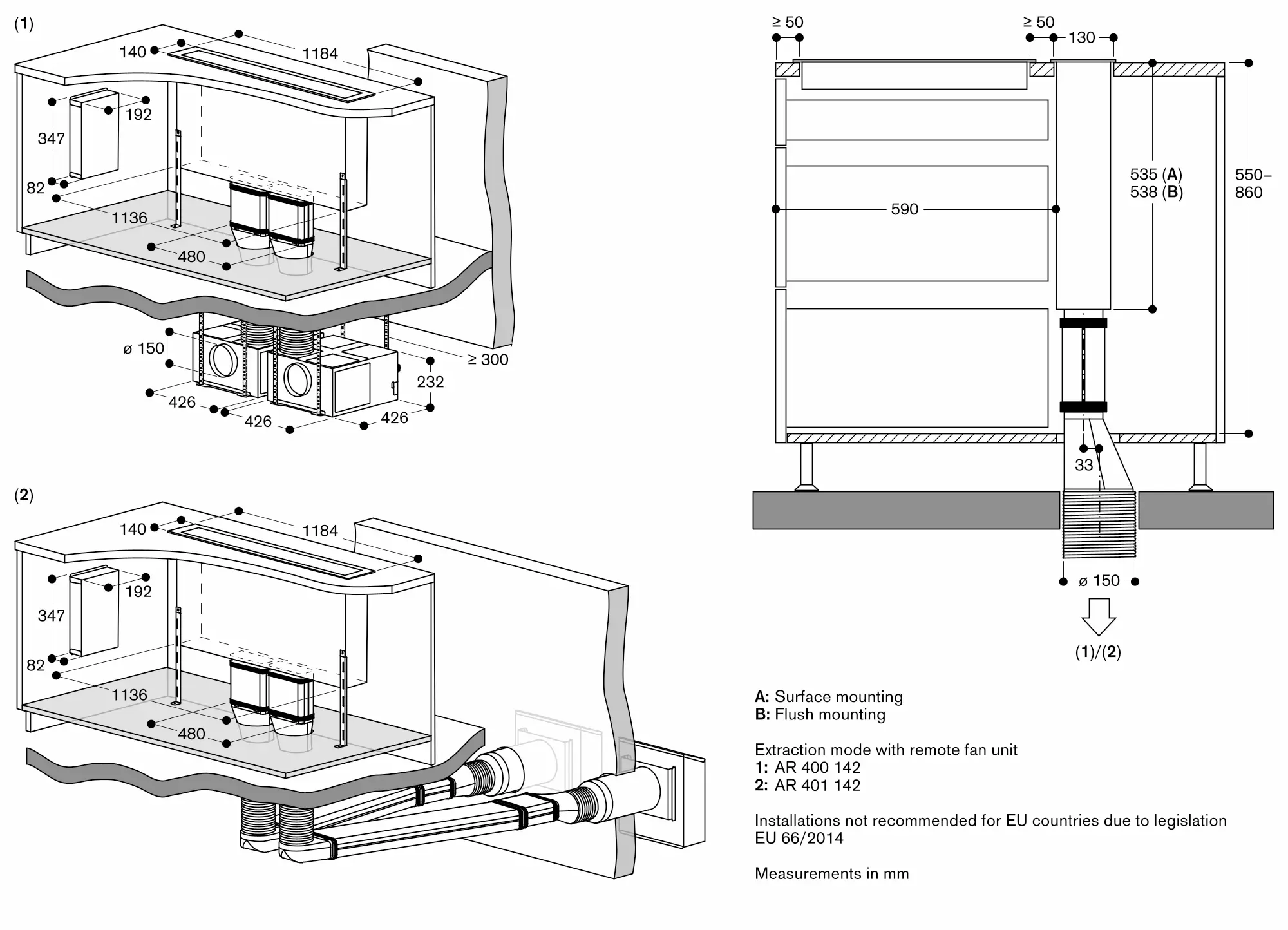

In Europe due to legislation EU 66/2014 only air recirculation is recommended.
Depending on the type of installation, the corresponding accessories must be ordered separately.
Operation of Vario cooking appliances only possible without appliance cover.
Max. output of cooktops 18 kW.
The table ventilation must have its own worktop cut-out.
The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
The remaining surface of the worktop (min. 50 mm) between the cut-outs must be reinforced with a support. It is recommended to use furniture support AA 409 401/431.
Additional instructions for flush installation:
Installation is possible in worktops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the cut edges must be observed. Concerning other materials please consult the worktop manufacturer.
Depending on the type of installation, ovens can be combined with the table ventilation.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs to feature a suitable safety switch.
The control unit should be accessible and be secured to a panel of the cabinet that avoids any risk of flooding.
Total connected load 65 W.
Connecting cable 1.7 m with plug.
Network cable 1,2 m.
