200 series Built-in wine cooler 177.2 x 56 cm
RW282263

Energy label G from G to ADatasheet
Find a local Dealer

Technical Overview

Width of the appliance
557 mm
Energy Efficiency Class Footnote 1: Scale of Energy Efficiency Classes from A to G
G
Capacity of 75 cl bottles
80
Airborne acoustical noise emissions
32 dB(A) re 1pW
Airborne acoustical noise emission class
B
Home Connect Footnote 2: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No

Highlights

Special Features

Humidity level can be increased to avoid drying out of cork
Independent controllable climate zones
Extendable bottle trays in beech and aluminium
Consistant temperatures with exact control from +5 °C to +20 °C

Specifications

Two independantly controllable climate zones
Consistant temperatures with exact control from +5 °C to +20 °C
Humidity control
Extendable bottle trays in beech and aluminium
Presentation light option
Low-vibration operation
Combines with freezer RF 287 or RF 282 (side-by-side integration)
Capacity 80 bottles
Capacity 80 bottles
Electronic temperature control with digital display.
Touch keys.
Presentation light option in each climate zone, dimmable.
Interior LED lighting (3000 K) with automatic dimming with opening and closing of door.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Cushioned door closing system integrated in door hinge.
1 activated charcoal air filter for both climate zones.
UV-protection.
UV-protection.
Open-door and malfunction system.
Child lock.

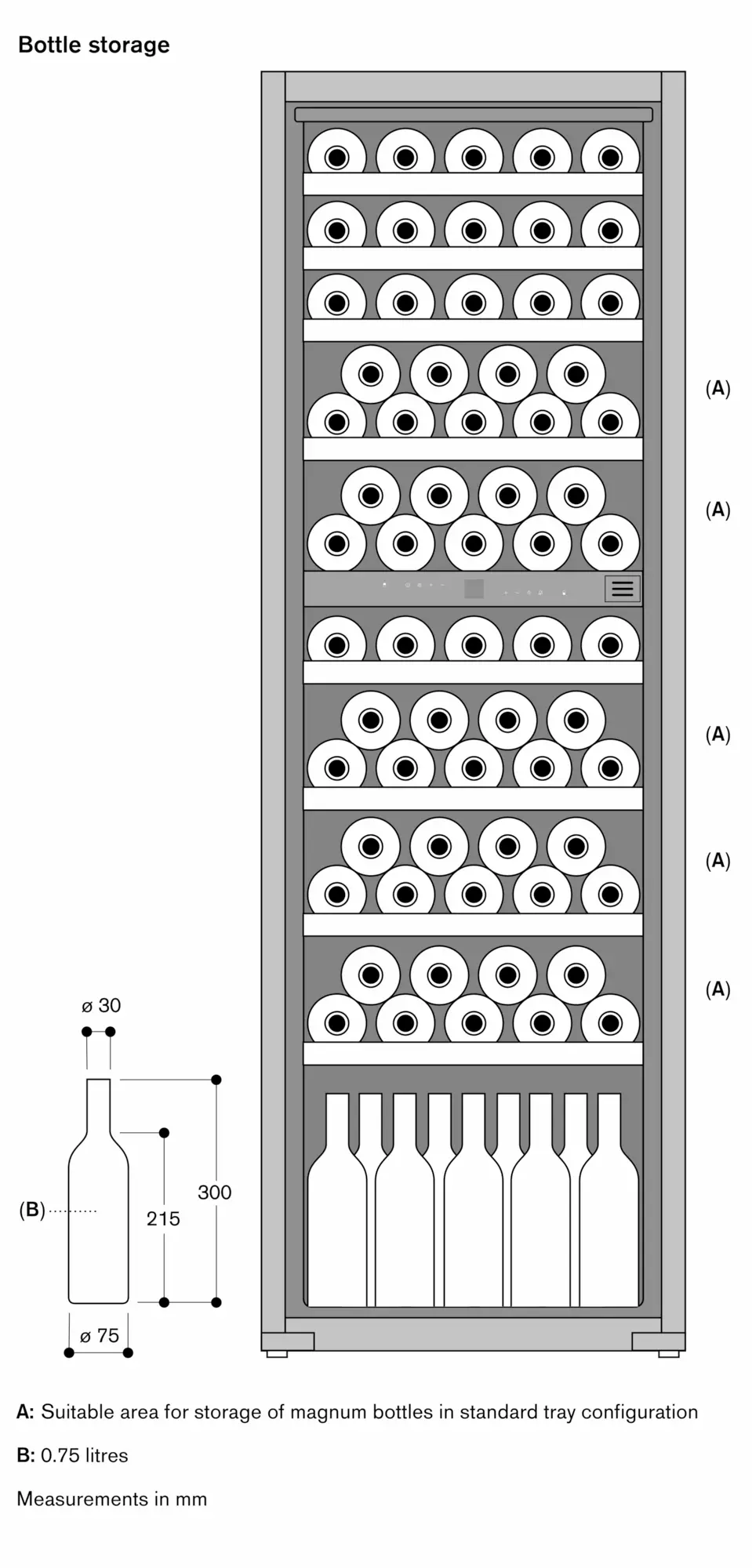

Capacity 80 bottles (based on 0.75 l standard bottles).
Capacity 80 bottles (based on 0.75/l standard bottles).
10 bottle trays, 8 of which are extendable.
Storage of magnum bottles possible.
LED lighting.
Total volume 259 litres.
Energy efficiency class G at a range of energy efficiency classes from A to G.
Energy consumption 162 kWh/year.
Noise level 32 dB (A) re 1 pW.
Flat hinge.
Door hinge right, reversible.
Height-adjustable feet.

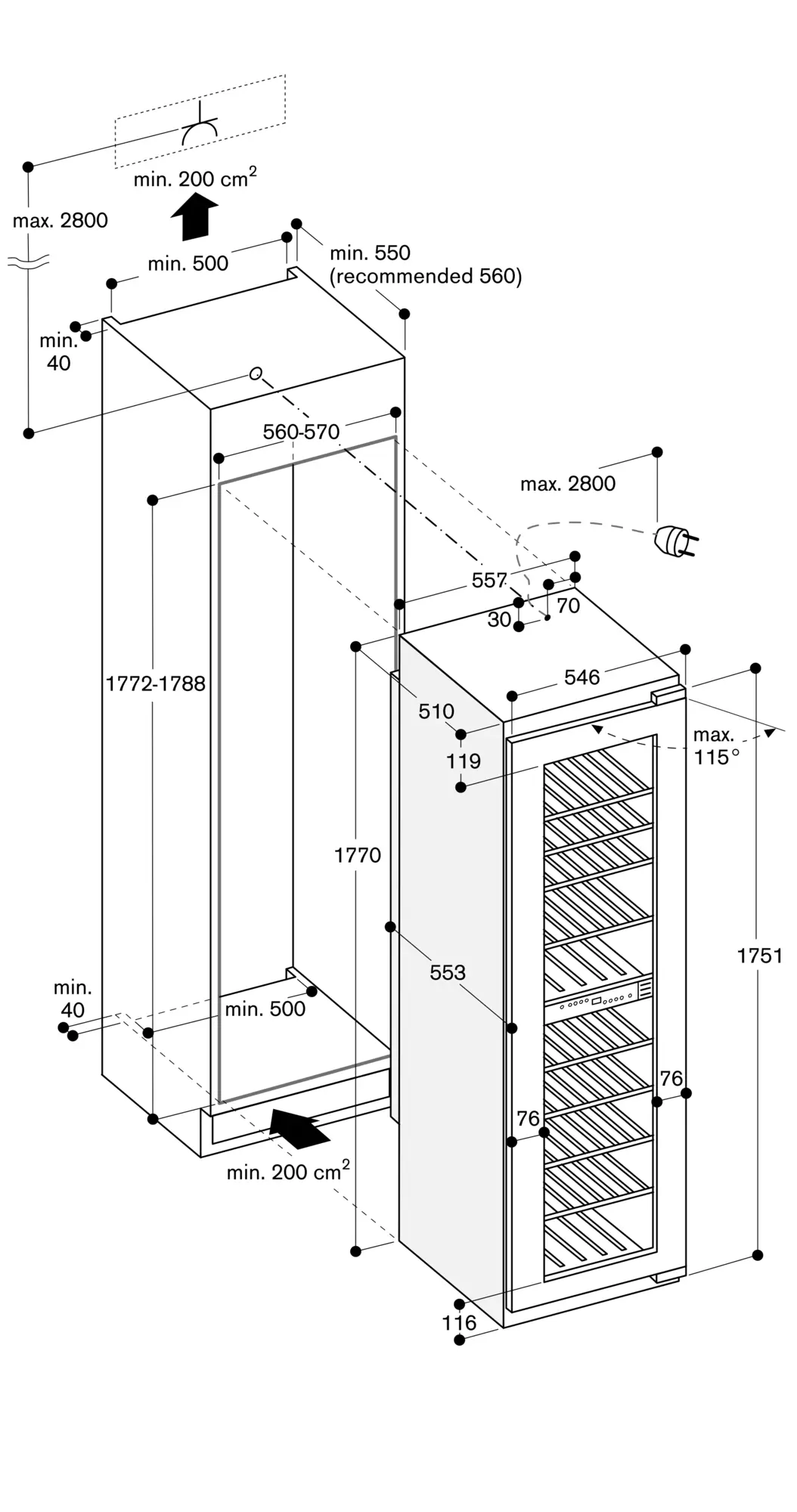

Door opening angle of 115°, fixable at 90°.
Max. door panel weight 20 kg.
Door panel thickness min. 16 mm/ max.22mm.
The main socket needs to be planned outside of the niche.

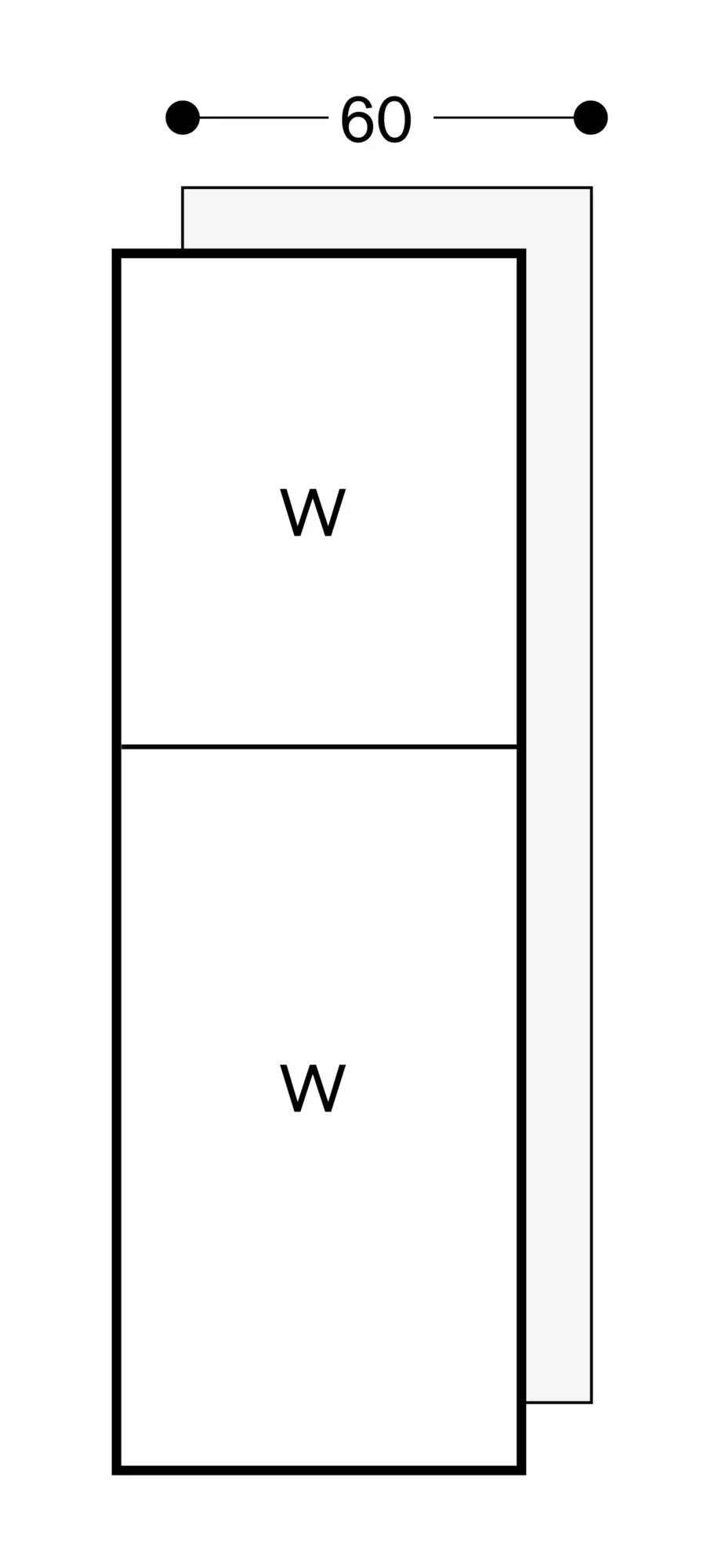

For a side-by-side installation every appliance must be planned in its own niche.
When combining the wine climate cabinet with cooling appliances other than a second wine climate cabinet, these must have side heating to avoid condensation. Without side heating a clearance of min. 150 mm is to be kept between the appliances.
No transport/operation above 1.500 m sea level.
Total connected load 0.130 KW.
Connecting cable 2.8 m with plug.
