12 5/8" cooking zone with booster function

Ideal for round-bottomed wok using wok ring attachment

Frying sensor function for temperature control in pans

Easy control of all functions with bi-coloured display

Solid stainless steel control knobs

Precision crafted 3mm stainless steel frame

For surface-mount installation with a visible edge or for flush installation

Can be perfectly combined with other Vario 400 series appliances

1 induction cooking zone ø 8 1/4" (21cm) (2200 W, with booster 3700 W), automatically switches to ø 10 1/4" (26cm) (2600 W, with booster 3700 W) and to ø 12 5/8" (3300 W, with booster 3700 W).

Control knobs with illuminated

ring, cooking zone and output level

markings.

Electronic power control in 17 output levels.

User friendly control with bi-coloured display (white / orange).

Frying sensor function.

Booster function.

Stopwatch.

Short-term timer.

Options menu.

Residual heat indicator.

Safety shut-off.

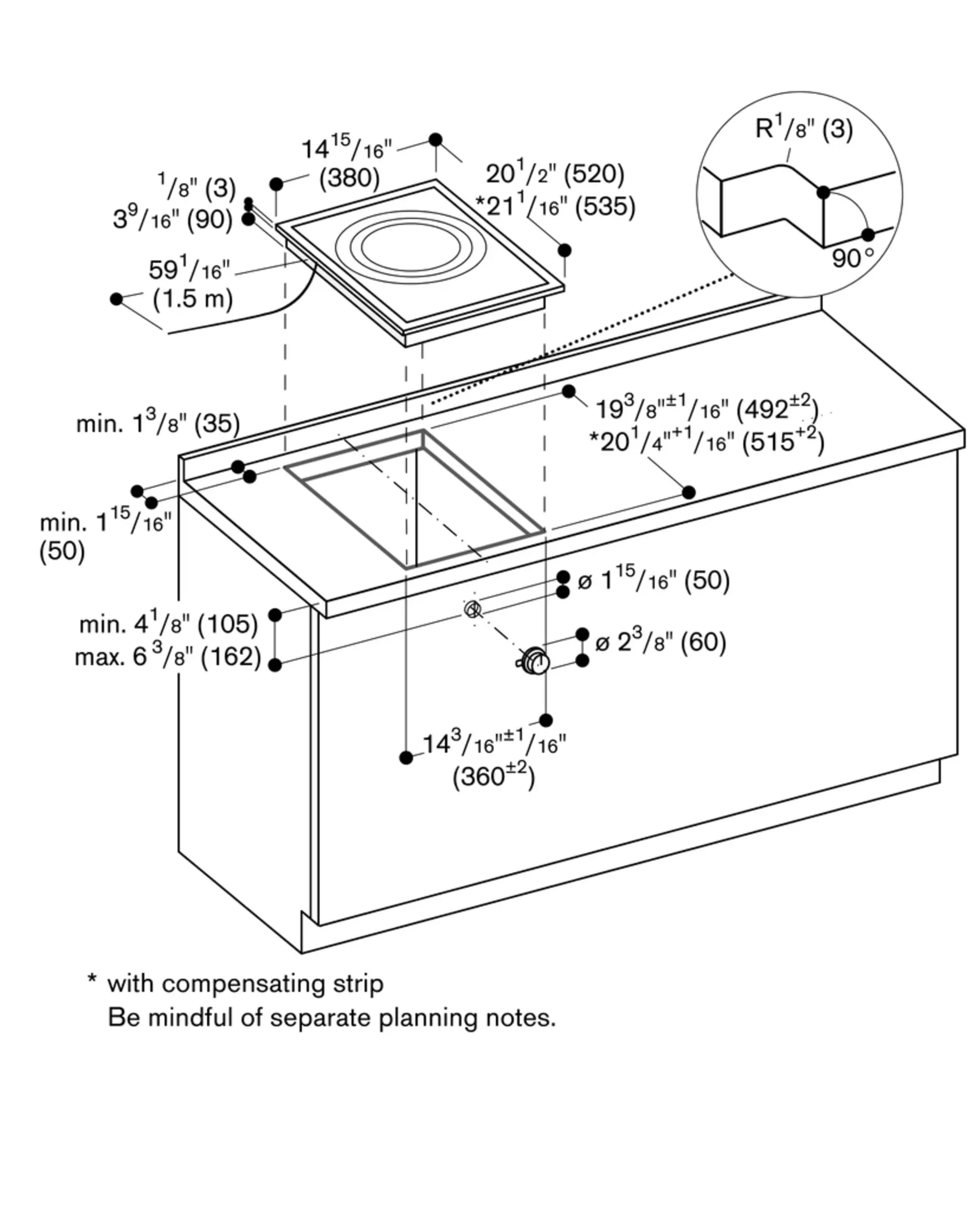

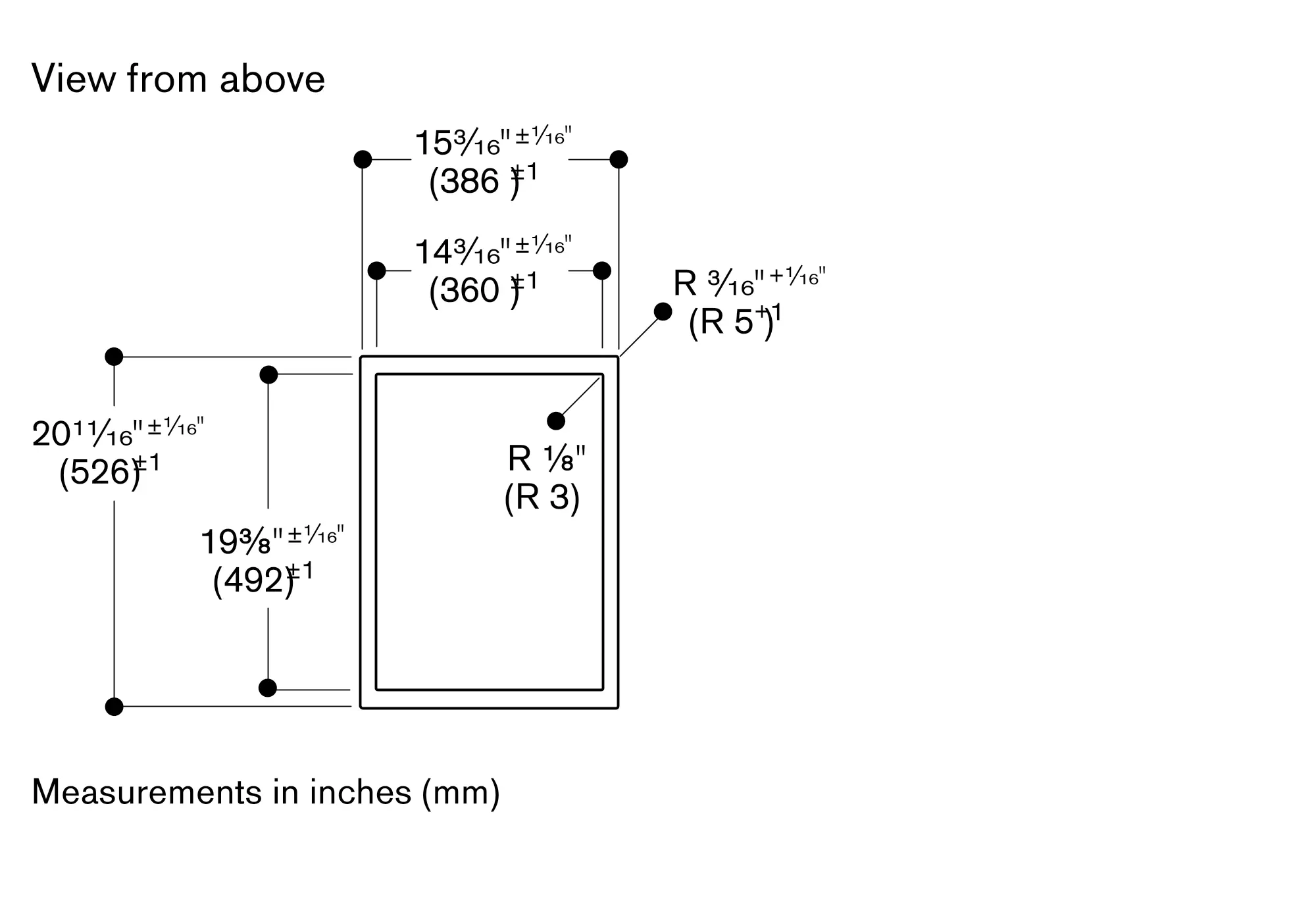

Depending on the type of installation - surface- or flush-mounted, with or without cover - the specific location of the cut-out and the control knob positions may vary.

The adjacent drawing "Installation of the control knob" must be observed if the panel is more than 1" thick. There must be a recess at the rear for proper electronic knob installation.

If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.

The bearing capacity and stability,

in the case of thin countertops in

particular, must be supported using

suitable substructures. Take into

account the appliance weight and

additional loads.

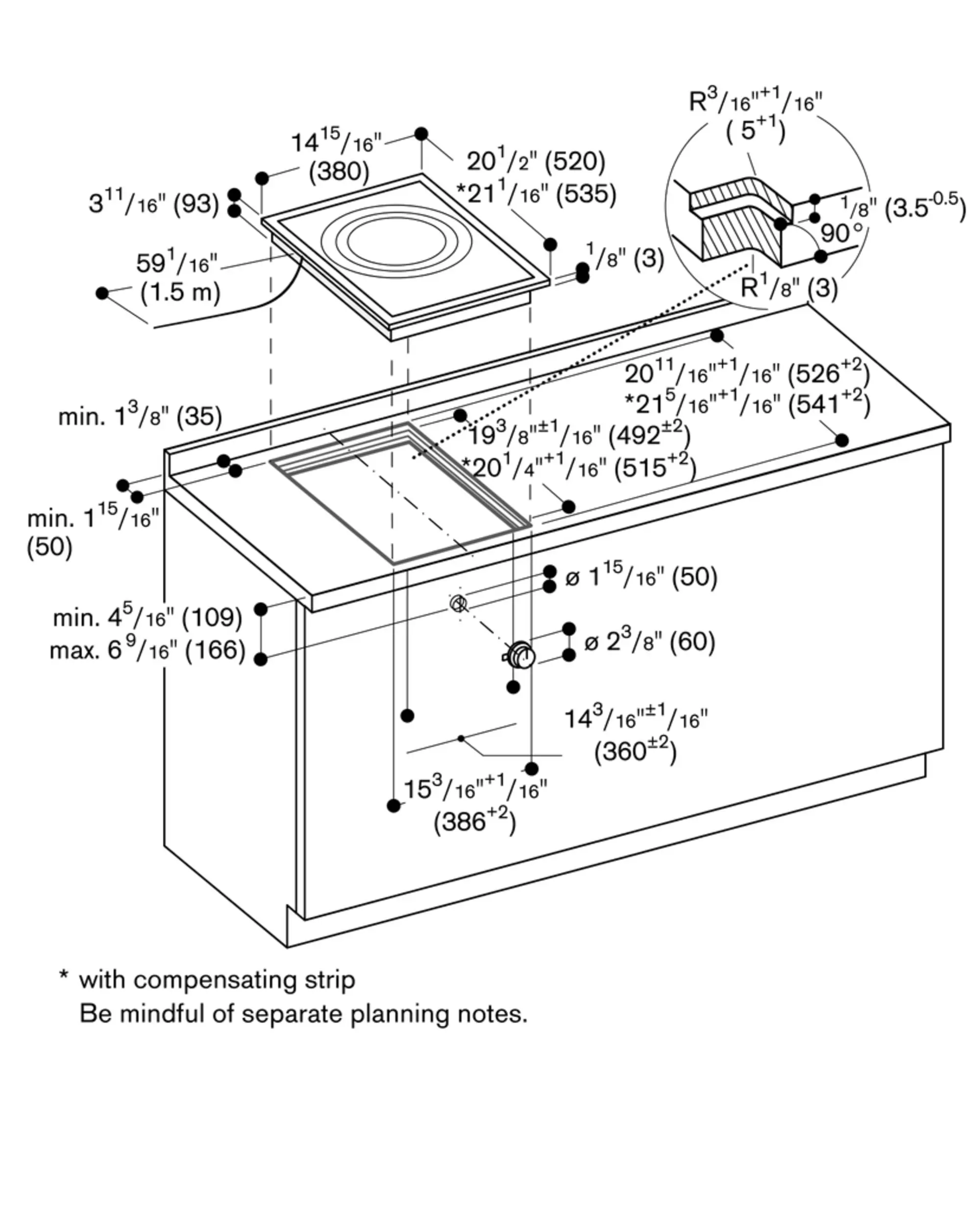

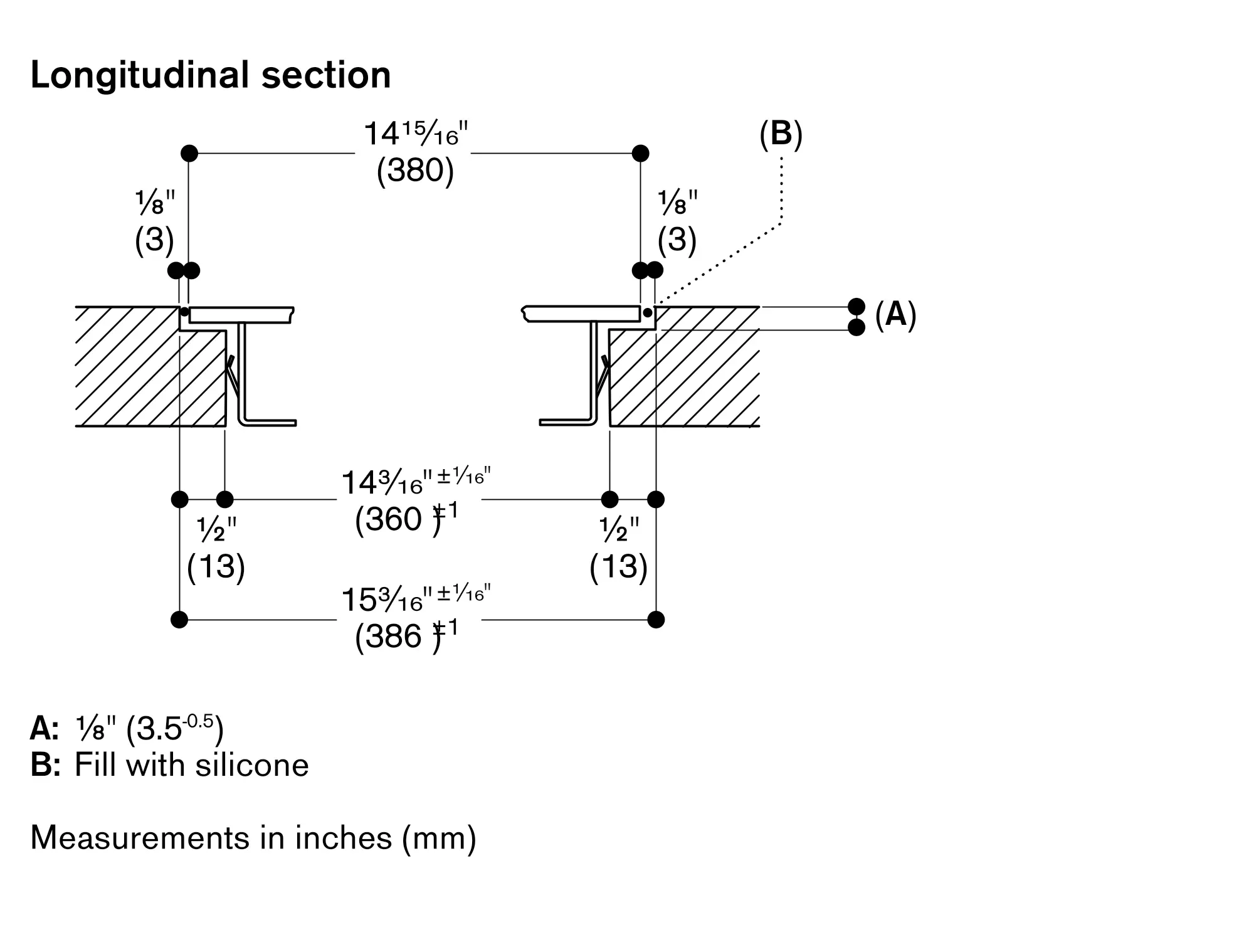

Additional instructions for flush mounting:

Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.

The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.

The joint width may vary due to size tolerances of the combinations and of the countertop cut-out.

If installing several appliances in individual cut-outs allow for a division bar of inimum 1 ³¹⁄₃₂" (50 mm) between the individual cut-outs.

Operates with magnetic (induction)

iron pots and pans only. For an optimal

heat distribution, the use of flat bottom

cookware is recommended.

Appliance can be snapped into the countertop from above.

Appliance weight: approx. 7 kg.

Total rating: Connected load: 3120 W
