Can be combined with cooktops of the Vario 200 series to a harmonic unity

Highly efficient ventilation system at the cooktop integrated in the countertop

Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapors

Low planning and installation effort.

Low-noise system with the AR 410 710 blower

Air extraction or air recirculation system

Noise level depends on the built-in situation.

Control knobs with illuminated ring.

3 electronically controlled power levels and 1 intensive mode.

Large-scale metal grease filter with high grease absorption.

Grease filter and activated charcoal filter saturation indicator.

Airflow-optimised interior for efficient air circulation.

Interval ventilation, 6 min.

Enameled ventilation grill is dishwasher-safe.

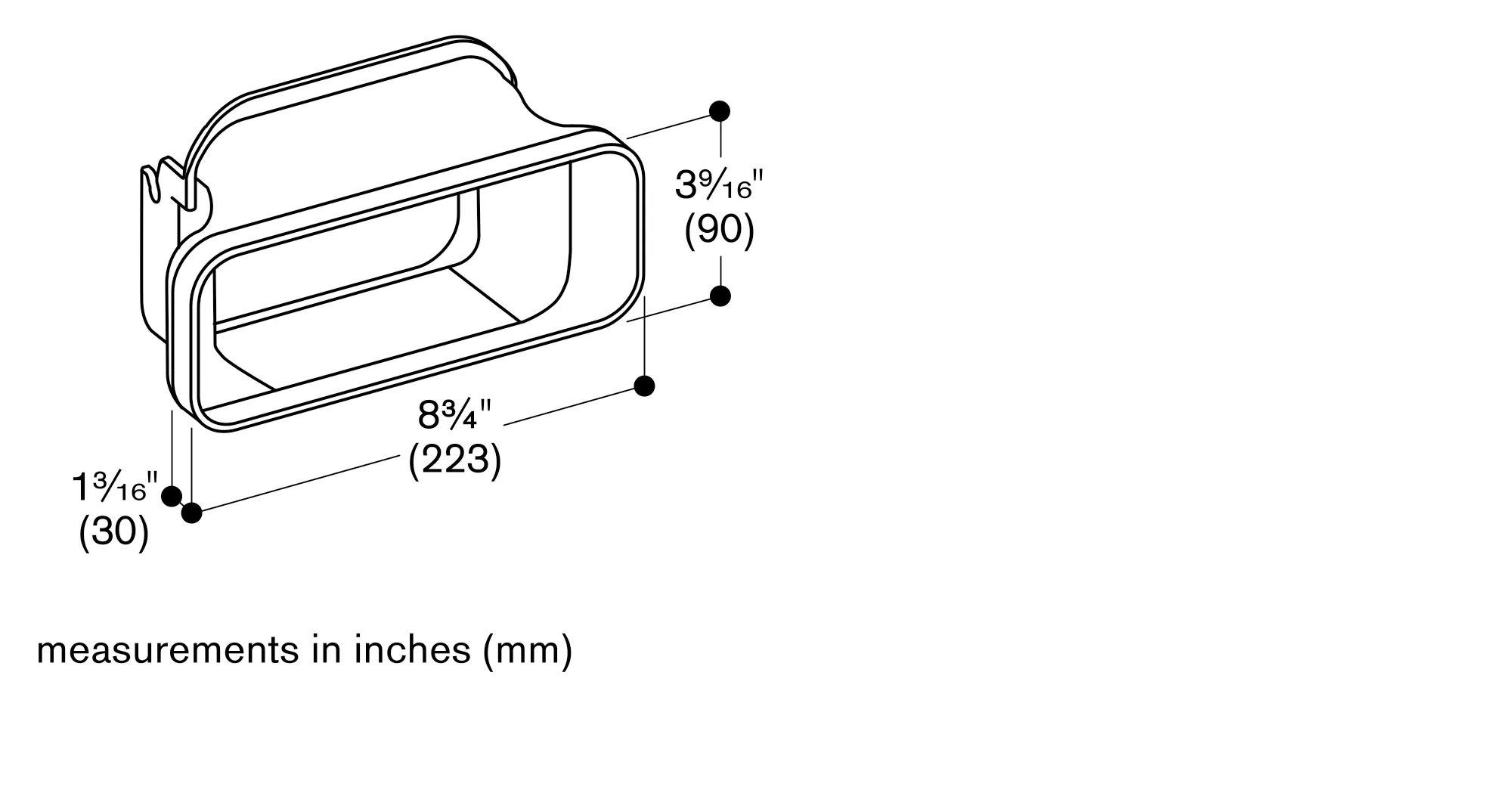

Air exhaust bend included in delivery.

Overflow 8.5 oz (250 ml) capacity.

Consumption data is referred to a configuration with the recirculation blower AR 410 710.

Sound level min. 56 dB / max. 71 dB normal mode.

For each VL one blower is recommended.

Maximum cooktop width between two VL downdrafts is 24".

If installed next to gas appliances, the ventilation deflector LA 041 001 is recommended to ensure maximum performance of the cooktop.

When having installed the ventilation deflector LS 041 001 the wok pan WP 400 001 can not be used.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.

Please read additional planning notes on page 104.
