Technical Overview
Product group for which the accessory is available
Hood
Accessory Type

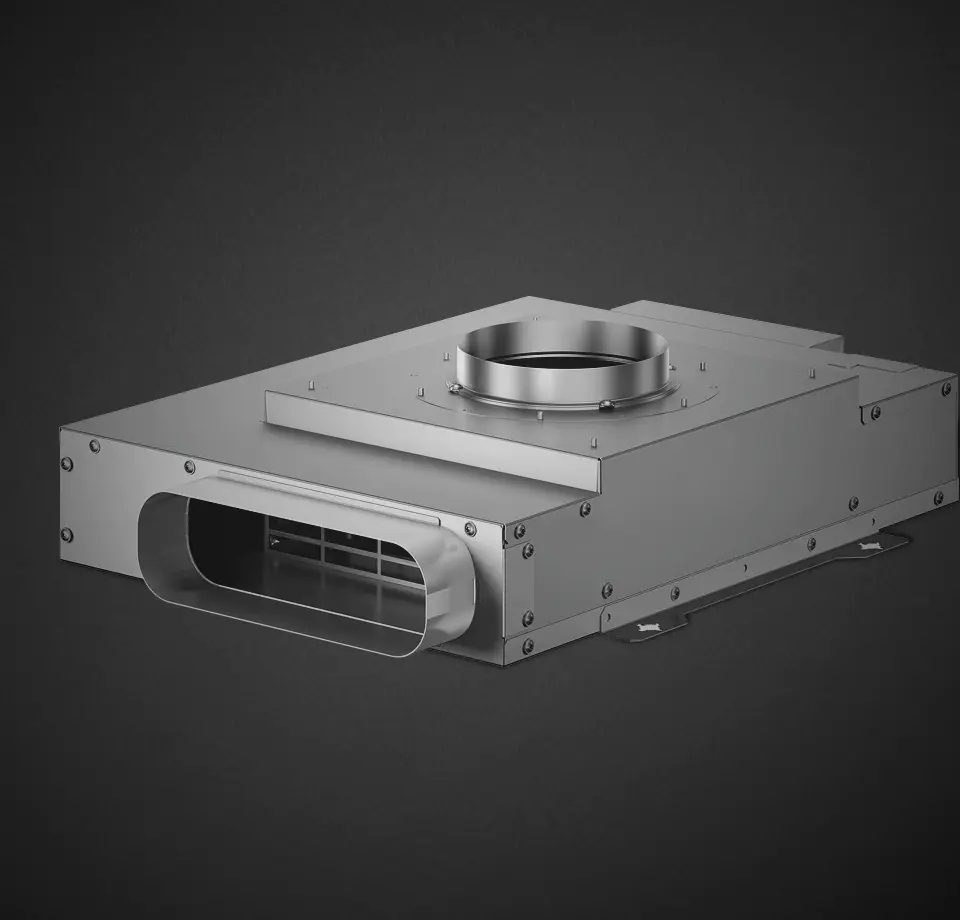

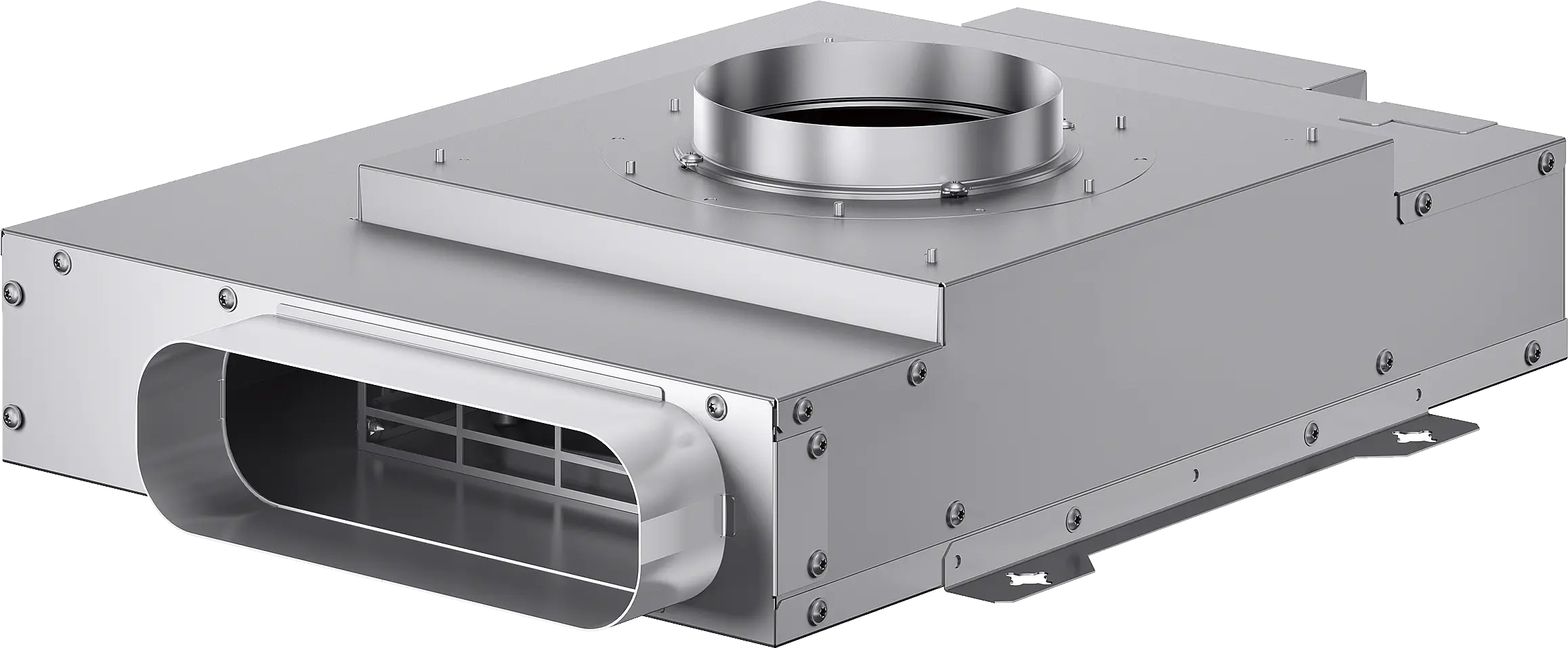

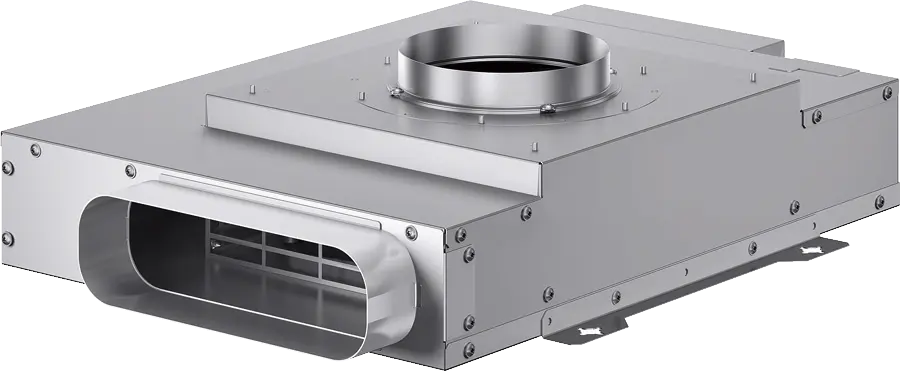

In-line Blower
Special Features
Efficient BLDC technology
Compact and space-saving due to installation in a 4-inch high toe-kick
Power levels depend on the ventilation system.
3 electronically controlled power levels and one intensive mode.
Fan technology with highly efficient, brushless DC motor (BLDC).
Additional information
Efficient BLDC technology
Compact and space-saving due to installation in a 4-inch high toe-kick
Power levels depend on the ventilation system.
3 electronically controlled power levels and one intensive mode.
Fan technology with highly efficient, brushless DC motor (BLDC).
Retaining bracket for installation on the ceiling or side of a cupboard enclosed.
For the air recirculation mode the accessories AA 413 722 and AD 413 722 are needed.
Connection to the respective appliances via network cable.

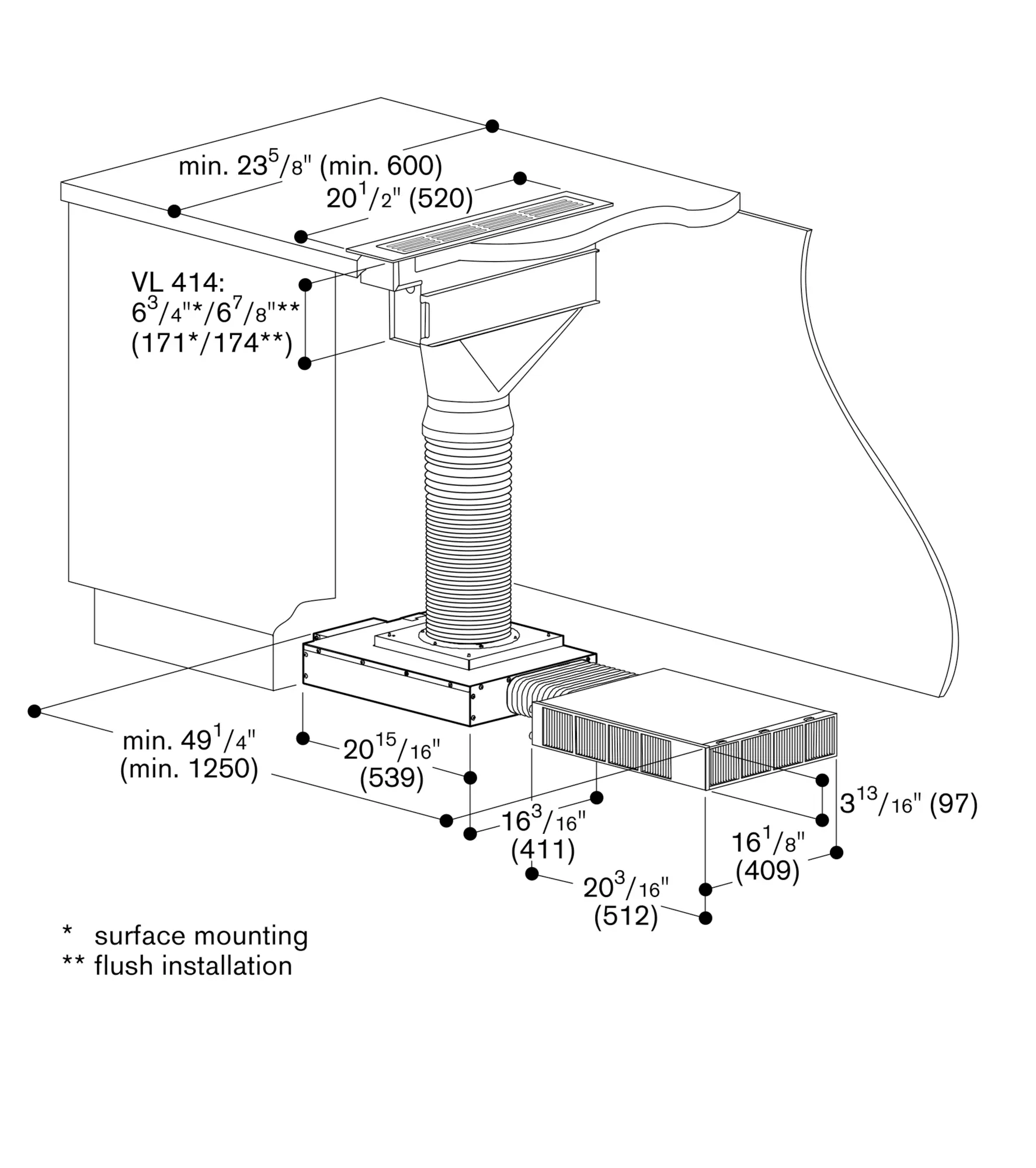

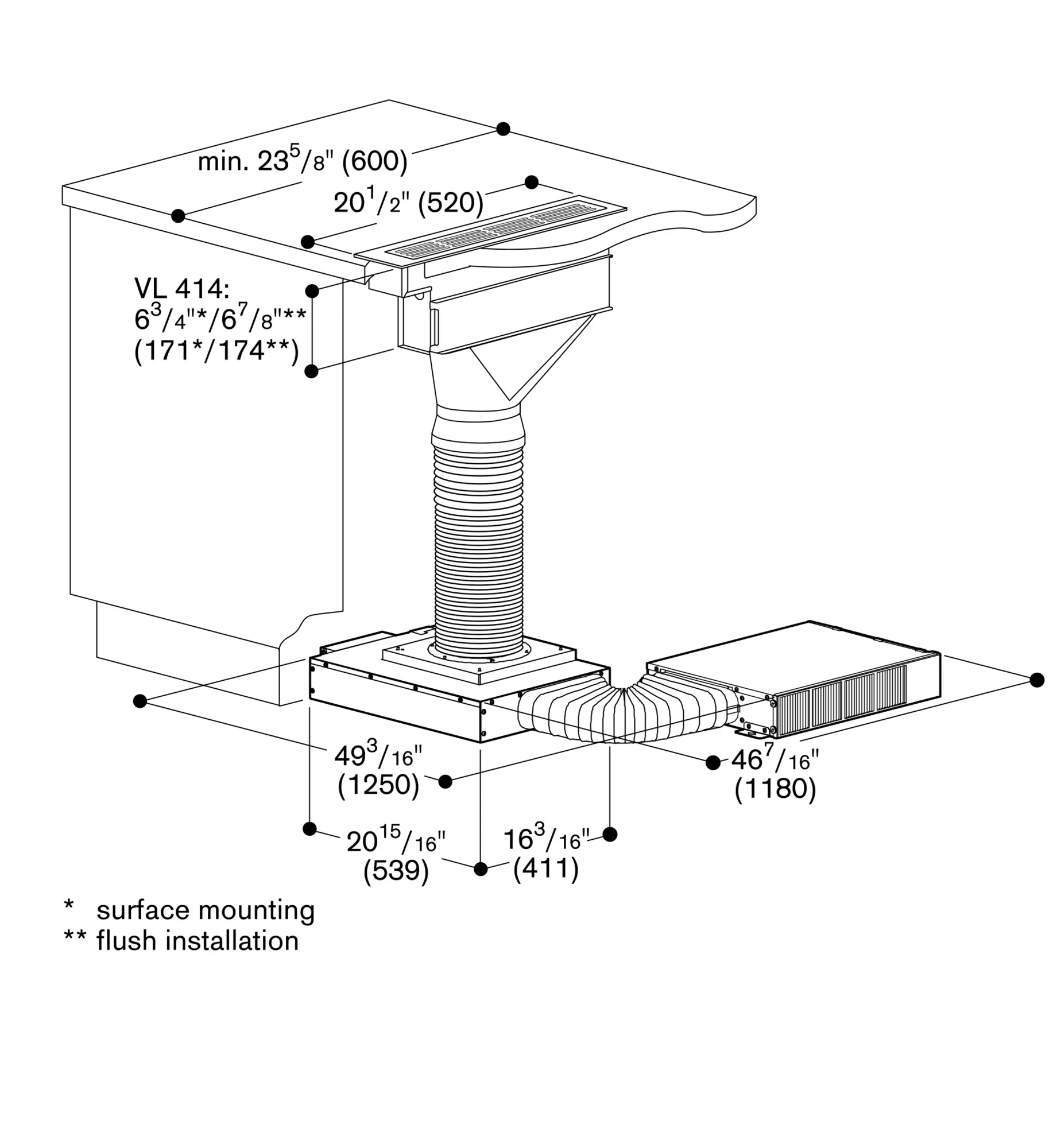

Installation in a 4-inch high toe-tick with cut-out for the air ducting in the furniture base.
Total rating: 170 W.
120 V / 60 Hz.
78" network cable included.
